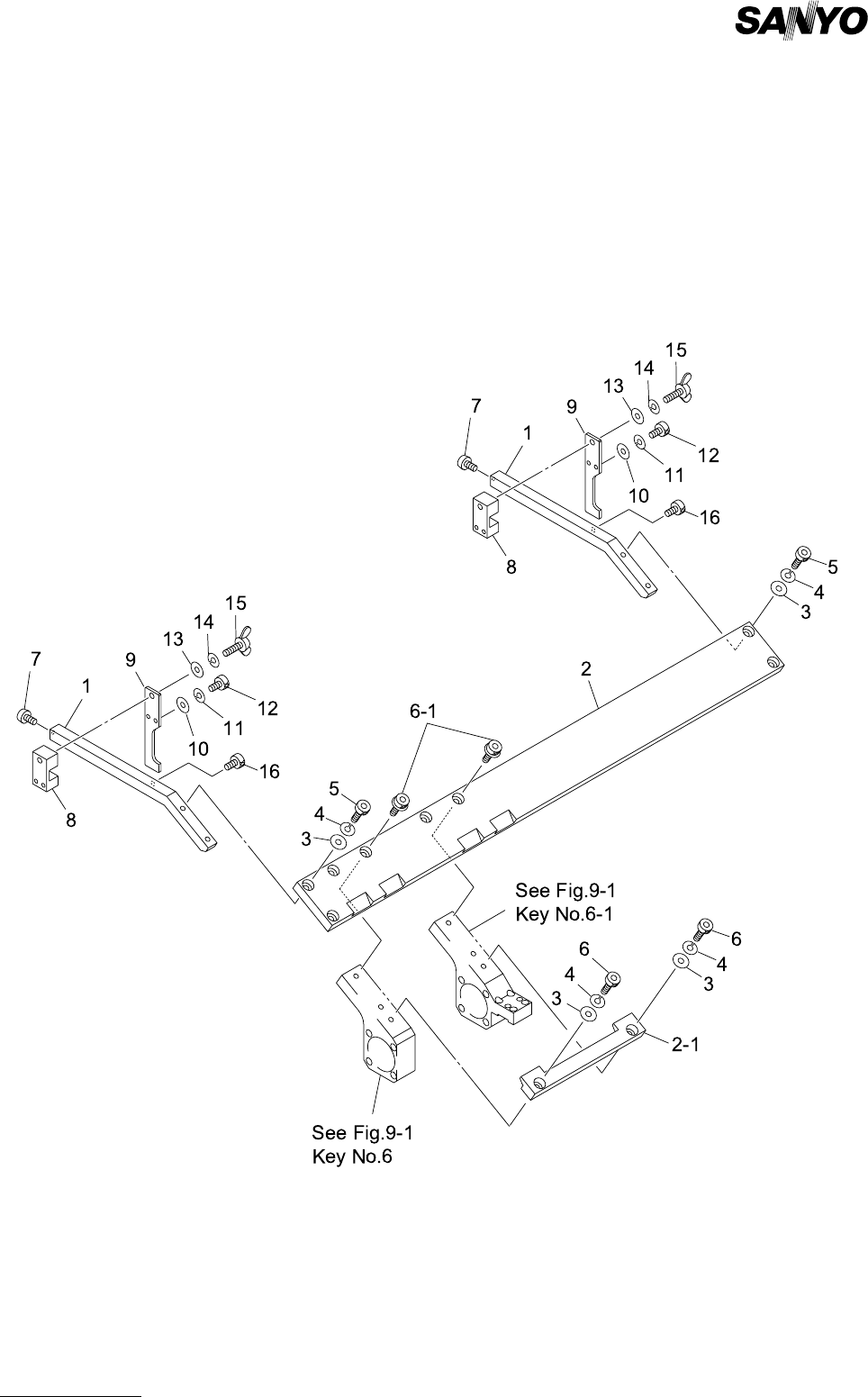

MODEL TCM-3700 9912-001 トランスファ部 TRANSFER SECTION Fig. 9-4 送り竿 T ransfar Rod

MEMO

MODEL TCM-3700

9912-001

トランスファ部 TRANSFER SECTION

Fig. 9-4 送り竿 Transfar Rod

MODEL TCM-3700

9912-001

9- 4

PART No. PART NAME Q'ty REMARKS

1 630 065 4202 STAY 2 739F--01B-023

2 630 084 4139 PLATE(FEED) 1 739F--01B-022

2 -1 630 065 4219 GUIDE(FEED) 1 739F--01B-033

3 411 141 4107 WASHER V 5X10X1 6 FW5

4 411 141 6705 WASHER SPR 5 6 SW5

5 630 000 7787 BOLT,HEX-SCT 4 M5X25

6 630 000 7787 BOLT,HEX-SCT 2 M5X25

6 -1 630 008 1213 BOLT,HEX-SCT 2 739F--01H-032

7 411 140 8007 SCR TRS 5X6 2 M5X6 TRS

8 630 005 6525 BLOCK 2 739F--01B-024

9 630 057 7068 PLATE(PUSH) 2 739F--01B-025

10 411 141 4008 WASHER V 4X9X0.8 4 FW4

11 411 141 2905 WASHER SPR 4 4 SW4

12 630 000 7633 BOLT,HEX-SCT 4 M4X12

13 411 141 4305 WASHER V 6X12.5X1.6 2 FW6

14 411 141 3001 WASHER SPR 6 2 SW6

15 411 140 6003 BOLT WING 6X20 2 739F--01H-026

16 630 000 7503 BOLT,HEX-SCT 2 M3X6
