MODEL TCM-3700

9912-001

空圧制御部 PNEUMATIC SECTION

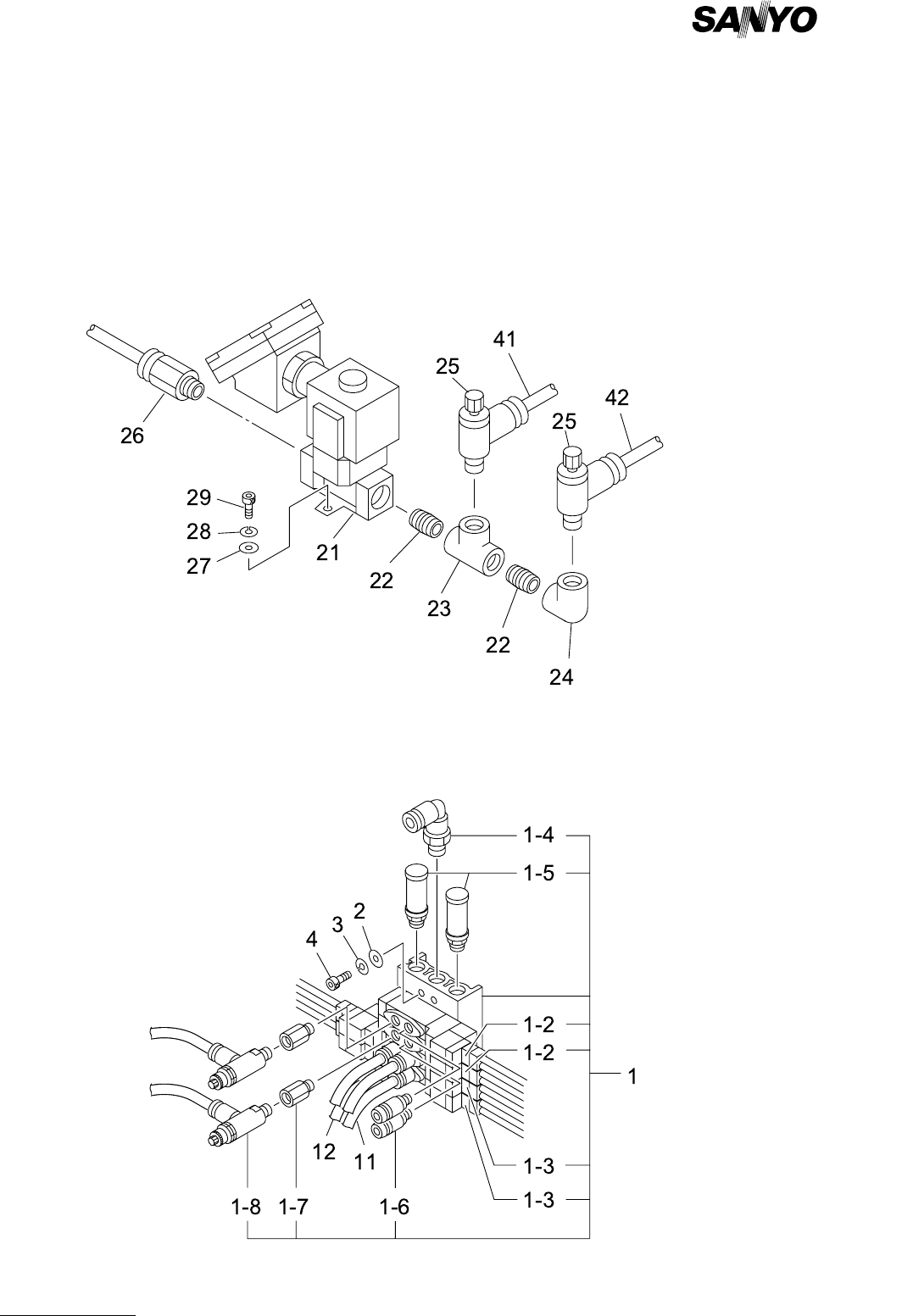

Fig.10-3 エア配管 Air Piping

MODEL TCM-3700

9912-001

10- 3

PART No. PART NAME Q'ty REMARKS

1 630 064 2087 SOLENOID VALVE 1 739F--01H-030

1 -2 630 081 3609 SOLENOID VALVE 2

1 -3 630 081 3593 SOLENOID VALVE 2

1 -4 630 052 1993 PIPE FITTINGS 1

1 -5 630 003 6541 AIR LINE EQPT 2

1 -6 630 040 4067 PIPE FITTINGS 2

1 -7 630 003 8293 PIPE FITTINGS 2

1 -8 630 065 7296 AIR LINE EQPT 2

2 411 141 4008 WASHER V 4X9X0.8 2 FW4

3 411 141 2905 WASHER SPR 4 2 SW4

4 630 000 7688 BOLT,HEX-SCT 2 M4X30

21 630 000 1709 SOLENOID VALVE 1 739L--01H-014

22 630 003 8163 PIPE FITTINGS 2

23 630 003 8064 PIPE FITTINGS 1

24 630 003 7821 PIPE FITTINGS 1

25 630 003 6688 AIR LINE EQPT 2 739L--01H-015

26 630 031 8579 PIPE FITTINGS 1 739L--01H-016

27 411 141 4008 WASHER V 4X9X0.8 2 FW4

28 411 141 2905 WASHER SPR 4 2 SW4

29 630 000 7619 BOLT,HEX-SCT 2 M4X8

Key No.

NOTE

MODEL TCM-3700

9912-001

電気制御部 ELECTRICAL SECTION

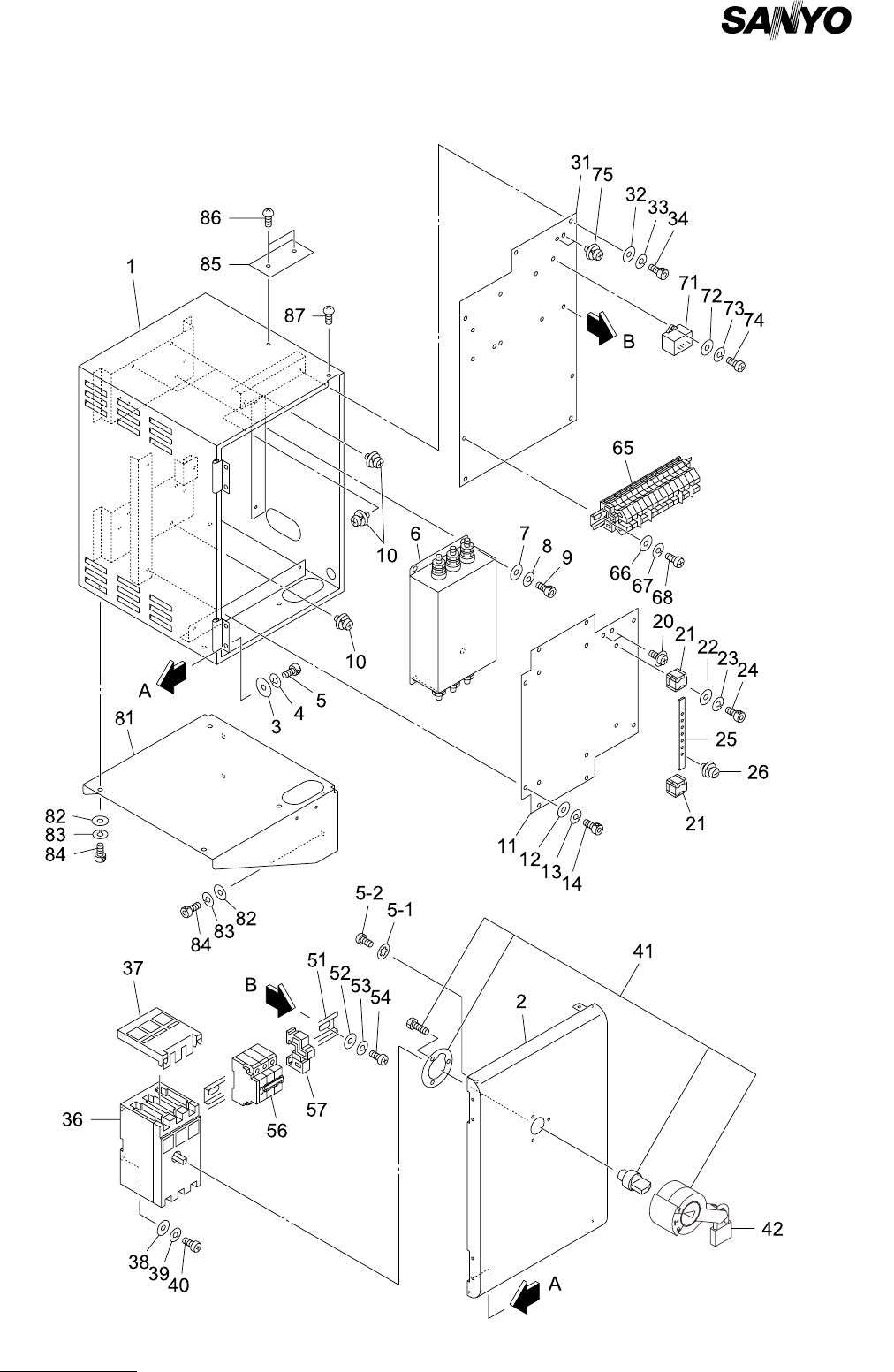

Fig.11-1 一次電源 Power Supply-Primary
