MODEL TCM-3700
9912-001

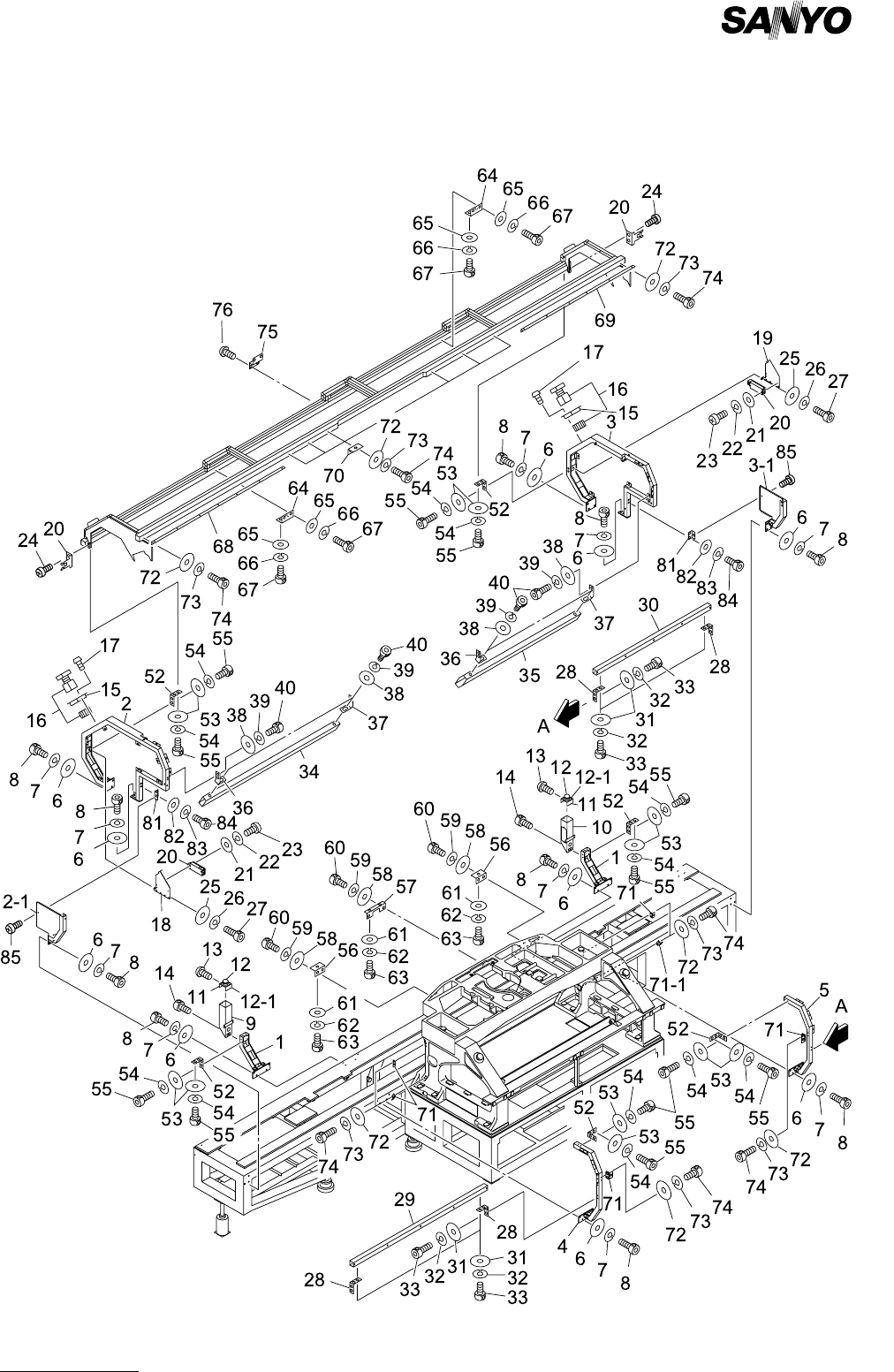

後面カバー部 REAR COVER SECTION
Fig.13-1 ガード支柱 Guard Stay
MODEL TCM-3700
9912-001
13- 1
PART No. PART NAME Q'ty REMARKS
1 630 085 4664 FRAME 2 739RB-01B-001
2 630 085 4688 FRAME 1 739RB-01B-004
2 -1 630 085 4725 FRAME 1 739RB-01B-008
3 630 085 4671 FRAME 1 739RB-01B-003
3 -1 630 085 4718 FRAME 1 739RB-01B-007
4 630 085 4701 FRAME 1 739RB-01B-006
5 630 085 4695 FRAME 1 739RB-01B-005
6 630 001 0237 WASHER 32 BW6
7 411 141 3001 WASHER SPR 6 32 SW6
8 630 000 7893 BOLT,HEX-SCT 32 M6X20
9 630 085 4749 FRAME 1 739RB-01B-011
10 630 085 4732 FRAME 1 739RB-01B-010
11 630 065 3397 BRACKET(STOP) 2 739RB-01B-014
12 630 064 6528 SWITCH,BUTTON 2 739FB-01D-001
12 -1 630 064 6320 NAME PLATE,NOTICE 2 739FB-01D-078
13 411 140 8007 SCR TRS 5X6 2 M5X6 TRS
14 630 000 7756 BOLT,HEX-SCT 2 M5X12
15 630 056 3085 BRACKET 2 739RB-01B-027
16 630 000 2713 SWITCH,BUTTON 2 739FB-01D-009
17 411 113 9109 SCR TRS 5X10 4 M5X10 TRS
18 630 059 9497 PLATE 1 739RB-01B-026
19 630 059 9480 PLATE 1 739RB-01B-025
20 630 050 0806 SOLENOID 2 739RB-01H-003
21 411 119 2104 WASHER V 4X9X0.8 6 FW4 F
22 411 008 1706 WASHER SPR 4 6 SW4 F
23 630 000 9286 MACHINE SCREW 6 M4X50 PAN
24 411 051 2804 SCR TRS 4X8 4 M4X8 TRS
25 630 001 0220 WASHER 12 BW5
26 411 141 6705 WASHER SPR 5 12 SW5
27 630 000 7756 BOLT,HEX-SCT 12 M5X12
28 630 059 8056 SUPPORT 4 739RB-01B-012
29 630 060 0476 FRAME 1 739RB-01B-033
30 630 059 9657 FRAME 1 739RB-01B-032
31 630 001 0220 WASHER 16 BW5
32 411 141 6705 WASHER SPR 5 16 SW5
33 630 000 7756 BOLT,HEX-SCT 16 M5X12
34 630 057 6405 STAY 1 739RB-01B-018
35 630 057 6399 STAY 1 739RB-01B-017
36 630 059 8063 SUPPORT 2 739RB-01B-019
37 630 059 8070 SUPPORT 2 739RB-01B-020
38 630 001 0220 WASHER 12 BW5
39 411 141 6705 WASHER SPR 5 12 SW5
40 630 000 7756 BOLT,HEX-SCT 12 M5X12
52 630 059 8056 SUPPORT 6 739RB-01B-012
53 630 001 0220 WASHER 24 BW5
54 411 141 6705 WASHER SPR 5 24 SW5
55 630 000 7756 BOLT,HEX-SCT 24 M5X12
56 630 059 8094 BRACKET 2 739RB-01B-016
57 630 059 8087 BRACKET 1 739RB-01B-015
58 630 001 0220 WASHER 6 BW5
Key No.
NOTE
MODEL TCM-3700
9912-001
13- 1
PART No. PART NAME Q'ty REMARKS
59 411 141 6705 WASHER SPR 5 6 SW5
60 630 000 7756 BOLT,HEX-SCT 6 M5X12
61 411 141 4008 WASHER V 4X9X0.8 4 FW4
62 411 141 2905 WASHER SPR 4 4 SW4
63 630 000 7626 BOLT,HEX-SCT 4 M4X10
64 630 059 9305 SUPPORT 2 739RB-01B-021
65 411 141 4107 WASHER V 5X10X1 8 FW5
66 411 141 6705 WASHER SPR 5 8 SW5
67 630 000 7749 BOLT,HEX-SCT 8 M5X10
68 630 060 9332 BRACKET 1 739RB-01B-050
69 630 060 9325 BRACKET 1 739RB-01B-048
70 630 059 9589 BRACKET 8 739RB-01B-013
71 630 059 9602 BRACKET 5 739RB-01B-047
71 -1 630 084 4351 BRACKET 1 739RB-01B-052
72 630 001 0220 WASHER 42 BW5
73 411 141 6705 WASHER SPR 5 42 SW5
74 630 000 7756 BOLT,HEX-SCT 42 M5X12
75 630 066 1446 PLATE 1 739RB-01B-042
76 411 113 9109 SCR TRS 5X10 4 M5X10 TRS
81 630 066 3167 BRACKET 2 739RB-01B-051
82 411 141 4107 WASHER V 5X10X1 4 FW5
83 411 141 6705 WASHER SPR 5 4 SW5
84 630 000 7756 BOLT,HEX-SCT 4 M5X12
85 411 113 9109 SCR TRS 5X10 2 M5X10 TRS
Key No.
NOTE
