MODEL TCM-3700 9912-001 4- 1 PART No. PART NAME Q'ty REMARK S 1 630 084 4368 STA Y 1 739L--01B-015 2 630 064 5422 STA Y 1 739L--01B-016 3 630 001 0251 W ASHER 2 739L--01H-073 3 -1 630 084 4375 W ASHER 2 739L--01B-04…
MODEL TCM-3700
9912-001
中間ベース部 MIDDLE BASE SECTION

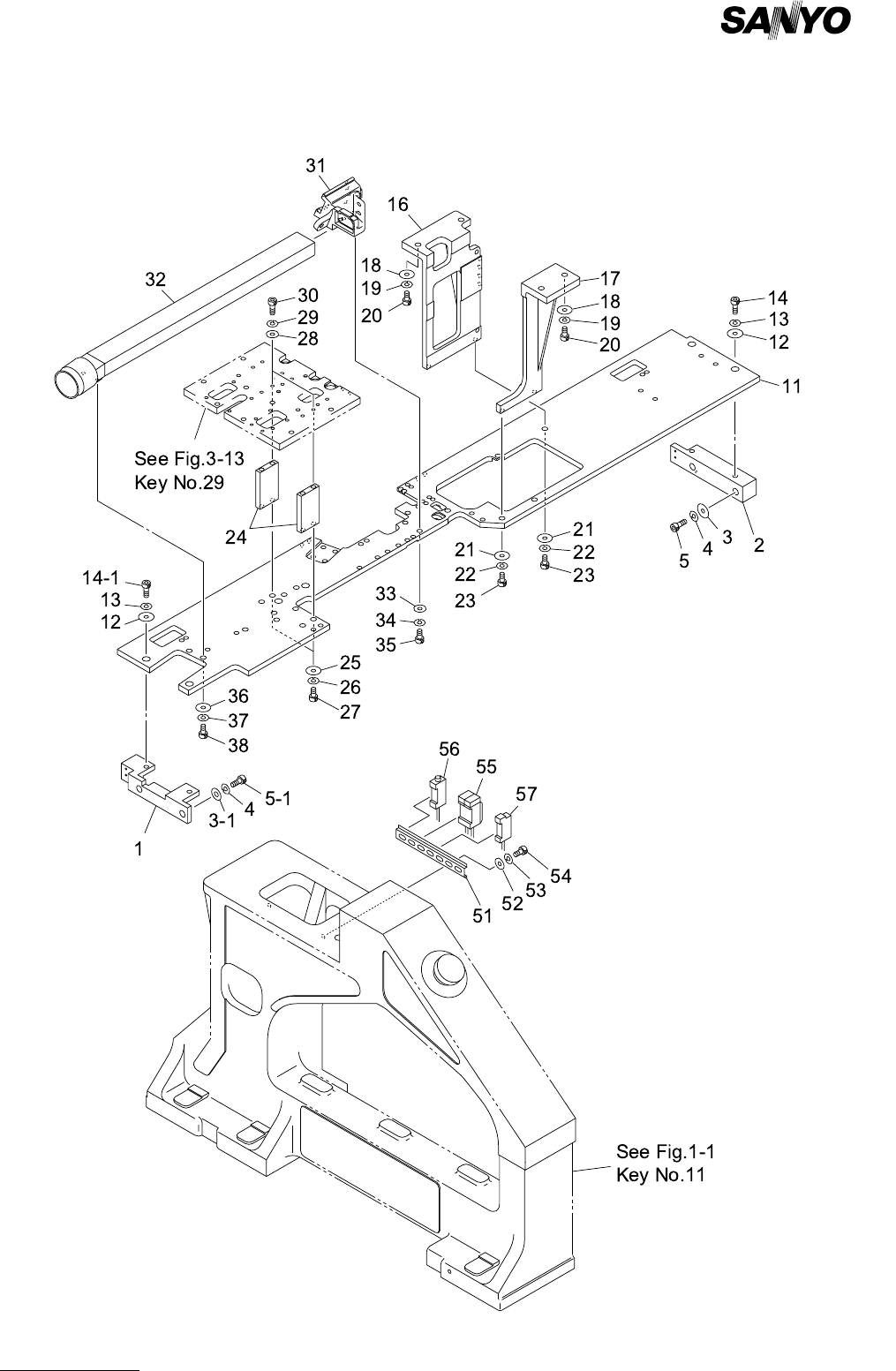

Fig. 4-1 中間ベース Middle Base
MODEL TCM-3700
9912-001
4- 1
PART No. PART NAME Q'ty REMARKS
1 630 084 4368 STAY 1 739L--01B-015
2 630 064 5422 STAY 1 739L--01B-016
3 630 001 0251 WASHER 2 739L--01H-073
3 -1 630 084 4375 WASHER 2 739L--01B-048
4 411 141 3209 WASHER SPR 10 4 SW10
5 630 000 8173 BOLT,HEX-SCT 2 M10X60
5 -1 630 000 8142 BOLT,HEX-SCT 2 M10X35
11 630 064 5385 BASE 1 739E--01B-001
12 630 001 0251 WASHER 4 739E--01H-009
13 411 141 3209 WASHER SPR 10 4 SW10
14 630 000 8142 BOLT,HEX-SCT 2 M10X35
14 -1 630 000 8135 BOLT,HEX-SCT 2 M10X30
16 630 052 1061 SUPPORT 1 739E--01B-023
17 630 048 7688 SUPPORT 1 739E--01B-024
18 630 001 0237 WASHER 4 739E--01H-010
19 411 141 3001 WASHER SPR 6 4 SW6
20 630 000 7916 BOLT,HEX-SCT 4 M6X30
21 630 001 0220 WASHER 4 739E--01H-008
22 411 141 6705 WASHER SPR 5 4 SW5
23 630 000 7763 BOLT,HEX-SCT 4 M5X16
24 630 048 7701 PLATE 2 739E--01B-022
25 630 001 0220 WASHER 4 739E--01H-008
26 411 141 6705 WASHER SPR 5 4 SW5
27 630 000 7763 BOLT,HEX-SCT 4 M5X16
28 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
29 411 141 3001 WASHER SPR 6 4 SW6
30 630 000 7909 BOLT,HEX-SCT 4 M6X25
31 630 055 0009 BLOCK 1 739EB-01B-001
32 630 055 0030 PIPE 1 739EB-01B-016
33 411 141 4107 WASHER V 5X10X1 4 FW5
34 411 141 6705 WASHER SPR 5 4 SW5
35 630 000 7763 BOLT,HEX-SCT 4 M5X16
36 630 001 0220 WASHER 2 BW5
37 411 141 6705 WASHER SPR 5 2 SW5
38 630 000 7763 BOLT,HEX-SCT 2 M5X16
51 630 084 4856 RAIL,WIRING 1 739L--01H-061
52 411 141 4008 WASHER V 4X9X0.8 2 FW4
53 411 141 2905 WASHER SPR 4 2 SW4
54 630 000 7619 BOLT,HEX-SCT 2 M4X8
55 630 048 9835 SENSOR,PELEC 1 739E--01H-004
56 630 037 5534 SENSOR,PELEC 1 739L--01H-045
57 630 056 7014 SENSOR,PROXIMITY 1 739E--01H-014
Key No.
NOTE
MODEL TCM-3700
9912-001
中間ベース部 MIDDLE BASE SECTION

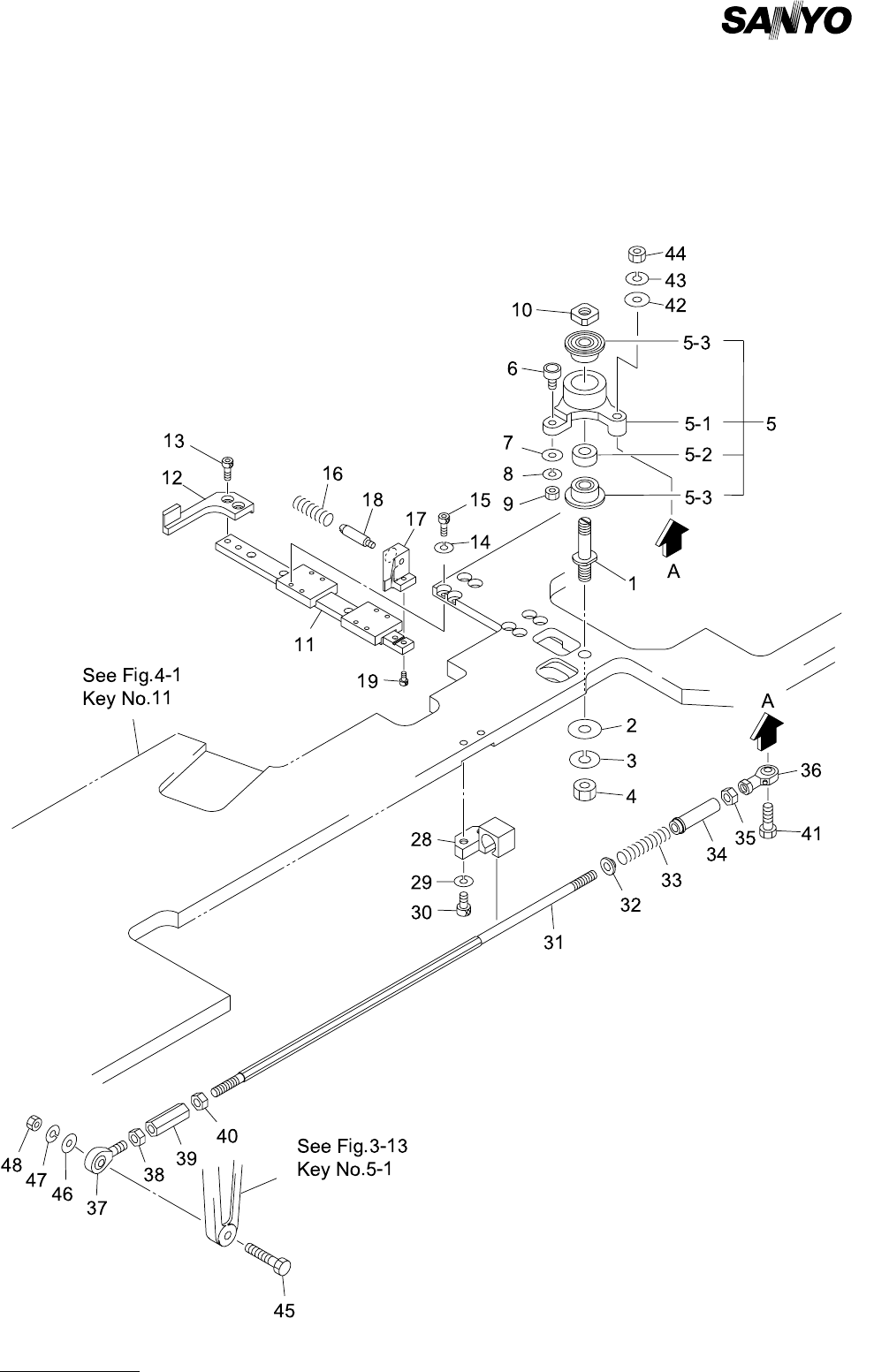

Fig. 4-2 シャッタ Shutter
