MODEL TCM-3700 9912-001 4- 3 PART No. PART NAME Q'ty REMARK S 1 630 002 3169 SPRING ,COMP 1 739EB-01H -039 2 630 033 6450 PIN,GU IDE 1 739EB-01H-038 3 630 002 2315 SPRING ,COMP 2 739EB-01H -010 4 630 051 8528 PLAT E…
MODEL TCM-3700
9912-001
中間ベース部 MIDDLE BASE SECTION

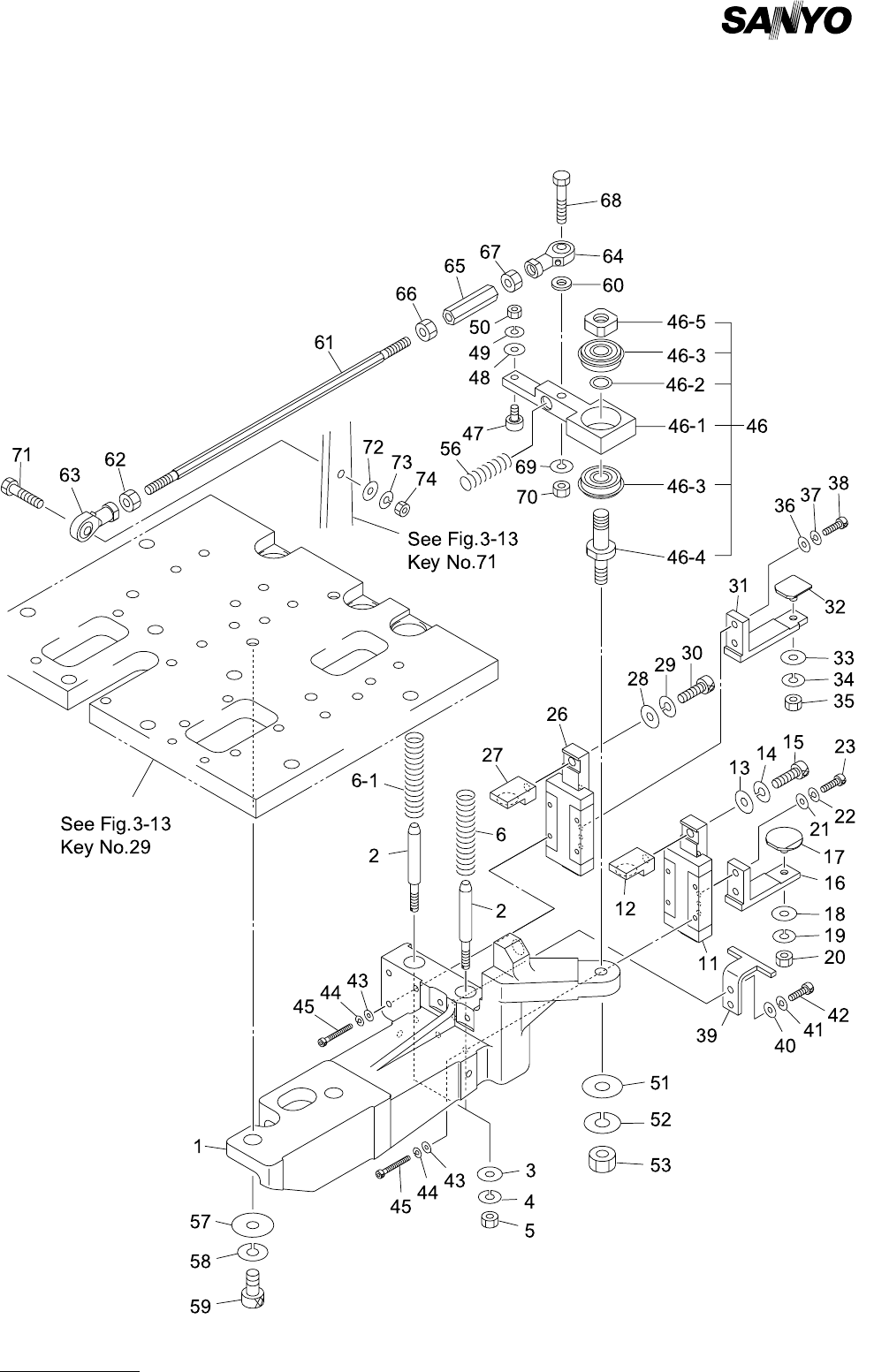

Fig. 4-3 カッタ Cutter
MODEL TCM-3700
9912-001
4- 3
PART No. PART NAME Q'ty REMARKS
1 630 002 3169 SPRING,COMP 1 739EB-01H-039
2 630 033 6450 PIN,GUIDE 1 739EB-01H-038
3 630 002 2315 SPRING,COMP 2 739EB-01H-010
4 630 051 8528 PLATE 1 739EB-01H-001
6 630 048 4946 PIN,HINGE 1 739EB-01B-006
7 411 141 4701 WASHER V 10X21X2 1 FW10
8 411 141 3209 WASHER SPR 10 1 SW10
9 411 141 1106 NUT HEX 10 1 M10
10 630 037 2526 BEARING,PARTS 1 739EB-01H-004
10 630 037 2533 BEARING,PARTS 1 739EB-01H-005
10 630 037 2540 BEARING,PARTS 1 739EB-01H-006
10 -1 630 076 0484 RING 5 739EB-01H-042
11 630 048 4922 LEVER 1 739EB-01B-004
12 630 001 1289 BEARING,RADIAL 1 739EB-01H-003
13 411 051 1708 SCR TRS 4X6 2 M4X6 TRS
14 630 005 0875 BEARING,PARTS 1 739EB-01H-007
16 630 073 8841 PLATE 1 739EB-01B-005
17 411 141 6705 WASHER SPR 5 2 SW5
18 630 000 7732 BOLT,HEX-SCT 2 M5X8
19 630 070 9384 PLATE 1 739EB-01B-002
20 411 141 4107 WASHER V 5X10X1 2 FW5
21 411 141 6705 WASHER SPR 5 2 SW5
22 630 000 7763 BOLT,HEX-SCT 2 M5X16
23 630 048 4915 PLATE 1 739EB-01B-003
24 411 141 6705 WASHER SPR 5 2 SW5
25 630 000 7756 BOLT,HEX-SCT 2 M5X12
26 630 048 4977 BLOCK 1 739EB-01B-009
27 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
28 411 141 3001 WASHER SPR 6 2 SW6
29 630 000 7893 BOLT,HEX-SCT 2 M6X20
30 630 048 9309 SPRING,COMP 1 739EB-01H-008
32 411 141 0901 NUT HEX 8 1 M8
33 630 056 7700 ROD 1 739EB-01B-007
34 630 000 9767 NUT,HEX 1 M8-L
35 630 055 3598 ROD END 1 739EB-01H-011
36 630 048 4960 PIN,HINGE 1 739EB-01B-008
37 411 141 4503 WASHER V 8X17X1.6 1 FW8
38 411 141 3100 WASHER SPR 8 1 SW8
39 411 141 1007 NUT HEX 8 1 M8-3
Key No.
NOTE
MODEL TCM-3700
9912-001
中間ベース部 MIDDLE BASE SECTION
Fig. 4-4 ノズル収納、選択部 Nozzle Storage,Nozzle Level Selector
