Description

The SIPLACE Bulk Case feeder

with 2 tracks is used to handle

components in bulk. It transports

rectangular and round passive

components. To replenish the

supply, the Bulk Cases are ex-

changed, simply and without

stopping the machine.

Essentially, this feeder module

consists of the basic element plus

the suitable feeder rail and Bulk

Case for the component type and

height. The components are sepa-

rated and transported via com-

pressed air.

The principle of stationary compo-

nent tables has been tried and

tested specifically with Bulk

Cases. Vibrations which developed

when other placement methods

are used may cause wear, drasti-

cally affecting the component

quality.

The stationary component table

also brings decisive advantages for

stick magazines. The general pur-

pose vibratory stick feeder can be

refilled during the placement proc-

ess.

Component Supply:

Bulk Case Feeders, Stick Magazine Feeders

Technical Data

Bulk Case feeder*

Type of packaging

Bulk Case

Feeder rails for

Chip 0402 component height 0.35 mm

Chip 0402 component height 0.50 mm

Chip 0603 component height 0.45 mm

Chip 0603 component height 0.80 mm

Chip 0805 component height 0.45 mm

Chip 0805 component height 0.60 mm

Chip 0805 component height 0.85 mm

Chip 0805 component height 1.25 mm

Mini-Melf

Feeder location

1 feeder location for 2 different

component types

Stick magazine feeder Type III With control electronics

Number and width of tracks

3 x 9.5 mm

2 x 15 mm

1 x > 15 mm

1 x 30 mm

Feeder location 1

* Fiducial to recognize position of feeder

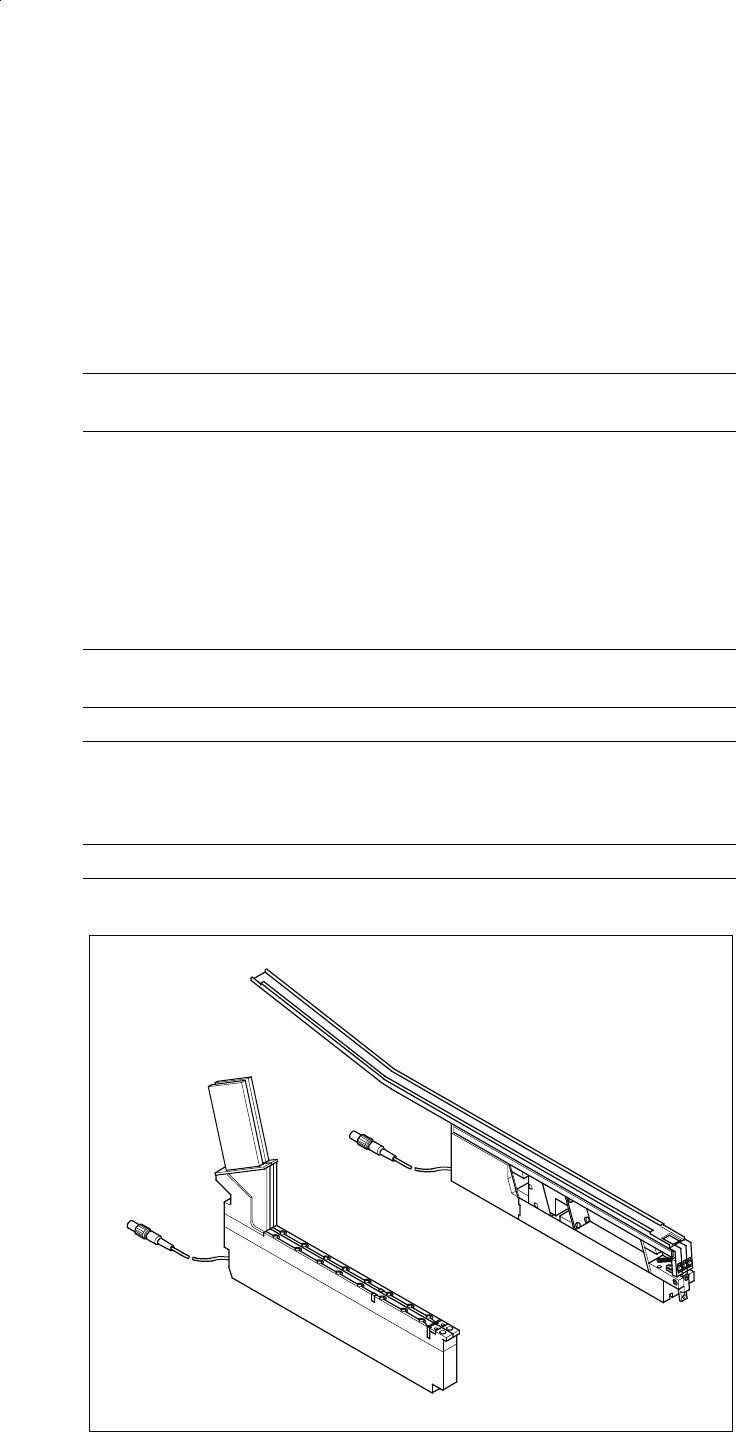

Bulk Case Feeder and Stick Feeders

Bulk Case Feeder

Stick Feeder

Type III

Danger

Some local safety requirements

dictate that all feeder locations

must be equipped with feeders.

If the feeder set-up does not fill all

feeder locations, guards (dummy

feeders) may be used in place of

the modules.

Component Supply:

Dummy Feeder

The following dummy feeder variants can be used:

Item no. 00116961-01

Item no. 00116962-01

Item no. 00116963-01

SIPLACE guard for 1 location

SIPLACE guard for 6 - 10 locations

SIPLACE guard for 11 - 20 locations

Various Dummy Feeders

Description

The manual tray change is one

possibility for picking up Waffle

Packs. A number of “manual

trays” are placed on the compo-

nent tables (right-hand table for

Fine Pitch components). The two

component changeover tables are

retained.

This option is recommended if

only a few component types are

supplied in the tray.

JEDEC trays can be directly

clamped. Therefore there are spe-

cial access times for the place-

ment heads.

Component Supply:

Manual Trays

Technical Data

Sizes

136 x 360 mm; requires 5 feeder

locations

260 x 360 mm; requires 9 feeder

locations

Max. tray height 12.5 mm including component

Parts

Manual tray

Carrier tray

JEDEC Waffle Packs

Directly in the manual tray

136 mm wide

Pick & Place Head and Revolver Head Access to Manual Tray

Transport Direction

Revolver Head

Pick & Place Head

Feeder Table

Revolver Head

Pick & Place Head

Feeder Table

260

(136)

136

360

JEDEC Magazine Carrier Tray

119 mm

301 mm

157 mm

339 mm
