18 Description The manual tray change is one possib ility for picking up Waff le Packs. A number of “manua l trays” are placed on the c ompo- nent tables (right-hand table for Fine Pitch components ). The two component c…

Danger

Some local safety requirements

dictate that all feeder locations

must be equipped with feeders.

If the feeder set-up does not fill all

feeder locations, guards (dummy

feeders) may be used in place of

the modules.

Component Supply:

Dummy Feeder

The following dummy feeder variants can be used:

Item no. 00116961-01

Item no. 00116962-01

Item no. 00116963-01

SIPLACE guard for 1 location

SIPLACE guard for 6 - 10 locations

SIPLACE guard for 11 - 20 locations

Various Dummy Feeders

Description

The manual tray change is one

possibility for picking up Waffle

Packs. A number of “manual

trays” are placed on the compo-

nent tables (right-hand table for

Fine Pitch components). The two

component changeover tables are

retained.

This option is recommended if

only a few component types are

supplied in the tray.

JEDEC trays can be directly

clamped. Therefore there are spe-

cial access times for the place-

ment heads.

Component Supply:

Manual Trays

Technical Data

Sizes

136 x 360 mm; requires 5 feeder

locations

260 x 360 mm; requires 9 feeder

locations

Max. tray height 12.5 mm including component

Parts

Manual tray

Carrier tray

JEDEC Waffle Packs

Directly in the manual tray

136 mm wide

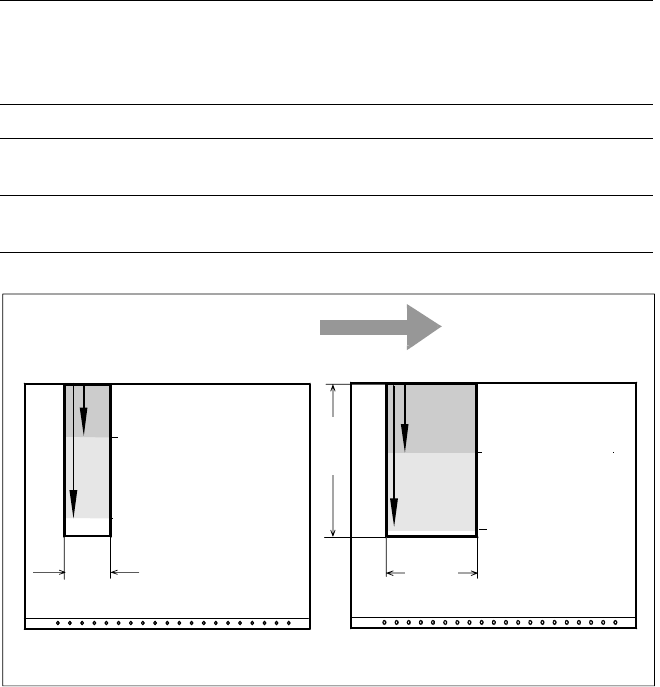

Pick & Place Head and Revolver Head Access to Manual Tray

Transport Direction

Revolver Head

Pick & Place Head

Feeder Table

Revolver Head

Pick & Place Head

Feeder Table

260

(136)

136

360

JEDEC Magazine Carrier Tray

119 mm

301 mm

157 mm

339 mm

Technical Data

Tape size: Combimodule 8 / 12 / 16 mm

Recommended Bare Die size:

8 mm Surf Tape:

1 x 1 mm up to 2.3 x 2.3 mm

12 mm Surf Tape:

2.3 x 2.3 mm up to 5 x 5 mm

16 mm Surf Tape:

3.8 x 3.8 mm up to 9.5 x 9.5 mm

Component positional

requirements:

Size of Bare Die ≤ 2.3 x 2.3 mm:

± 100 µm / 6 σ

Size of Bare Die ≥ 2.3 x 2.3 mm:

± 200 µm / 6 σ

(in relation to center of pocket)

Min. space between tape pocket

web and edge of die:

0.4 mm (0.015 mil)

Tape specification:

IEC 286-3, DIN-IEC-286, EIA 481 und

JIS C 0806

Tape reel diameter: 7" or 15" (178 or 381 mm)

Feeder space 1 slot

Description

The Surf Tape feeder is a specific

module for the placement of Bare

Dies. The feeding technology is

different to a standard feeder and

requires e.g. a poke-up needle and

therefore a special know how.

The Surf Tape feeder is offered as

a combi module for 8 / 12 / 16 mm

Surf Tape material. To switch from

one tape size to the other is done

very easily by changing only three

parts which are included.

The feeding process starts with

the transport of the bare die to the

pick up position. This position is

exactly defined by a sensor. The

nozzle moves onto the bare die

and the vacuum is activated. A

poke-up needle moves up and lifts

up the bare die and the nozzle. At

the same time the Surf Tape starts

to loose contact with the bare die.

When there is no contact between

the tape and the bare die the noz-

zle moves upwards and the poke-

up needle downwards. The re-

quired time for this process de-

pends on different items like stor-

age time of the tape, size of the

bare die etc. and is adjustable.

Component Supply:

Surf Tape Feeder for Bare Dies
