50 Dimensions in µ µ µ µ m Nozzle Type on Placem. H ead Comp onent GF- No Designation Leng th Width Heigh t Pick&Pl ace 6-Nozzle Revolve r 913 QFP80R_1.0 24700 18700 3200 417 / 418 720 916 QFP120_0.8 32500 32500 3800…

100%1 / 58
49
Dimensions in µ
µµ
µm
Nozzle Type on Placem. Head
Component
GF-
No
Designation
Length Width Height Pick&Place 6-Nozzle Revolver

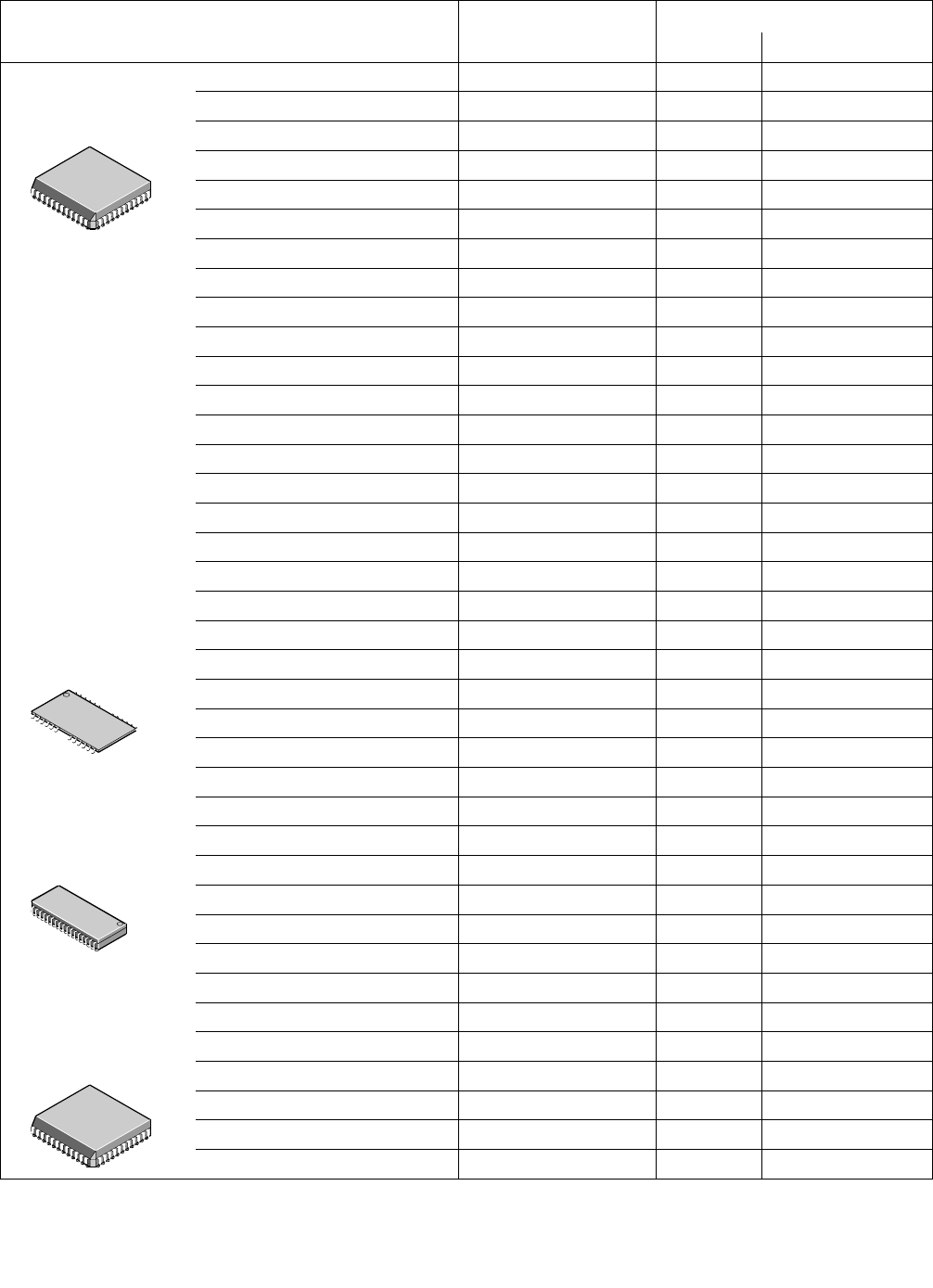

700 PLCC20 9850 9850 4350 416 717 / 720
701 PLCC28 12350 12350 4350 416 / 417 717 / 720
702 PLCC44 17550 17550 4350 417 / 418 720 / 820
703 PLCC52 20050 20050 4600 417 / 418 820 / 821
704 PLCC68 25150 25150 4600 418 821
705 PLCC84 30230 30230 4600 418 / 419 821
706 PLCC100 35350 35350 4600 419
707 PLCC124 42950 42950 4600 419
708 PLCC18R /11.75x8.15 11750 8150 3450 416 717 / 720
709 PLCC18R /13.45x8.25 13450 8250 3450 416 717 / 720
710 PLCC22R 13450 8250 3450 416 717 / 720
711 PLCC28R 15050 9950 3450 416 717 / 720
712 PLCC32R 15050 12450 3400 416 / 417 717 / 720
719 Sockel_PLCC28_Methode 17000 17000 1500 416
720 Sockel_PLCC32_Methode 20300 17800 1500 416
721 Sockel_PLCC44_Methode 22900 22900 1500 417
722 Sockel_PLCC52_Methode 25500 25500 1500 417
723 Sockel_PLCC68_Methode 30500 30500 1500 418
724 Sockel_PLCC84_Methode 35700 35700 1500 418
729 Sockel28pol_HS_AMP 16890 16890 1300 416
730 Sockel32pol_HS_AMP 19430 16890 1300 416
731 Sockel44pol_HS_AMP 21970 21970 1300 417
732 Sockel52pol_HS_AMP 25400 25400 1300 418
733 Sockel64pol_HS_AMP 30480 30480 1300 418
734 Sockel_84pol_AMP 35500 35500 1500 418
800 SOJ24 /b8.6 15880 8660 3500 416 720
801 SOJ26 /b8.6 17150 8660 3500 416 720
802 SOJ28 /b8.66 18410 8660 3500 416 720
803 SOJ28 /b9.8 18420 9780 3500 416 / 417 720
804 SOJ28 /b18.42 18420 11180 3500 416 / 417 720
805 SOJ32 /b8.5 20960 8510 3500 416 720
806 SOJ32 /b11.2 20960 11160 3500 416 / 417 720
807 SOLJ16 10300 8700 3200 416 717 / 720
809 SOXJ40 26100 11200 2500 417 720
810 SOJ26_20 /b8.5 17150 8510 3500 416 720
811 SOJ26_20 /b9.8 17150 9780 3500 416 / 417 720
900 QFP44_1.0 18600 18600 2600 417 / 418 720
903 QFP64R_1.0 24700 18700 3200 417 / 418 720
Component Forms
50
Dimensions in µ
µµ
µm
Nozzle Type on Placem. Head
Component
GF-
No
Designation
Length Width Height Pick&Place 6-Nozzle Revolver
913 QFP80R_1.0 24700 18700 3200 417 / 418 720
916 QFP120_0.8 32500 32500 3800 418 / 419 821
917 QFP128_0.8 32500 32500 3800 418 / 419 821
922 QFP100R_0.65 24700 18800 3200 417 / 418 721
924 QFP160_0.65 32500 32500 3800 418 / 419 821
933 QFP100B_25mil 22350 22350 4250 417 / 418 821
934 QFP132B_25mil 27430 27430 4300 418 / 419 821
935 QFP164B_25mil 32509 32509 4250 418 / 419 821
936 QFP196B_25mil 37600 37600 4250 418 / 419
945 QFP208_0.5 30600 30600 4100 418 / 419 821
946 QFP240_0.5 34600 34600 4100 418 / 419
953 QFP256_0.4 30600 30600 4100 418 / 419
960 QFP100_0.3 12000 12000 1500 417
970 QFP60Ru_1.0 25600 19600 2900 417 / 418 720 / 820
Component Forms
51
Nozzle Type 701 Type 704 Type 711
View
Material suction area
1. / 2. Color ring
Suction cross section
Min. component size
Item No
Ceramics
Yellow/Red
0.20 mm²
> 1.0 x 0.5 mm
00322603-02
Ceramics
Orange/Red
0.58 mm²
> 1.7 x 1.2 mm
00322602-02
Vectra C 130
Yellow/Black
0.25 mm²
> 1.0 x 0.5 mm
00321854-03
Nozzle Type 713 Type 714 Type 715
View
Material suction area
1. / 2. Color ring
Suction cross section
Min. component size
Item No
Vectra C 130
Silver/Black
1.73 mm²
> ø 2.2 x 1.6 mm
00345020-01
Vectra C 130
Orange/Black
0.58 mm²
> 1.7 x 1.2 mm
00321861-03
Vectra C 130
Red/Black
2.88 mm²
> 4.0 x 1.9 mm
00321862-03
Nozzle Type 717 Type 718 Type 719
View
Material suction area
1. / 2. Color ring
Suction cross section
Min. component size
Item No
Vectra C 130 (Evoprene)*
Pink/Black (Pink/Light blue)
11.07 mm²
> 7.0 x 4.0 mm
00321863-03 (00322591-01)
Vectra C 130 (Evoprene)*
Green/Black (Green/Li. blue)
1.7 mm²
> ø 3 x 2.0 mm
00321864-03 (00322592-01)
Vectra C 130 (Evoprene)*
Blue/Black (Blue/Li. blue)
9.6 mm²
> ø 5 x 2.0 mm
00321867-03 (00322593-01)
* Alternative Standard Nozzles
Nozzle Types:
Standard Range of Nozzle Types for 6-Nozzle Revolver Head
