2 Assembly instructions Splice De tection Basic Package SIPLACE HS-50 Sp lice Detection Basic Package HS-50 03/2008 Edition 28

100%1 / 30
Splice Detection Basic Package HS-50 2 Assembly instructions Splice Detection Basic Package SIPLACE HS-50
03/2008 Edition
27
2

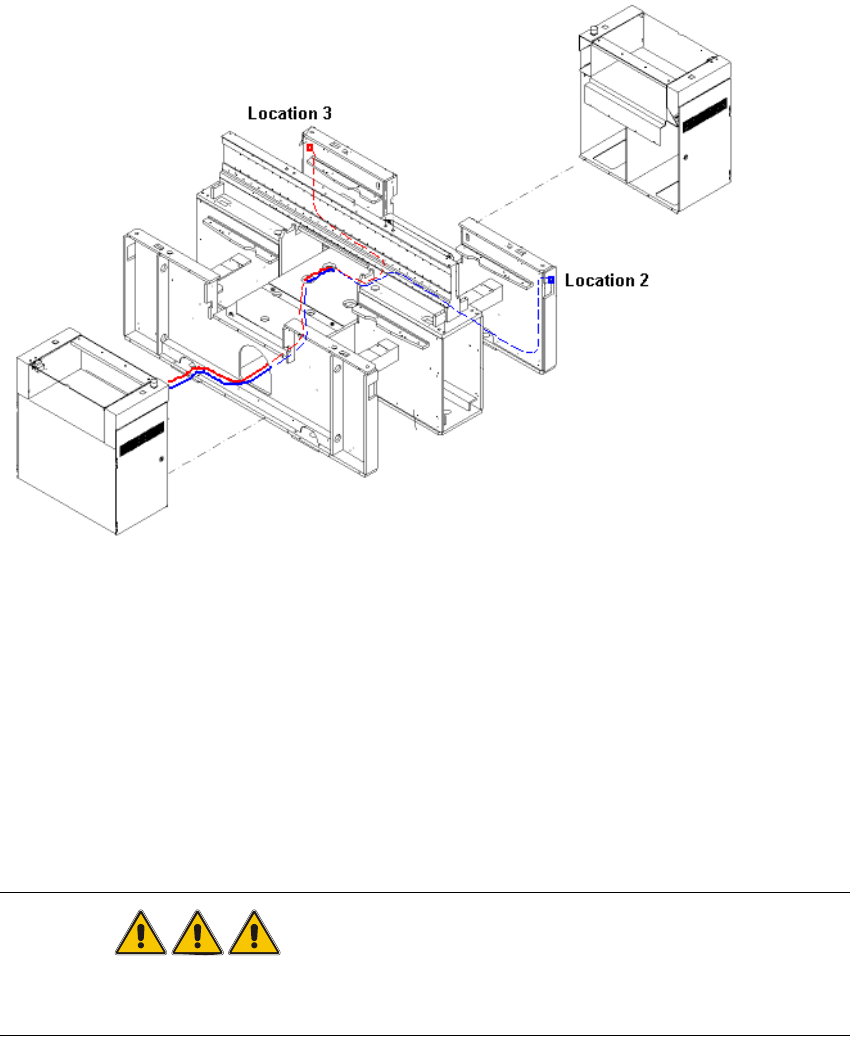

Abb. 2.12 - 8 Laying the cables from locations 2 and 3
2
: Plug the 4 CAT5 cables into the sockets on the hub unit
– Cable sector 1 to table number 1 on the HUB unit
– Cable sector 2 to table number 2 on the HUB unit
– Cable sector 3 to table number 3 on the HUB unit
– Cable sector 4 to table number 4 on the HUB unit.
DANGER
Before starting the placement machine connect and bolt the HUB electrical conducting with the
machine frame! 2
: Switch on the placement machine at the main switch.
2
2 Assembly instructions Splice Detection Basic Package SIPLACE HS-50 Splice Detection Basic Package HS-50
03/2008 Edition
28
