MACHINE PC FRONT PANEL CONNECTORS 6.6 Technical Reference M anual Chapter Issue 1, May 1 7 Connector Pin Infor mation LAN Host Comms USB 1 - USB 2 USB 3 - USB 8 Pin No. Signal Pin No. Signal 1 +ve Tra nsmit 5 N/C 2 -ve T…
MACHINE PC
FRONT PANEL CONNECTORS
Chapter Issue 1, May 17 Technical Reference Manual 6.5
FRONT PANEL CONNECTORS

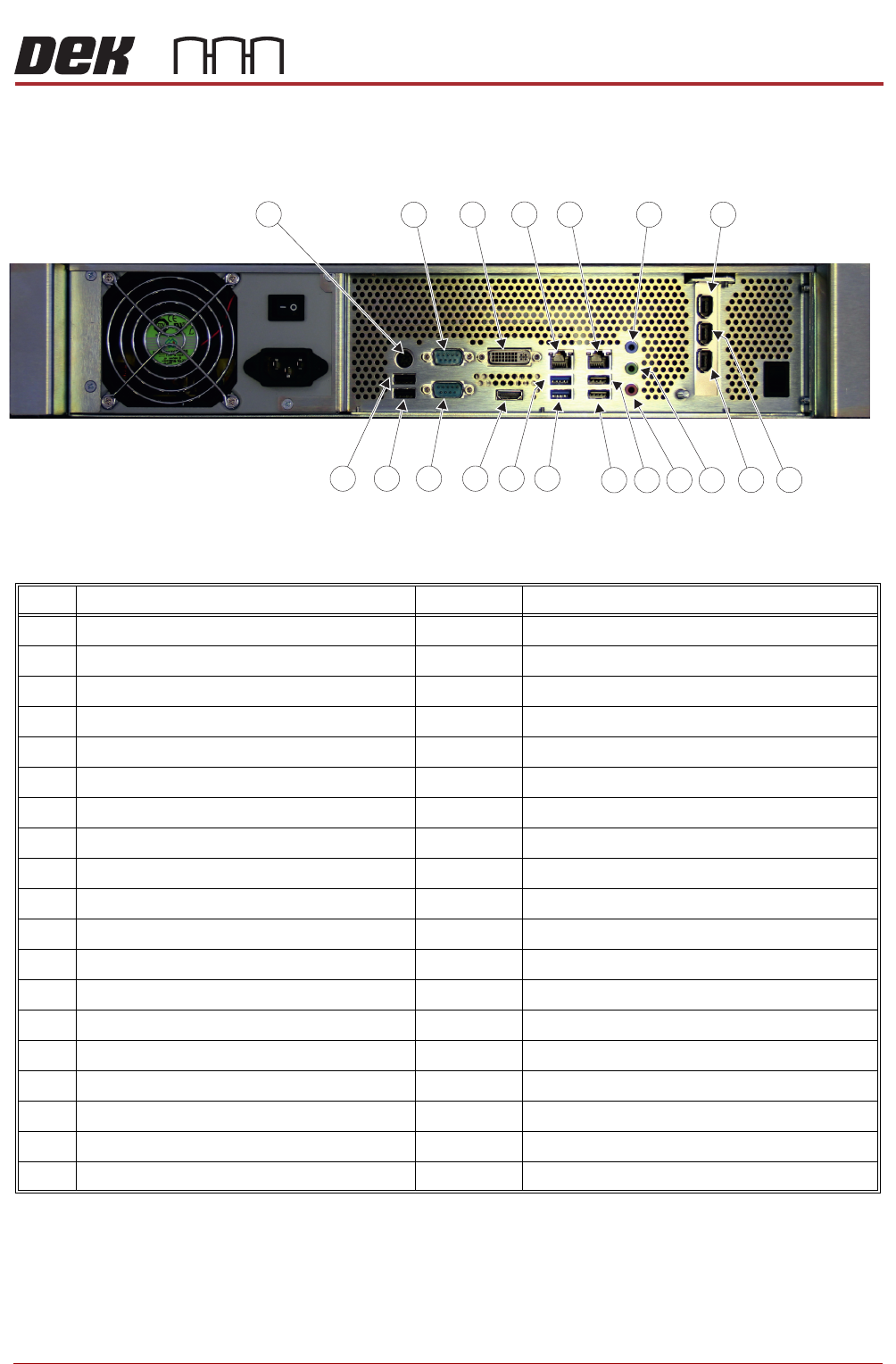

Figure 6-4 Electronic Assembly Machine PC
PC Enclosure PanelConnector
1
17
2
16
15
18 19
34
13
8 6
14
7
91112 10
5
Item Type Connector Description
1 Jack Socket (Blue) 3SK49 Line In
2 1394a PCI Interface Card - Port 1 3SK54 Not Used
3 1394a PCI Interface Card - Port 2 3SK55 Digital Camera
4 1394a PCI Interface Card - Port 3 3SK53 Not Used
5 Jack Socket (Green) 3SK47 Line Out - Not Used
6 Jack Socket (Pink) 3SK48 Mic In - Not Used
7 USB 2.0 3SK56 USB5 - USB Keyboard (rhs cover connector)
8 USB 2.0 3SK35 USB4 - NextMove ES
9 USB 3.0 3SK57 USB1 - Not Used
10 USB 3.0 3SK34 USB2 - Not Used
11 HDMI 3SK63 HDMI - Monitor (optional)
12 9 Way D Type Plug 3PL03a COM 1 RS232 (Stinger - if fitted)
13 USB 2.0 3SK37 USB6 - M37 PSU
14 USB 2.0 3SK36 USB3 - Dongle
15 PS2 3SK04 6 Pin Mini Keyboard - Not Used
16 9 Way D Type Plug 3PL03b COM 2 RS232 - Not Used
17 DVI-I 3SK05 DVI-I - Monitor (SVGA Adaptor supplied with PC)
18 RJ45 3SK02a LAN 1 Host Comms
19 RJ45 3SK02b LAN 2 Host Comms - Not Used
MACHINE PC
FRONT PANEL CONNECTORS
6.6 Technical Reference Manual Chapter Issue 1, May 17

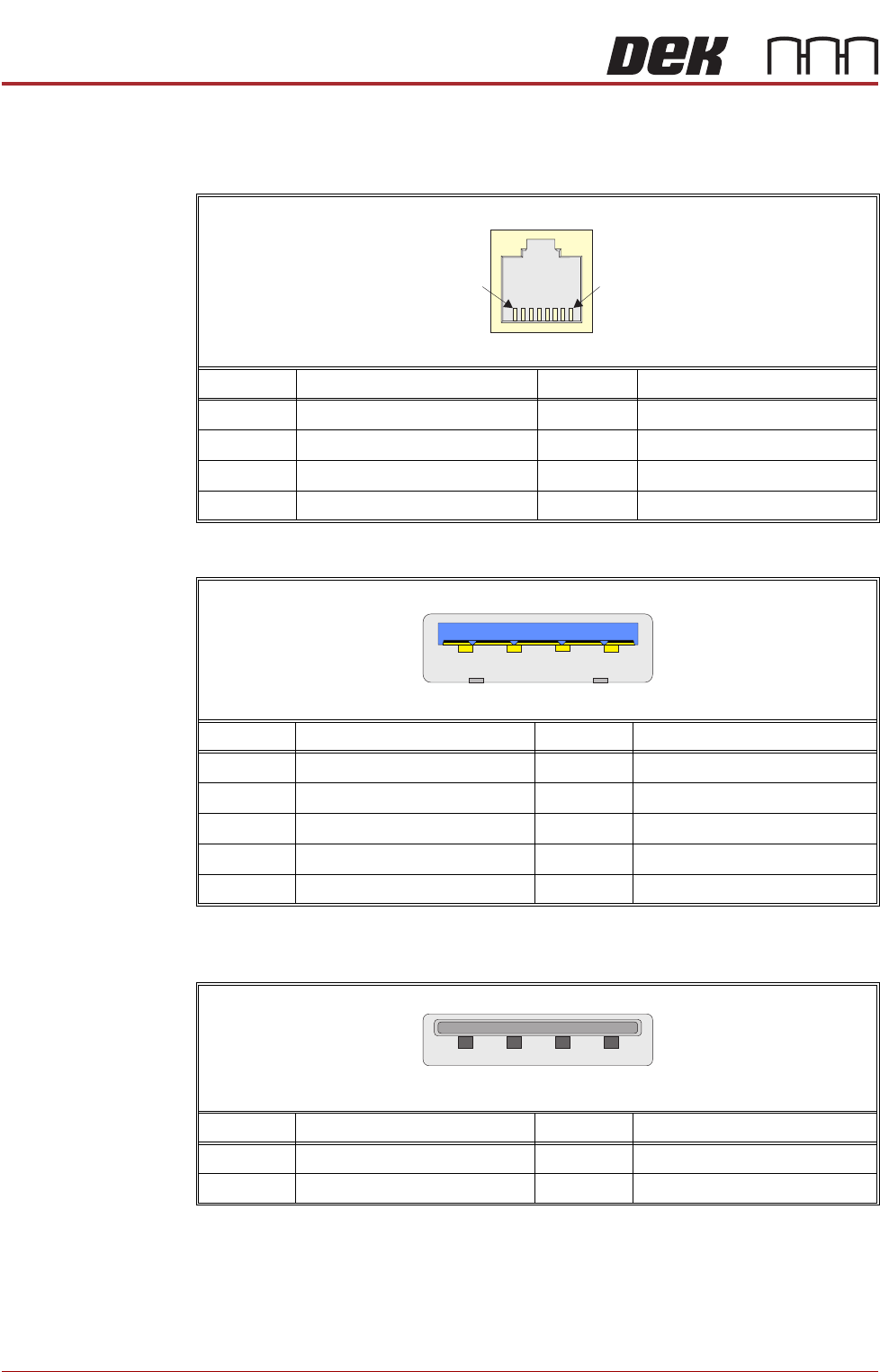

Connector Pin Information
LAN Host Comms
USB 1 - USB 2
USB 3 - USB 8
Pin No. Signal Pin No. Signal
1 +ve Transmit 5 N/C
2 -ve Transmit 6 -ve Receive
3 +ve Receive 7 N/C
4 N/C 8 N/C
Pin No. Signal Pin No. Signal
1 V Bus 6 StdA_SSRX/TX+
2 Data - 7 GND_DRAIN
3 Data+ 8 StdA_SSTX/RX-
4 GND 9 StdA_SSTX/RX+
5 StdA_SSRX/TX-
Pin No. Signal Pin No. Signal
1 V Bus 3 Data +
2Data - 4GND
1
8
RJ45
12
3
4
USB Type A Socket3.0
98 7 65
12
3
4
USB Type A Socket
MACHINE PC
FRONT PANEL CONNECTORS
Chapter Issue 1, May 17 Technical Reference Manual 6.7

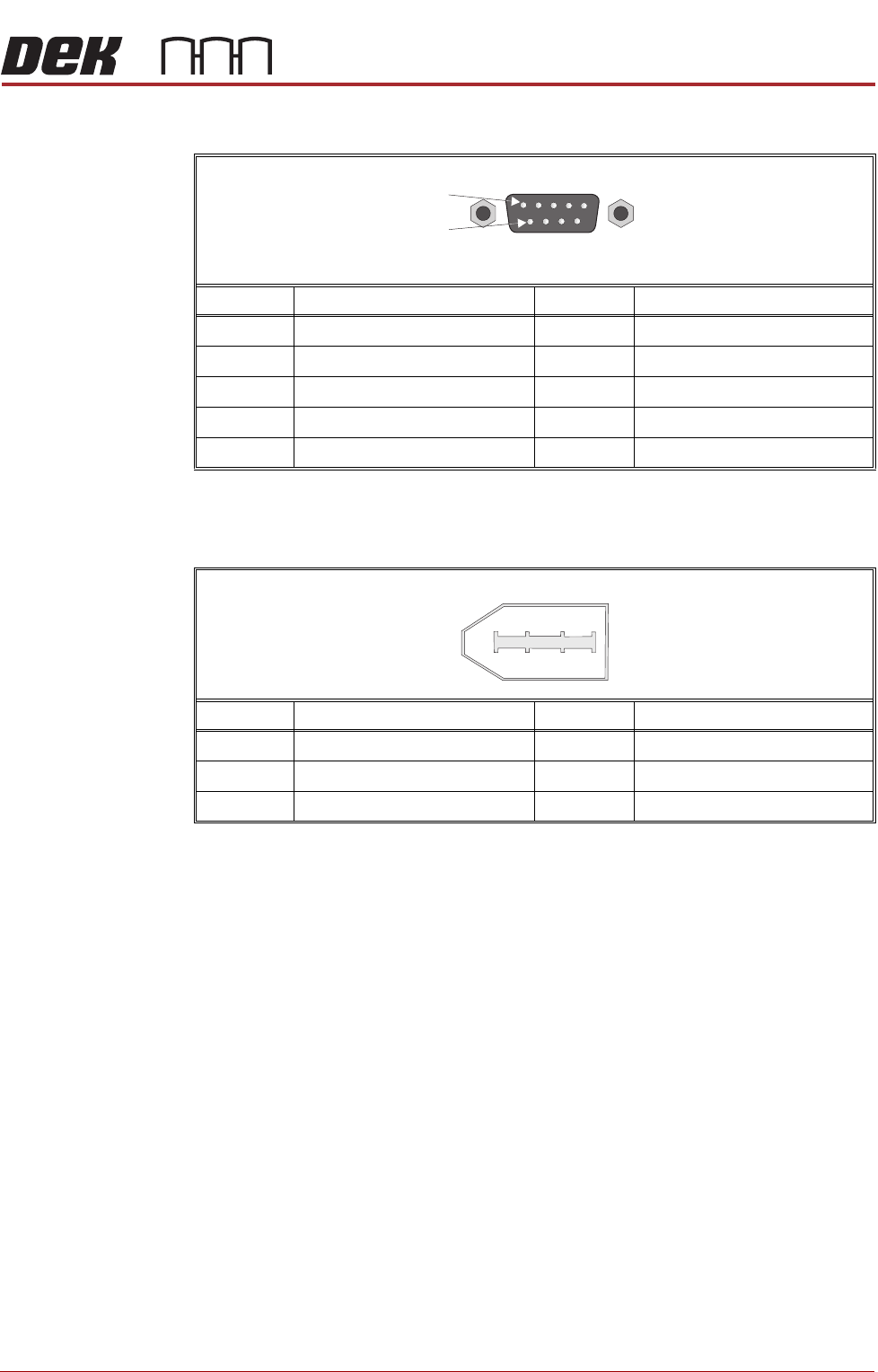

COM 1 RS232
1394a PCI Interface
Card (Port 1 - 3)
Pin No. Signal Pin No. Signal
1 Data Carrier Detect (DCD) 6 Data Set Ready (DSR)
2 Receive Data (RxD) 7 Request To Send (RTS)
3 Transmit Data (TxD) 8 Clear To Send (CTS)
4 Data Terminal Ready (DTR) 9 Ring Indicator (RI)
5 Signal Ground (GND)
9 Way D Type Plug
1
6
Pin No. Signal Pin No. Signal
1 Power 6 Twisted Pair B+
2 Ground 7 Twisted Pair A-
3 Twisted Pair B- 8 Twisted Pair A+
1
5
2
6
3
4
