EN FlexMarker II
Key features
- High volume - high mix in-line laser marking
- Moveable laser, fixed transport
- Ultra wide marking field processing
- User friendly HMI (TS1)
- CO2, Fiber Laser
- PCB or carrier transport
- Fast PCB exchange time
- Optional Integrated Flip Unit
Options
- Integrated electrical flip unit with PCB thickness
compensation (FOV 90 x 90 mm)
- Fume extraction system
- Verify@Mark
- Automatic width adjustment
- PCB Thickness independent clamping
- Fiducial recognition / alignment
- Board orientation and Bad part recognition
- Laser power monitoring and calibration

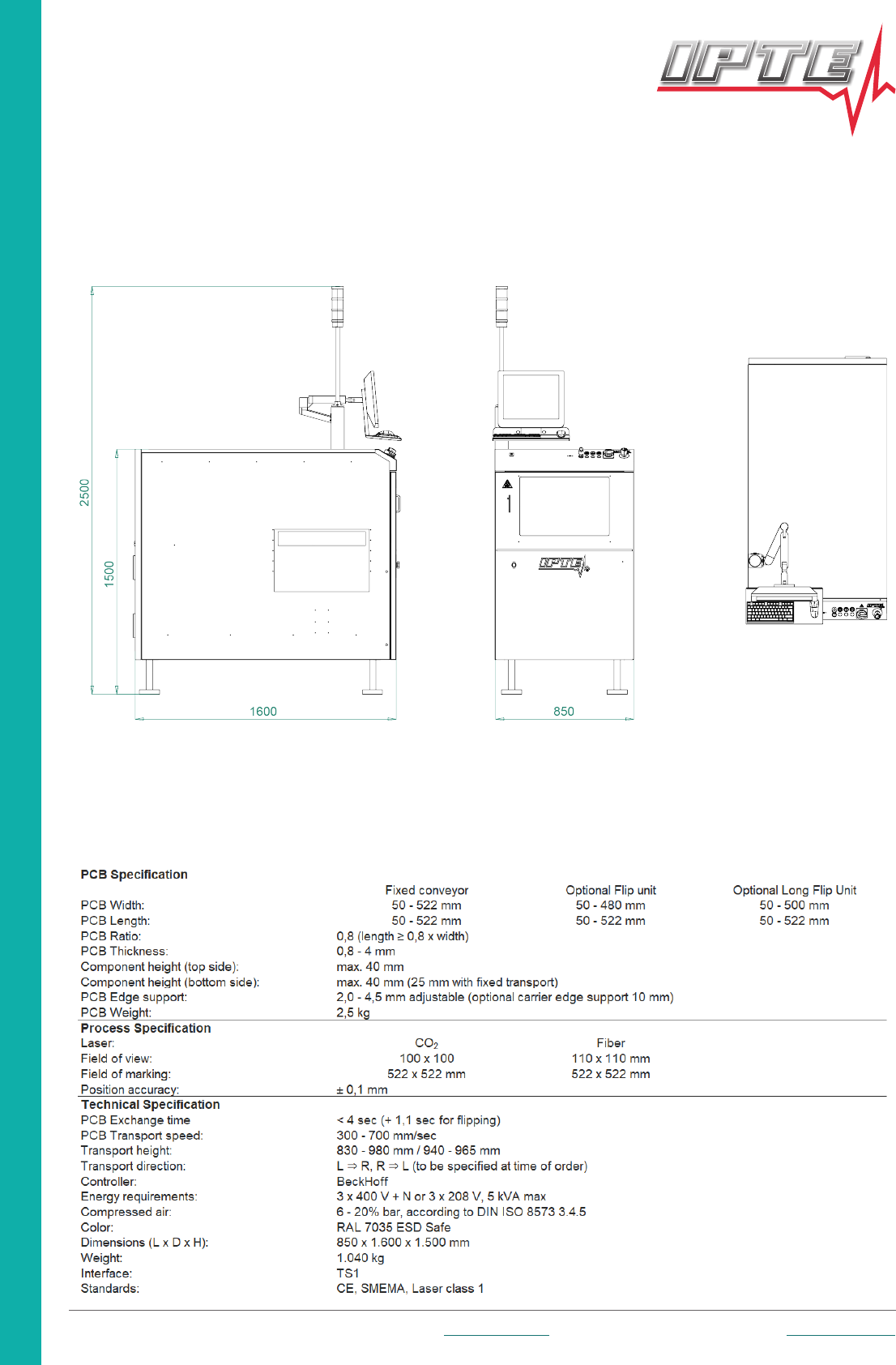

FlexMarker II
Laser Marking System
The FlexMarker II is an in-line Laser Marking machine
specifically designed to laser mark PCBs with high
positional accuracy and repeatability. It is capable of
handling a variety of PCB sizes, thickness and color.
The FlexMarker II is designed for the flexible laser
marking of 1D barcodes, 2D Matrix Codes and
human readable characters as well as images.
The optional superfast flipunit makes marking on both
sides possible within shortest cycletime.
Each marking can be scanned and verified before
being releasing the PCB to the next process.
Laser Marking
Laserhead
Camera
