Portal SIPLACE F4_20211119_044714 - 第12页
Portal SIPLACE F4 Page 12 / 15 19.11.2021
Portal SIPLACE F4
Page 11 / 15 19.11.2021
Portal SIPLACE F4
Page 12 / 15 19.11.2021

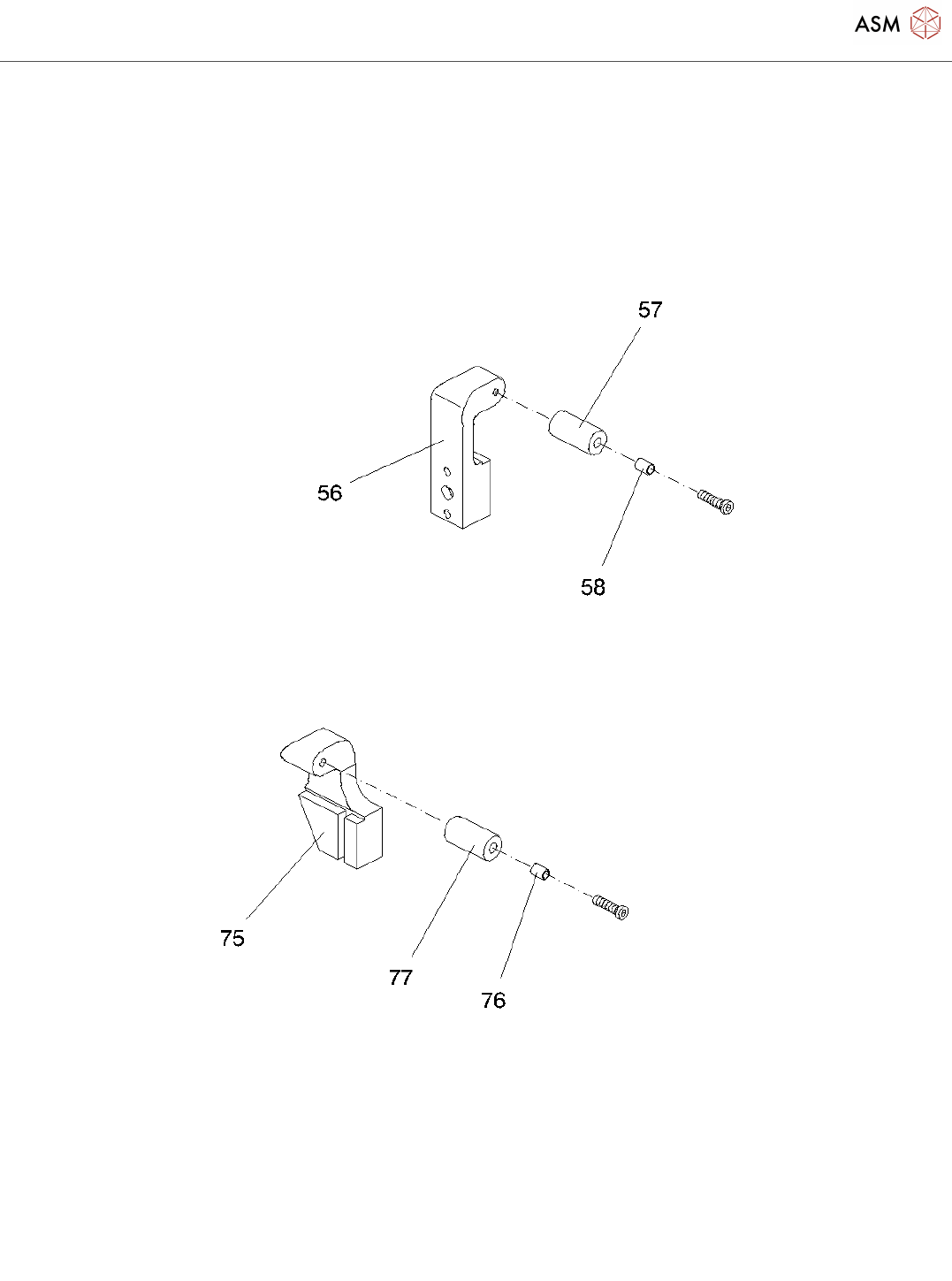

Portal SIPLACE F4
Page 13 / 15 19.11.2021
Pos. Item no. Description Part marking
1 00318567S01 GANTRY SIPLACE 80/ 4 Spare Part
2 00300561-04 WRENCH
3 00200468-02 WRENCH TOOL
4 00318600S01 MOUNT FOR APPLICATION HEAD
SIPLACE
Spare Part
5 00317941S03 AXLE SPARE PART
6 00095474-01 DISC 6,4 DIN125-A Spare
7 00318649-02 PCB-SUPPORT FOR SIPLACE S4 SPARE PART
12 00321127-03 Y-CABLE HOLDER S23 Spare Part
13 00347627-02 CABLE RETAINER PORTAL BOARD
S20 COMPL.
14 00318557-03 TOOTH BELT 28 ATS 5/1655 WEAR PART
15 00343985-01 SYNCRONIZING DISK X 32AT5/13-0 SPARE PART
16 00318549-01 TOOTH BELT SYNCHROFLEX
12ATS5/280
WEAR PART
17 00343998-01 SYNCHR. DISK Y ST 50 AT5/13-0
ACC.T.DRAW.
18 00200507-01 GUIDE TROLLEY KWE 25 H1 G1 V2 WEAR PART
19 00310118-01 GUIDE RAIL SPARE PART
20 00301040-01 ELASTOMER SPRING 25*10,5*50
(90 SHORE A)
SPARE PART
21 00317963-03 CONTACT RIGHT SIDE SPARE PART
22 00321577-04 CABLE: LIMIT SWITCH X-AXIS SPARE PART
23 00200525-01 ELASTOMER SPRING D20X8,5 90
SHORE A
SPARE PART
24 00317964-03 CONTACT METAL LEFT SIDE SPARE PART
25 00321578-04 CABLE: LIMIT SWITCH X-AXIS SPARE PART
26 00200530-01 GUIDE TROLLEY WEAR PART
27 00317767-07 PORTAL WELDED PART
28 00321551-02 BELT GUIDE X-AXIS SPARE PART
29 00200469S03 AXIS SPARE PART
30 00318552-04 GEAR FOR X-AXIS SPARE PART
31 00301084-02 GROIN SPARE PART
32 00301086-01 SCALE X-AXIS SPARE PART
33 00317856-02 FRICTION BLOCK HOLDER SPARE PART
34 00301578-02 FRICTION BLOCK HOLDER FOR X-
AXIS
SPARE PART
