13.11.2018 Page 4
PinPicker SX1/2
One SPS Pin Picker is necessary to support the
specified length of PCB boards in the SX1/2 machine.
The Pin Picker will be mounted on gantry 1 only.
Sales-Article No.:00119992 SPS PinPicker SX1/2:
containing: 03089621-xx Pin Picker SX1/2 (Gantry 1 left)
Variant für SX1/2 with 40mm gantry (different base plate):
Sales-Article No.: 00519988-xx SPS Pin Picker Twin VHF 40mm
containing: 03104671-xx SPS pin picker 40mm machine

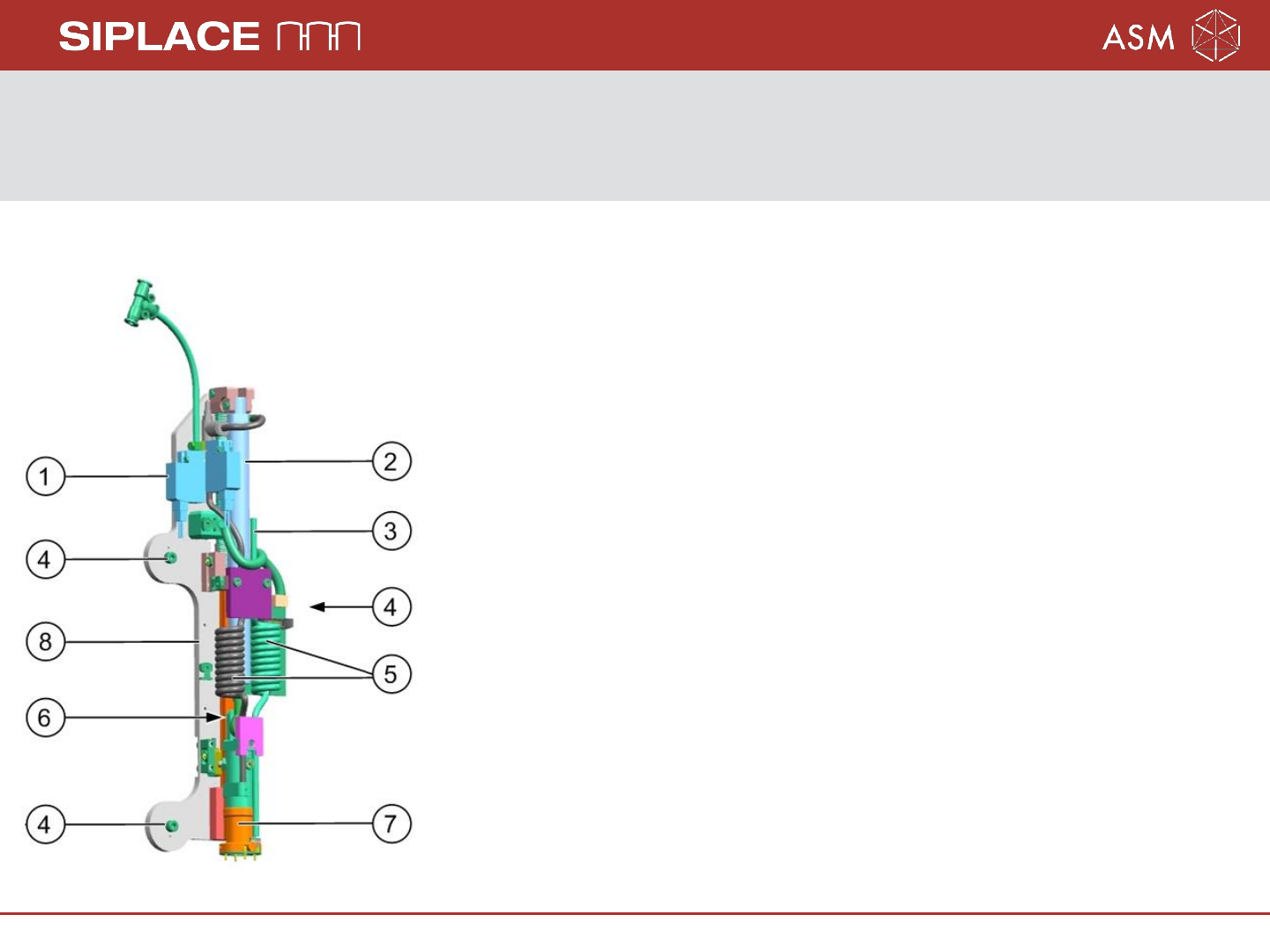

Smart Pin Support (SPS) - Pin Picker
1. Pneumatic valves
2. Pneumatic cylinder
3. Control board
4. Assembly holes
5. Pneumatic tube and electrical cable
6. Linear guide
7. Pin interface
8. Base plate
13.11.2018 Page 5

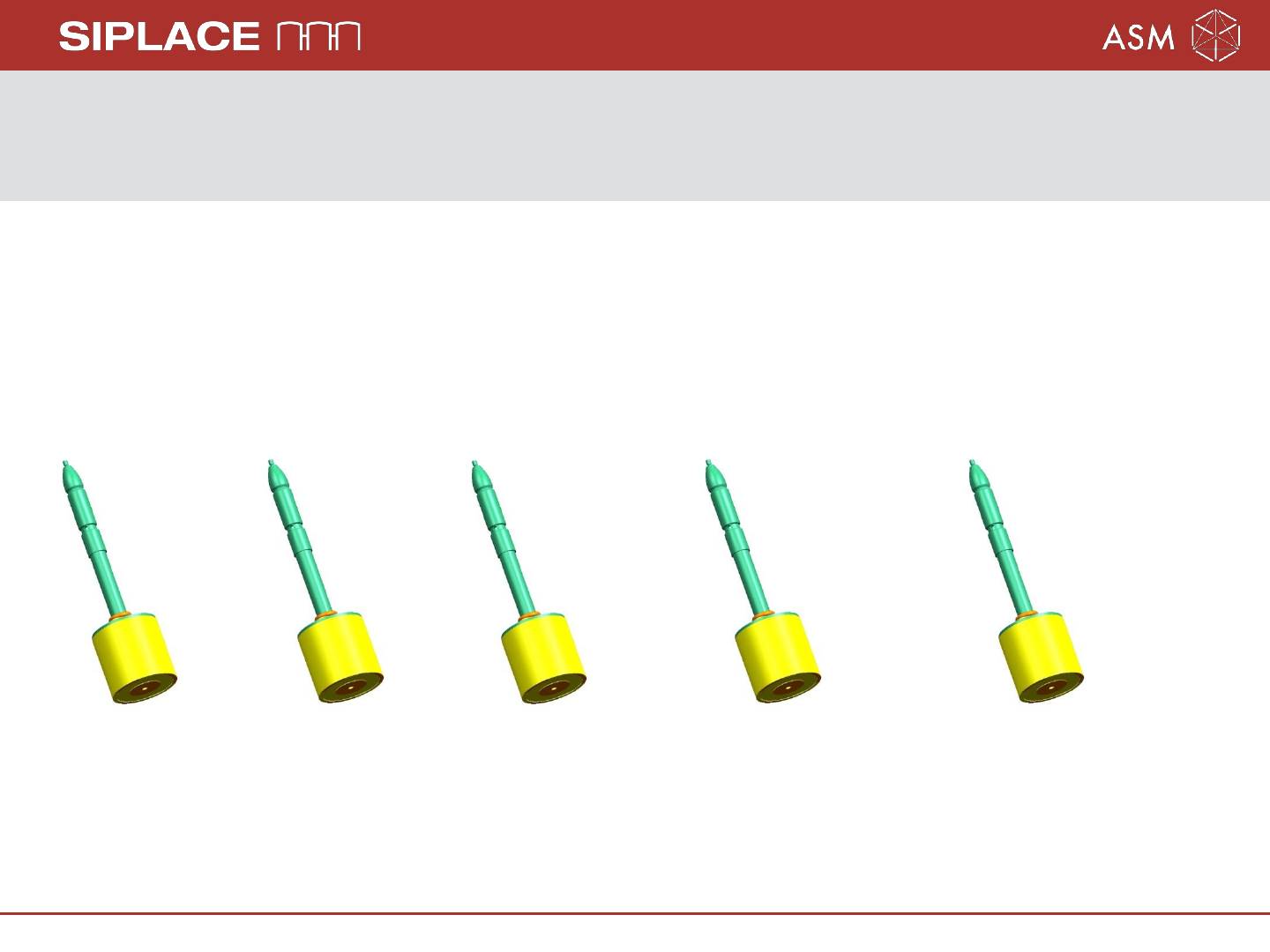

Smart Pin Support (SPS) - Pin
Support Pin
Sales-Article No.:119995 for 5 pieces Pins
13.11.2018 Page 6

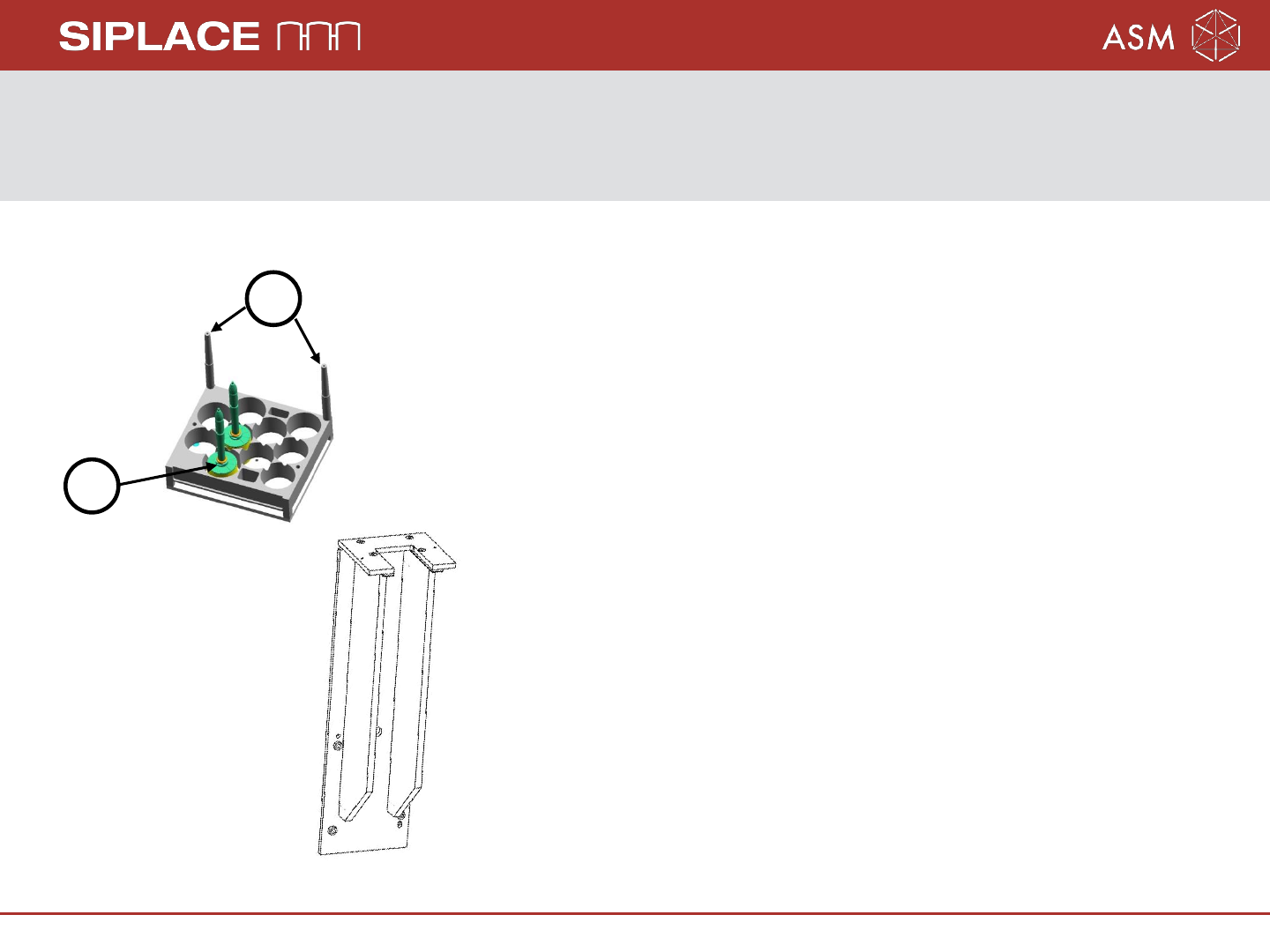

Smart Pin Support (SPS) – Magazine Q10
SPS magazine Q10
SPS Magazine Q10 – 03087508-xx for SX1/2
Magazine holder Q10cpl. – 03088072-xx
1. Calibration garage
2. Position fiducial
1
2
Sales-Article No.:119997 Magazine Q10
