13.11.2018 Page 7

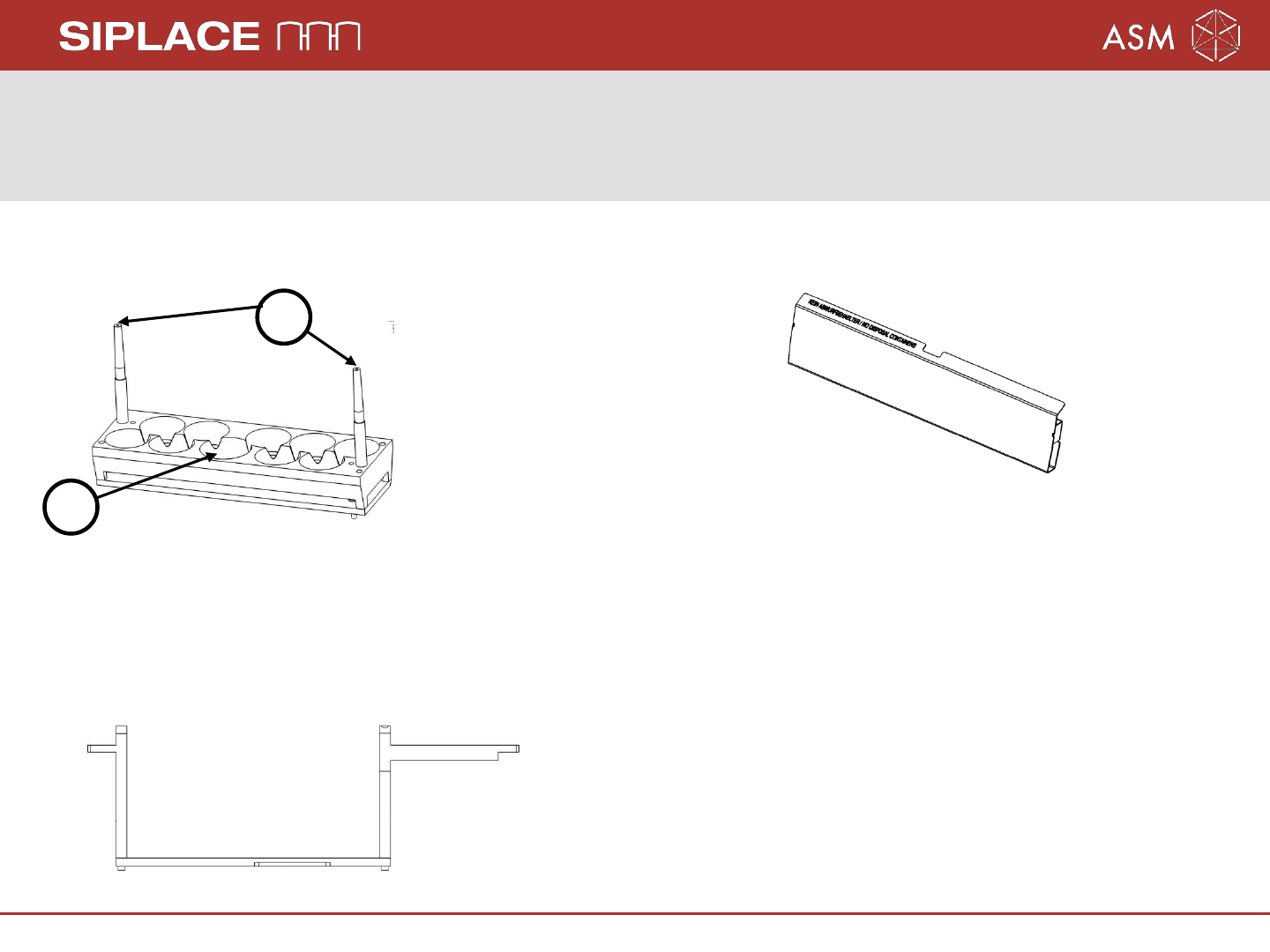

Smart Pin Support (SPS) – Magazine L10
SPS magazine L10
(lengthwise)
SPS Magazine L10 – 03087404-xx for SX1/2
Magazine holder L10cpl. – 03087886-xx
1
2
1. Calibration garage
2. Position fiducial
Sales-Article No.:119996 Magazine L10
include the Lock component reject box 03084467-xx
13.11.2018 Page 8
Summary
Parts for SIPLACE Smart Pin Support (SPS) on SX1/2
Sales-Article No.:119992 PinPicker SX1/2
Sales-Article No.:119997 Magazine Q10
Sales-Article No.:119996 Magazine L10
Sales-Article No.:119995 for 5 pieces Pins
Option: If no stationary camera is installed on location 1 or 2 and you want to mount
a Q10 magazine, an additional support plate is necessary!!!
For Location 1: 1x 03070836-xx Support plate
4x 03045087-xx Screws M6x12
4x 00311385-xx index pins
For Location 2: 1x 03070862-xx Support plate
4x 03045087-xx Screws M6x12
4x 00311385-xx index pins DIN 6325
13.11.2018 Page 9
Configuration Smart Pin Support (SPS) on SX1/2
The SPS unit is mounted on the left side of the head holder on gantry 1.
User Manual SPS: 00197001-xx
Assembly Instruction SPS SX1/2: 00197002-xx
Note: The SX1 or SX 2 machine will
be equipped with one pin picker
only, independent of other machine
configuration!
