2. Feeder Measurement
(10) Press the [START] button in the window.
The accuracy inspection is executed, excluding the following two
points.
•
Discrepancy in Type Data
When a discrepant item exists in the type data, a warning
message box opens, indicating that the accuracy inspection
cannot be executed.
Correct the discrepant data.
•
"Lot Data Inp" Window
When "0" or "1" is set in the "Lot Data Input Omission Flag" text
box in the "Type Setting #1" window, the "Lot Data Inp" window
opens once before the inspection is executed initially, prompting
you to set the lot data.
When the [START] button is pressed after the setting, the
accuracy inspection starts.
Reference
Refer to "4. "Type Setting" Window" in "Section 3" for the lot
data input omission ag.

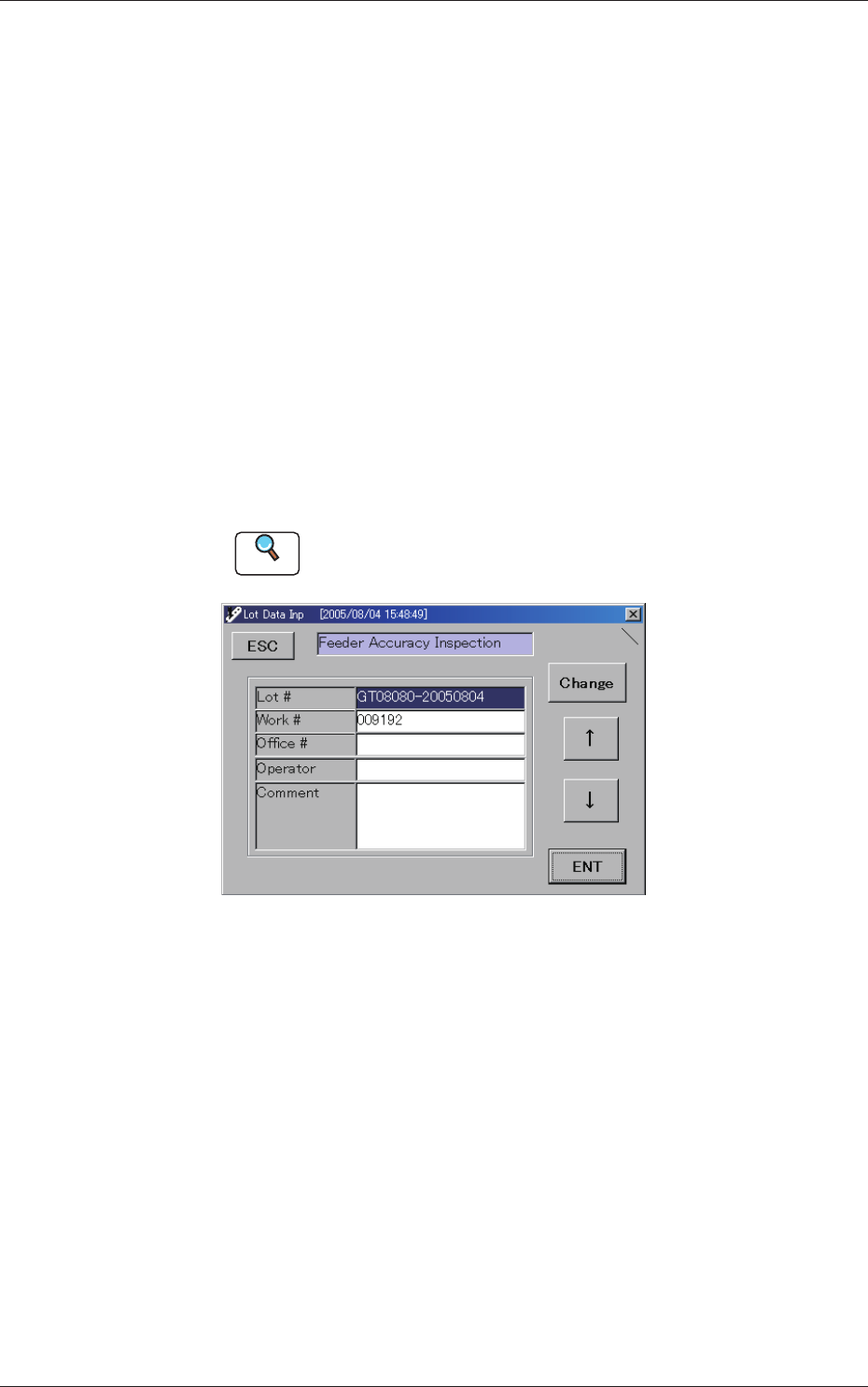

Fig. D17 "Lot Data Inp" Window
Lot #
: "type-yyyymmdd" is automatically allocated as a le
name to be recorded.
(yyyy = Year, mm = Month, dd = Day)
Example
: 2004/08/17 = 20040817
Work #
: The numerical values in the serial area of the serial
No. are automatically allocated and entered in the
text box.
Ofce #
: An arbitrary string of characters can be entered.
Operator
: An arbitrary string of characters can be entered.
Comment
: An arbitrary string of characters can be entered.
4-18
JO-116
1105-001
2. Feeder Measurement

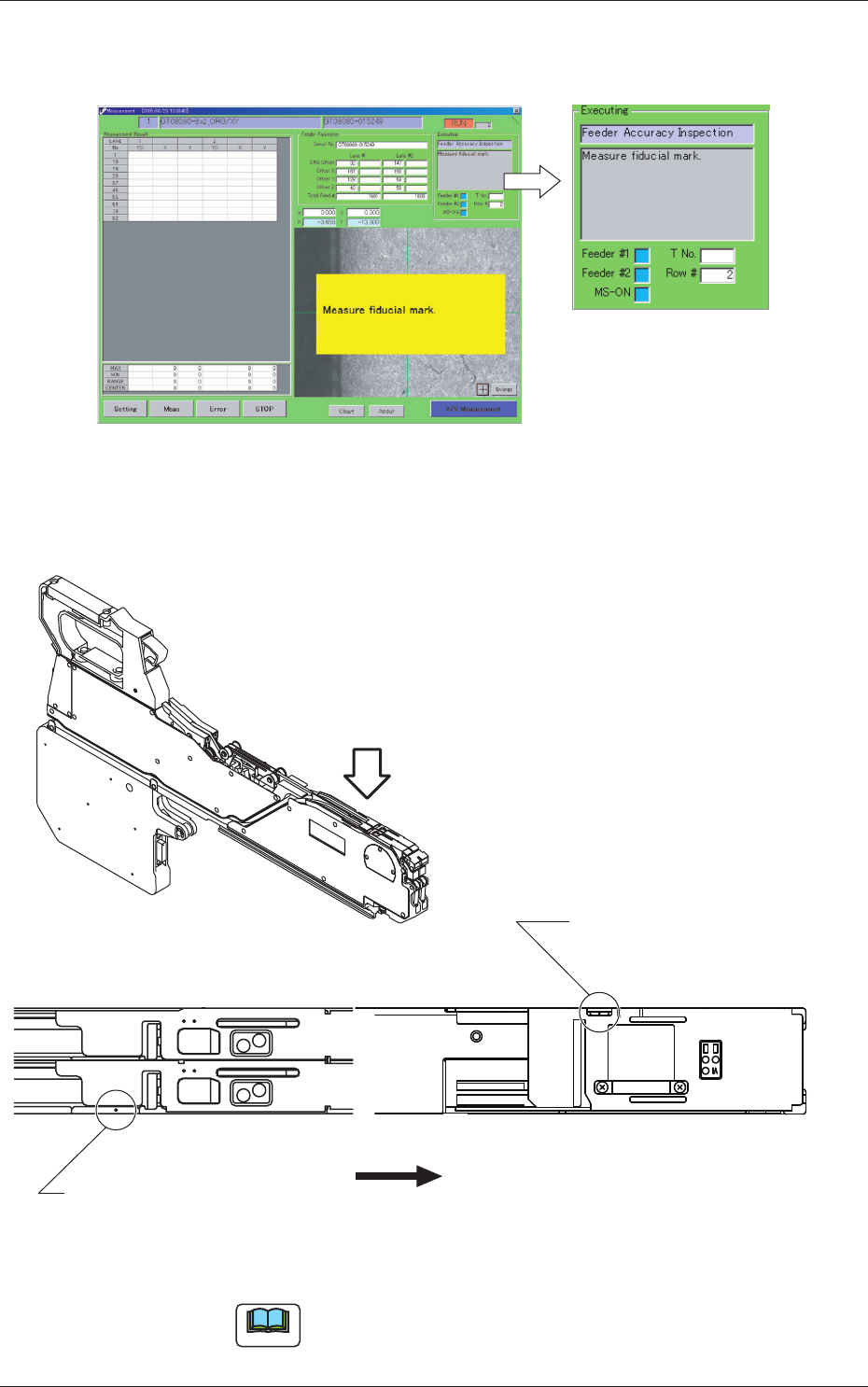

(11) The ducial mark position of the feeder is measured.
The following dialog box appears for three seconds.
Fig. D18
(12) Move the micrometer until the hole at the ducial mark position
is aligned with the center of the crosshair.
4
2
4
2
4 8
12
Direction of Tape Feed
Fiducial Mark Position of
G*-12160 or more
(G*-24320 used in the figure)
Fiducial Mark Position
of G*-0808*
Fig. D19 Position of Fiducial Mark
Note
The ducial mark position is based on the X/Y coordinates of
the computer screen and almost located at the coordinates in
the following table.
4-19
JO-116
1105-001
2. Feeder Measurement
Table D4
Models X Y
G*-0808* -3.650 -13.000
G*-12160 or more -13.950 -13.000
Align the hole at the
fiducial mark position
with the center of the
crosshair.
X/Y Position on
Computer Screen
Fig. D20

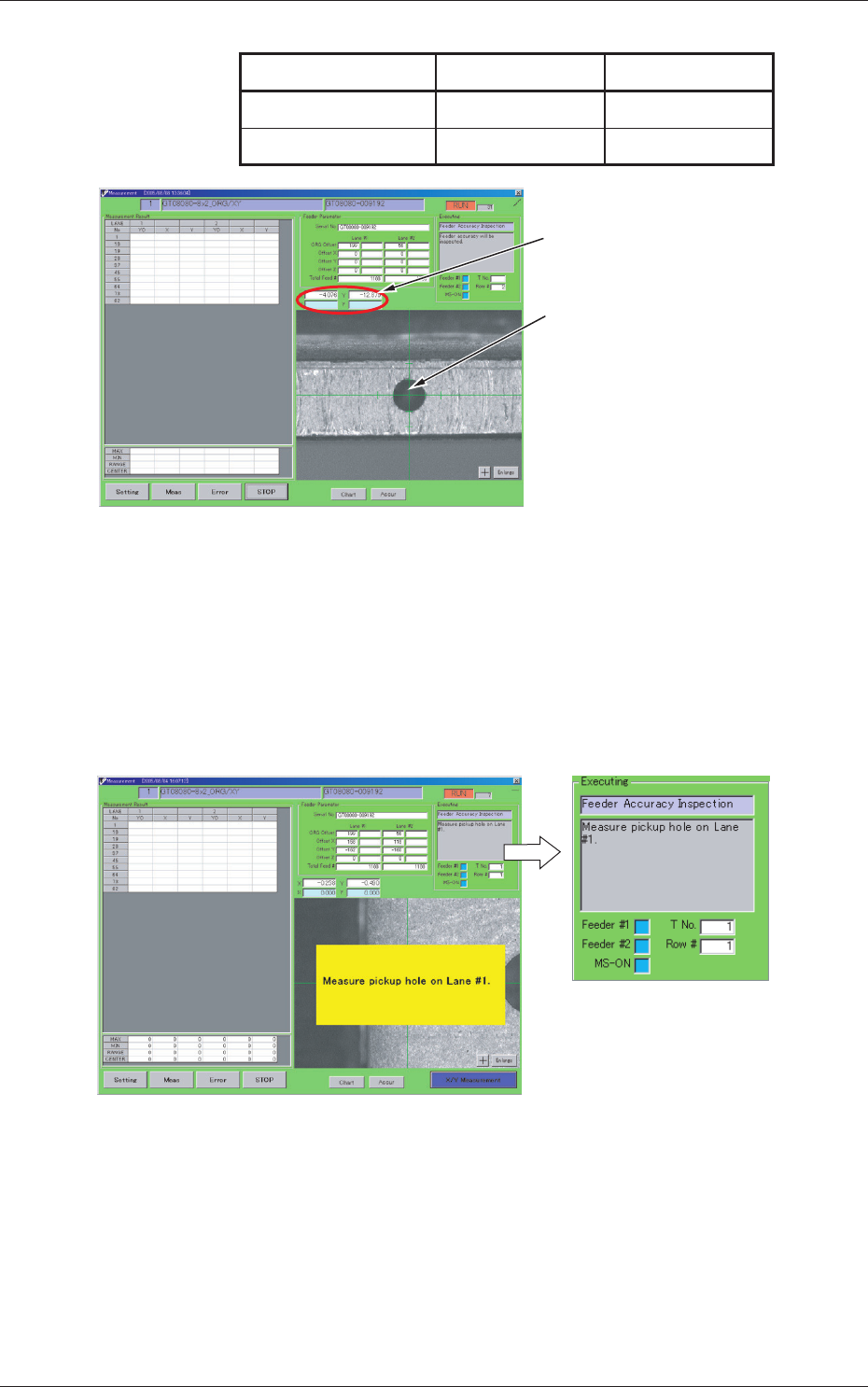

(13) Press the [Space] key on the keyboard or the [X/Y Measurement]
button in the window to perform the measurement of the ducial
mark position.
(14) Then, measure the pickup position.
The following dialog box appears for three seconds.
Fig. D21
