4-22

JO-116

1105-001

2. Feeder Measurement

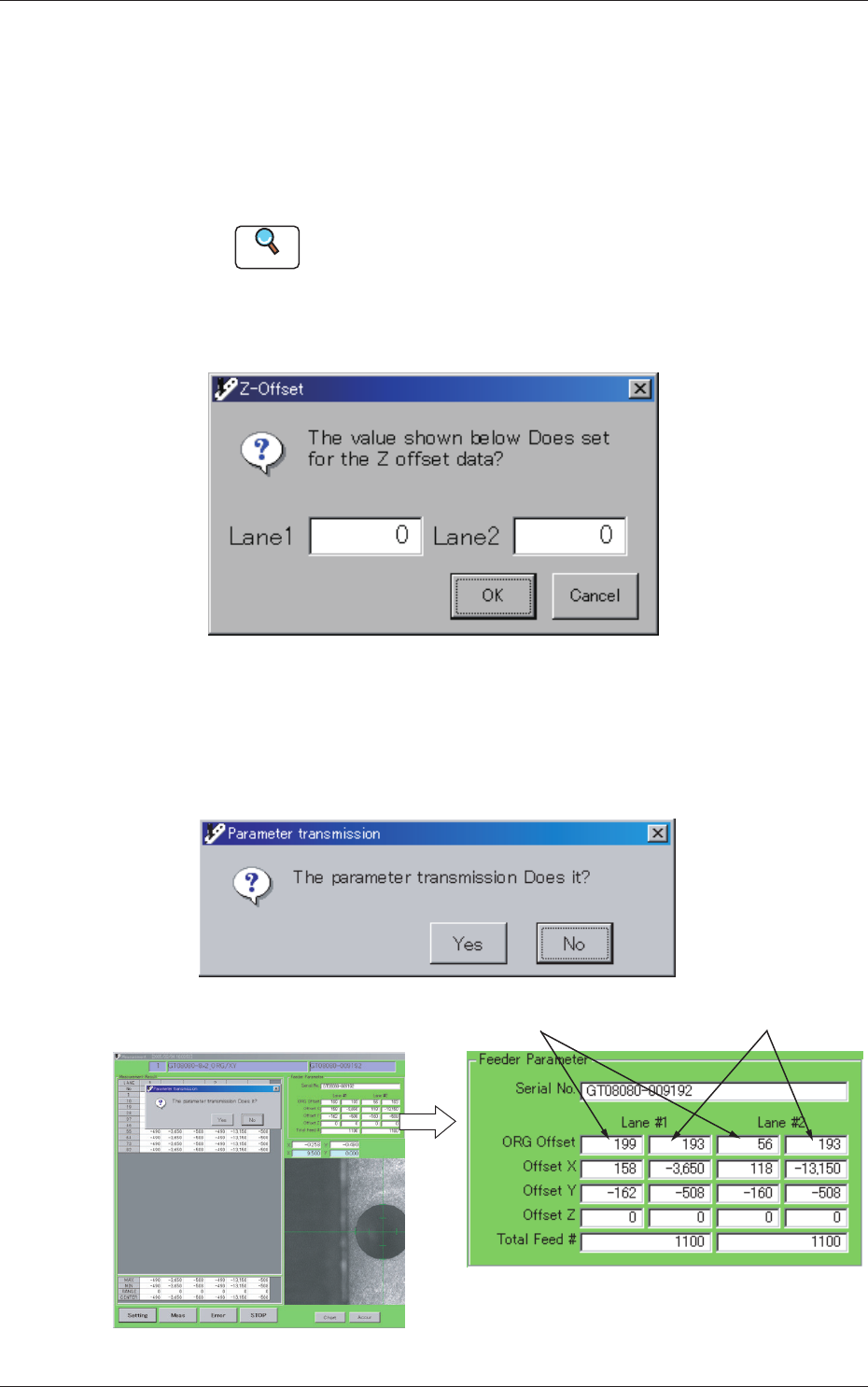

(20) After all measurements are completed, the following dialog box

opens.

When it is not necessary to change the pickup height data, press

the [Cancel] button.

To change the pickup height data, enter the offset values and

press the [OK] button.

Reference

Refer to "3. Measurement of Jig Origin Height" in "Section 4"

for details.

As for the models "G*-12160" or higher, the pickup height

offsets are required only for Lane #1.

Fig. D25

(21) Subsequently, the following dialog box appears.

Press the [Yes] button to transmit the results of the measurement.

Otherwise, press the [No] button.

Results of Measurement

Data before Measurement

Fig. D26

4-23

JO-116

1105-001

2. Feeder Measurement

(22) Detach the master tapes rst, then the tape feeder from the jig.

Now, the measurement is completed.

Note

To measure another feeder (same model) subsequently, follow the

procedures starting with the master tape setting described in (5).

To measure another feeder (different model), follow the procedures

starting with the program change described in (3).

CAUTION

If you detach the tape feeder with the master tapes

being attached from the jig, you may cut your nger

with sharp edges of the master tapes or damage the

tapes by bending the master tapes, etc.

Be sure to detach the master tapes rst, then the

tape feeder from the jig.

Reference

Refer to "2.3 Attachment and Detachment of Master Tapes" in

"Section 4" for how to attach the master tapes.

4-24

JO-116

1105-001

2.1 Operation Procedure for [Measurement Type 4]

•

Lane Original Offset Adjustment, Recognition Mark Position

Adjustment and Sprocket Offset Adjustment

This complicated processing is used to perform the lane origin offset

adjustment, recognition mark position adjustment and sprocket offset

adjustment in a single inspection in the case that the feeder feeding section is

disassembled or reassembled, or when it is disassembled to replace the part.

Note

(a) This program performs the same operation contents as in the

adjustment to be performed when the machine is shipped from the

factory.

(b) This inspection type No. is used only for GT/GD-28081 or 28083.

As an example, the operation procedure in the case that the adjustment for

GD-28081 is performed using the [Measurement Type 4], is described.

Procedure

(1) Select the [Measurement Type 4] program for the corresponding

feeder model type, in the program type setup list.

(1) Select the type name “G D28081-8 × 2_SPROCKET”.

( The yellow-highlighted section shows the currently selected program.)

(2) Click the measurement button.

Fig. D27

Notice

Before setup (connect) the feeder to the adjustment jig, select

the program [Measurement Type 4] for the corresponding

feeder model type (manual type change).

When the feeder is setup with the different program from

above selected, the jig recognizes the model type automatically

and type name "GD28081-8 x 2-ORG/XY" (Measurement

Type 5) is selected preferentially.
