1-4
JO-116
2. Specications
1105-001
Table A1-4
11. Mass
•
Personal Computer for Data Writing (DELL Optiplex Series)
: Approx. 13.15 kg
•
Electrical Box : Approx. 4.8 kg
•
Measuring Jig (Incl. the micrometer unit (the measured data transfer unit))
: Approx. 26 kg
•
Pickup Position Camera Control Unit (Power Supply for LED Illumination)
: 0.44 kg
•
Liquid Crystal Display (DELL E Series) : 5.1 kg
•
Keyboard : Approx. 0.55 kg
1-5
JO-116
2. Specications
1105-001
Standard Accessory Parts List
Table A2
No. Product Name Part No. Part Name Q'ty Remarks
1 Ferrite Core for Power
Cable
1
2 Light Shielding Jig 1
3 Pickup Position Master 1
Part to be prepared at the local site
* The following part must be prepared on the customer side.
No. Product Name Q'ty Specications
1 AC Power Cable (2m) 1 Length : Approx. 2m
Single Phase : 220 V 10 A
Number of Cores : 2 + Grounding Pin
Male Plug (Wall Outlet Side in Factory):
Prepare a plug that ts the wall outlet in the
local factory.
Female Plug (Power Box Side):
IEC Standard Connector
IEC60320C13 (Type No: YC-12)
1-6
JO-116
3. Rough View of Device
1105-001

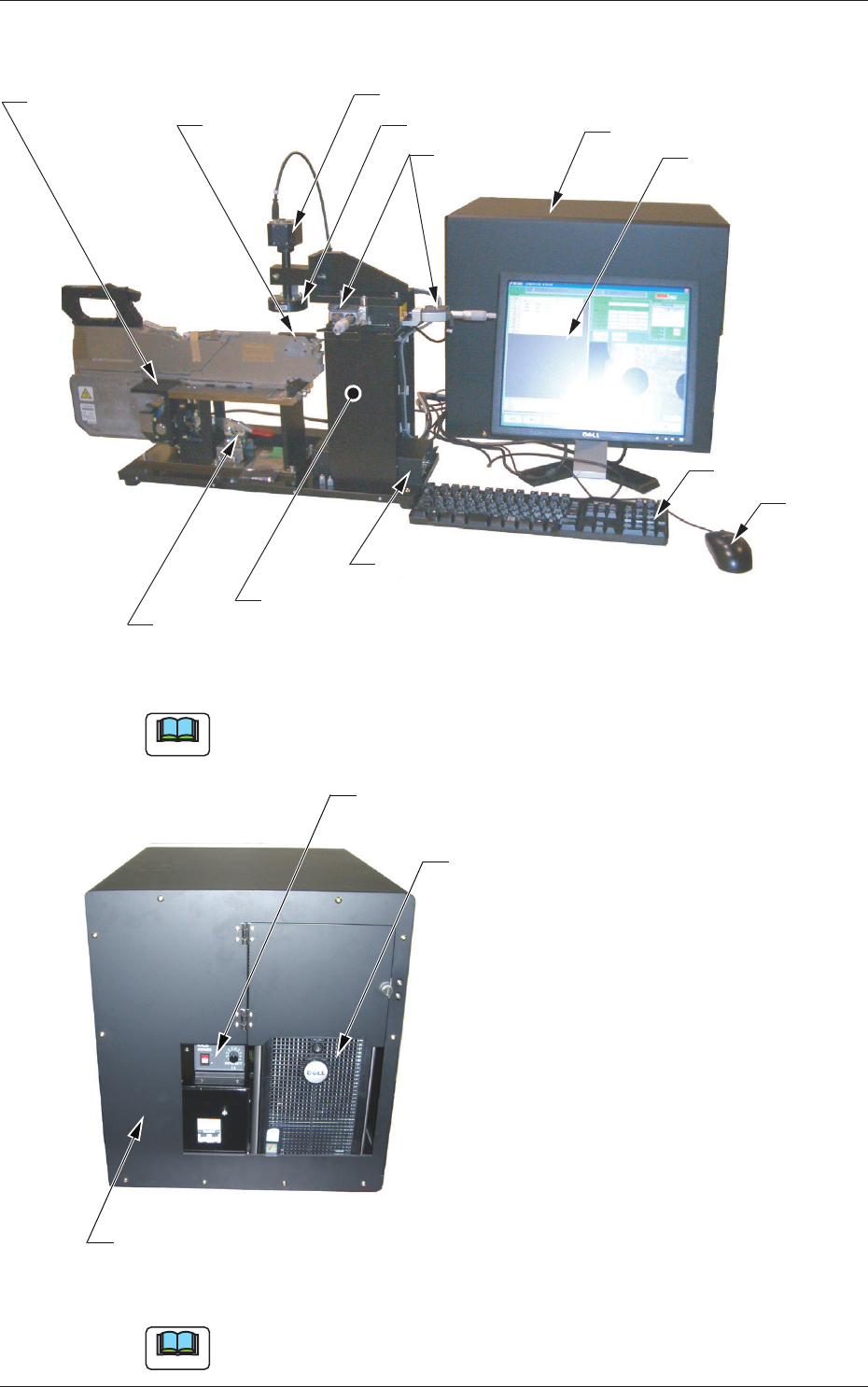

3. Rough View of Device
Liquid Crystal Display
(DELL E176FP)
Micrometer
Mouse
Keyboard
Pickup Position
Master
Toggle Clamp
Measuring Jig
Adjustment Base
Pickup Position Camera
Personal Computer Box
LED Illumination
Micrometer Unit
(Measured Data Transfer Unit)
Fig. A1
Note
The jig in the above inset photo might look different from the actual one.
Electrical Box
Pickup Position Camera Control Unit
(Power Supply for LED Illumination)
Personal Computer for Data Writing
(DELL Optiplex Series)
Fig. A2 Side View of Personal Computer Box
Note
The jig in the above inset photo might look different from the actual one.
