2-1 JO-1 16 1. Procedure for Jig Installation CAUTION • At least two peo ple are needed to install th e feeder adjusting jig and the personal computer box. The jig is very heavy . Be sure not to drop it. Otherwise, your …
2-B
JO-116
1105-001
2-1
JO-116
1. Procedure for Jig Installation
CAUTION
•
At least two people are needed to install the feeder
adjusting jig and the personal computer box.
The jig is very heavy. Be sure not to drop it.
Otherwise, your hands and/or feet will get hurt or
the jig may be damaged.
•
Carefully handle the jig and the personal computer
box to avoid your nger being caught in the base.
Otherwise, you may receive a hand or foot injury.
Fig. B1 Jig Installation
1. Procedure for Jig Installation
1105-001
2-2
JO-116
1.1 Cable Connection
1105-001
1.1 Cable Connection
Notice
Check the seals on the device side and the cable ID plates. Both
IDs should match each other when the cables are connected.
Seals
ID Plates
Fig. B2

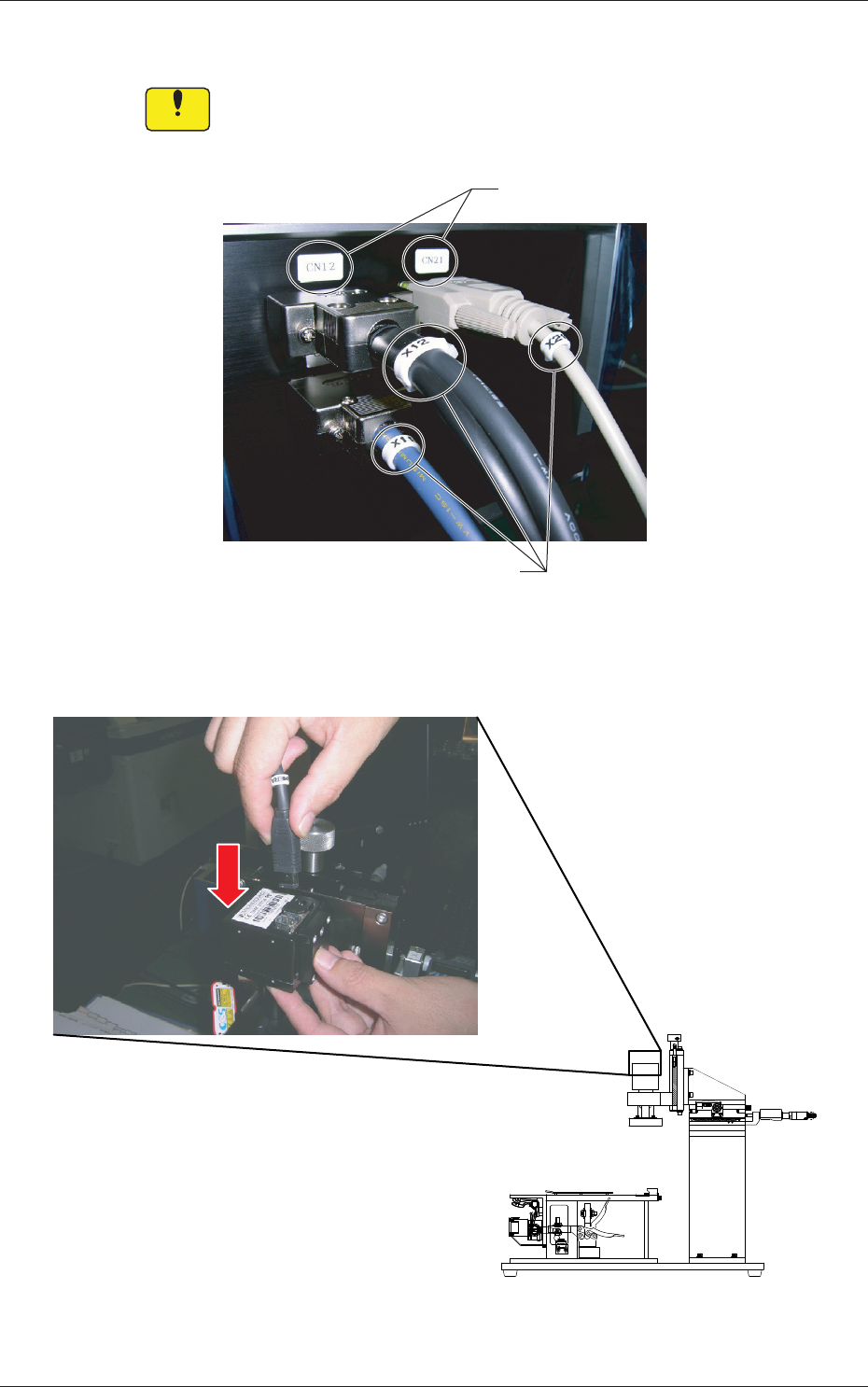

Fig. B3 Connection of Cables for Camera (used to capture the image of the pickup position)
