2. How to start and end the system
2. How to start and end the system
2.1 Starting the Program
Procedure
(1) Set the power switch of the electrical box to "ON" and start the
personal computer. The program starts up automatically and the
"Initial Master Setting" window opens.
Note
The displayed name of the feeder adjusting jig is different
from the actual one.
Fig. B7 "Initial Master Setting" Window
2-7
JO-116
1105-001
2.1 Starting the Program
(2) After a few seconds, the [Master Setting] button appears.
Fig. B8
(3) Press the [Master Setting] button and proceed to the registration
of the master position (jig origin adjustment).
Reference
Refer to "1. Registration of Master Position (Jig Origin
Adjustment)" in "Section 4" for how to adjust the jig to the
origin position.
2-8
JO-116
1105-001
2.1 Starting the Program

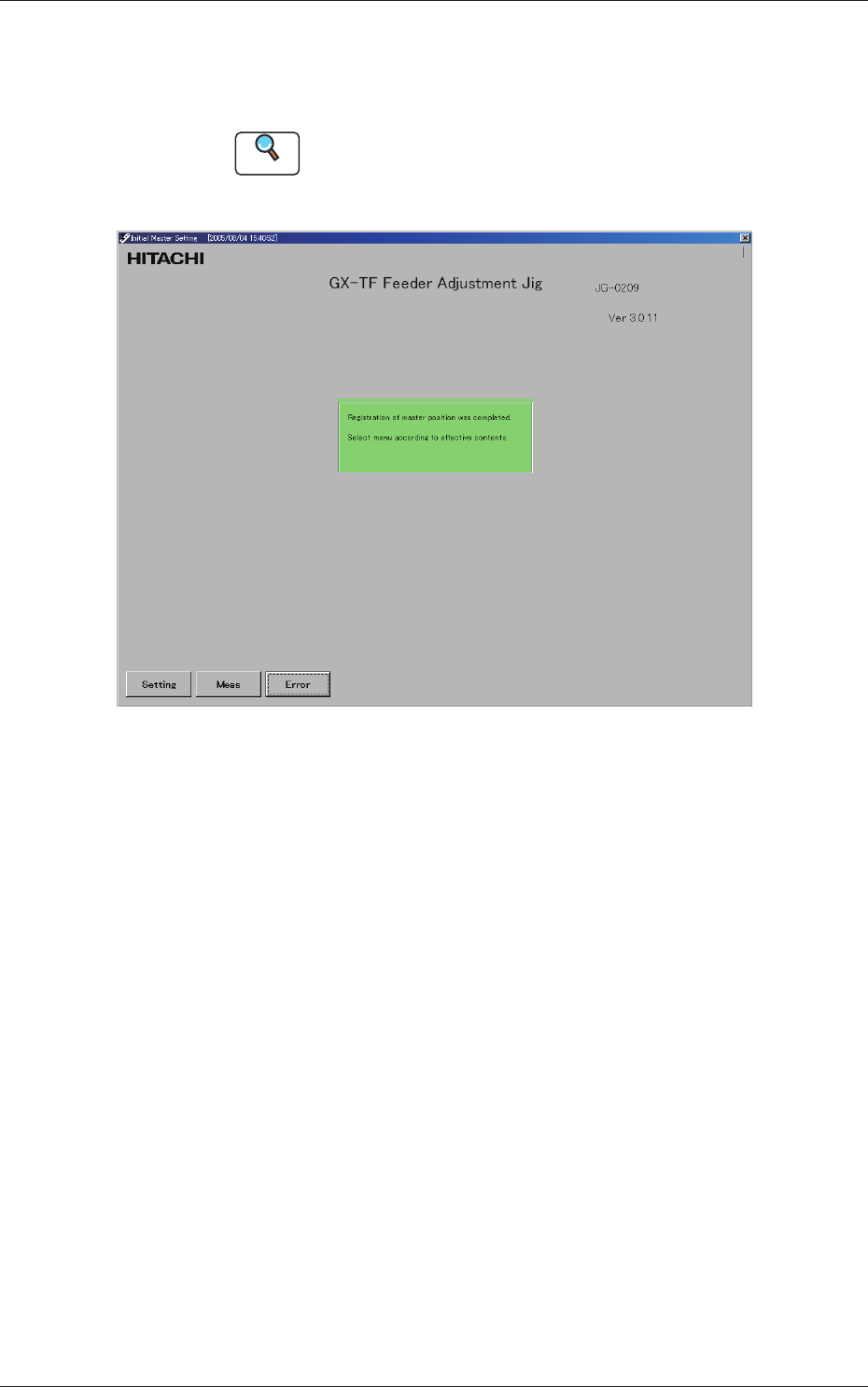

(4) After the registration (jig origin adjustment) of the master
position is completed, the following window opens, enabling you
to perform a feeder measurement.
Reference
Refer to "2. Feeder Measurement" in "Section 4" for how to
measure a feeder.
Fig. B9
