6. "Measurement" Window

[6] T No., Row #

Displayed are the lane and pickup hole Nos. under inspection.

[7] Feeder Parameter

Displayed are the feeder parameters.

[8] Table X/Y

Displayed are the current X/Y coordinates (address) of the table.

[9] Measurement Address X/Y

Displayed are the X/Y coordinates (address) of the measurement

address (design value).

Type No. Type Name Serial No.

Fig. C17

3-23

JO-116

1105-001

6.1 Accuracy Measurement Table

When the [Accur] button (located on the bottom of the "Measurement"

window) is pressed, the "Accuracy Measurement Table" window opens.

A list of les saved according to each serial No. are displayed in the accuracy

measurement table. Each le contains the results (those passed by the

inspection) of the feeder inspection.

By selecting an "Msd" le (Path: D:\MeasureData), the results of the

inspection can be conrmed and/or printed.

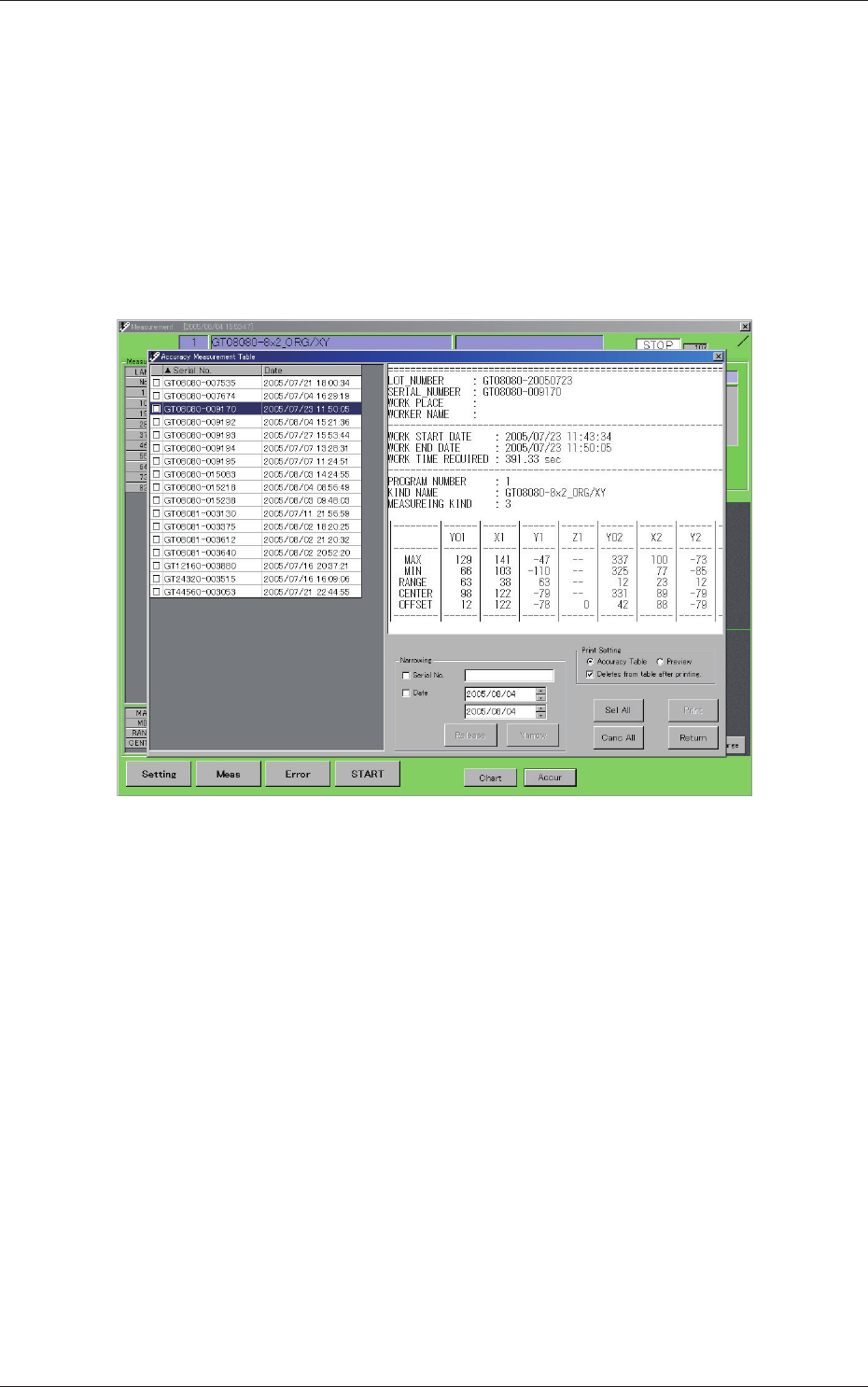

Fig. C18 Accuracy Measurement Table

3-24

JO-116

1105-001

6.1 Accuracy Measurement Table

Description of Displayed Items

[1]

[6][3] [5]

[2]

[4]

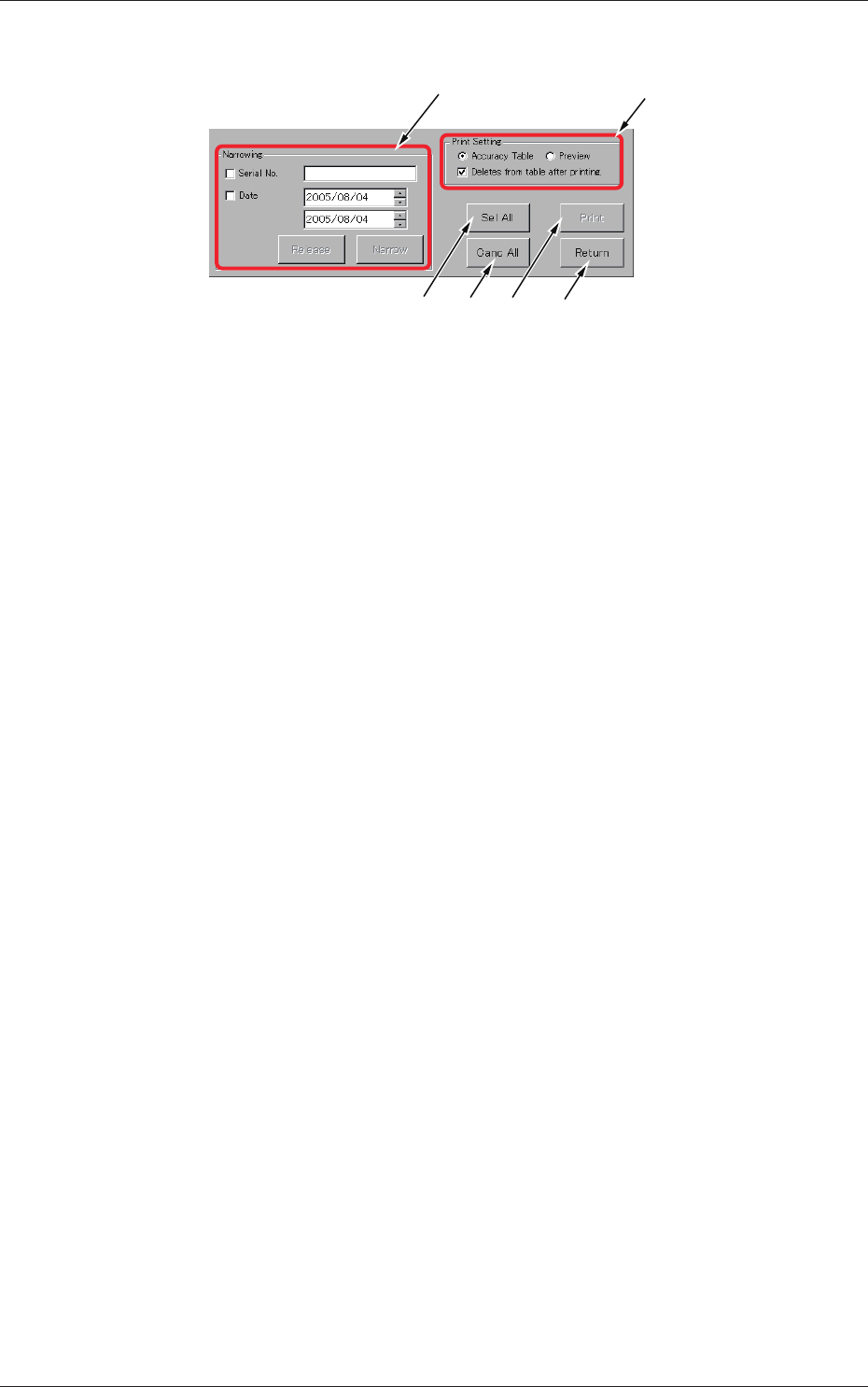

Fig. C19

[1] Narrowing

Serial No. and Narrowing by Inspection Date.

[2] Print Setting

The displayed print options can be selected.

[3] [Sel All] button

When pressed, this button selects all types displayed in the table.

[4] [Canc All] button

When pressed, this button cancels the selection (all selected types).

[5] [Print] button

Printing is executed according to the print setting in [2].

[6] [Return] button

When pressed, this button opens the previous window (window for

automatic execution).
