4-10
JO-116
2. Feeder Measurement
Program Type Setting List
Table D1-2
No Type Name
Measured
Models
Measurement
65 GT-28080-8 × 2_ORG / XY
GT-28080
Measurement of Origin and Feeder X/Y Offset
66 GT-28080-8 × 2_XY Measurement of Only Feeder X/Y Offset
67 GT-28081-8 × 2_ORG / XY
GT-28081
Measurement of Origin and Feeder X/Y Offset
68 GT-28081-8 × 2_SPROCKET
Measurement of Origin and Feeder X/Y, Sprocket Offset
69 GT-28082-8 × 2_ORG / XY
GT-28082
Measurement of Origin and Feeder X/Y Offset
70 GT-28082-8 × 2_XY Measurement of Only Feeder X/Y Offset
71 GT-28083-8 × 2_ORG / XY
GT-28083
Measurement of Origin and Feeder X/Y Offset
72 GT-28083-8 × 2_SPROCKET
Measurement of Origin and Feeder X/Y, Sprocket Offset
73 GT-12162-16 × 4_ORG / XY
GT-12162
Measurement of Origin and Feeder X/Y Offset
74 GT-12162-16 × 4_XY Measurement of Only Feeder X/Y Offset
75 GT-24322-32 × 4_ORG / XY
GT-24322
Measurement of Origin and Feeder X/Y Offset
76 GT-24322-32 × 4_XY Measurement of Only Feeder X/Y Offset
77 GT-44562-44 × 4_ORG / XY
GT-44562
Measurement of Origin and Feeder X/Y Offset
78 GT-44562-44 × 4_XY Measurement of Only Feeder X/Y Offset
79 GT-72002-72 × 4_ORG / XY GT-72002 Measurement of Origin and Feeder X/Y Offset
80 GT-88002-88 × 4_ORG / XY GT-88002 Measurement of Origin and Feeder X/Y Offset
81
82 GD-28080-8 × 2_ORG / XY
GD-28080
Measurement of Origin and Feeder X/Y Offset
83 GD-28080-8 × 2_XY Measurement of Only Feeder X/Y Offset
84 GD-28081-8 × 2_ORG / XY
GD-28081
Measurement of Origin and Feeder X/Y Offset
85 GD-28081-8 × 2_SPROCKET
Measurement of Origin and Feeder X/Y, Sprocket Offset
86 GD-28082-8 × 2_ORG / XY
GD-28082
Measurement of Origin and Feeder X/Y Offset
87 GD-28082-8 × 2_XY Measurement of Only Feeder X/Y Offset
88 GD-28083-8 × 2_ORG/XY
GD-28083
Measurement of Origin and Feeder X/Y Offset
89 GD-28083-8 × 2_SPROCKET
Measurement of Origin and Feeder X/Y, Sprocket Offset
90 GD-12162-16 × 4_ORG/XY
GD-12162
Measurement of Origin and Feeder X/Y Offset
91 GD-12162-16 × 4_XY Measurement of Only Feeder X/Y Offset
92 GD-24322-32 × 4_ORG / XY
GD-24322
Measurement of Origin and Feeder X/Y Offset
93 GD-24322-32 × 4_XY Measurement of Only Feeder X/Y Offset
94 GD-44562-44 × 4_ORG / XY
GD-44562
Measurement of Origin and Feeder X/Y Offset
95 GD-44562-44 × 4_XY Measurement of Only Feeder X/Y Offset
96 GD-72002-72 × 4_ORG / XY GD-72002 Measurement of Origin and Feeder X/Y Offset
97 GD-88002-88 × 4_ORG / XY GD-88002 Measurement of Origin and Feeder X/Y Offset
1105-001
4-11
JO-116
1105-001
2. Feeder Measurement

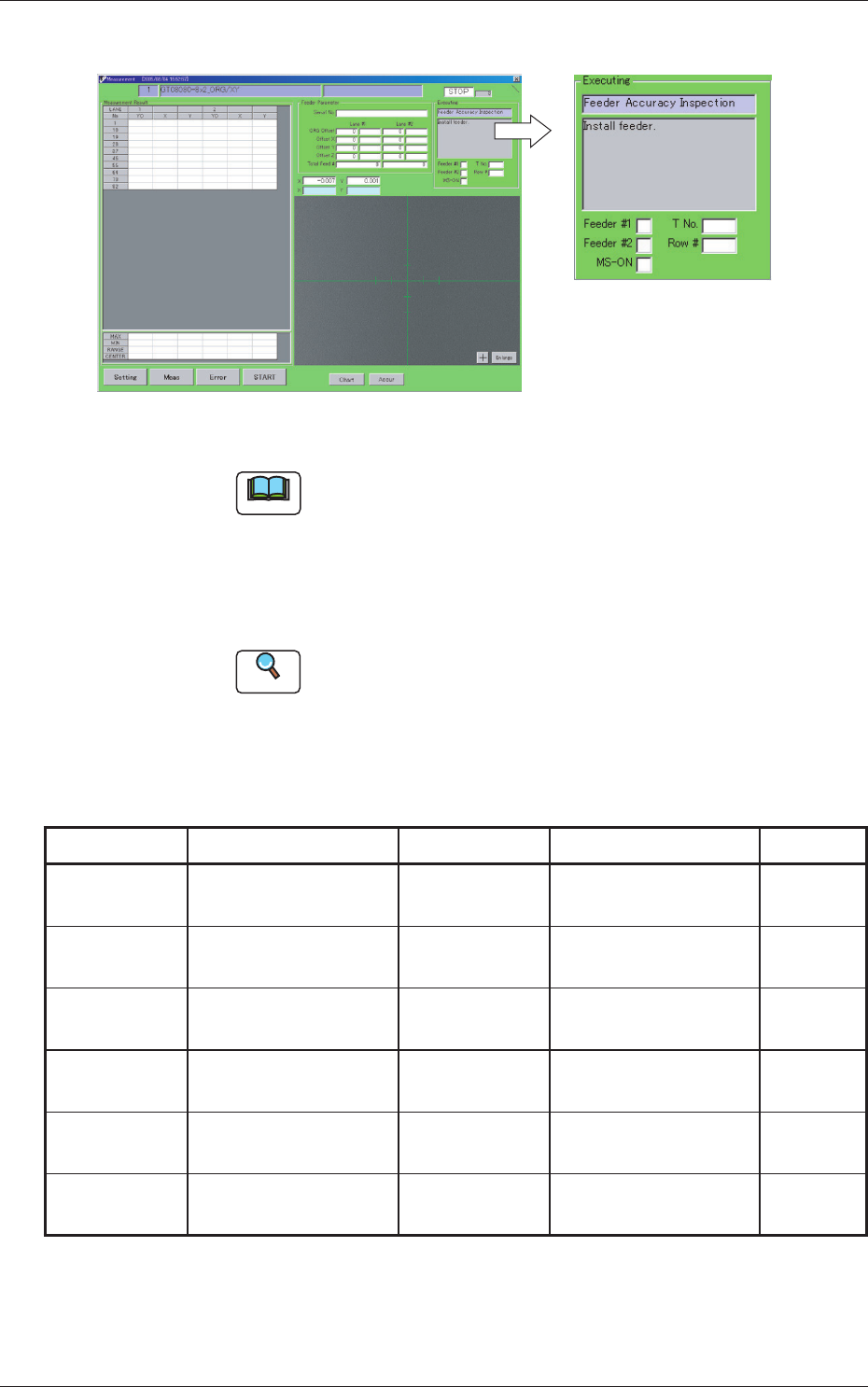

(4) Press the [Meas] button. The "Measurement" window opens.
Fig. D10 "Measurement" Window
Note
(a) Use the following master tape respectively for each model.
(b) A master tape is required to be purchased for the
measurement.
Contact the marketing department or sales agency of
Hitachi High-Technologies for the details on the purchase
arrangements.
Reference
(a) Refer to "6. "Measurement" Window" in "Section 3" for
the details of the "Measurement" window.
(b) Refer to "2.4 Tape Guide and Support Suppressor" in the
instruction manual "Tape Feeders for GXH Series" for
details.
Table D2
Models Master Tape JG Nos. Part No. Tape Width Required Q'ty
GT-*808*
GD-*808*
JG-0009-12 JG000912 8 mm 2 pcs.
GT-1216*
GD-1216*
JG-0009-16 JG000916 16 mm 1 pcs.
GT-2432*
GD-2432*
JG-0009-17 JG000917 32 mm 1 pcs.
GT-4456*
GD-4456*
JG-0009-18 JG000918 56 mm 1 pcs.
GT-7200*
GD-7200*
JG-0009-20 JG000920 72 mm 1 pcs.
GT-8800*
GD-8800*
JG-0009-21 JG000921 88 mm 1 pcs.
4-12
JO-116
1105-001
2. Feeder Measurement
(5) Attach the master tapes to the tape feeder and set the feeder on
the adjustment base of the jig.
Master Tapes
Fig. D11 Master Tape Setting (For 8 mm Tape Feeder)
Reference
Refer to "2.3 Attachment and Detachment of Master Tapes" in
"Section 4" for how to attach the master tapes.
