Conversion Instructions S-20/S-23 HM/F4/F5 Power supply 09/99 edition 29 Fig. 5 - 3 Front panel of t he power supply unit - connecting t he inrush current limiter (003429988-01) (1) - (9 ) Numb ers of the connect ing wir…
Power supply Conversion Instructions S-20/S-23 HM/F4/F5
5 Converting placement systems from 3x400VAC to 3x208VAC 09/99 edition
28
5.2 Converting the single-phase transformer T1 from 230 VAC to 110 VAC
Å Disconnect the black wire from terminal 6 (230 V) and connect it to terminal 4 (120 V - see Fig.
5 - 2).
5.3 Converting the three-phase transformer T2 from 3 x 400 VAC to 3 x 208 VAC
Å Disconnect the black wire from terminal 1 (400 V) and connect it to terminal 7 (208 V) (see Fig.
5 - 2).
Å Disconnect the black wire from terminal 2 (400 V) and connect it to terminal 8 (208 V) (see Fig.
5 - 2).
Å Disconnect the black wire from terminal 3 (400 V) and connect it to terminal 9 (208 V) (see Fig.
5 - 2).
5.4 Converting the inrush current limiter A1 from 3x400 VAC to 3x208 VAC
Å Disconnect wire 3 from terminal 13 and connect it to terminal 14 (see Fig. 5 - 3).
Å Disconnect wire 6 from terminal 23 and connect it to terminal 24 (see Fig. 5 - 3).
Å Disconnect wire 9 from terminal 33 and connect it to terminal 34 (see Fig. 5 - 3).
Å Disconnect wire 2 from terminal 12 and connect it to terminal 13 (see Fig. 5 - 3).
Å Disconnect wire 5 from terminal 22 and connect it to terminal 23 (see Fig. 5 - 3).
Å Disconnect wire 8 from terminal 32 and connect it to terminal 33 (see Fig. 5 - 3).
5.5 Installing the power supply unit
Å Carefully push the power supply unit into the housing until it reaches the stop.
Å Secure the unit to the bottom part using the hexagon socket-head screw.
Å Check that the yellow-green protective earth conductor is connected to the cover.
Å Attach the cover.
PLEASE NOTE: 5
Make sure that the actuating shaft of the main switch slides easily into the opening in the ro-
tary button. 5
Å Fix the cover in place using the two hexagon socket-head screws.
Conversion Instructions S-20/S-23 HM/F4/F5 Power supply
09/99 edition
29

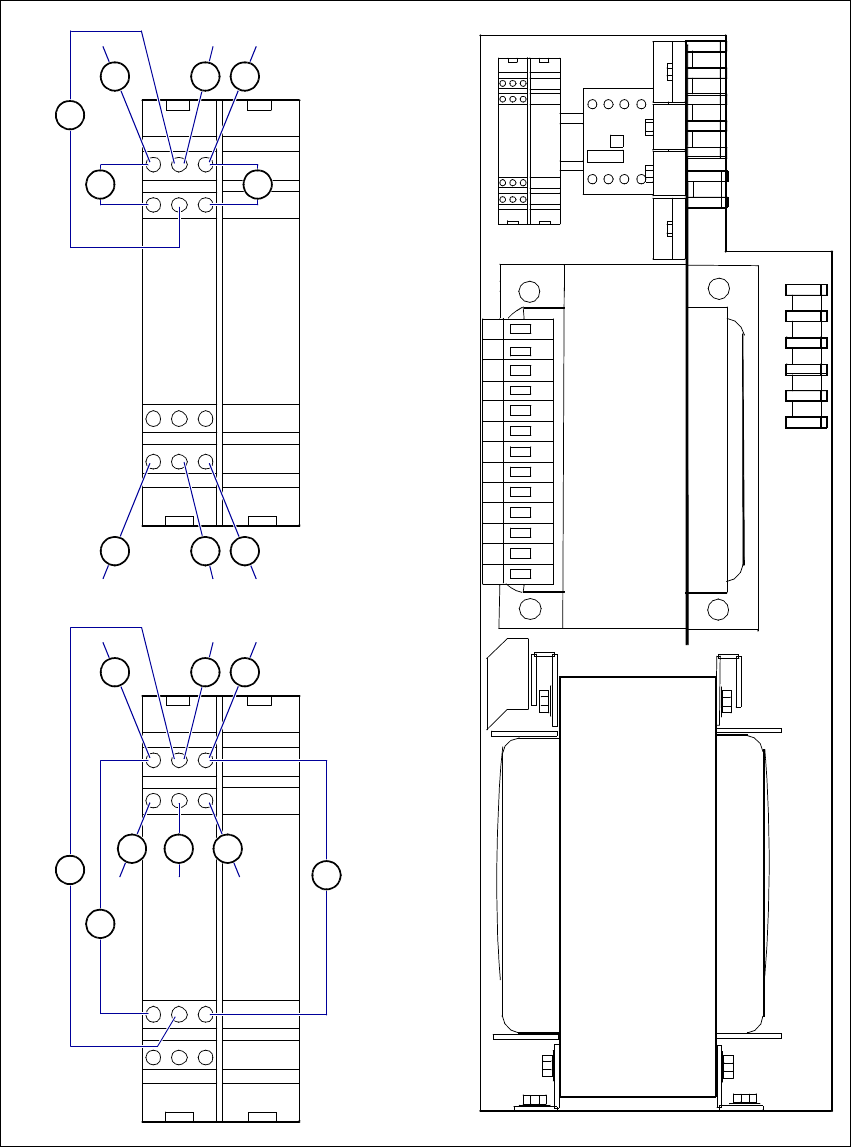

Fig. 5 - 3 Front panel of the power supply unit - connecting the inrush current limiter (003429988-01)
(1) - (9) Numbers of the connecting wires
(A1) Inrush current limiter 5
12 22
14 24 34
32
230
230
150
120
N
+5%
P
E
-5%
24
8
0
8
24
A1
1 L1 3 L2 5 L3 21 NC
SIEMENS
01
2 T1 4 T2 6 T3 22 NC
V1
V4
V5
V3
11 21 31
13 23 33
A1
12 22 32
14 24 34
11
21
31
13 23 33
1
7
4
2 8
5
3
9
6
A1
12 22 32
14 24 34
11
21
31
13 23 33
1
7
4
2
5
8
63 9
T2
Three-phase
transformer
T1
Single-phase
transformer
3x208VAC
3x400VAC
Power supply Conversion Instructions S-20/S-23 HM/F4/F5
6 4 or 5-conductor connection for the mains supply 09/99 edition
30
6 4 or 5-conductor connection for the mains supply
The connections consist of either 4 or 5-conductor cables, as specified by the electricity company.6
4-conductor connection 6
For the 4-conductor connection, the neutral (N) and protective earth (PE) conductors are com-
bined in a common wire PEN. 6
Å Insert the yellow-green wires BR3 and BR4 between the N and PE terminals in the right-hand
terminal panel of terminal strip X206 (see Fig. 6 - 1).
5-conductor connection 6
For the 5-conductor connection, the neutral (N) and protective earth (PE) conductors run in sep-
arate wires. 6
Å Remove the yellow-green wires BR3 and BR4 between the N and PE terminals in the right-
hand terminal panel of terminal strip X206 (see Fig. 6 - 1).
Placement
system
Terminal panel
Terminal strip X206
Jumpers BR3 and BR4 set between PE and N
4-conductor connection 5-conductor connection
S-20 00321510-xx yes no
S-23 HM 00337342-xx yes no
F4/F5 00321512-xx yes no
