5OM-1840 Pneumatic and Mounting Diagrams 1-1-6 1604-001 Conveyor (Pneumatic Diagram) φ6L1300 φ4 Ｌ 520 ZLMD Movable Side Z-Clamp L Fixed Side Z-Clamp L Movable Side Z-Clamp R Fixed Side Z-Clamp R SLLD SLLU φ3.2L850 φ3.2L8…
5OM-1840
Pneumatic and Mounting Diagrams
1-1-5
1604-001
Main Body (Mounting Diagram)
6
7
7-1
6-1
7-2
6-2
7-3
6-3
7-4
4
4-1
4-2
4-3
4-5
4-4
4
4-1
4-2
4-3
4-5
4-4
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
4 Solenoid Valve Unit 1 7 Manifold Unit 1
4-1 Solenoid Valve 2 7-1 Manifold 1
4-2 Half Union 2 7-2 Straight Elbow 2
4-3 Half Union 2 7-3 Reducer Elbow 1
4-4 Half Union 2 7-4 Plug 1
4-5 Half Union 2
6 Manifold Unit 1
6-1 Manifold 1
6-2 Straight Elbow 2
6-3 Reducer Elbow 1
5OM-1840
Pneumatic and Mounting Diagrams
1-1-6
1604-001
Conveyor (Pneumatic Diagram)
φ6L1300
φ4Ｌ520
ZLMD
Movable Side Z-Clamp L
Fixed Side Z-Clamp L
Movable Side Z-Clamp R
Fixed Side Z-Clamp R
SLLD
SLLU
φ3.2L850
φ3.2L850
ZLFD
φ3.2L850
φ3.2L1650
ZLMU
ZLMU
φ3.2L1650
φ3.2L1650
φ3.2L1650
φ3.2L1650
φ3.2L800
φ3.2L800
φ3.2L800
φ4Ｌ590
φ4Ｌ580
φ4Ｌ600
φ4Ｌ650
VZRU
VZRD
SRRU
SRRD
φ4Ｌ680 φ4Ｌ705
φ4Ｌ600
φ4Ｌ550
φ4Ｌ735 φ4Ｌ750
φ4Ｌ900
φ4Ｌ860
From Main Body
PCB Stopper R-R
φ4Ｌ510
φ4Ｌ770
φ4Ｌ750
PCB Stopper L-RPCB Stopper L-L
2
3
3
3
3
1111
SLLD
SLLU
11
11
11
11
3
3
3
3
3
3
3 3
3 3 3 3
3 3
3
3
9
8
8
9
9
7 7
1
1 1
1
1
1 1
1 1
1
1
3
5
5
55
3
1
1
6
1 1 1
VSLLD
VSLLU
VSLRDVSLRU
VZLD
VZLU
VSRRD
VSRRU
VZLD
VZLU
VZRD
VZRU
ZRMD
φ3.2L1650
ZRMU
ZRFD
ZRMU
φ4L40
φ4L40
11
11
φ4L40
11
11 11
11
3 3
3
3
φ4L40
φ4L40
φ4L40
φ4L40
φ4L40
φ4L40
3
3
11
11
φ4L40
φ4L40
φ4L40
φ4L40
B
A
B
A
B
A
B
A
B
A
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
1 Tube
φ
3.2 1
2 Tube
φ
6 1
3 Half Nipple 28
5 Union Y 8
6 Solenoid Valve 5
7 Fixed Chute Unit 2
8 Movable Chute Unit 2
9 PCB Stopper 3
11 Speed Controller 14
5OM-1840
Pneumatic and Mounting Diagrams
1-1-7
1604-001

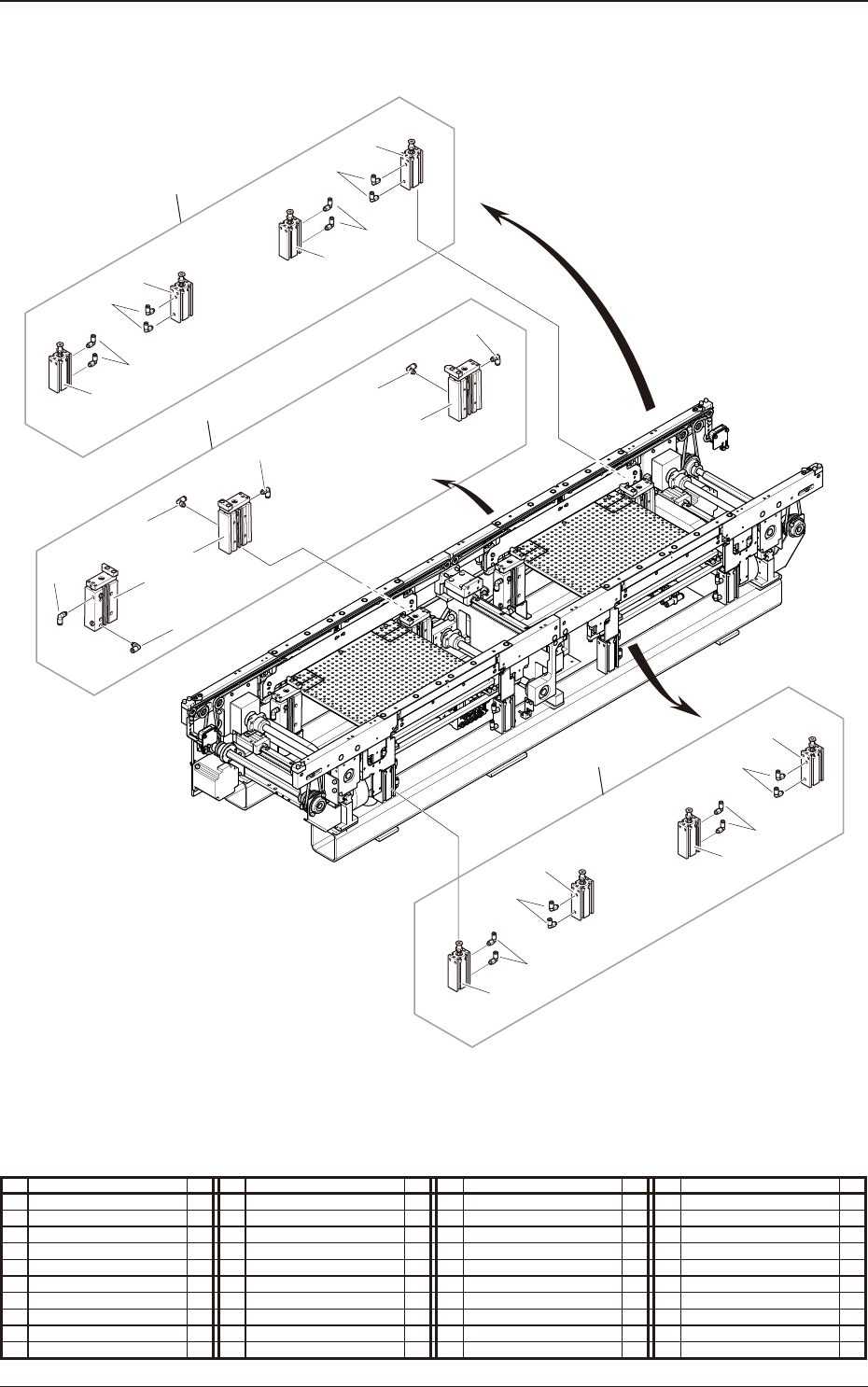

Conveyor (Mounting Diagram)
8
8-1
9-1
9-1
9-1
9-2
7-1
7-1
7-3
7-3
7-3
7-2
7-2
7-2
9-2
9-2
9-2
9-2
9-2
8-1
8-1
8-1
8-2
8-2
8-2
8-2
7
9
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
7 Fixed Chute Unit 4
7-1 Cylinder
7-2 Cylinder
7-3 Barb Elbow
8 Movable Chute Unit 4
8-1 Cylinder
8-2 Barb Fitting
9 PCB Stopper 3
9-1 Cylinder
9-2 Barb Fitting
