5OM-1840-001w_F8S - 第87页
5OM-1840 3-1-6 Parts Location 1604-001 CON1 CON2 CON3 CON4 CON5 CON6 CON7 CON8 CN5 CON1 CN8 CN7 CN3 CN2 CN6 UC19 CON1-8 CN5 CN1 CN8 CN7 CN3 CN2 CN6 A21 STAGE 2 21- A22 21- A21 22- A22 22- Y(B) Y(F) X(F) X(B) CN10 CN11 CO…
5OM-1840
3-1-5
Parts Location
1604-001
Z01
Z02

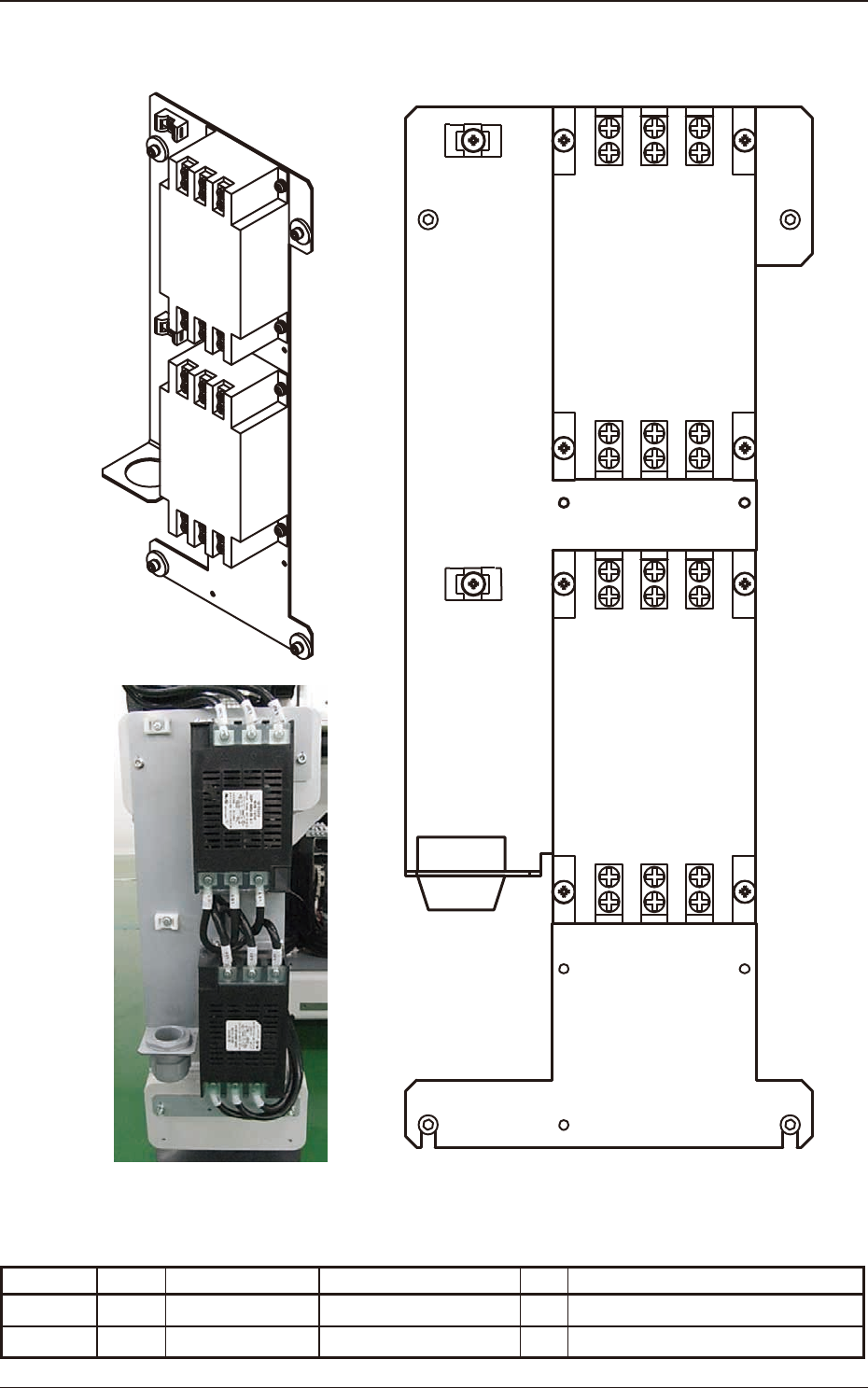

Noise Filter
Symbol Block Parts Name Model Qt Main Applications
Z01 BA FILTER-NOISE 3SUPF-BH5O-FR-6 1 Noise Filter
Z02 BA FILTER-NOISE 3SUPH-BH50-ER-6 1 Noise Filter
5OM-1840
3-1-6
Parts Location
1604-001
CON1
CON2
CON3
CON4
CON5
CON6
CON7
CON8
CN5
CON1
CN8
CN7
CN3
CN2
CN6
UC19
CON1-8
CN5
CN1
CN8
CN7
CN3
CN2
CN6
A21
STAGE 2
21-
A22
21-
A21
22-
A22
22-
Y(B) Y(F)X(F)X(B)
CN10
CN11
CON11
CN13
CN12
CN9
UC19AUC19

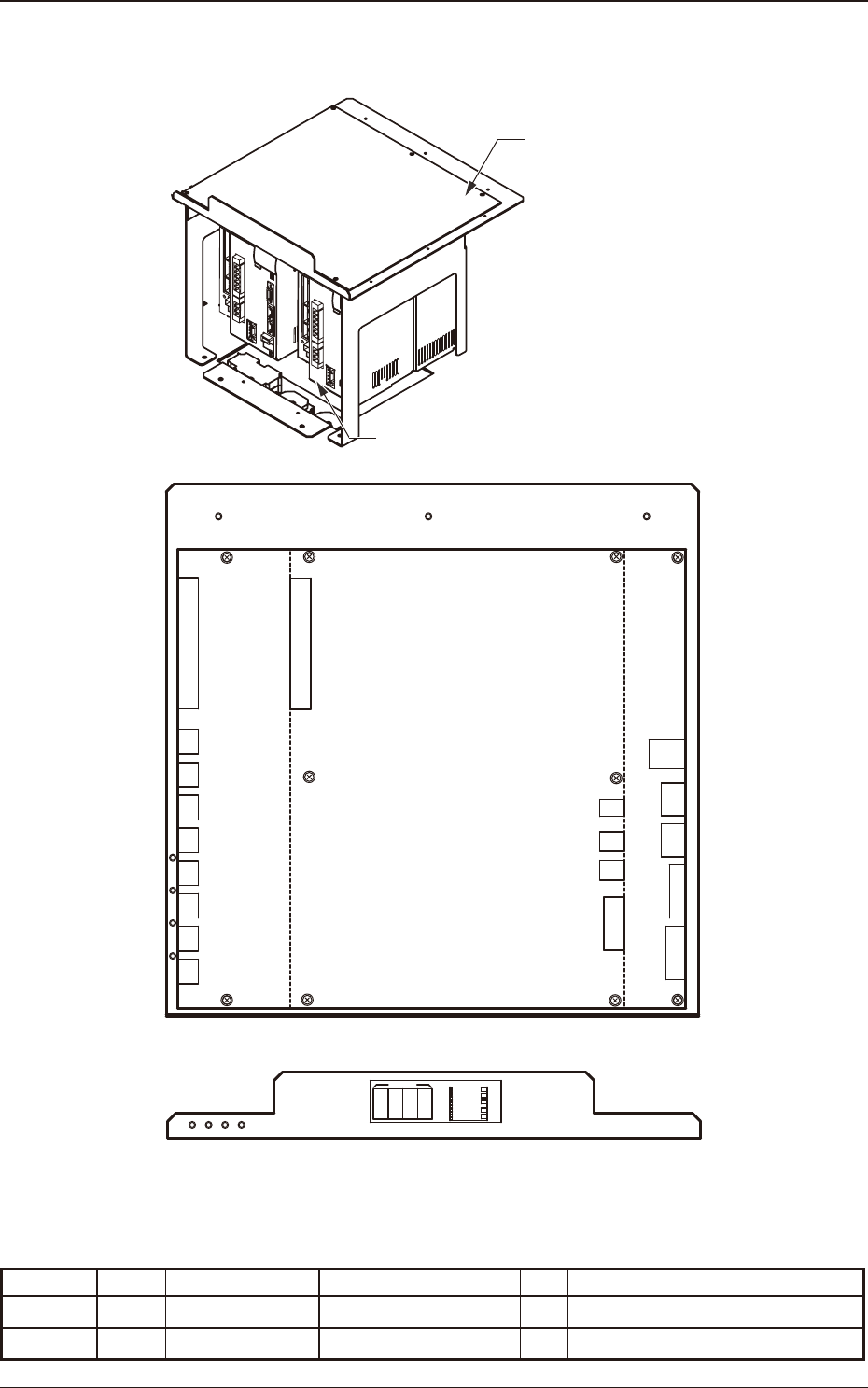

Lighting Control PCB UC19
Servo Amplitier (Front)
Lighting Control PCB UC19
Symbol Block Parts Name Model Qt Main Applications
U95 BA P.C.B Mount UC19 1 Lighting Control PCB
U95 BA P.C.B Mount UC19A 1 Lighting Control PCB (Expansion)
5OM-1840
3-1-7
Parts Location
1604-001
A21_21 A22_21 A21_22 A22_22

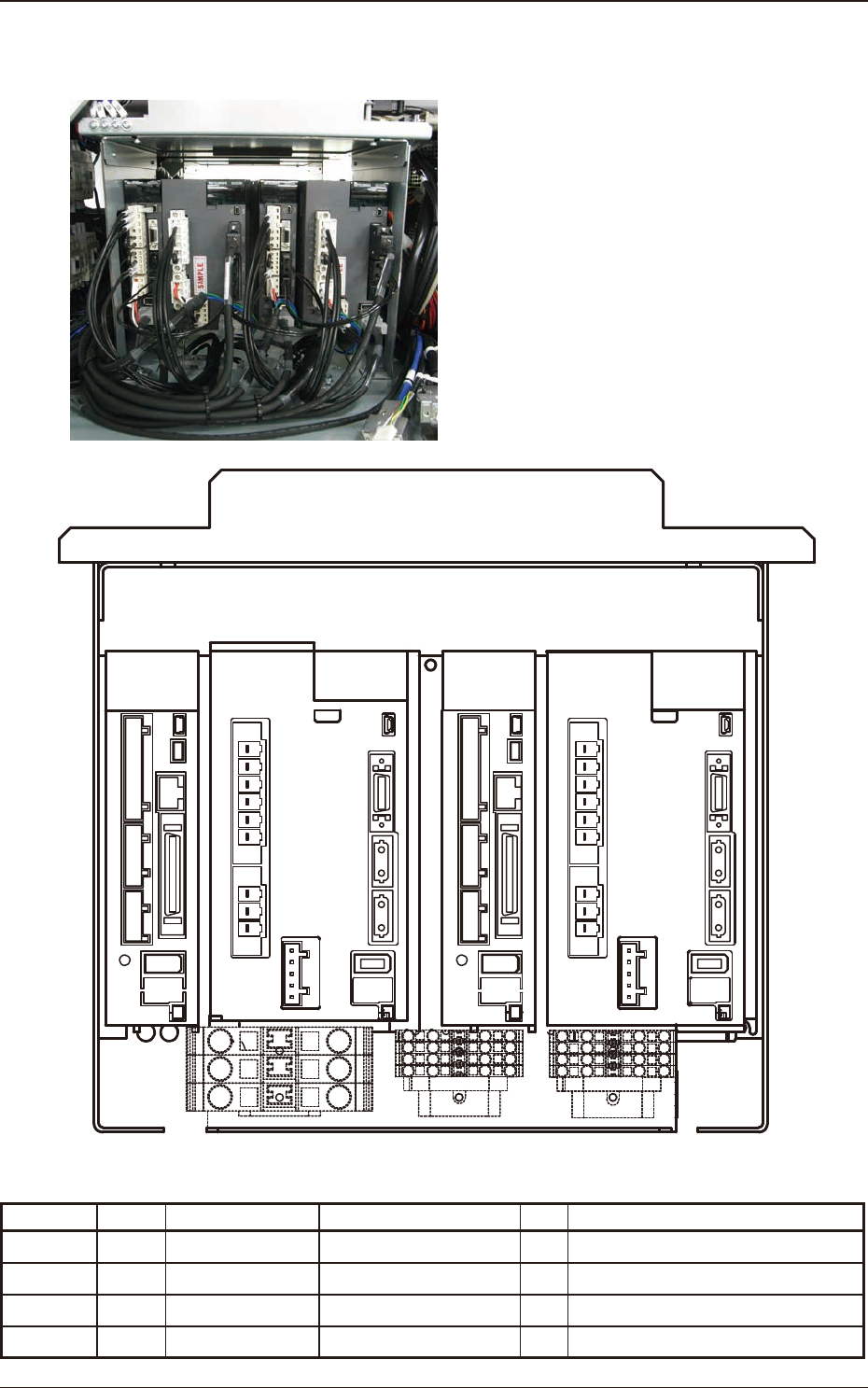

Servo Amplitier (Front)
Symbol Block Parts Name Model Qt Main Applications
A21-21 BA UNIT-DRIVER #MR-J3-60B-RJ115 1 STAGE 2 X1 axis driver
A22-21 BA UNIT-DRIVER #MR-J3-350B-RJ115 1 STAGE 2 Y1 axis driver
A21-22 BA UNIT-DRIVER #MR-J3-60B-RJ115 1 STAGE 2 X2 axis driver
A22-22 BA UNIT-DRIVER #MR-J3-350B-RJ115 1 STAGE 2 Y2 axis driver
