5OM-1840 3-1-9 Parts Location 1604-001 CPU2 X8505 X8502 X8503 X8203 X8204 X8201 X8202 X8102 X8104 X8109 X85x01 X8303 X8304 X8301 X8302 X8501 X8504 U82 U83 U85 LAN SELIAL1 SELIAL2 USB2 USB3 USB4 USB1 LAN U81 Symbol Block …

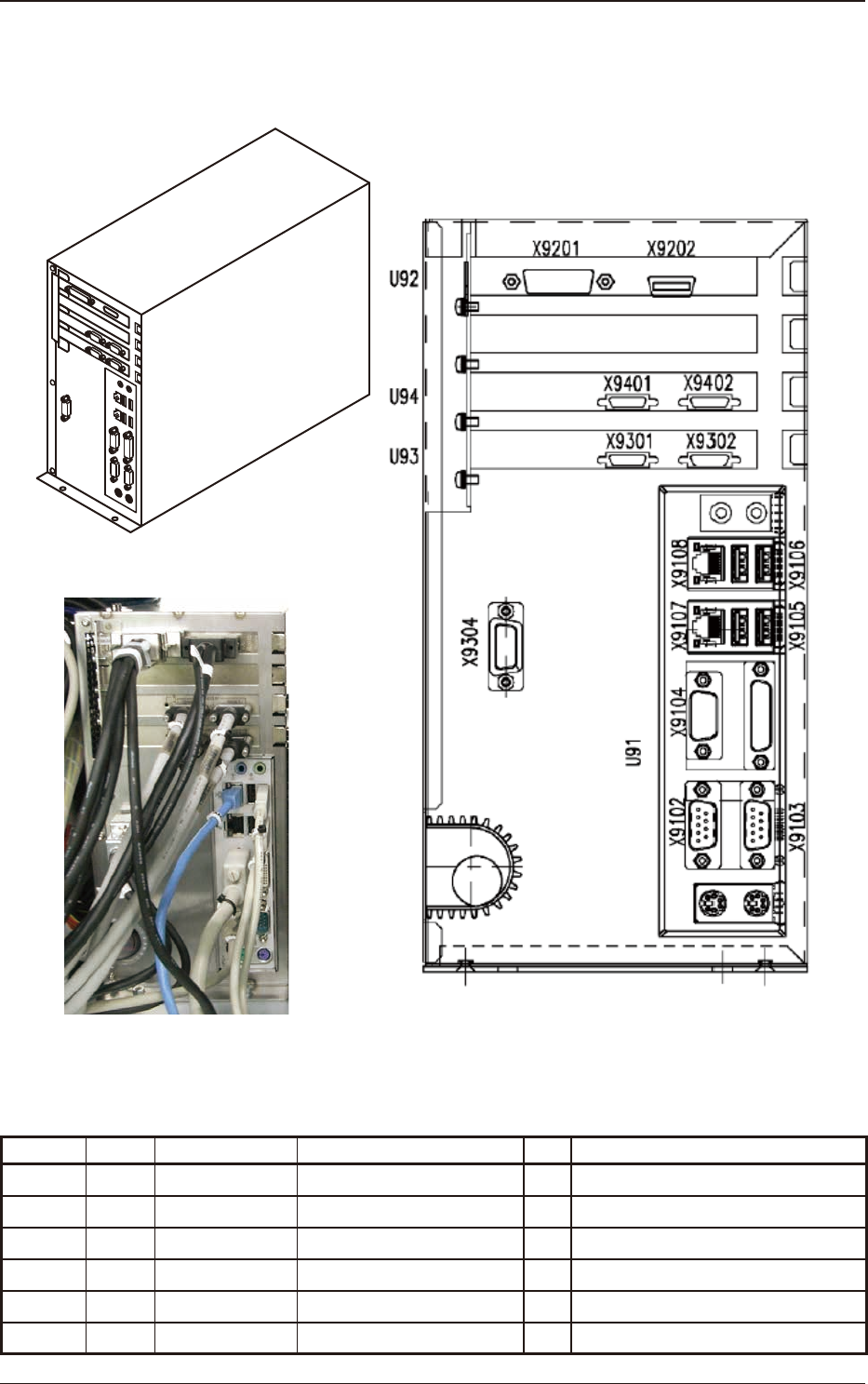

5OM-1840
3-1-8
Parts Location
1604-001
CPU1
Symbol Block Parts Name Model Qt Main Applications
D89 BA SSD
D2ST2-08GJ20AC2 QT-D95
1
BA CORD SAT-3103BL 1 SSD Communication Cable
BA CORD WA-185 1 SSD Power Cable
U91 BA P.C.B Mount FM17M-L2S-C18-2GME 1 CPU Board
U92 BA P.C.B Mount ASP-8514Q-SMD4 1 Recognition Board (COGNEX)
U93,94 BA P.C.B Mount PLE-8603-00 2 Recognition Board (HST Vision)
5OM-1840
3-1-9
Parts Location
1604-001
CPU2
X8505
X8502
X8503
X8203
X8204
X8201
X8202
X8102
X8104
X8109
X85x01
X8303
X8304
X8301
X8302
X8501
X8504
U82U83U85
LAN
SELIAL1
SELIAL2
USB2
USB3
USB4
USB1
LAN
U81
Symbol Block Parts Name Model Qt Main Applications
D81 BA CF TS512MCFX834014 1 Flash Memory inside of U81
U81 BA P.C.B Mount
CPCI-6965DZ-HT/550/
M1G(EP)
1 CPU2 (ADLINK)
U82,83 BA P.C.B Mount MR-MC121-S12 2 Motion Control (SSCNET)
U85 BA P.C.B Mount
UC16 High-Speed IO
Host
1
High-Speed I/O and Pulse Motor
Control
5OM-1840
3-1-10
Parts Location
1604-001
REAR
Servo Amplifier
(Rear)
Relay PCB
Intensive PCB
DC Power Suppy Unit
