5OM-1840 3-1-10 Parts Location 1604-001 REAR Servo Amplifier (Rear) Relay PCB Intensive PCB DC Power Suppy Unit

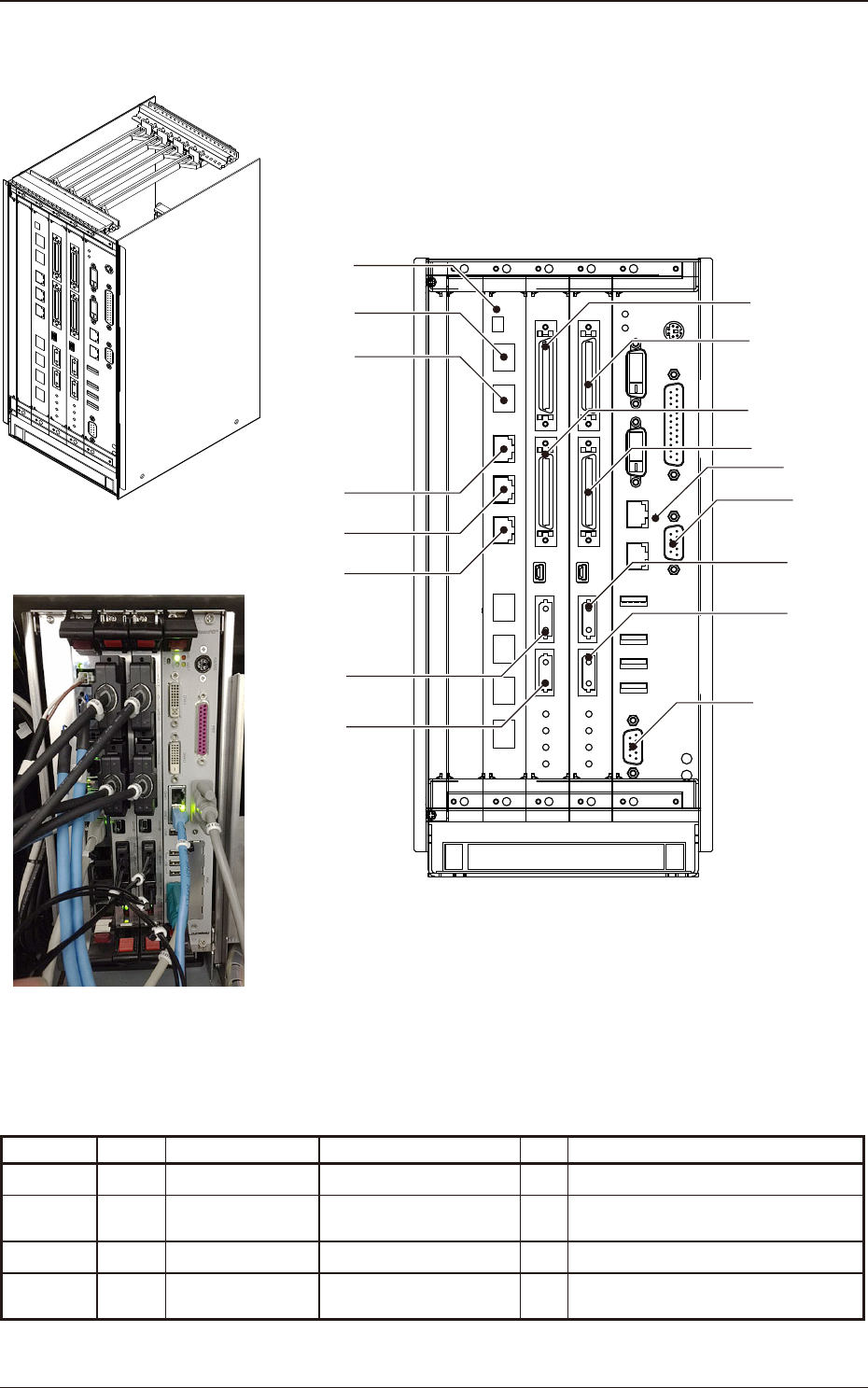

5OM-1840
3-1-9
Parts Location
1604-001
CPU2
X8505
X8502
X8503
X8203
X8204
X8201
X8202
X8102
X8104
X8109
X85x01
X8303
X8304
X8301
X8302
X8501
X8504
U82U83U85
LAN
SELIAL1
SELIAL2
USB2
USB3
USB4
USB1
LAN
U81
Symbol Block Parts Name Model Qt Main Applications
D81 BA CF TS512MCFX834014 1 Flash Memory inside of U81
U81 BA P.C.B Mount
CPCI-6965DZ-HT/550/
M1G(EP)
1 CPU2 (ADLINK)
U82,83 BA P.C.B Mount MR-MC121-S12 2 Motion Control (SSCNET)
U85 BA P.C.B Mount
UC16 High-Speed IO
Host
1
High-Speed I/O and Pulse Motor
Control

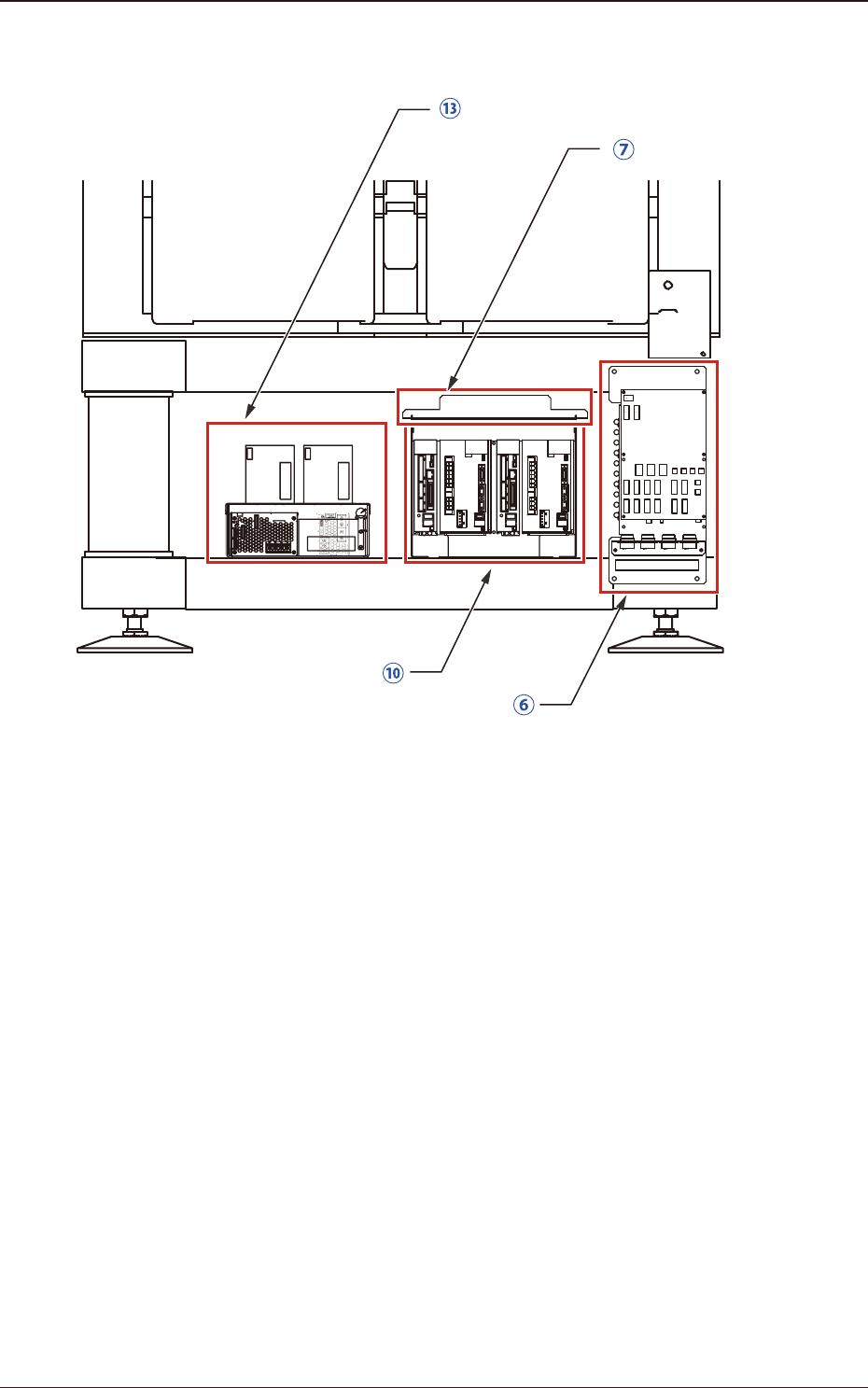

5OM-1840
3-1-10
Parts Location
1604-001
REAR
Servo Amplifier
(Rear)
Relay PCB
Intensive PCB
DC Power Suppy Unit

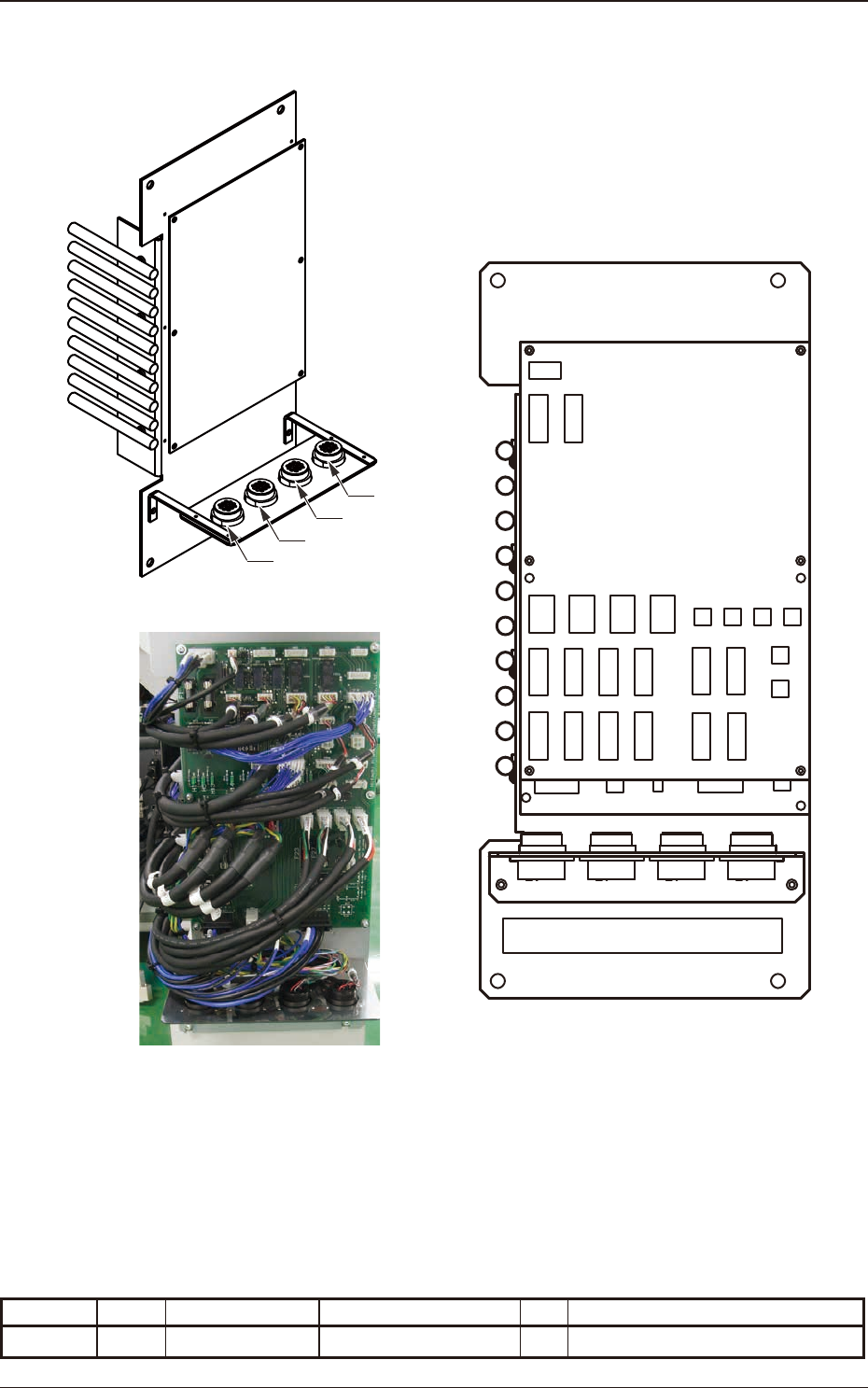

5OM-1840
3-1-11
Parts Location
1604-001
U27
X0128 A-F
X0128 B-F
X0128 A-R
X0128 B-R
Relay PCB
Symbol Block Parts Name Model Qt Main Applications
U27 BA P.C.B Mount PCMK-G3X 1 Relay PCB (UC23)
