5OM-1840
3-1-13
Parts Location
1604-001
A21_11 A22_11 A21_12 A22_12

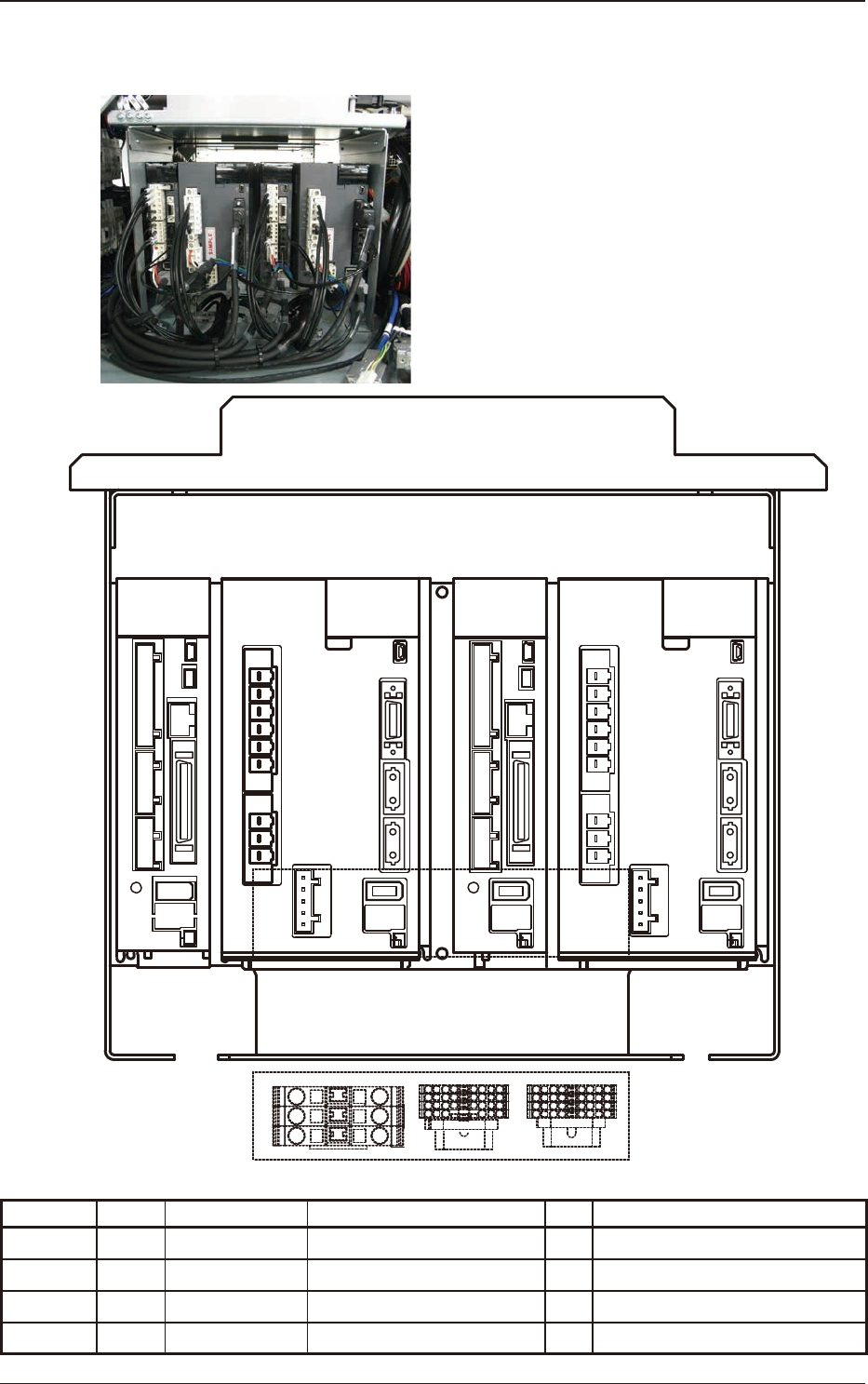

Servo Amplier (Rear)
Symbol Block Parts Name Model Qt Main Applications
A21-11 BA UNIT-DRIVER #MR-J3-70B-RJ115U624 1 STAGE1 X1 axis driver
A22-11 BA UNIT-DRIVER MR-J3-200BN-LH115U637 1 STAGE1 Y1 axis driver
A21-12 BA UNIT-DRIVER #MR-J3-70B-RJ115U624 1 STAGE1 X2 axis driver
A22-12 BA UNIT-DRIVER #MR-J3-350B-RJ115 1 STAGE1 Y2 axis driver
5OM-1840
3-1-14
Parts Location
1604-001
G7 HWS300-48 G2
G1 G3

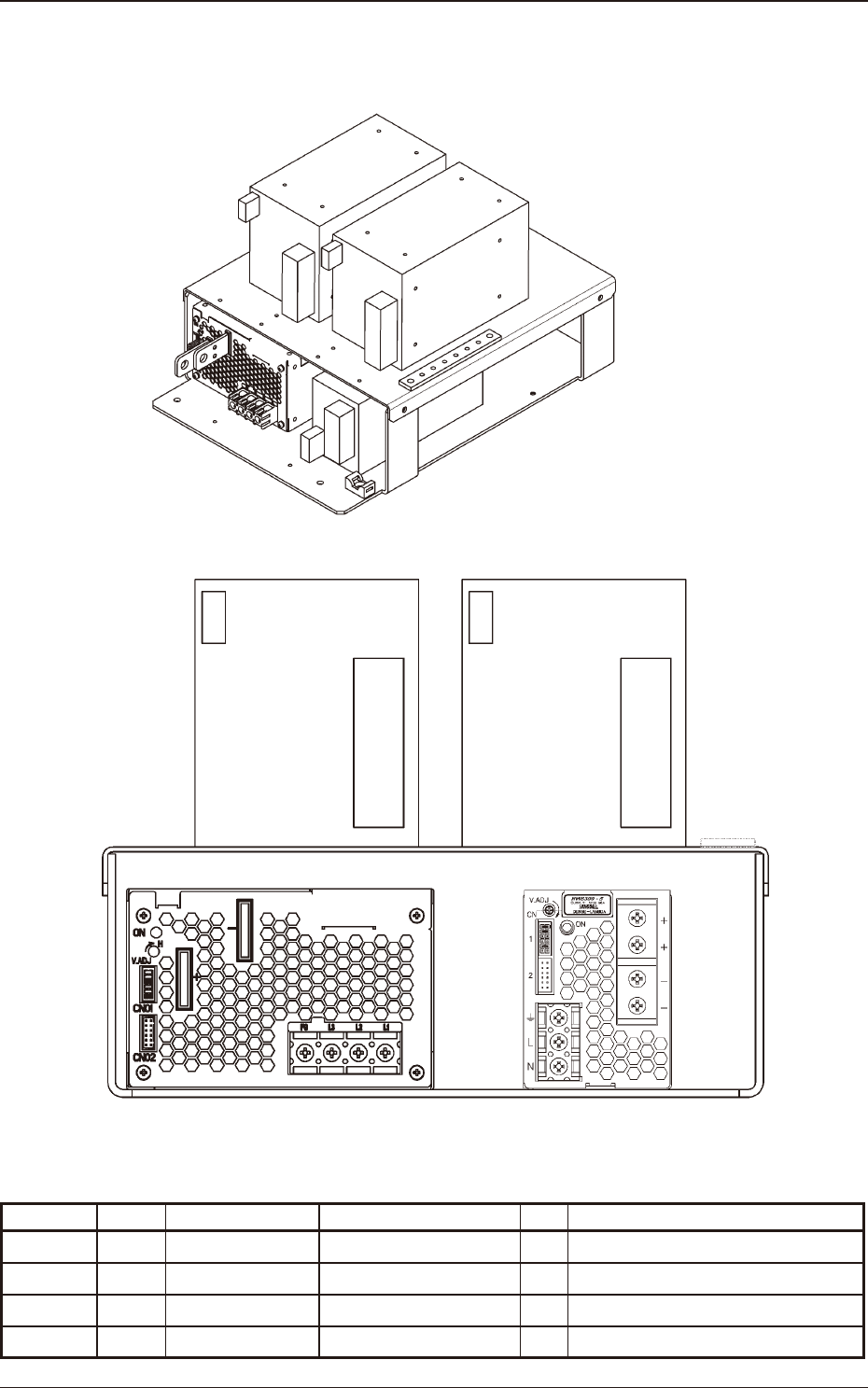

DC Power Supply Unit
Symbol Block Parts Name Model Qt Main Applications
G1 BA UNIT-POWER S8JX-P600 24N 1 G1(24V)
G2 BA UNIT-POWER ADA750F-48 1 G2
G3 BA UNIT-POWER S8JX-P600 24N 1 G3(24V)
G7 BA UNIT-POWER HWS300-48 1 G7(48V)
5OM-1840
3-1-15
Parts Location
1604-001

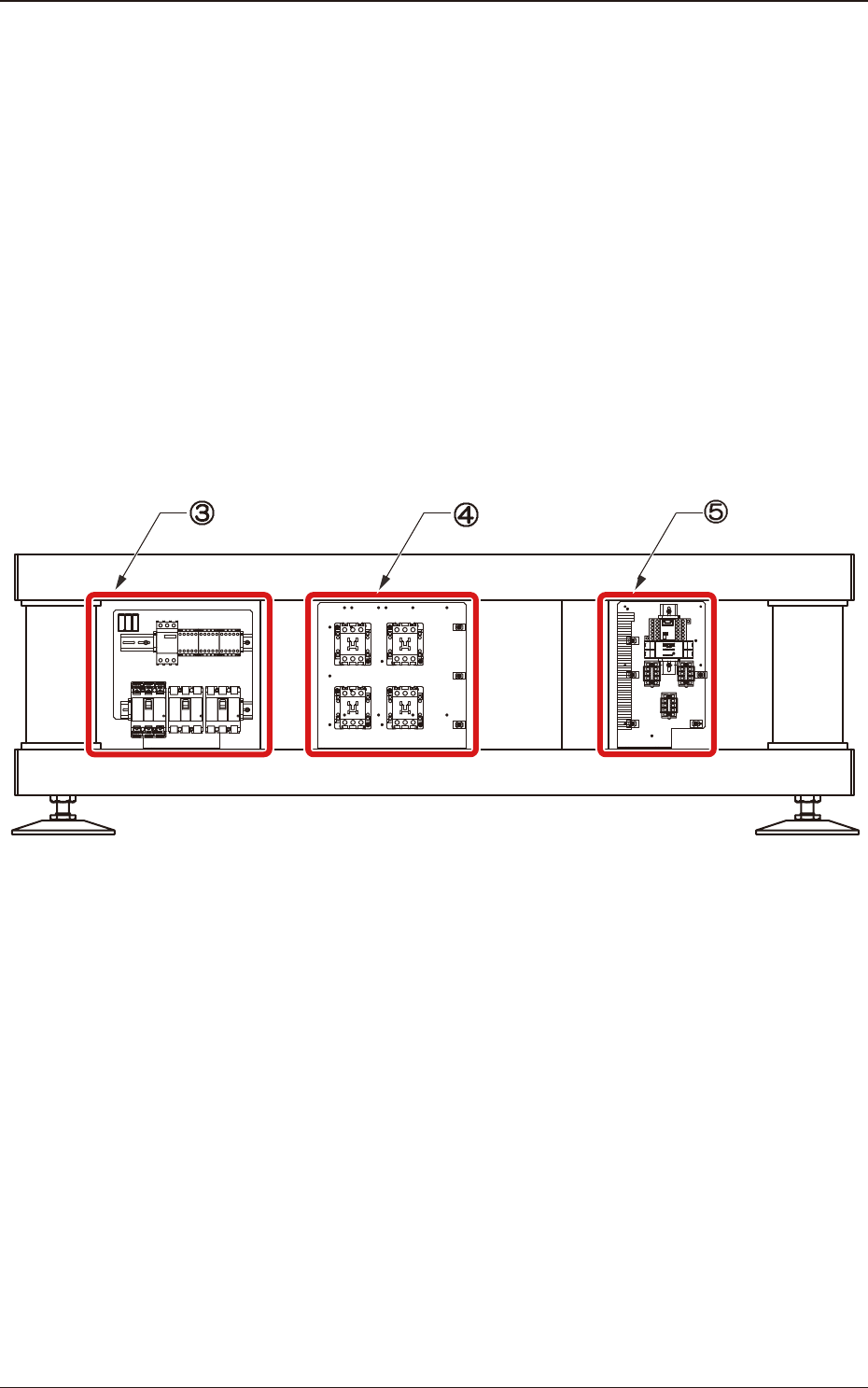

Side Panel Front
Side Panel Rear
Side Panel Center
SIDE A
