KE-3010_KE-3020V_KE-3020VR-Rev04 - 第100页
- - 46.HEA D RE L ATED COMPONEN T S 3 0 2 9 1 1 8 1 4 1 1 7 1 1 6 1 1 8 1 1 8 1 1 7 1 1 8 1 1 7 5 9 5 1 1 1 0 1 1 8 1 1 7 F F 1 1 8 1 1 7 4 1 1 1 8 1 1 7 1 2 1 3 1 5 1 6 6 2 1 1 8 1 1 8 6 2 5 0 1 1 9 1 4 1 7 E E 2 3 2 …
- -

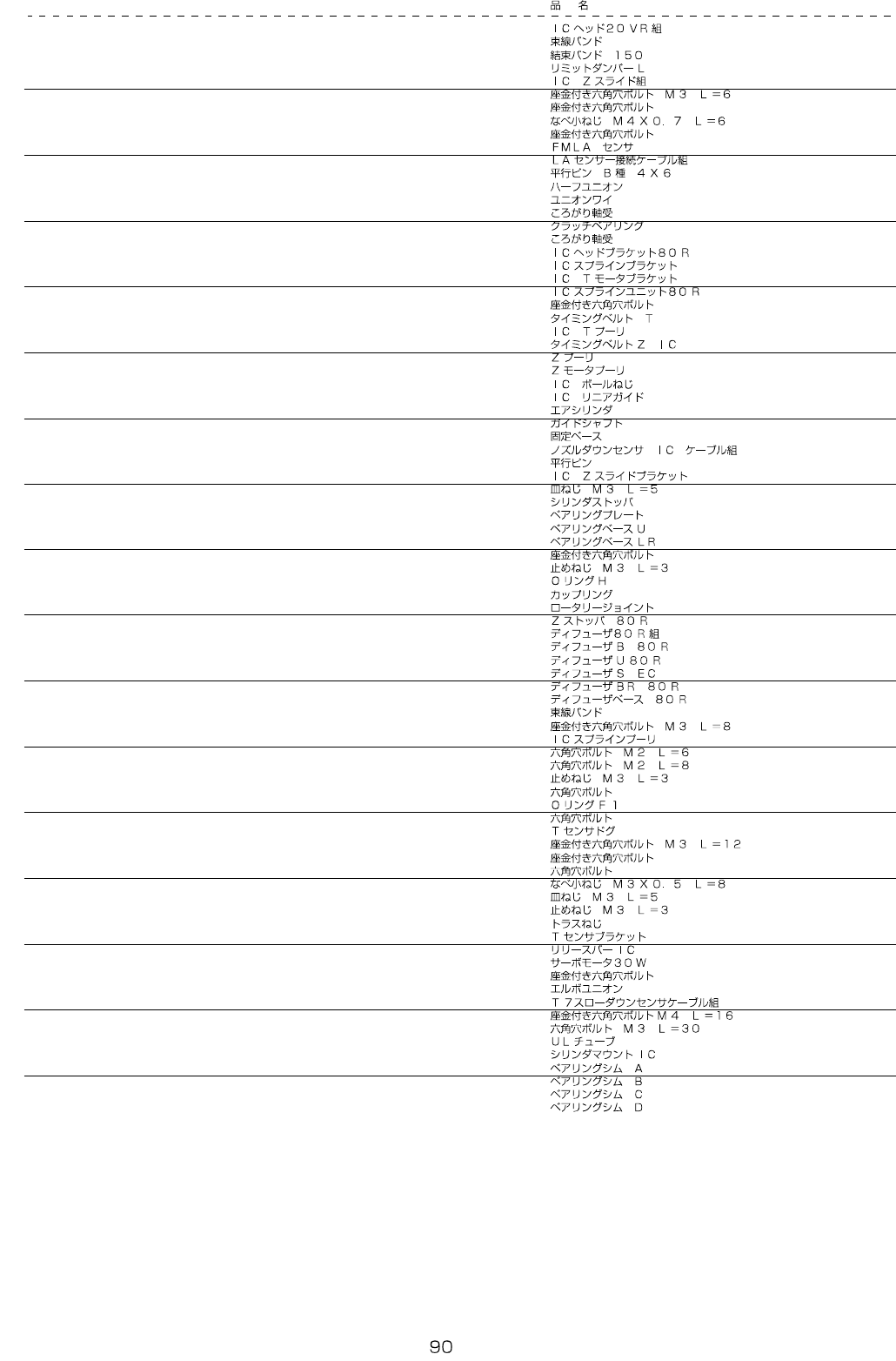

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-14306 IC HEAD 20VR ASM 1
2 EA-9500B01-00 CABLE BAND (5)
3 EA-9500B02-00 CABLE BAND 150 (1)
4 E3005-729-000 LIMIT DAMPER L (1)
5 400-78104 IC Z SLIDE ASM (1)
6 SL-6030692-TN BOLT (3)
7 SL-6040892-TN BOLT (3)
8 SM-4040601-SC SCREW M4X0.7 L=6 (1)
9 SL-6040892-TN BOLT (3)
10 400-03264 FMLA SENSOR (1)
11 E9345-721-0A0 CABLE ASM. (1)
12 PH-0400062-C0 PARALLEL PIN TYPEB 4X6 (4)
13 PJ-2105041-00 HALF UNION (1)
14 PJ-3080400-06 UNION (2)
15 SB-1060018-00 BEARING (1)
16 SB-1060004-00 CLUTCH BEARING (2)
17 SB-1080016-00 BEARING (2)
18 400-80357 IC HEAD BRACKET 80R (1)
19 400-78033 IC SPLINE BRACKET (1)
20 400-78041 IC T MOTOR BR (1)
21 400-93090 IC SPLINE UNIT 80R (1)
22 SL-6041292-TN SCREW (4)
23 401-33627 TIMING BELT T (1)
24 401-33628 IC T PULLEY (1)
25 400-46523 TIMING BELT Z IC (1)
26 400-01123 Z PULLEY (1)
27 400-01124 Z MOTOR PULLEY (1)
28 400-78038 IC BALL SCREW (1)
29 400-78036 IC LINEAR GUIDE (1)
30 400-46524 AIR CYLINDER (1)
31 400-58389 GUIDE SHAFT (1)
32 HX-0029400-00 FIXED BASE (1)
33 401-13702 NOZZLE DOWN SENS IC ASM (1)
34 PH-0400122-C0 PIN (5)
35 400-78034 IC Z SLIDE BRACKET (1)
36 SM-1030552-TN PLATE SCREW M3 L=5 (2)
37 400-58388 CYLINDER STOPPER (1)
38 400-46056 BEARING PLATE (2)
39 400-46048 BEARING BASE U (1)
40 400-46050 BEARING BASE LR (1)
41 SL-6041092-TN SCREW (2)
42 SM-8030312-TP SCREW M3 L=3 (1)
43 400-46060 O RING H (1)
44 400-46515 COUPRING (1)
45 400-46525 ROTARY JOINT (1)
46 400-80364 Z STOPPER 80R (1)
47 400-81148 DIFFUSER 80R ASM (1)
48 400-80366 DIFFUSER B 80R (2)
49 400-80365 DIFFUSER U 80R (1)
50 400-16065 DIFFUSER S EC (2)
51 400-80367 DIFFUSER BR 80R (2)
52 400-80368 DIFFUSER BASE 80R (1)
53 EA-9500B01-00 CABLE BAND (2)
54 SL-6030892-TN SCREW (4)
55 401-33629 IC SPLINE PULLEY (1)
56 SM-6020602-TN SCREW M2 L=6 (8)
57 SM-6020802-TN SCREW M2 L=8 (9)
58 SM-8030312-TP SCREW M3 L=3 (2)
59 SM-6051602-TN BOLT (5)
60 400-46058 O RING F1 (1)
61 SM-6030802-TN SCREW (2)
62 400-80360 T SENSOR DOG (1)
63 SL-6031292-TN SCREW M3 L=12 (2)
64 SL-6031692-TN SCREW (3)
65 SM-6031602-TN SCREW M3 L=16 (4)
66 SM-4030801-SC SCREW M3 X 8 (1)
67 SM-1030552-TN PLATE SCREW M3 L=5 (11)
68 SM-8030312-TP SCREW M3 L=3 (10)
69 SM-0020201-SC SCREW (1)
70 400-80363 T SENSOR BR (1)
71 400-58387 RELEASE BAR IC (1)
72 400-44534 SERVO MOTOR 30W (2)
73 SL-6030842-TN SCREW M3 L=8 (3)
74 PJ-3040405-04 ELBOW UNION (2)
75 401-13698 T7 SLOW DOWN SENSOR ASM (1)
76 SL-6041692-TN SCREW M4 L=16 (1)
77 SM-6033002-TN SCREW M3 L=30 (1)
78 HX-0030600-00 UL TUBE (0.3)
79 400-78044 CYLINDER MOUNT IC (1)
80 E3071-729-000 BEARING SHIM A (1)
81 E3072-729-000 BEARING SHIM B (1)
82 E3073-729-000 BEARING SHIM C (1)
83 E3074-729-000 BEARING SHIM D (1)
- -

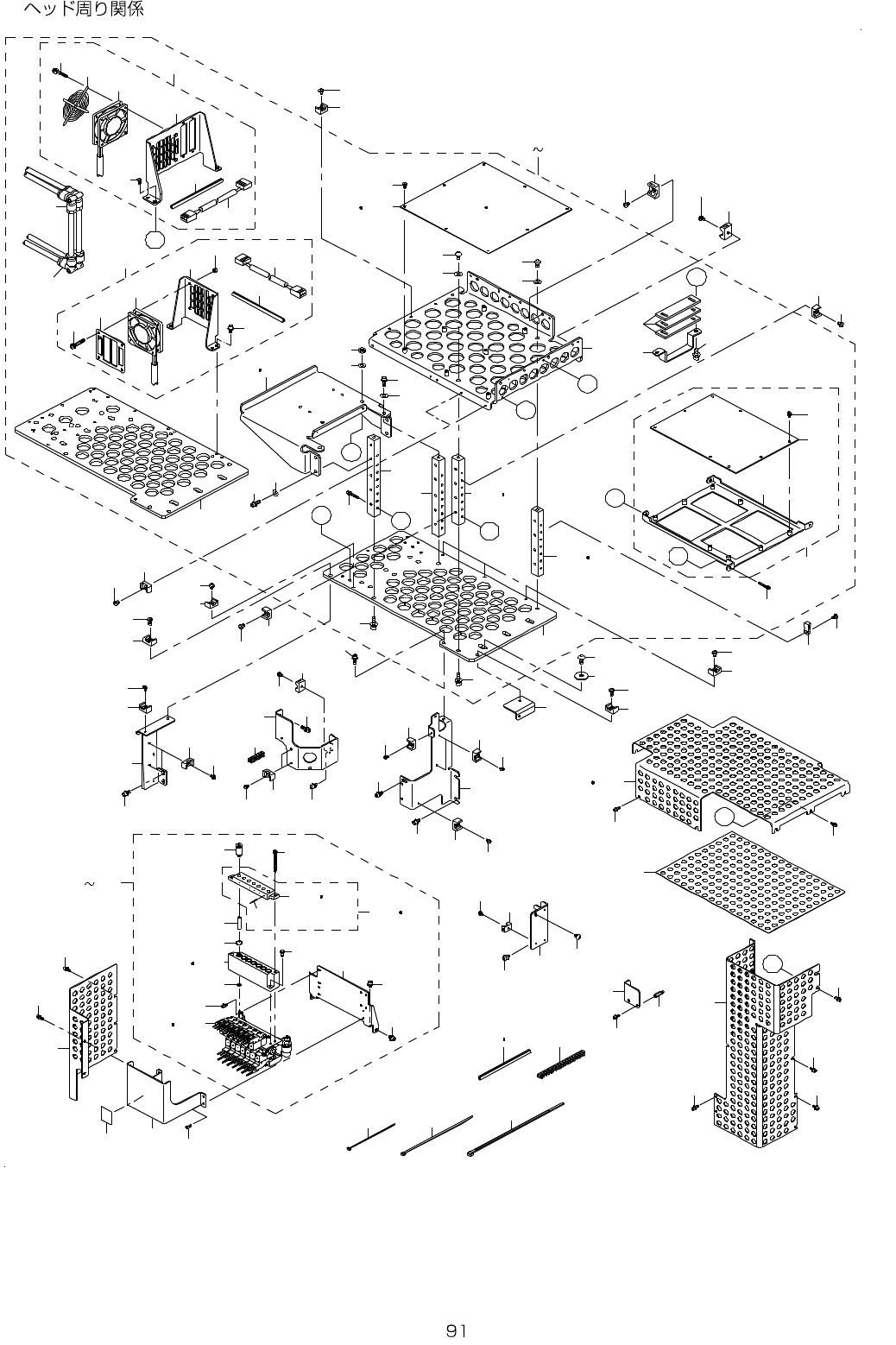

46.HEAD RELATED COMPONENTS
3 0
2 9
1 1 8
1 4
1 1 7
1 1 6
1 1 8
1 1 8
1 1 7
1 1 8
1 1 7
5 9
5 1
1 1 0
1 1 8
1 1 7
F
F
1 1 8
1 1 7
4 1
1 1 8
1 1 7
1 2
1 3
1 5
1 6
6 2
1 1 8
1 1 8
6 2
5 0
1 1 9
1 4
1 7
E
E
2 3
2 3
4 5
B
4 6
1 1
8
7
4 8
D
C
1 0 9
1 0 5
1 0 4
2 1 2 2
3 1
2 4
2 8
2 7
2 5
2 6
B
4 7
A
A
4 7
2 0
1 8
1 9
1 1
4 6
9 1 0
8
7
6
5
5
4 5 4 3 4 4
4 3 4 4
D
6 1
6 1
6 0
6 9 7 0
C
5 8 5 8
5 8
5 8
5 7
7 1 7 2 7 3
6 8
6 76 6
6 3
6 5
6 4
4 9
1 1 5
1 1 4
1 1 3
1 1 2
1 0 1
9 9
1 0 0
9 9
1 0 0
9 8
9 7
9 6
7 4 7 7
7 8 7 9
8 2
8 0 8 1
9 3 9 4
8 4 8 5
8 9
9 5
8 3
8 7
8 6
8 8
9 1
5 4
9 2
9 2
9 0
5 6
5 6
5 2
5 5
5 3
1 0 7
1 1 1
1 1 0
1 1 1
1 1 0
1 1 1
1 1 0
1 0 8
1 0 8
1 0 6
1 0 6
1 0 4
1 0 4
1 0 3
1 0 2
4 2
3 9
3 7
3 8
3 2
3 3
4 0
3 5
3 4
3 6
- -

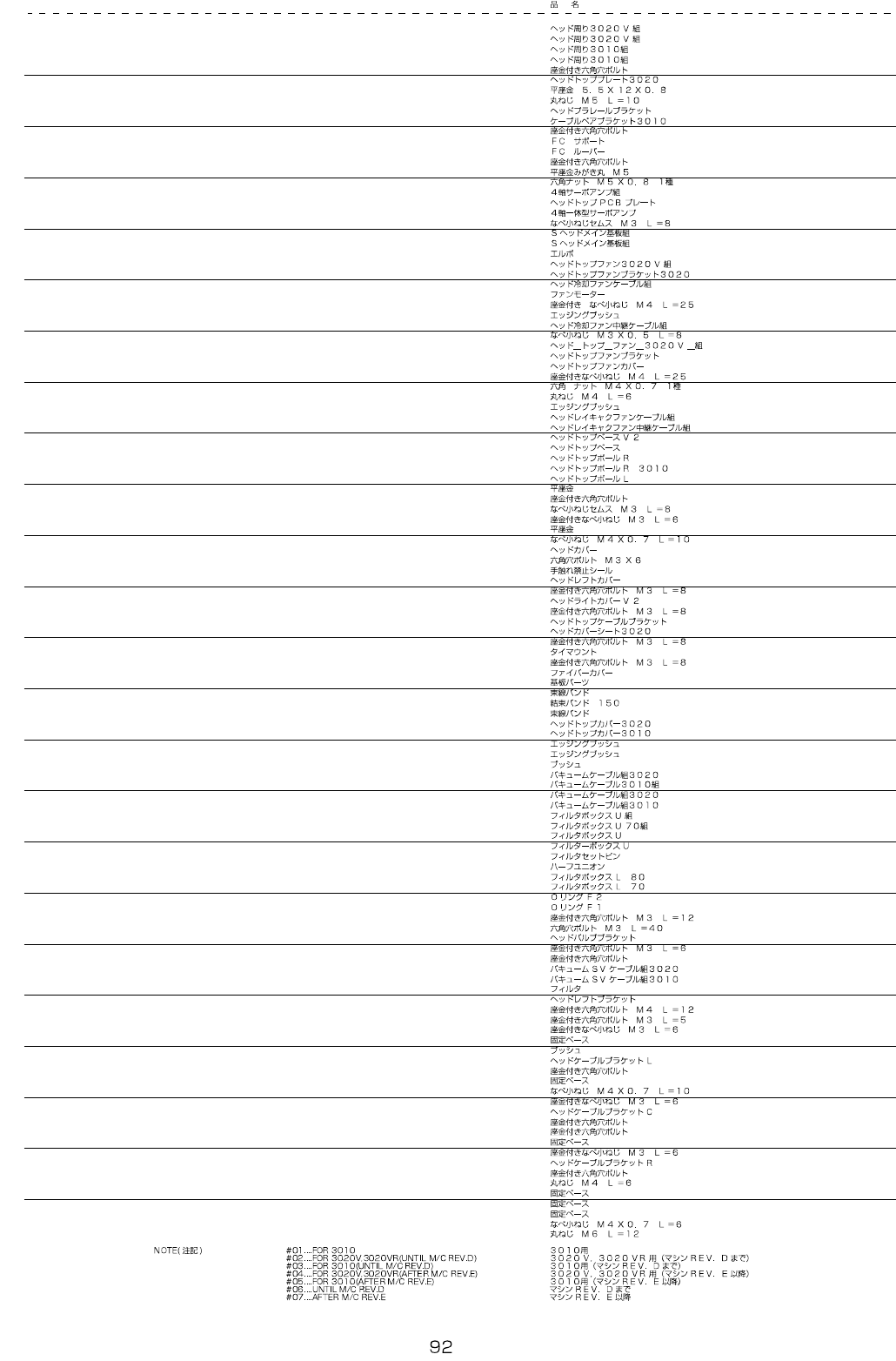

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 #02 401-14308 HEAD RELATED 3020V ASM 1
2 #04 401-35749 HEAD RELATED 3020V ASM 1
3
#05
401-35750 HEAD RELATED 3010 ASM 1
4
#03
401-14341 HEAD RELATED 3010 ASM 1
5 SL-6051692-TN BOLT (4)
6 400-71577 HEAD TOP PLATE 3020 ( 1)
7 WP-0550836-SC WASHER 5.5X12X0.8 ( 2)
8 SM-3051052-TN SCREW M5 L=10 ( 2)
9 400-71578 HEAD PLASTIC RAIL BR ( 1)
10
#01
401-08817 CABLE BEAR BR 3010 ( 1)
11 SL-6041292-TN SCREW ( 8)
12 L153E-221-000 FC SUPPORT ( 1)
13 L153E-321-000 FC RUBBER (3)
14 SL-6051492-TN BOLT (2)
15 WP-0531001-SC WASHER M5 ( 2)
16 NM-6050001-SC NUT M5X0.8 TYPE1 (2)
17 400-71581 4AXIS SERVO AMP ASM ( 4)
18 400-71582 HEAD TOP PCB PLATE (1)
19 400-44535 4AXIS SERVO AMP ( 1)
20 SL-4030891-SC SCREW M3X8 ( 8)
21 #06 401-06799 S-HEAD MAIN PCB ASM ( 1)
22 #07 401-30259 S-HEAD MAIN PCB ASM ( 1)
23 PJ-3040800-02 ELBOW UNION ( 4)
24
#06
401-18763 HEAD TOP FAN 3020V ASM ( 1)
25 400-71584 HEAD TOP FAN BR 3020 (1)
26 401-13708 HEAD FAN CABLE ASM ( 1)
27 #06 HM-0021500-10 FAN MOTOR ( 1)
28 SL-4042591-SC SCREW M4 L=25 ( 4)
29 HX-0009600-0A GROMMET (0.2)
30 401-13709 HEAD FAN RELAY CABLE ASM ( 1)
31 SM-4030801-SC SCREW M3X0.5 L=8 (4)
32 #07 401-35751 HEAD_TOP_FAN_3020V_ASM ( 1)
33 401-34593 HEAD_T OP_FAN_BR ( 1)
34 401-34594 HEAD_T OP_FAN_COVER ( 1)
35 SL-4042591-SC SCREW M4 L=25 ( 4)
36 NM-6040001-SC NUT M4X0.7 TYPE1 (4)
37 SM-3040652-TN SCREW M4 L=6 ( 4)
38 HX-0009600-0A GROMMET (0.0 4)
39 401-13708 HEAD FAN CABLE ASM ( 1)
40 401-13709 HEAD FAN RELAY C ABLE ASM (1)
41 #06 401-08801 HEAD TOP BASE V2 ( 1)
42 #07 401-34592 HEAD_TOP_BASE ( 1)
43 400-71575 HEAD TOP POLE R ( 2)
44
#01
401-08816 HEAD TOP POLE R 3010 (2)
45 400-71576 HEAD TOP POLE L ( 2)
46 WP-0431005-SP PLAIN WASHER ( 8)
47 SL-6032092-TN BOLT (16)
48 SL-4030891-SC SCREW M3X8 ( 9)
49 SL-4030691-SC SCREW M3 L=6 1
50 WP-0651646-SC WASHER 6
51 SM-4041001-SC SCREW M4X0.7 L=10 1
52 400-94360 HEAD COVER 1
53 SM-6030602-TN SCREW M3X6 4
54 E3858-715-000 SEAL 1
55 400-94353 HEAD LEFT COVER 1
56 SL-6030892-TN SCREW M3 L=8 5
57 401-08803 HEAD RIGHT COVER V2 1
58 SL-6030892-TN SCREW M3 L=8 8
59 401-08802 HEAD TOP CABLE BR 1
60 400-71580 HEAD COVER SHEET 3020 1
61 SL-6030892-TN SCREW M3 L=8 10
62 HX-0045400-00 T IE MOUNT 8
63 SL-6030892-TN SCREW M3 L=8 2
64 400-78054 FIBER COVER 1
65 HX-0035400-0D BASE PARTS 2
66 EA-9500B01-00 CABLE BAND 2 0
67 EA-9500B02-00 CABLE BAND 150 30
68 HX-0006500-0B CABLE BAND 5
69 400-71579 HEAD TOP COVER 3020 1
70 #01 401-08818 HEAD TOP COVER 3010 1
71 HX-0009600-00 EDGE BUSHING 1
72 HX-0009600-0A GROMMET 1
73 E5348-033-100 CABLE PROTECTOR 106MM 0. 5
74
#02
400-71586 VACUUM_CABLE_ASM_3020 1
75 #03 401-14342 VACUUM CABLE ASM 3010 1
76 #04 401-36211 VACUUM_CABLE_ASM_3020 1
77
#05
401-36210 VACUUM_CABLE_ASM_3010 1
78 400-60556 FILTER BOX U ASM ( 1)
79
#01
400-64231 FILTER BOX U70 ASM ( 1)
80 400-46519 FILTER BOX U ( 1)
81 #01 400-77276 FILTER BOX U ( 1)
82 400-60551 FILTER SET PIN ( 7)
83 PJ-3010405-05 HALF UNION (7)
84 400-62188 FILTER BOX L 80 ( 1)
85 #01 400-62187 FILTER BOX L 70 ( 1)
86 400-46059 O RING F2 (7)
87 400-46058 O RING F1 (7)
88 SL-6031292-TN SCREW M3 L=12 ( 2)
89 SM-6034002-TN SCREW M3 L= 40 ( 2)
90 400-60224 HEAD VALVE BRACKET (1)
91 SL-6030692-TN SCREW M3 L=6 (4)
92 SL-6040892-TN BOLT ( 4)
93 401-13699 VACUUM SV CABLE ASM 3020 ( 1)
94
#01
401-13700 VACUUM SV CABLE ASM 3010 ( 1)
95 400-46646 FILTER (7)
96 #01 401-14975 HEAD LEFT BR 1
97
#01
SL-6041292-TN SCREW M4 L=12 2
98
#01
SL-6030592-TN SCREW M3 L=5 2
99 #01 SL-4030691-SC SCREW M3 L=6 3
100 #01 HX-0029400-00 FIXED BASE 3
101
#01
E5348-033-100 GROMMET 0.0 6
102 400-94354 HEAD CABLE BR L 1
103 SL-6040892-TN BOLT 2
104 HX-0029400-00 FIXED BASE 4
105 SM-4041001-SC SCREW M4X0.7 L=10 1
106 SL-4030691-SC SCREW M3 L=6 3
107 400-94357 HEAD CABLE BR C 1
108 SL-6040892-TN BOLT 3
109 SL-6041292-TN SCREW 1
110 HX-0029400-00 FIXED BASE 5
111 SL-4030691-SC SCREW M3 L=6 4
112 400-94356 HEAD CABLE BR R 1
113 SL-6040892-TN BOLT 2
114 SM-3040652-TN SCREW M4 L=6 1
115 HX-0029400-00 FIXED BASE 1
116 HX-0034400-00 FIXED BASE 1
117 HX-0029400-00 FIXED BASE 2 0
118 SM-4040601-SC SCREW M4X0.7 L=6 29
119 SM-3061252-TN SCREW M6 L=12 6
