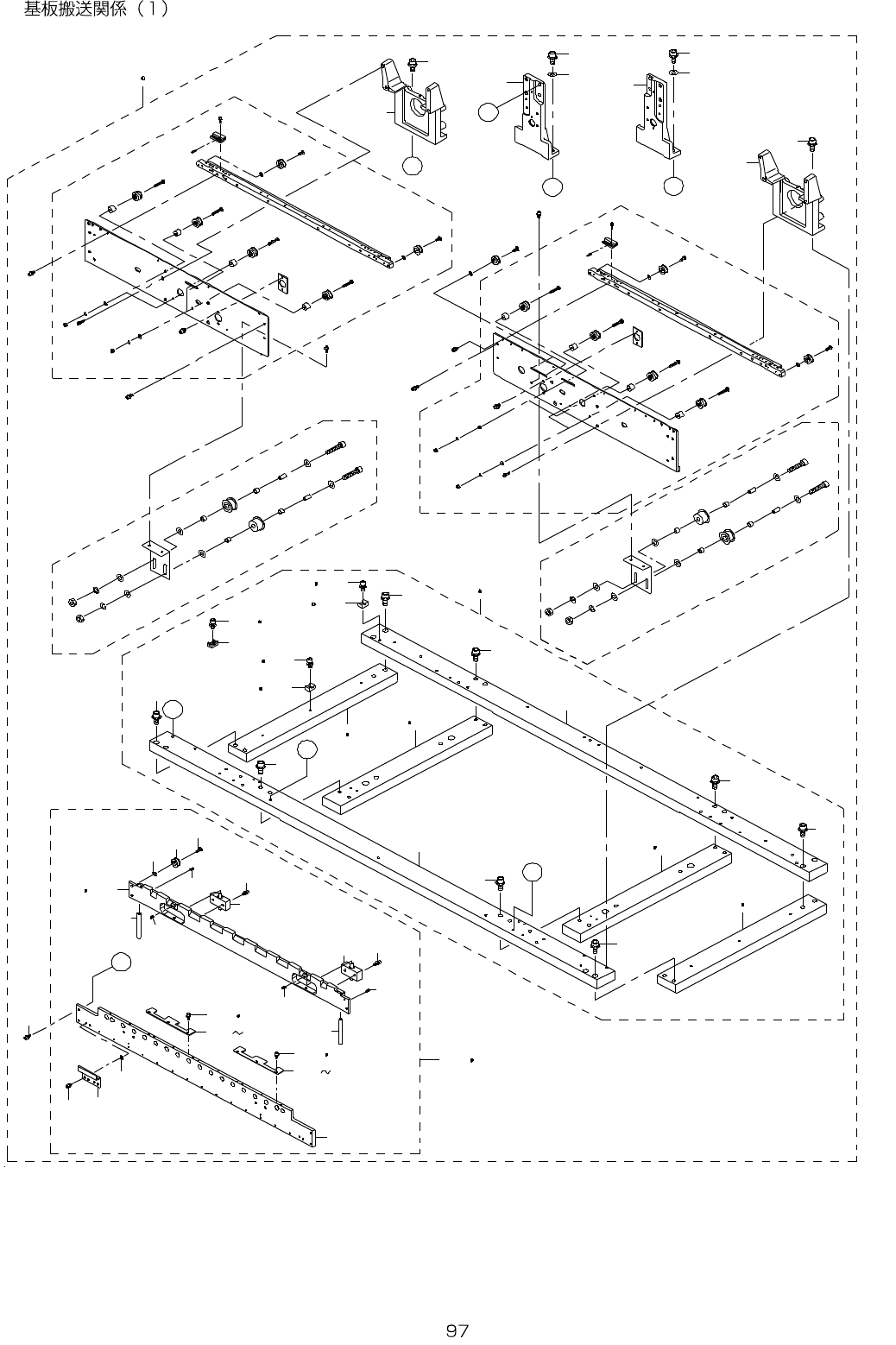

49.PWB CONVEYOR COMPONENTS(1)
3 4
1 8
4 6
4 4
4 5
4 3
4 6
D
C
B
A
4 7
4 7
2 0
1 9
1 2
3 9
3 8
2 7 2 9
3 0 3 1
2 7 2 9
3 0 3 1
2 3
C
2 1 2 2
1 6 1 7
1 1
3 3
1 5
3 3
2 5 2 6
5
6
7 8
9 1 0
9 1 0
7 8
3 2
3 7
4 0
2 4
2 4
D
B
A
4 2
3 2
3 7
4 0
1 3 1 4
1 6 1 7
1 3 1 4
1 6 1 7
1 1
1 2
1 2
1 2
1 1
1 2
1 1
4 1
3 5
3 4
3 6
- -

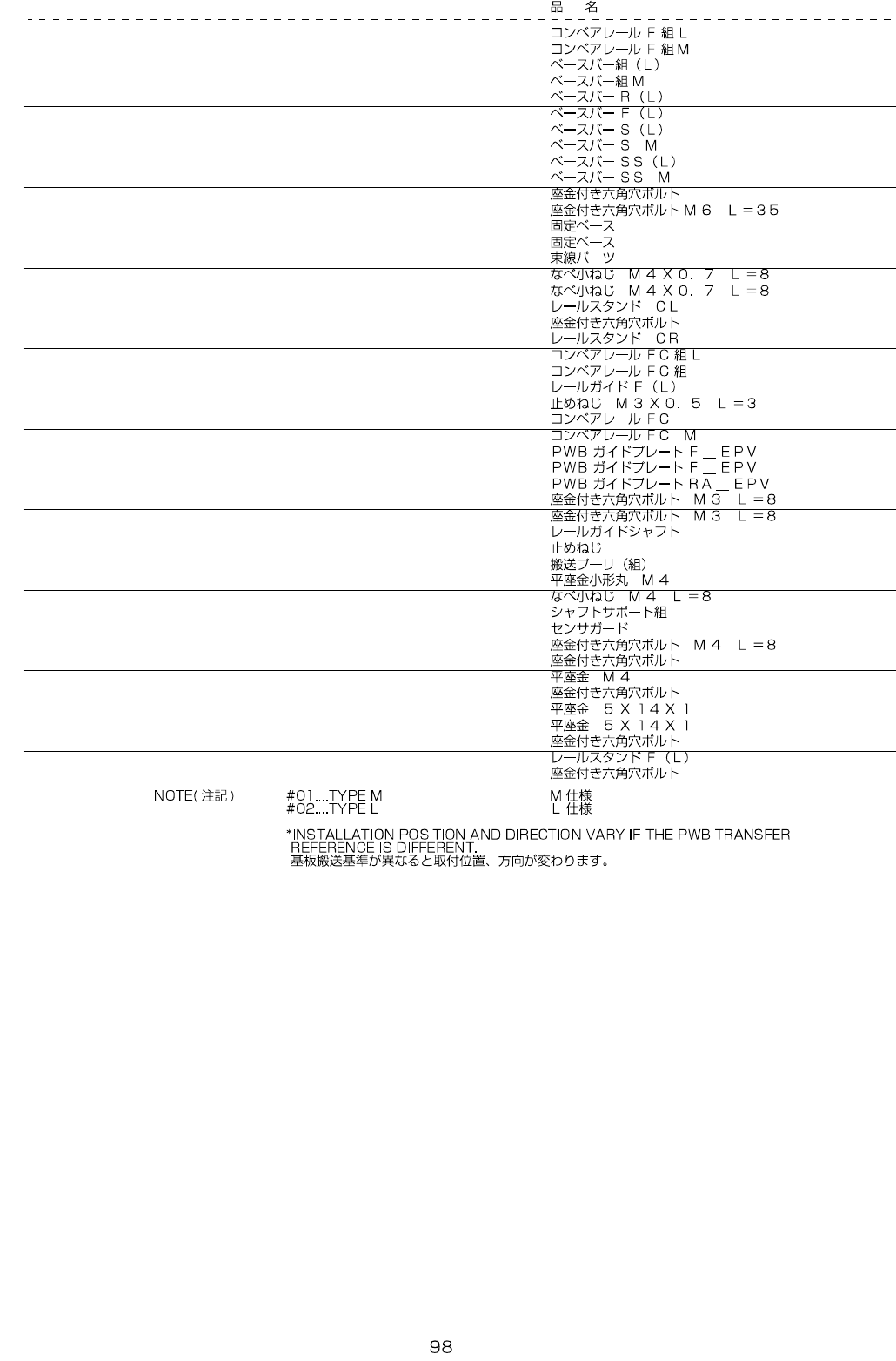

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#02
401-10209 CONVEYOR RAIL F ASM L 1
2
#01
401-10195 CONVEYOR RAIL F ASM M 1
3
#02
400-00994 BASE BAR ASM(L) (1)
4
#01
401-10197 BASE BAR ASM M (1)
5 400-01038 BASE BAR R(L) (1)
6 400-01039 BASE BAR F(L) (1)
7
#02
400-70087 BASE BAR S(L) (2)
8
#01
401-10094 BASE BAR S M (2)
9
#02
400-00996 BASE BAR SS(L) (2)
10
#01
401-10095 BASE BAR SS M (2)
11 SL-6084092-TN BOLT (8)
12 SL-6063592-TN SCREW (8)
13
#02
HX-0029400-00 FIXED BASE (13)
14
#01
HX-0029400-00 FIXED BASE (7)
15
#02
HX-0034400-00 HARNESS PARTS (2)
16
#02
SM-4040801-SC SCREW M4X0.7 L=8 (15)
17
#01
SM-4040801-SC SCREW M4X0.7 L=8 (7)
18 400-00802 RAIL STAND CL (1)
19 SL-6052092-TN SCREW (2)
20 400-00805 RAIL STAND CR (1)
21
#02
401-14263 CONVEYOR RAIL FC ASM L (1)
22
#01
401-10200 CONVEYOR RAIL FC ASM (1)
23 400-01043 RAIL GUID F(L) (1)
24 SM-8030302-TP SCREW M3X0.5 L=3 (2)
25
#02
401-10104 CONVEYOR RAIL FC (1)
26
#01
401-13945 CONVEYOR RAIL FC M (1)
27 401-22128 PWB_GUIDE_PLATE_F_EPV (4)
28
#01
401-22128 PWB_GUIDE_PLATE_F_EPV (2)
29
#01
401-22129 PWB_GUIDE_PLATE_RA_EPV (4)
30
#02
SL-6030892-TN SCREW M3 L=8 (12)
31
#01
SL-6030892-TN SCREW M3 L=8 (10)
32 400-00812 RAIL GUIDE SHAFT (2)
33 SM-8040602-TP SCREW M4X0.7 L=6 (2)
34 E2111-715-0A0 CONVEYOR PULLEY ASM. (4)
35 WP-0430800-SC WASHER M4 (4)
36 SM-4040855-SC SCREW (4)
37 E4105-729-0A0 SHAFT SUPPORT B ASM. (2)
38
#01
401-14733 SENSOR GUARD (1)
39
#01
SL-6040892-TN SCREW M4 L=8 (2)
40 SL-6041092-TN SCREW (8)
41
#01
WP-0430801-SC WASHER M4 (2)
42 SL-6041292-TN SCREW (4)
43 WP-0501046-SC WASHER 5 X 14 X 1 (2)
44 WP-0501046-SC WASHER 5 X 14 X 1 (2)
45 SL-6052092-TN SCREW (2)
46 400-46032 RAIL STAND F(L) (2)
47 SL-6052092-TN SCREW (4)
- -
