- - REF.NO NOT E P A RT NO D E S C R I P T I O N Q ty 1 #02 401-14264 C O N V EY OR RA IL R A SM L 1 2 #01 401-10196 C O N V EY OR RA IL R A SM 1 3 #02 401-14266 R AIL P LAT E RL A SM L ( 1) 4 #01 401-10202 R AIL P LAT…
- -

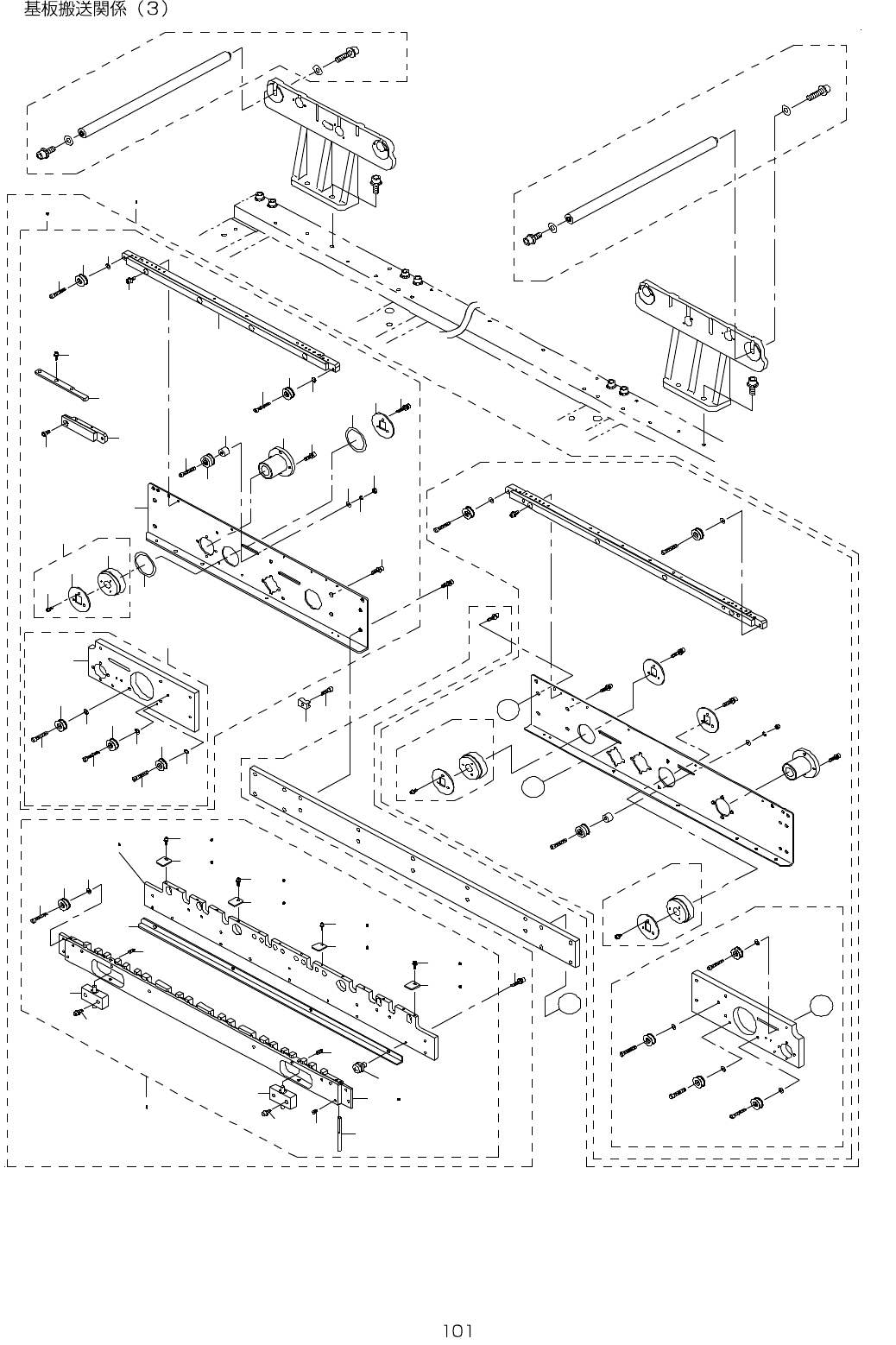

51.PWB CONVEYOR COMPONENTS(3)
5
8
8
9
9
8
6
9
A
3 6 3 7
5 3
4 5
4 7 4 8
4 3 5 5
4 2 5 4
4 3 5 5
4 3 5 5
4 3 5 5
4 3 5 5
1 2
B
5 7
5 6
4 3 5 5
4 3 5 5
4 6
5 8
4 0
4 1
3 8
3 9
5 0
4 9
5 3
5 1 5 2
5 0
4 9
3 5
3 4
3 3
3 2
1 7
3 4
3 1
2 8
3 1
2 9
2 4
5 9
1 4
1 5
1 6
1 8
2 2
2 3
2 1
1 0
1 0
2 7
2 6
2 5
2 1
2 0
1 9
B
A
1 2
1 3
1 1
3 0
3 0
7
7
7
4 4
- -

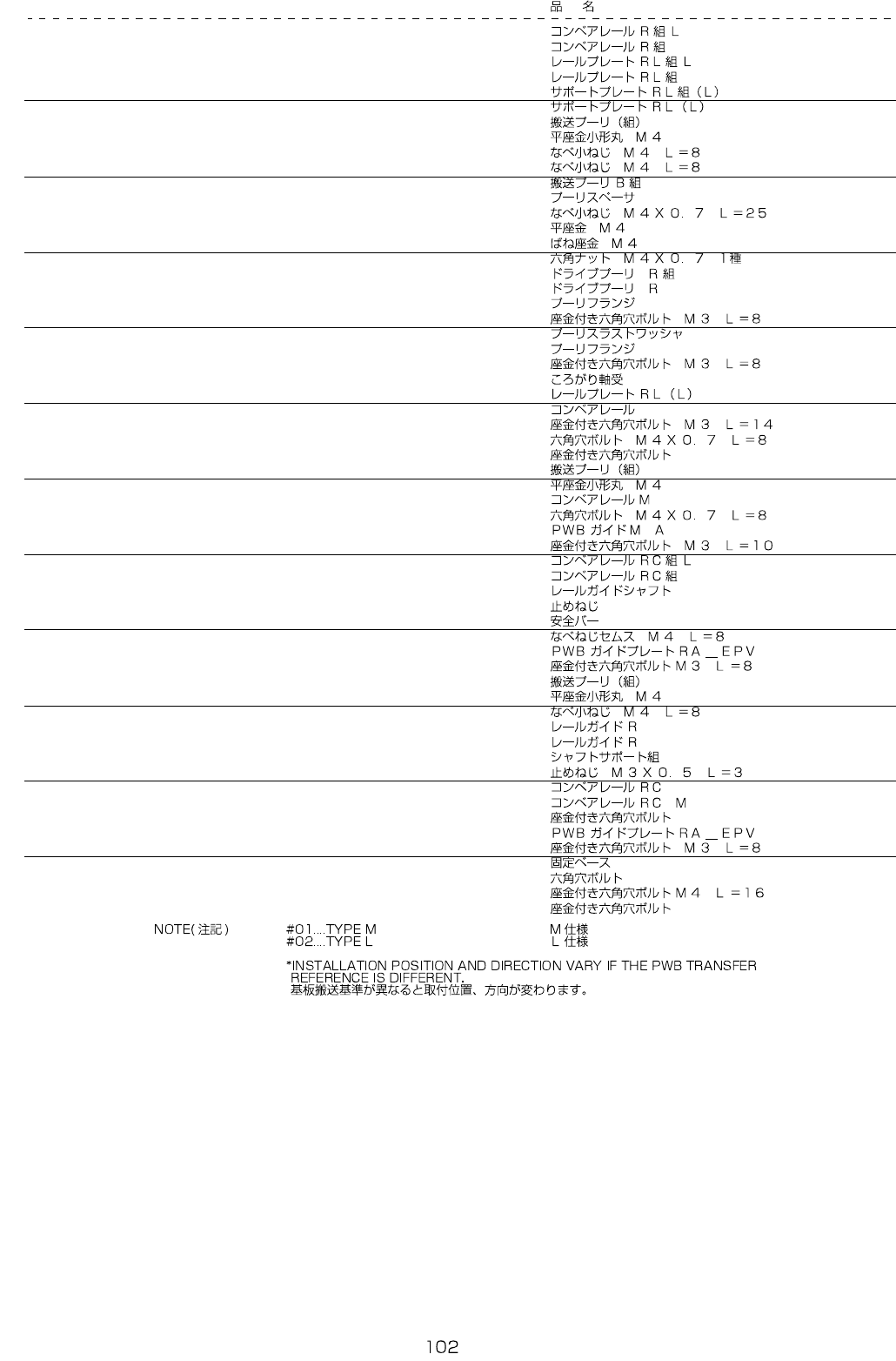

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#02
401-14264 CONVEYOR RAIL R ASM L 1
2
#01
401-10196 CONVEYOR RAIL R ASM 1
3
#02
401-14266 RAIL PLATE RL ASM L (1)
4
#01
401-10202 RAIL PLATE RL ASM (1)
5 400-01059 SUPPORT PLATE RL ASM(L) (1)
6 400-01064 SUPPORT PLATE RL(L) (1)
7 E2111-715-0A0 CONVEYOR PULLEY ASM. (3)
8 WP-0430800-SC WASHER M4 (3)
9 SM-4040855-SC SCREW (3)
10 SM-4040855-SC SCREW (2)
11 E2089-721-0A0 CONVEYOR PULLEY B ASM. (1)
12 E2055-721-000 PULLEY SPACER (1)
13 SM-4042501-SC SCREW M4X0.7 L=25 (1)
14 WP-0430801-SC WASHER M4 (1)
15 WS-0410002-KN SPRING WASHER M4 (1)
16 NM-6040001-SC NUT M4X0.7 TYPE1 (1)
17 400-00839 DRIVE PULLEY R ASM (1)
18 400-00840 DRIVE PULLEY R (1)
19 E2160-721-000 PULLEY FLANGE (1)
20 SL-6030892-TN SCREW M3 L=8 (3)
21 E3931-750-000 PULLEY WASHER (2)
22 E2160-721-000 PULLEY FLANGE (1)
23 SL-6030892-TN SCREW M3 L=8 (3)
24 SB-8160001-00 BEARING (2)
25 400-01063 RAIL PLATE RL(L) (1)
26 400-00828 CONVEYOR RAIL (1)
27 SL-6031492-TN SCREW M3 L=14 (4)
28 SM-6040802-TN SCREW (8)
29 SL-6041092-TN SCREW (2)
30 E2111-715-0A0 CONVEYOR PULLEY ASM. (2)
31 WP-0430800-SC WASHER M4 (2)
32
#01
401-13947 CONVEYOR RAIL M (1)
33
#01
SM-6040802-TN SCREW M4X0.7 L=8 (1)
34
#01
401-13948 PWB GUIDE M A (1)
35
#01
SL-6031092-TN SCREW M3 L=10 (3)
36
#02
401-14265 CONVEYOR RAIL RC ASM L (1)
37
#01
401-10201 CONVEYOR RAIL RC ASM (1)
38 400-00812 RAIL GUIDE SHAFT (2)
39 SM-8040602-TP SCREW M4X0.7 L=6 (2)
40 401-10109 SAFETY BAR (1)
41 SL-4040841-SE SCREW M4 L=8 (4)
42
#01
401-22129 PWB_GUIDE_PLATE_RA_EPV (10)
43 SL-6030892-TN SCREW M3 L=8 (10)
44 E2111-715-0A0 CONVEYOR PULLEY ASM. (4)
45 WP-0430800-SC WASHER M4 (4)
46 SM-4040855-SC SCREW (4)
47
#02
401-10106 RAIL GUIDE R (1)
48
#01
401-13941 RAIL GUIDE R (1)
49 E4105-729-0A0 SHAFT SUPPORT B ASM. (2)
50 SM-8030302-TP SCREW M3X0.5 L=3 (2)
51
#02
401-10105 CONVEYOR RAIL RC (1)
52
#01
401-13946 CONVEYOR RAIL RC M (1)
53 SL-6041092-TN SCREW (4)
54
#02
401-22129 PWB_GUIDE_PLATE_RA_EPV (12)
55
#02
SL-6030892-TN SCREW M3 L=8 (12)
56 HX-0029400-00 FIXED BASE (1)
57 SM-6042002-TN BOLT (1)
58 SL-6041692-TN SCREW M4 L=16 (10)
59 SL-6042092-TN SCREW M4 L=20 (3)
- -

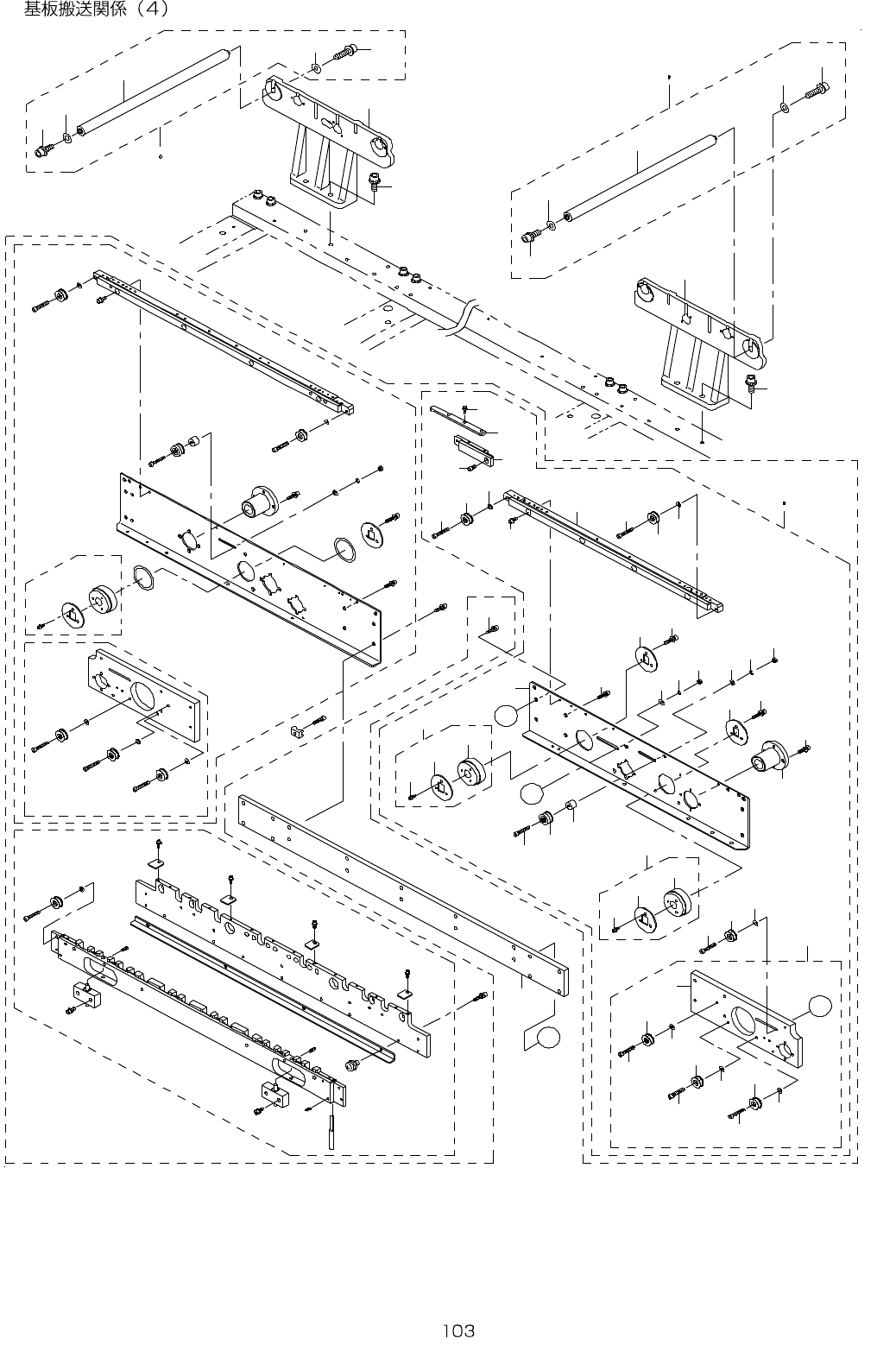

52.PWB CONVEYOR COMPONENTS(4)
3 3
3 4
3 2
3 1
1 0
1 9
3
8
1 2
2 3
1 7
1 3
1 3
1 2
9
1 0
1 1
2 6
2 5
2 5
2 6
2 6
2 5
2 7
3 0
B
A
A
4 4
4
1 7
1 8
1 4
1 5
1 6
1 4
1 8
1 6
1 5
9
1 1
6
7
8
2 9
5
2 2
5
2 2
2 0
3 8 3 9
3 8 3 9
4 1
B
4 0
3 6
4 6
4 0
4 2
4 3
4 3
4 1
3 5
3 7
4 3
4 3
4 2
4 5
2 4
2 4
2 4
2 8
2 1
2 1
