KE-3010_KE-3020V_KE-3020VR-Rev04 - 第117页
- - REF.NO N O TE PART N O D E S C R I P T I O N Qty 1 # 0 2 401-1394 4 RAIL SUPPORT L 1 2 # 0 1 401-1393 9 RAIL SUPPORT M 1 3 40 0-9394 0 C ONV EYO R M OTO R AS M L 1 4 40 0-9394 1 C ONV EYO R M OTO R C ASM L (1) 5 40…
- -

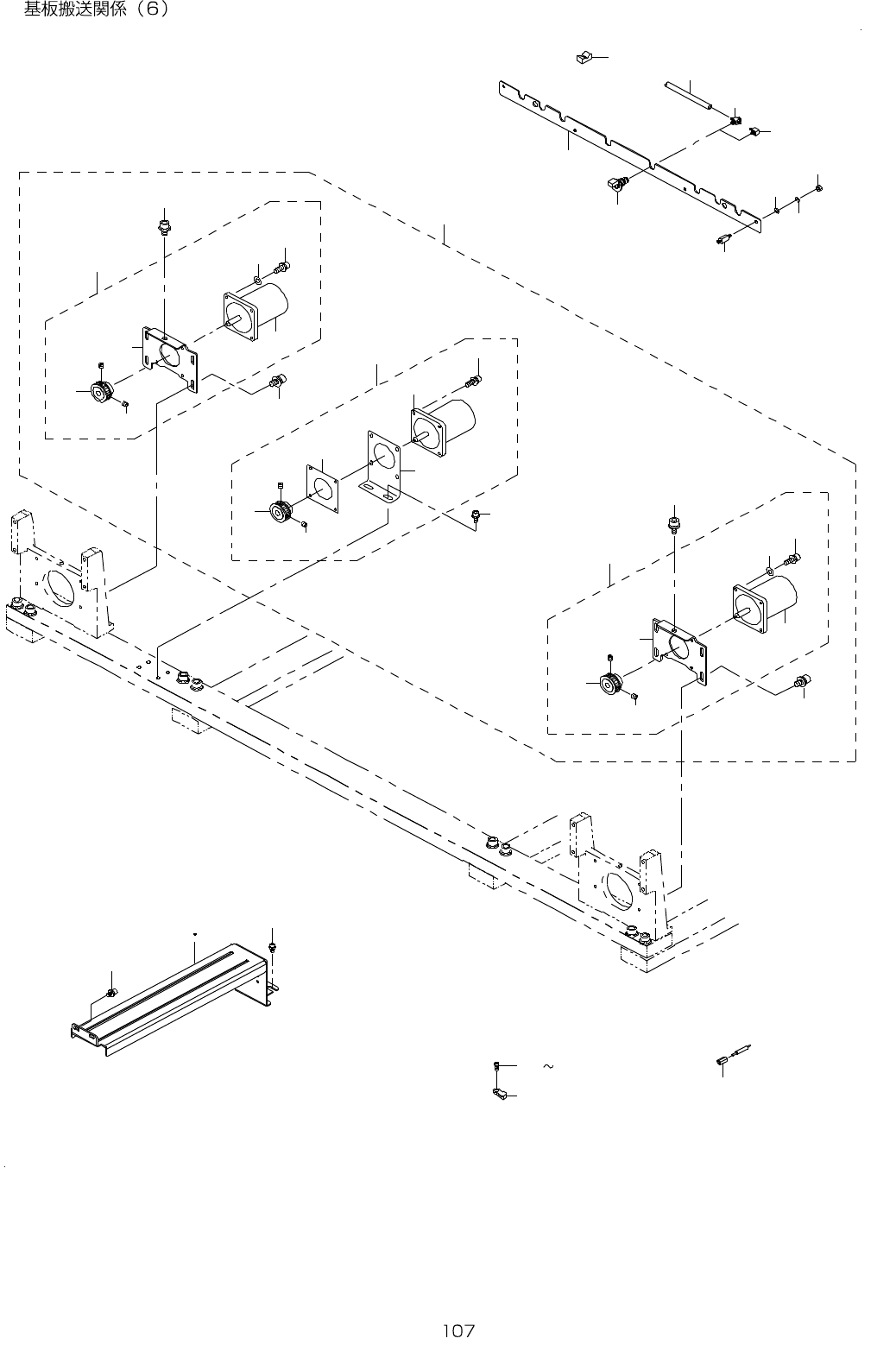

54.PWB CONVEYOR COMPONENTS(6)
1 8
1 8
1 2
1 4
3
1 2
4
1 2
3 9
3 3
1 6
1 5
1 7
1 3
2 0
1 9
3 1
3 2
2 8
3 0
2 9
2 2
2 7
2 6
2 5
2 4
3 4 3 8
1 6
1 5
1 4
1 7
1 3
2 0
1 9
6
5
9
7
1 0
1 1
2 3
2 1
8
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#02
401-13944 RAIL SUPPORT L 1
2
#01
401-13939 RAIL SUPPORT M 1
3 400-93940 CONVEYOR MOTOR ASM L 1
4 400-93941 CONVEYOR MOTOR C ASM L (1)
5 400-00870 MOTOR PULLEY C (1)
6 SM-8030602-TP SCREW M3X0.5 L=6 (3)
7 400-00869 MOTOR ADJUST PLATE (1)
8 400-48074 CENTER MOTOR ASM (1)
9 SL-6041242-TN BOLT (4)
10 400-01009 MOTOR BRAKET C(L) (1)
11 SL-6051292-TN BOLT (2)
12 400-93942 CONVEYOR MOTOR LR ASM L (2)
13 400-48074 CENTER MOTOR ASM (2)
14 SM-4054501-SC SCREW M5X0.8 L=45 (4)
15 400-00870 MOTOR PULLEY C (1)
16 SM-8030602-TP SCREW M3X0.5 L=6 (3)
17 400-46034 MOTOR BRACKET S(6) (1)
18 WS-0510002-KN SPRING WASHER M5 (4)
19 SL-6051492-TN BOLT (2)
20 SL-6051092-TN BOLT (8)
21 SL-6051092-TN BOLT 2
22 400-99522 PUSHER PLATE L 1
23 SL-6041092-TN SCREW 2
24 E2165-721-000 PUSHER SPACER 4
25 WP-0430801-SC WASHER M4 4
26 WS-0410002-KN SPRING WASHER M4 4
27 NM-6040001-SC NUT M4X0.7 TYPE1 4
28 401-23832 Y PUSHER V ASM 5
29 PJ-0460525-01 ELBOW 1
30 PJ-0460590-05 CONNECTOR 4
31 HX-0029400-00 FIXED BASE 1
32 BT-0400251-EA TUBE HOSE, BLUE 0.3
33 HX-0034400-00 HARNESS PARTS
3
34 SL-6030692-TN SCREW M3 L=6 3
35 SL-6030692-TN SCREW M3 L=6 2
36 SL-6031092-TN SCREW 1
37 SL-6031092-TN SCREW 2
38 SL-6030692-TN SCREW M3 L=6 1
39 400-46992 FIBER NUT 3
- -
55.PWB CONVEYOR COMPONENTS(7)
