- - 55.P WB CONV E YOR COMPONEN T S(7) 2 5 2 3 2 3 2 6 9 1 0 1 1 1 8 1 9 7 8 8 6 2 0 2 2 2 4 1 2 1 3 1 4 1 5 1 6 1 7 2 1 1 7 1 2 2 4 1 4 1 3 2 7 4 4 4 5 4 6 6 4 8 4 2 1 5 2 4 1 5 3 4 7
- -

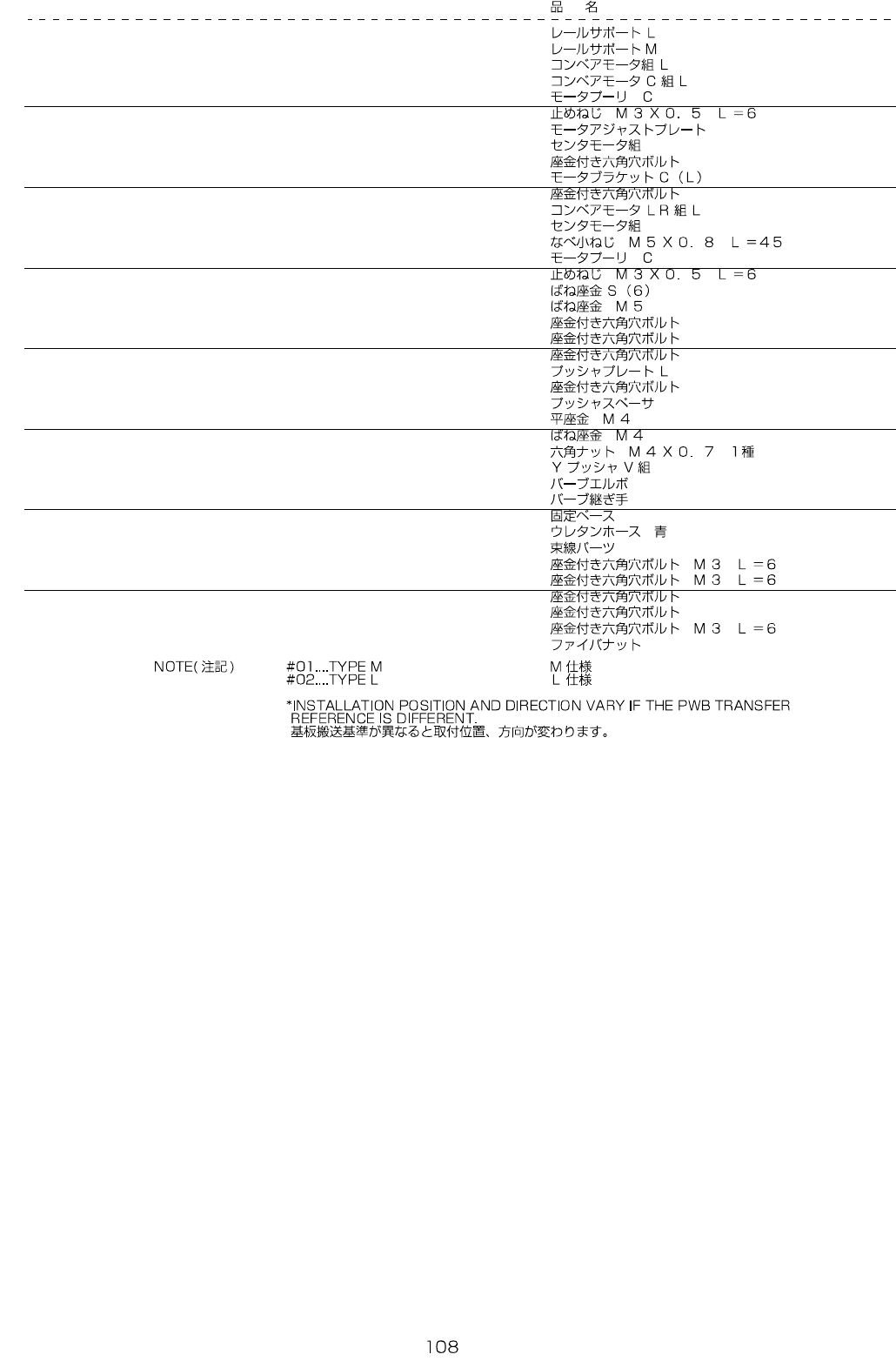

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#02
401-13944 RAIL SUPPORT L 1
2
#01
401-13939 RAIL SUPPORT M 1
3 400-93940 CONVEYOR MOTOR ASM L 1
4 400-93941 CONVEYOR MOTOR C ASM L (1)
5 400-00870 MOTOR PULLEY C (1)
6 SM-8030602-TP SCREW M3X0.5 L=6 (3)
7 400-00869 MOTOR ADJUST PLATE (1)
8 400-48074 CENTER MOTOR ASM (1)
9 SL-6041242-TN BOLT (4)
10 400-01009 MOTOR BRAKET C(L) (1)
11 SL-6051292-TN BOLT (2)
12 400-93942 CONVEYOR MOTOR LR ASM L (2)
13 400-48074 CENTER MOTOR ASM (2)
14 SM-4054501-SC SCREW M5X0.8 L=45 (4)
15 400-00870 MOTOR PULLEY C (1)
16 SM-8030602-TP SCREW M3X0.5 L=6 (3)
17 400-46034 MOTOR BRACKET S(6) (1)
18 WS-0510002-KN SPRING WASHER M5 (4)
19 SL-6051492-TN BOLT (2)
20 SL-6051092-TN BOLT (8)
21 SL-6051092-TN BOLT 2
22 400-99522 PUSHER PLATE L 1
23 SL-6041092-TN SCREW 2
24 E2165-721-000 PUSHER SPACER 4
25 WP-0430801-SC WASHER M4 4
26 WS-0410002-KN SPRING WASHER M4 4
27 NM-6040001-SC NUT M4X0.7 TYPE1 4
28 401-23832 Y PUSHER V ASM 5
29 PJ-0460525-01 ELBOW 1
30 PJ-0460590-05 CONNECTOR 4
31 HX-0029400-00 FIXED BASE 1
32 BT-0400251-EA TUBE HOSE, BLUE 0.3
33 HX-0034400-00 HARNESS PARTS
3
34 SL-6030692-TN SCREW M3 L=6 3
35 SL-6030692-TN SCREW M3 L=6 2
36 SL-6031092-TN SCREW 1
37 SL-6031092-TN SCREW 2
38 SL-6030692-TN SCREW M3 L=6 1
39 400-46992 FIBER NUT 3
- -

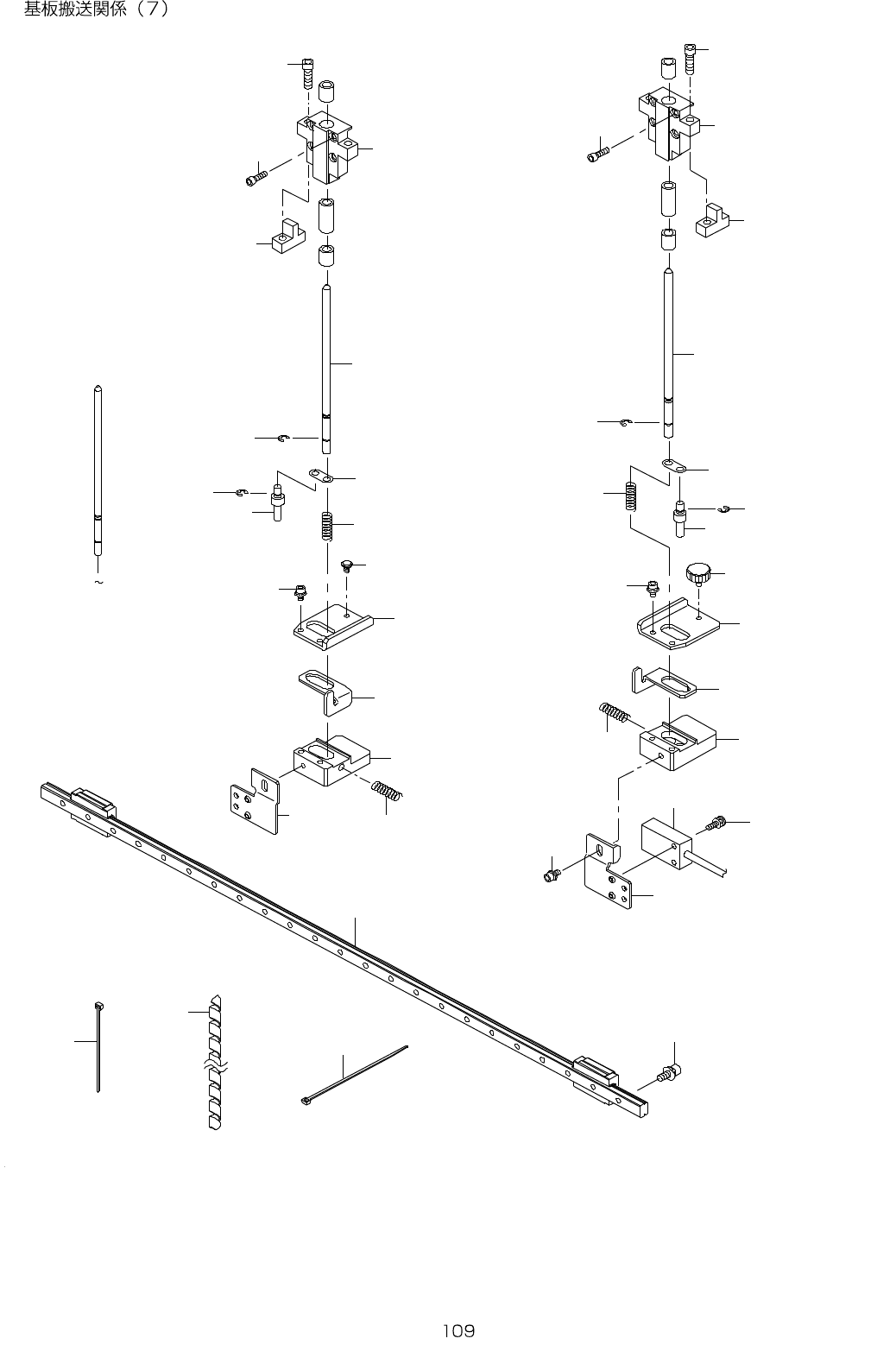

55.PWB CONVEYOR COMPONENTS(7)
2 5
2 3
2 3
2 6
9
1 0
1 1
1 8
1 9
7
8
8
6
2 0
2 2
2 4
1 2
1 3
1 4
1 5
1 6
1 7
2 1
1 7
1 2
2 4
1 4
1 3
2 7 4 4
4 5
4 6
6
4 8
4
2
1
5
2
4
1
5
3
4 7
- -

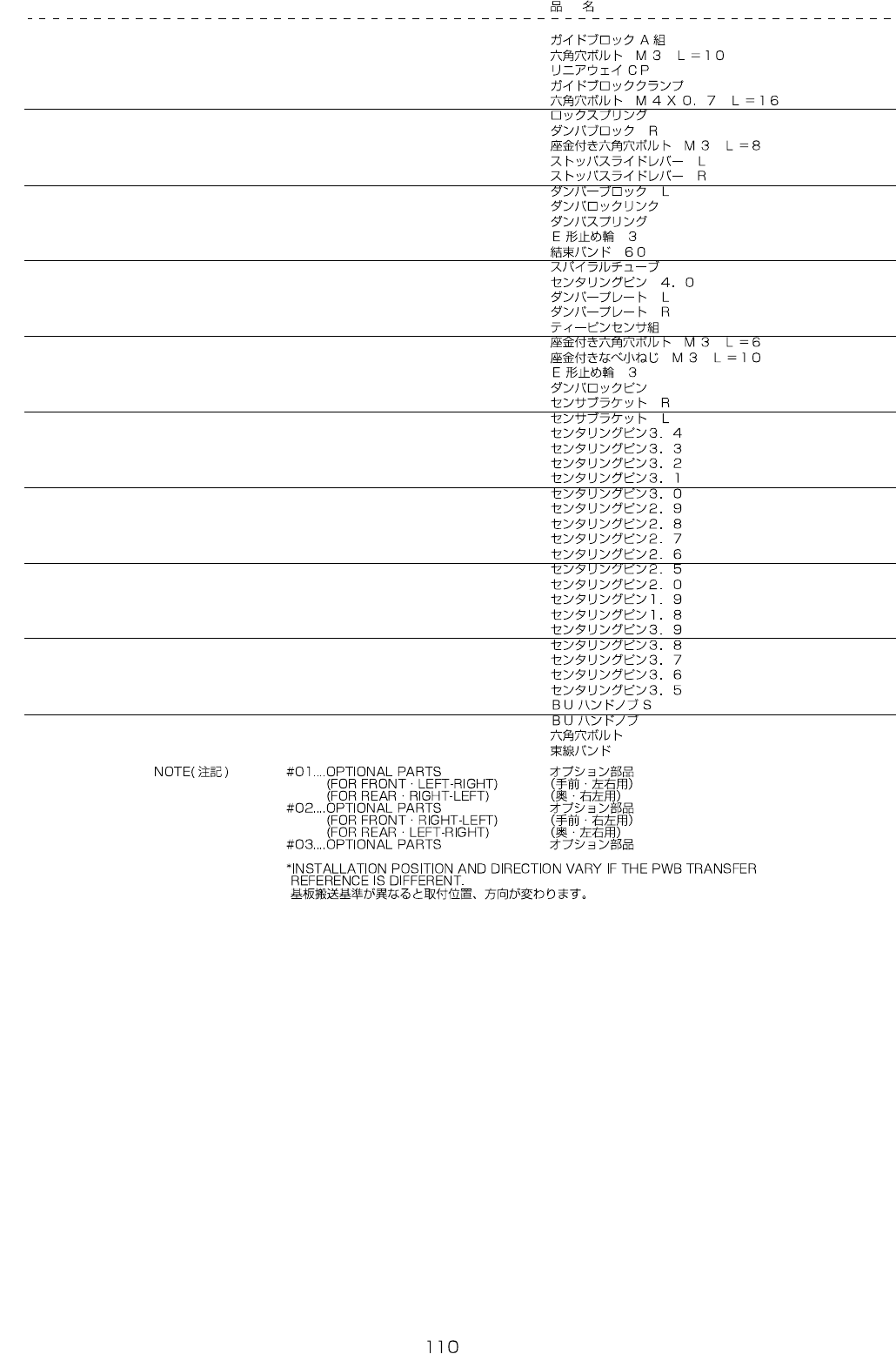

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00887 GUIDE BLOCK A ASM 2
2
#03
SM-6031002-TN SCREW M3 L=10 6
3
#03
401-10735 LINEAR WAY CP 1
4 400-00877 GUIDE BLOCK CLAMP 2
5 SM-6041602-TN SCREW M4 X 16 2
6 #03 400-15793 LOCK SPRING 2
7
#03
L1792-721-000 DAMPER BLOCK R 1
8
#03
SL-6030892-TN SCREW M3 L=8 4
9
#03
400-00891 STOPER SLIDE LEVER L 1
10
#03
400-00897 STOPER SLIDE LEVER R 1
11
#03
L179E-621-000 DAMPER BLOCK L 1
12
#03
400-00978 DAMPER LOCK LINK 2
13
#03
400-00950 DAMPER SPRING 2
14
#03
RE-0300000-K0 E-RING 3 6
15
#03
EA-9500B00-00 CABLE BAND 1
16
#03
HX-0031400-00 SPIRAL TABE 0.3
17
#03
400-01081 CENTERING PIN 4.0 2
18
#03
400-15791 DAMPER PLATE L 1
19
#03
400-15792 DAMPER PLATE R 1
20
#03
400-92576 T.PIN SENS ASM 1
21
#03
SL-6030692-TN SCREW M3 L=6 1
22
#03
SL-4031091-SC SCREW M3 L=10 2
23
#03
RE-0300000-K0 E-RING 3 2
24
#03
400-00896 DAMPER LOCK PIN 2
25
#01
E2148-721-000 SENSOR BRACKET R 1
26
#02
E2147-721-000 SENSOR BRACKET L 1
27
#03
400-01087 CENTERING PIN 3.4 1
28
#03
400-01088 CENTERING PIN 3.3 1
29
#03
400-01089 CENTERING PIN 3.2 1
30 #03 400-01090 CENTERING PIN 3.1 1
31
#03
400-01091 CENTERING PIN 3.0 1
32
#03
400-01092 CENTERING PIN 2.9 1
33
#03
400-01093 CENTERING PIN 2.8 1
34
#03
400-01094 CENTERING PIN 2.7 1
35
#03
400-01095 CENTERING PIN 2.6 1
36
#03
400-01096 CENTERING PIN 2.5 1
37
#03
400-01097 CENTERING PIN 2.0 1
38
#03
400-01098 CENTERING PIN 1.9 1
39
#03
400-01099 CENTERING PIN 1.8 1
40
#03
400-01082 CENTERING PIN 3.9 1
41
#03
400-01083 CENTERING PIN 3.8 1
42
#03
400-01084 CENTERING PIN 3.7 1
43 #03 400-01085 CENTERING PIN 3.6 1
44
#03
400-01086 CENTERING PIN 3.5 1
45
#03
E2141-725-000 BU HAND KNOB S 1
46
#03
E2076-721-000 BU HAND KNOB 1
47
#03
SM-6030802-TN SCREW 14
48
#03
EA-9500B01-00 CABLE BAND 8
