- - 56.P WB CONV E YOR COMPONEN T S(8) 3 3 3 1 3 2 3 0 3 0 2 9 2 8 1 4 B B 2 7 2 6 1 3 1 2 1 1 1 0 9 8 7 6 1 6 3 4 3 5 1 4 1 9 1 5 A 2 0 2 0 1 7 A 2 1 1 8 2 5 2 2 2 3 2 4 5
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00887 GUIDE BLOCK A ASM 2
2
#03
SM-6031002-TN SCREW M3 L=10 6
3
#03
401-10735 LINEAR WAY CP 1
4 400-00877 GUIDE BLOCK CLAMP 2
5 SM-6041602-TN SCREW M4 X 16 2
6 #03 400-15793 LOCK SPRING 2
7
#03
L1792-721-000 DAMPER BLOCK R 1
8
#03
SL-6030892-TN SCREW M3 L=8 4
9
#03
400-00891 STOPER SLIDE LEVER L 1
10
#03
400-00897 STOPER SLIDE LEVER R 1
11
#03
L179E-621-000 DAMPER BLOCK L 1
12
#03
400-00978 DAMPER LOCK LINK 2
13
#03
400-00950 DAMPER SPRING 2
14
#03
RE-0300000-K0 E-RING 3 6
15
#03
EA-9500B00-00 CABLE BAND 1
16
#03
HX-0031400-00 SPIRAL TABE 0.3
17
#03
400-01081 CENTERING PIN 4.0 2
18
#03
400-15791 DAMPER PLATE L 1
19
#03
400-15792 DAMPER PLATE R 1
20
#03
400-92576 T.PIN SENS ASM 1
21
#03
SL-6030692-TN SCREW M3 L=6 1
22
#03
SL-4031091-SC SCREW M3 L=10 2
23
#03
RE-0300000-K0 E-RING 3 2
24
#03
400-00896 DAMPER LOCK PIN 2
25
#01
E2148-721-000 SENSOR BRACKET R 1
26
#02
E2147-721-000 SENSOR BRACKET L 1
27
#03
400-01087 CENTERING PIN 3.4 1
28
#03
400-01088 CENTERING PIN 3.3 1
29
#03
400-01089 CENTERING PIN 3.2 1
30 #03 400-01090 CENTERING PIN 3.1 1
31
#03
400-01091 CENTERING PIN 3.0 1
32
#03
400-01092 CENTERING PIN 2.9 1
33
#03
400-01093 CENTERING PIN 2.8 1
34
#03
400-01094 CENTERING PIN 2.7 1
35
#03
400-01095 CENTERING PIN 2.6 1
36
#03
400-01096 CENTERING PIN 2.5 1
37
#03
400-01097 CENTERING PIN 2.0 1
38
#03
400-01098 CENTERING PIN 1.9 1
39
#03
400-01099 CENTERING PIN 1.8 1
40
#03
400-01082 CENTERING PIN 3.9 1
41
#03
400-01083 CENTERING PIN 3.8 1
42
#03
400-01084 CENTERING PIN 3.7 1
43 #03 400-01085 CENTERING PIN 3.6 1
44
#03
400-01086 CENTERING PIN 3.5 1
45
#03
E2141-725-000 BU HAND KNOB S 1
46
#03
E2076-721-000 BU HAND KNOB 1
47
#03
SM-6030802-TN SCREW 14
48
#03
EA-9500B01-00 CABLE BAND 8
- -
56.PWB CONVEYOR COMPONENTS(8)
3 3
3 1 3 2
3 0
3 0
2 9
2 8
1 4
B
B
2 7
2 6
1 3
1 2
1 1
1 0
9
8
7
6
1 6
3 4 3 5
1 4
1 9
1 5
A
2 0
2 0
1 7
A
2 1
1 8
2 5
2 2
2 3
2 4
5
- -

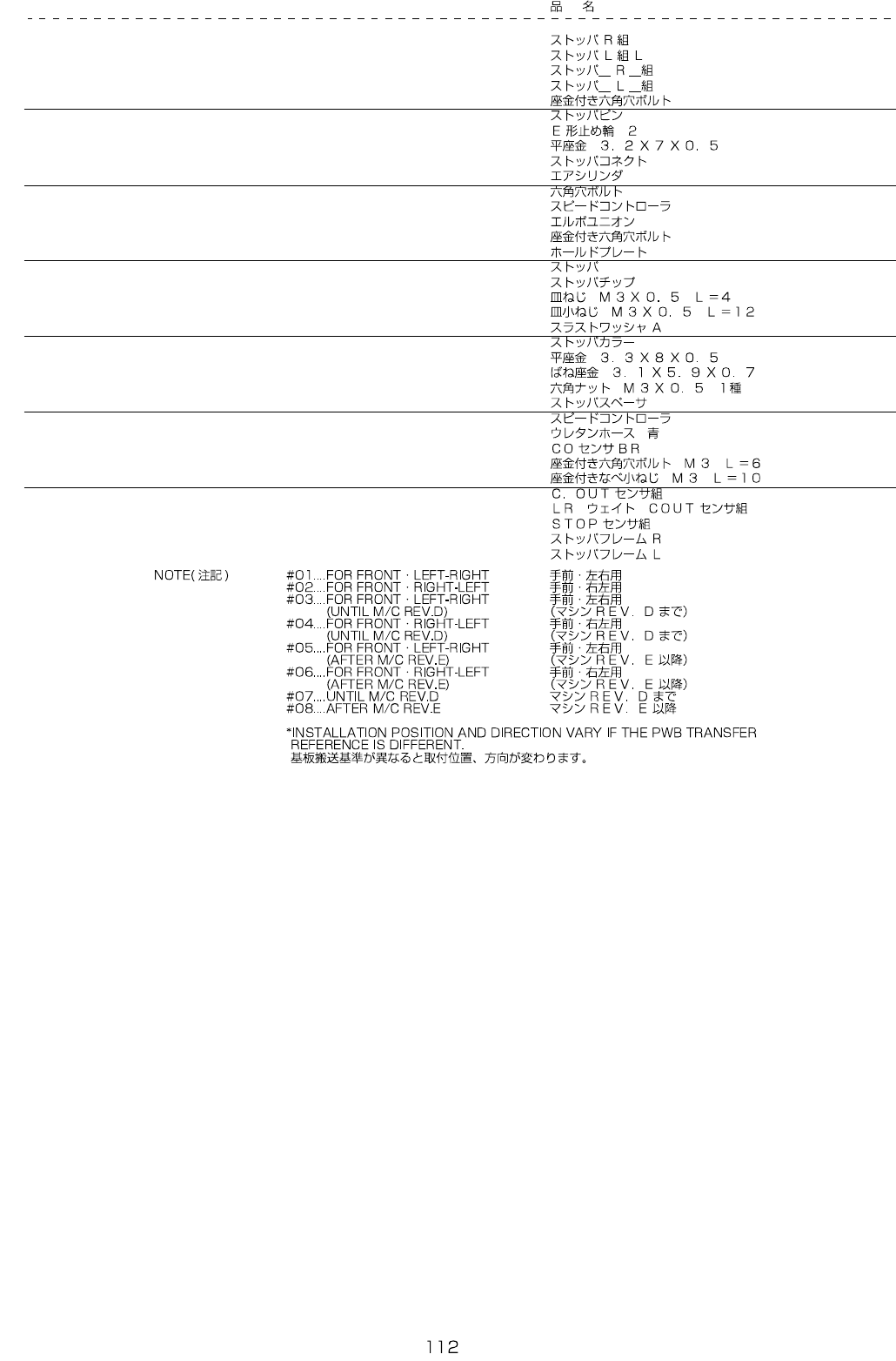

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#03
401-10124 STOPPER R ASM 1
2
#04
401-14350 STOPPER L ASM L 1
3
#05
401-35834 STOPPER_R_ASM 1
4
#06
401-35835 STOPPER_L_ASM 1
5 SL-6030842-TN SCREW M3 L=8 (1)
6 400-00910 STOPPER PIN (1)
7 RE-0200000-K0 E-RING 2 (1)
8 WP-0320501-SC WASHER M3 (1)
9 400-00911 STOPER CONNECT (1)
10 PA-1002008-A0 AIR CYLINDER (1)
11 SM-6031402-TN SCREW M3X0.5 L=8 (2)
12 PC-0105080-00 SPEED CONTROLLER (1)
13 PJ-3040405-11 ELBOW UNION (1)
14 SL-6041292-TN SCREW (2)
15 E2169-721-000 HOLD PLATE (1)
16 400-00909 STOPER (1)
17 E2233-725-000 STOPPER CHIP (1)
18 SM-1030401-SE SCREW M3 L=4 (1)
19 SM-1031201-SC SCREW M3X0.5 L=12 (1)
20 E2039-721-000 WASHER A (2)
21 E2038-721-000 STOPPER COLLAR (1)
22 WP-0330516-SC WASHER 3.3X8X0.5 (1)
23 WS-0310002-KN SPRING WASHER M3 (1)
24 NM-6030001-SC NUT M3X0.5 TYPE1 (1)
25 400-23788 STOPER SPACER (1)
26 PC-0124010-00 SPEED CONTROLLER (1)
27 BT-0400251-EA TUBE HOSE, BLUE (0.5)
28 401-13940 CO SENSOR BR (1)
29 SL-6030692-TN SCREW M3 L=6 (2)
30 SL-4031091-SC SCREW M3 L=10 (4)
31
#07
401-10066 C.OUT SENSOR ASM (1)
32
#08
401-35828 LR WAIT COUT SENS ASM (1)
33 401-10065 STOP SENSOR ASM (1)
34
#01
401-10100 STOPPER FLAME R (1)
35
#02
401-10101 STOPPER FLAME L (1)
