- - 59.P WB CONV E YOR COMPONEN T S(11) 8 8 B 7 4 7 5 8 4 8 3 8 5 8 1 7 9 8 0 7 8 7 7 5 0 5 6 6 6 6 7 8 2 7 6 8 6 7 3 7 3 4 1 4 9 4 8 4 7 4 6 4 5 4 2 4 3 6 0 5 8 5 9 6 5 6 2 6 1 6 4 6 3 5 7 6 0 5 8 5 9 4 4 2 1 2 0 1 1 …
- -

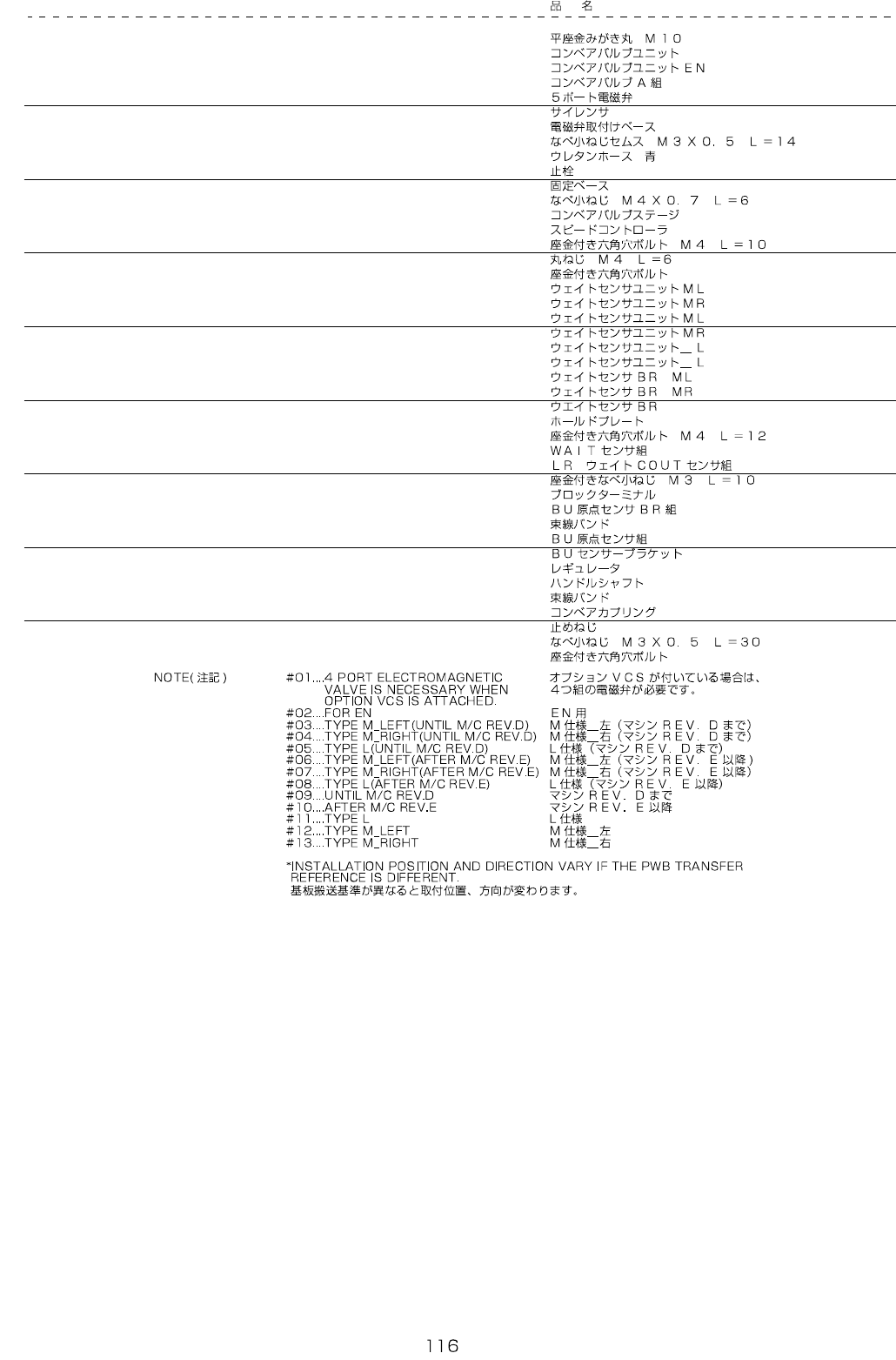

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 WP-1052001-SC WASHER 10,5X21X2 4
2 401-10123 CONVEYOR VALVE UNIT 1
3
#02
401-14349 CONVEYOR_VALVE _UNIT_EN 1
4 400-00916 MANIFOLD VA LVE A ASM (1)
5
#01
PV-1502093-00 5 PORT ELECTROMAGNETIC VALVE (3)
6 PX-0500030-00 S ILENCER (1)
7 PV-9150050-00 S OLENOID VA LVE INSTALLING BASE (1)
8 SL-4031481-SC S CREW M3 X 14 (2)
9 BT-0400251-EA TUBE HOSE, BLUE (6)
10 PX-5000140-00 PLUG (3)
11 HX-0029400-00 FIXED BASE (4)
12 SM-4040601-SC SCREW M4X0.7 L=6 (4)
13 401-14018 CONVEYOR VALVE STAGE (1)
14 PC-0124010-00 SPEED CONTROLLER (1)
15 SL-6041092-TN SCREW M4 L=10 (2)
16 SM-3040652-TN SCREW M4 L=6 (2)
17 SL-6051292-TN BOLT 2
18
#03
401-10127 WAIT SENSOR UNIT ML 1
19
#04
401-14735 WAIT SENSOR UNIT MR 1
20
#06
401-35831 WAIT_SENSOR_UNIT _ML 1
21
#07
401-35833 WAIT_SENSOR_UNIT _MR 1
22
#05
401-14260 WAIT_SENSOR_UNIT _L 1
23
#08
401-35832 WAIT_SENSOR_UNIT _L 1
24
#12
401-13951 WAIT SENSOR BR ML (1)
25
#13
401-13950 WAIT SENSOR BR MR (1)
26
#11
401-10110 WAIT_SENSOR_BR (1)
27 E2169-721-000 HOLD PLATE (1)
28 SL-6041292-TN SCREW M4 L=12 (2)
29
#09
401-10064 WAIT SENSOR ASM (1)
30
#10
401-35828 LR WAIT COUT SENS ASM (1)
31 SL-4031091-SC SCREW M3 L=10 (2)
32 HK-0691900-0B BLOCK TERMINAL 1
33 401-14268 BU HOM E SENSOR BRACKET ASM 1
34 EA-9500B01-00 CABLE BAND (1)
35 400-92573 BU ORG SENS ASM (1)
36 E4115-729-000 UNION (1)
37 PF-0200040-00 REGULATOR 1
38 400-93920 HANDLE SHAF T 1
39 EA-9500B01-00 CABLE BAND 40
40 400-13197 CONVEYOR COUPLING 1
41 SM-8050502-TP SCREW M5 L=5 4
42 SM-4033001-SC S CREW M3 L=30 (2)
43 SL-6104042-TN BOLT 4
- -
59.PWB CONVEYOR COMPONENTS(11)
8 8
B
7 4 7 5
8 4
8 3
8 5
8 1
7 9 8 0
7 8
7 7
5 0 5 6
6 6 6 7
8 2
7 6
8 6
7 3
7 3
4 1
4 9
4 8
4 7
4 6
4 5
4 2
4 3
6 0
5 8 5 9
6 5
6 2
6 1
6 4
6 3
5 7
6 0
5 8 5 9
4 4
2 1
2 0
1 1
3 8
1 6
1 3
1 9
1 3
1 8
A
A
8
7
6
5
4 0
3 9
2 9
2 8
2 7
3 1
3 7
2 6
2 7
3 4
3 0
3 4
3 1
3 5
3 6
2 4 2 5
3 2 3 3
1 7
1 5
1 4
1 2
9 1 0
5 2
8 7
5 0 5 1
7 0
7 1
7 2
6 8 6 9
2 2 2 3
B
1 4
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 #06 401-10125 BU UNIT M 1
2 #07 401-10205 BU UNIT L 1
3 #08 401-34642 BU_UNIT_M 1
4 #09 401-34644 BU_UNIT_L 1
5
#10
400-80446 GUIDE SHAFT UNIT (3)
6
#10
400-76103 BU GUIDE SHAFT (1)
7
#10
L177E-521-000 GUIDE SHAFT HOLDER (1)
8
#10
SL-6041042-TN BOLT (2)
9
#02
401-06047 BU TIMING BELT M (1)
10
#04
400-71334 BU_TIMING_BELT (1)
11 400-93903 ENCORDER UNIT (1)
12 SM-8040602-TP SCREW M 4X0.7 L=6 (2)
13 SB-1100005-00 BEARING (2)
14 E9433-729-0A0 BU ENC ASM. (1)
15 SL-6030692-TN SCREW M3 L=6 (2)
16 400-93904 ENCORDER BR (1)
17 400-93612 ENCORDER PULLEY (1)
18 400-93905 ENCORDER SHAFT (1)
19 RC-0100001-KP SNAP RIN G M10 (1)
20 400-93906 STOPPER DISC (1)
21 SL-6042092-TN SCREW M4 L=20 (4)
22
#02
401-12719 BU MOTOR UNIT M (1)
23
#03
400-93901 BU MOTOR UNIT (1)
24
#02
401-12720 TOR QUE SUPPORT UNIT (1)
25
#03
L177E-621-0A0 TOR QUE SUPPORT UNIT (1)
26 E4156-729-000 NUT (M17X1) (1)
27 E4144-729-000 T HRUST COLLAR (2)
28 L177E-621-000 T ORQUE SUPPORT (1)
29 SM-8050402-TP SCREW (2)
30 L177E-721-000 SPT TBL MOTOR PULLEY (1)
31 E4142-729-000 STOPPER PIN (2)
32 #02 E4141-729-000 TORSION SPRING (1)
33
#03
L177E-821-000 TORTION SPRING (1)
34 SB-1170001-00 BEARING (2)
35 SL-6051292-TN BOLT (4)
36 400-48076 BACK UP MOTOR ASM (1)
37 SL-6051692-TN BOLT (4)
38 400-93902 BU MOTOR BR (1)
39 SB-8160001-00 BEARING (3)
40 SM-6040802-TN SCREW M 4X0.7 L=8 (12)
41
#01
400-82786 STBL BALL SCREW UNIT 3
42 L177E-221-000 SPT TBL PULLEY (1)
43 L176E-821-000 SPT TBL BALL SCREW (1)
44 SM-6041002-TN BOLT (18)
45 SL-6041642-TN SCREW (4)
46 L176E-921-000 CLAMP HOLDER (1)
47 L177E-021-000 HOLDER CUSHION (1)
48 E4124-729-000 SHAFT HOLDER (1)
49 SL-6041092-TN SCREW (1)
50
#02
401-06043 BU BASE M (1)
51
#03
401-06045 BU BASE L (1)
52 SL-6041092-TN SCREW (4)
53
#06
401-10126 SUPPOR T TABLE M ASM 1
54
#07
401-10206 SUPPOR T TABLE L ASM 1
55
#08
401-34643 SUPPOR T_TABLE_M_ASM 1
56
#09
401-34645 SUPPOR T_TABLE_L_ASM 1
57 #10 L177E-421-000 GUIDE SHAFT PLATE (3)
58 #03 L176E-121-000 SIDE BEAM (2)
59 #02 401-10097 SIDE BEAM M (2)
60 SL-6031092-TN SCREW (8)
61 400-93909 BU SENSOR DOG (1)
62 SM-1040801-SC SCREW M 4X0.7 L=8 (9)
63
#10
SL-6041092-TN SCREW (12)
64 SL-6040892-TN BOLT (1)
65 L177E-121-000 BALL SCREW SUPPORT PLAT E (3)
66
#06
401-10096 SUPPOR T TABLE M (1)
67
#07
401-10111 SUPPOR T TABLE L (1)
68
#08
401-34595 SUPPOR T_TABLE_M (1)
69
#09
401-34596 SUPPOR T_TABLE_L (1)
70
#11
401-22963 BU_GUIDE_SHAFT (3)
71 #11 SM-3061252- TN SCREW M6 L=12 (3)
72 #11 WP-0651001- SC WASHER (3)
73 SL-6040892-TN BOLT (15)
74 #05 401-14270 BU STOPER ASSY L 1
75
#04
401-14269 BU STOPER ASSY M 1
76 SM-6051002-TN SCREW (2)
77 PA-1501011-00 DUAL ROD CYLINDER (1)
78 SM-6042002-TN SCREW (2)
79
#04
401-10099 BU STOPPER BR M (1)
80
#05
400-94746 BU STOPPER BR (1)
81 PC-0105080-00 SPEED CONTROLLER (2)
82 400-92574 BU LOCK SENS ASM (1)
83 HX-0029400-00 F IXED BASE (1)
84 SM-4040801-SC SCREW M 4X0.7 L=8 (1)
85 PV-1502090-00 5-PORT SOLENOID VALVE (1)
86 400-00970 BU STOPER (1)
87 SL-6082092-TN BOLT 4
88 SM-6051402-TN SCREW M 5 L=14 2
