- - 61.P WB CONV E YOR COMPONEN T S(13) ( TY PE XL ) A A C D B C D B 7 1 1 1 3 1 2 1 4 1 6 1 1 1 3 1 2 2 8 3 0 2 9 1 5 1 8 2 3 1 1 1 3 1 2 1 2 8 3 0 2 9 2 8 3 0 2 9 3 3 3 1 4 1 4 0 4 3 4 4 4 0 3 9 3 8 4 2 4 0 3 7 4 3 1…
- -

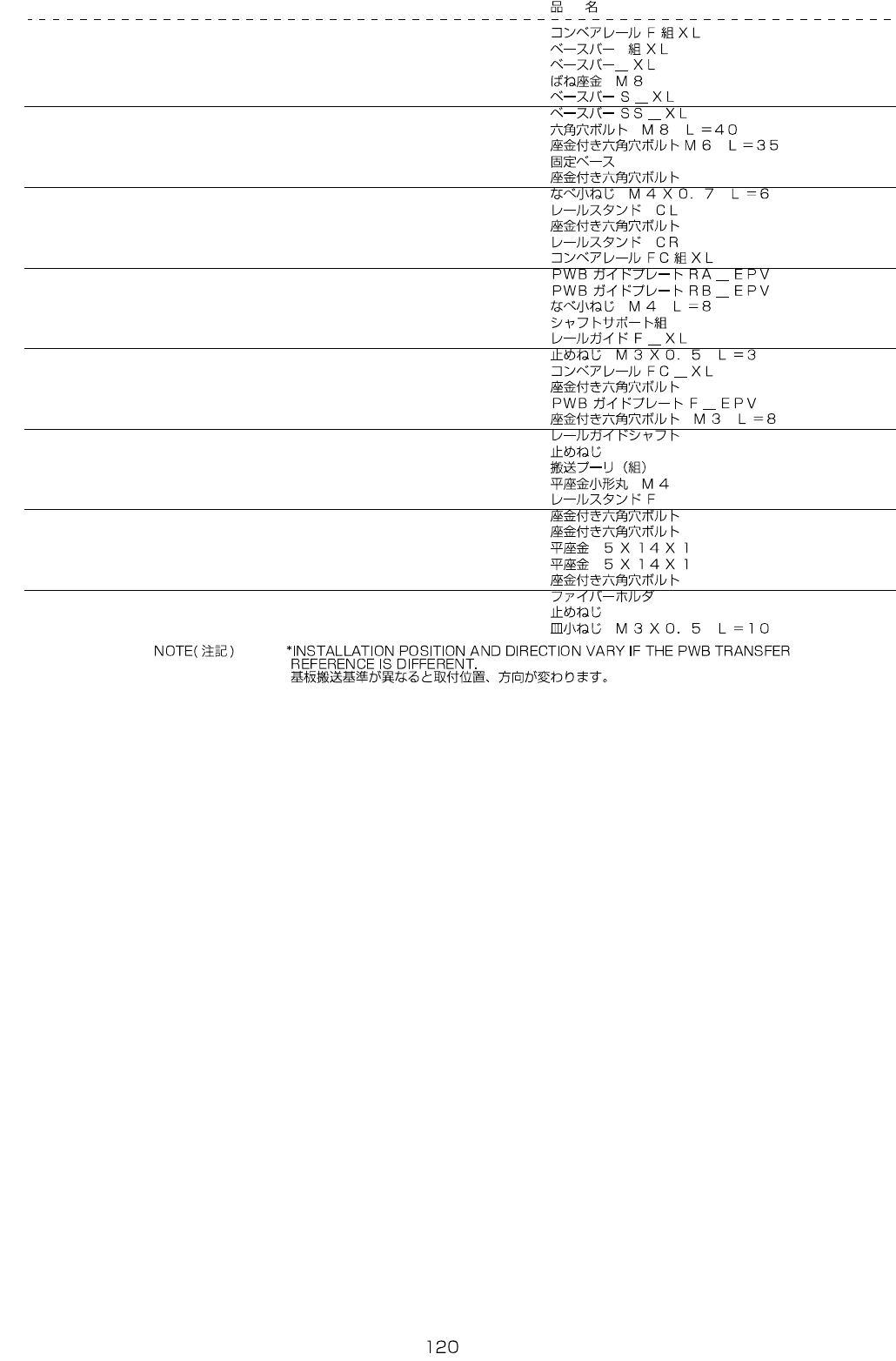

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-98161 CONVEYOR_RAIL_F_ASM_XL 1
2 400-98162 BASE_BAR_ASM_XL (1)
3 400-98113 BASE_BAR_XL (2)
4 WS-0820002-KN SPRING WASHER M8 (8)
5 400-98114 BASE_BAR_S_XL (2)
6 400-98112 BASE_BAR_SS_XL (4)
7 SM-6084002-TN SCREW M8 L=40 (8)
8 SL-6063592-TN SCREW (8)
9 HX-0029400-00 FIXED BASE (4)
10 SL-6061642-TN BOLT (8)
11 SM-4040601-SC SCREW M4X0.7 L=6 (4)
12 400-00802 RAIL STAND CL (1)
13 SL-6052092-TN SCREW (2)
14 400-00805 RAIL STAND CR (1)
15 400-98165 CONVEYOR_RAIL_FC_ASM_XL (1)
16 401-22129 PWB_GUIDE_PLATE_RA_EPV (2)
17 401-22131 PWB_GUIDE_PLATE_RB_EPV (4)
18 SM-4040855-SC SCREW (4)
19 E4105-729-0A0 SHAFT SUPPORT B ASM. (2)
20 400-98121 RAIL_GUIDE_F_XL (1)
21 SM-8030302-TP SCREW M3X0.5 L=3 (2)
22 400-98123 CONVEYOR_RAIL_FC_XL (1)
23 SL-6041092-TN SCREW (4)
24 401-22128 PWB_GUIDE_PLATE_F_EPV (3)
25 SL-6030892-TN SCREW M3 L=8 (15)
26 400-00812 RAIL GUIDE SHAFT (2)
27 SM-8040602-TP SCREW M4X0.7 L=6 (2)
28 E2111-715-0A0 CONVEYOR PULLEY ASM. (4)
29 WP-0430800-SC WASHER M4 (4)
30 400-30408 RAIL STAND F (2)
31 SL-6052092-TN SCREW (4)
32 SL-6041292-TN SCREW (4)
33 WP-0501046-SC WASHER 5 X 14 X 1 (2)
34 WP-0501046-SC WASHER 5 X 14 X 1 (2)
35 SL-6052092-TN SCREW (2)
36 400-93923 FIBER_HOLDER 2
37 SM-8030802-TP SCREW M3X0.5 L=8 2
38 SM-1031001-SC SCREW M3X0.5 L=10 4
- -

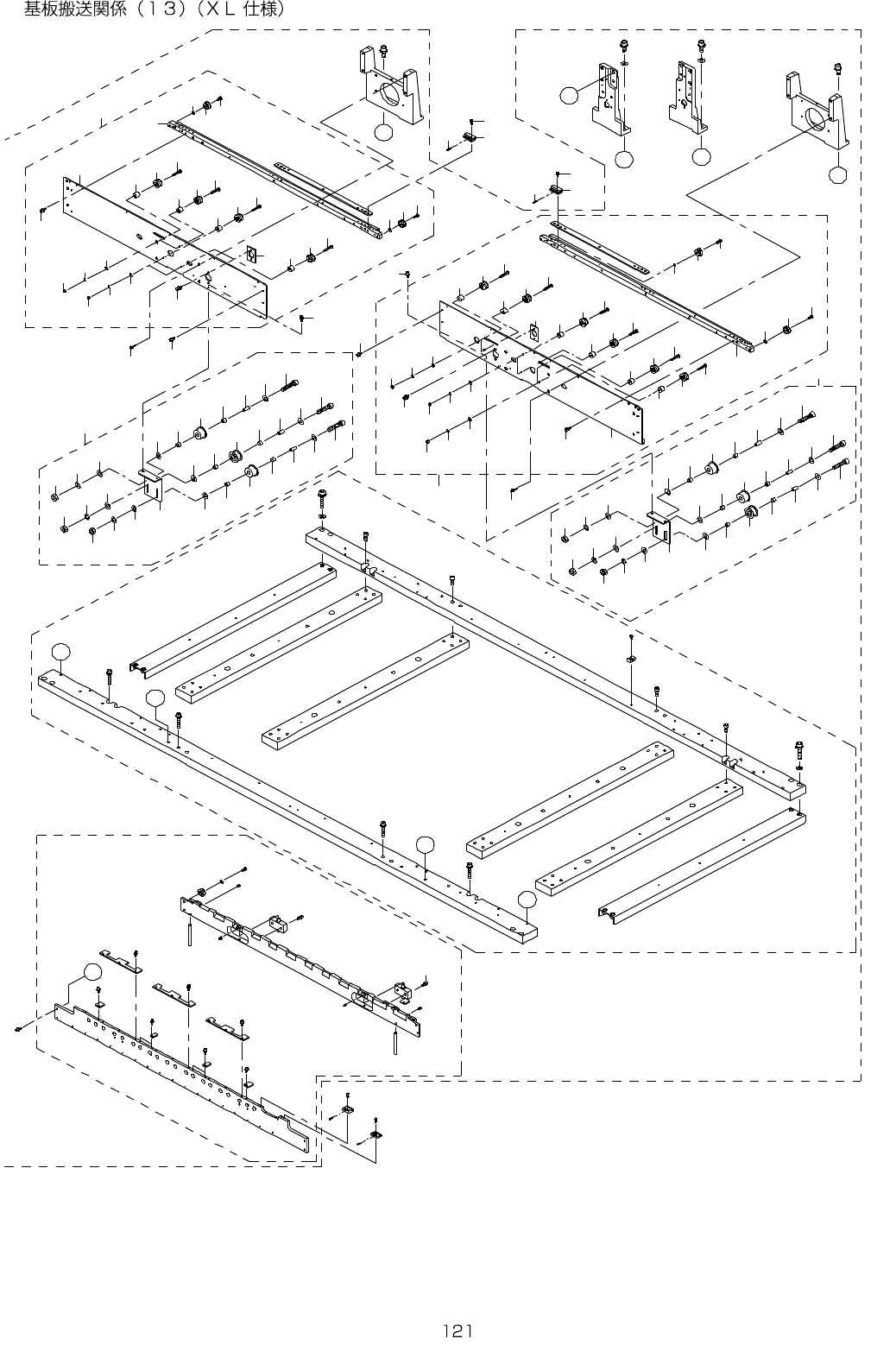

61.PWB CONVEYOR COMPONENTS(13)(TYPE XL)
A
A
C
D
B
C
D
B
7
1 1
1 3
1 2
1 4
1 6
1 1
1 3
1 2
2 8
3 0
2 9
1 5
1 8
2 3
1 1
1 3
1 2
1
2 8
3 0
2 9
2 8
3 0
2 9
3 3
3 1
4 1
4 0
4 3
4 4
4 0
3 9
3 8
4 2
4 0
3 7
4 3
1 1
1 3
1 2
3 9
3 2
5 8
5 6
5 7
6 1
6 0
5 9
2 1
1 5
3 6
3
5
1 4
1 6
1 9
6
4
1 0
8
9
8
1 0
1 7
2 6
2 7
2 5
2 6
2 7
2 5
2 8
3 0
2 9
2 8
3 0
2 9
2 4
3 1
3 2
3 3
3 2
3 3
3 1
2 9
2 8
3 0
2 2
E
E
2 0
3 5
2
2
4 2
4 1
4 0
4 1
4 0
4 2
4 3
4 5
3 7
3 8
3 8
3 8
3 8
3 8
3 9
4 0
4 0
4 0
4 0
5 0
4 8
5 2
5 5
5 3
4 8
5 4
4 7
4 7
5 5
5 1
4 8
4 9
5 2
4 7
4 6
5 4
5 1
5 0
4 8
5 0
4 8
5 1
5 2
5 5
5 5
5 5
5 5
4 8
4 8
4 8
4 8
9
3 4
- -

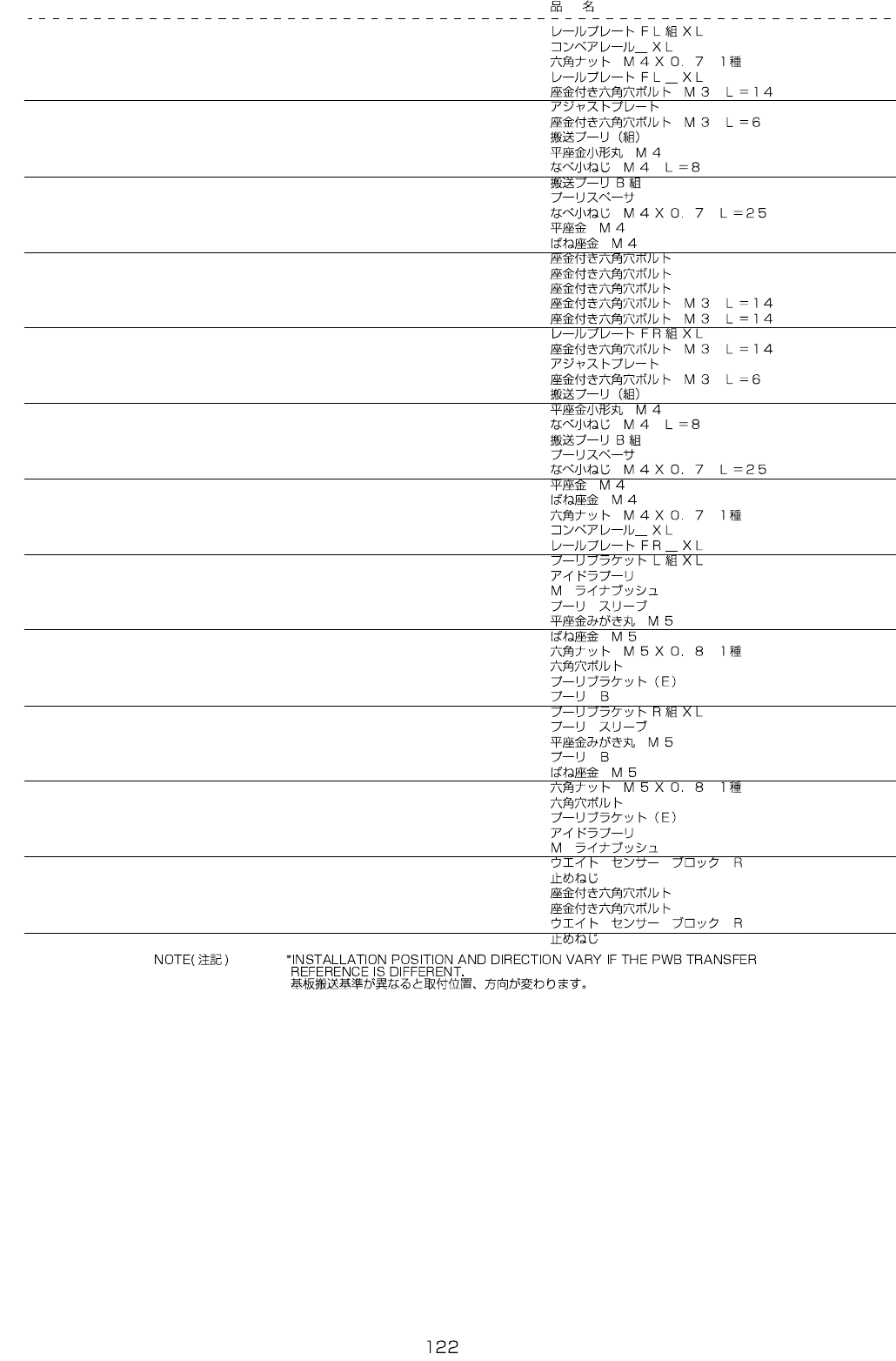

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-98163 RAIL_PLATE_FL_ASM_XL 1
2 400-98129 CONVEYOR_RAIL_XL (1)
3 NM-6040001-SC NUT M4X0.7 TYPE1 (4)
4 400-98115 RAIL_PLATE_FL_XL (1)
5 SL-6031492-TN SCREW M3 L=14 (5)
6 E2012-721-000 ADJUST PLATE (1)
7 SL-6030692-TN SCREW M3 L=6 (2)
8 E2111-715-0A0 CONVEYOR PULLEY ASM. (2)
9 WP-0430800-SC WASHER M4 (2)
10 SM-4040855-SC SCREW (2)
11 E2089-721-0A0 CONVEYOR PULLEY B ASM. (4)
12 E2055-721-000 PULLEY SPACER (4)
13 SM-4042501-SC SCREW M4X0.7 L=25 (4)
14 WP-0430801-SC WASHER M4 (4)
15 WS-0410002-KN SPRING WASHER M4 (4)
16 SL-6041492-TN SCREW (2)
17 SL-6041092-TN SCREW (4)
18 SL-6041492-TN SCREW (2)
19 SL-6031492-TN SCREW M3 L=14 (4)
20 SL-6031492-TN SCREW M3 L=14 (4)
21 400-98164 RAIL_PLATE_FR_ASM_XL 1
22 SL-6031492-TN SCREW M3 L=14 (5)
23 E2012-721-000 ADJUST PLATE (1)
24 SL-6030692-TN SCREW M3 L=6 (2)
25 E2111-715-0A0 CONVEYOR PULLEY ASM. (2)
26 WP-0430800-SC WASHER M4 (2)
27 SM-4040855-SC SCREW (2)
28 E2089-721-0A0 CONVEYOR PULLEY B ASM. (6)
29 E2055-721-000 PULLEY SPACER (6)
30 SM-4042501-SC SCREW M4X0.7 L=25 (6)
31 WP-0430801-SC WASHER M4 (6)
32 WS-0410002-KN SPRING WASHER M4 (6)
33 NM-6040001-SC NUT M4X0.7 TYPE1 (6)
34 400-98129 CONVEYOR_RAIL_XL (1)
35 400-98116 RAIL_PLATE_FR_XL (1)
36 400-99484 PULLEY_BRAKET_L_ASM_XL 1
37 E2016-715-000 IDLER PULLEY (2)
38 E2017-715-000 M LINER BUSH (6)
39 E2018-715-000 PULLEY SLEEVE (3)
40 WP-0531001-SC WASHER M5 (9)
41 WS-0510002-KN SPRING WASHER M5 (3)
42 NM-6050001-SC NUT M5X0.8 TYPE1 (3)
43 SM-6052502-TN SCREW (3)
44 E4086-725-000 PULLEY BRACKET(E) (1)
45 E2157-721-000 PULLEY B (1)
46 400-99485 PULLEY_BRAKET_R_ASM_XL 1
47 E2018-715-000 PULLEY SLEEVE (3)
48 WP-0531001-SC WASHER M5 (9)
49 E2157-721-000 PULLEY B (1)
50 WS-0510002-KN SPRING WASHER M5 (3)
51 NM-6050001-SC NUT M5X0.8 TYPE1 (3)
52 SM-6052502-TN SCREW (3)
53 E4086-725-000 PULLEY BRACKET(E) (1)
54 E2016-715-000 IDLER PULLEY (2)
55 E2017-715-000 M LINER BUSH (6)
56 L179E-421-000 WAIT SENSOR BLOCK R 1
57 SM-8020202-UZ SCREW 1
58 SL-6031092-TN SCREW 2
59 SL-6031092-TN SCREW 2
60 L179E-421-000 WAIT SENSOR BLOCK R 1
61 SM-8020202-UZ SCREW 1
