- - REF.NO N O TE PART N O D E S C R I P T I O N Qty 1 40 0-9813 0 PW B_GU I DE_U _XL 8 2 SL-6 03 1 09 2 -TN SCREW 2 4 3 40 0-9815 7 SC REW_ SH AF T_ASM _ XL 1 4 40 0-9773 0 SC REW_ SH AF T_XL (2) 5 SM -8040602-TP SCRE…
- -

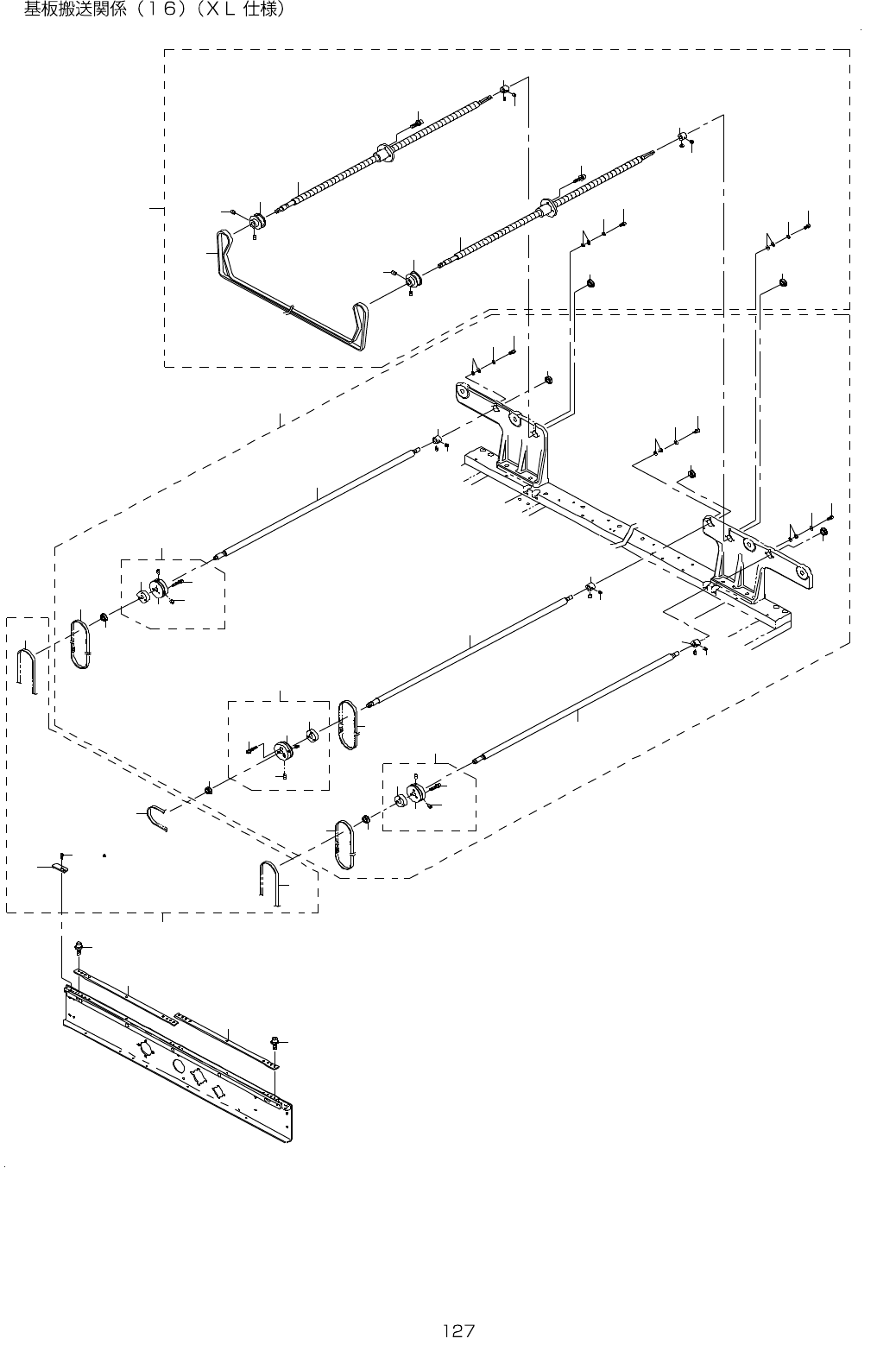

64.PWB CONVEYOR COMPONENTS(16)(TYPE XL)
2 6
2 5
2 3
2 4
2 2
1 6
2 6
2 5
2 3
2 4
2 2
1 6
2 0
2 0
2 6
2
2 1
2 1
1
1
2
1 2
9
4
6
5
7
1 1
1 0
8
1 0
1 3
5
1 4
6
7
1 1
1 4
1 5
2 7
2 7
1 9
2 7
2 8
2 5
2 3
2 9
2 4
2 2
1 9
2 6
2 1
1 7
3 0
1 7
1 8
3 0
1 8
2 6
2 6
1 7
1 8
3 0
3 3
3 5
3 2 3 6
3 3
3 1
1 2
9
4
8
1 9
3
3 4
- -

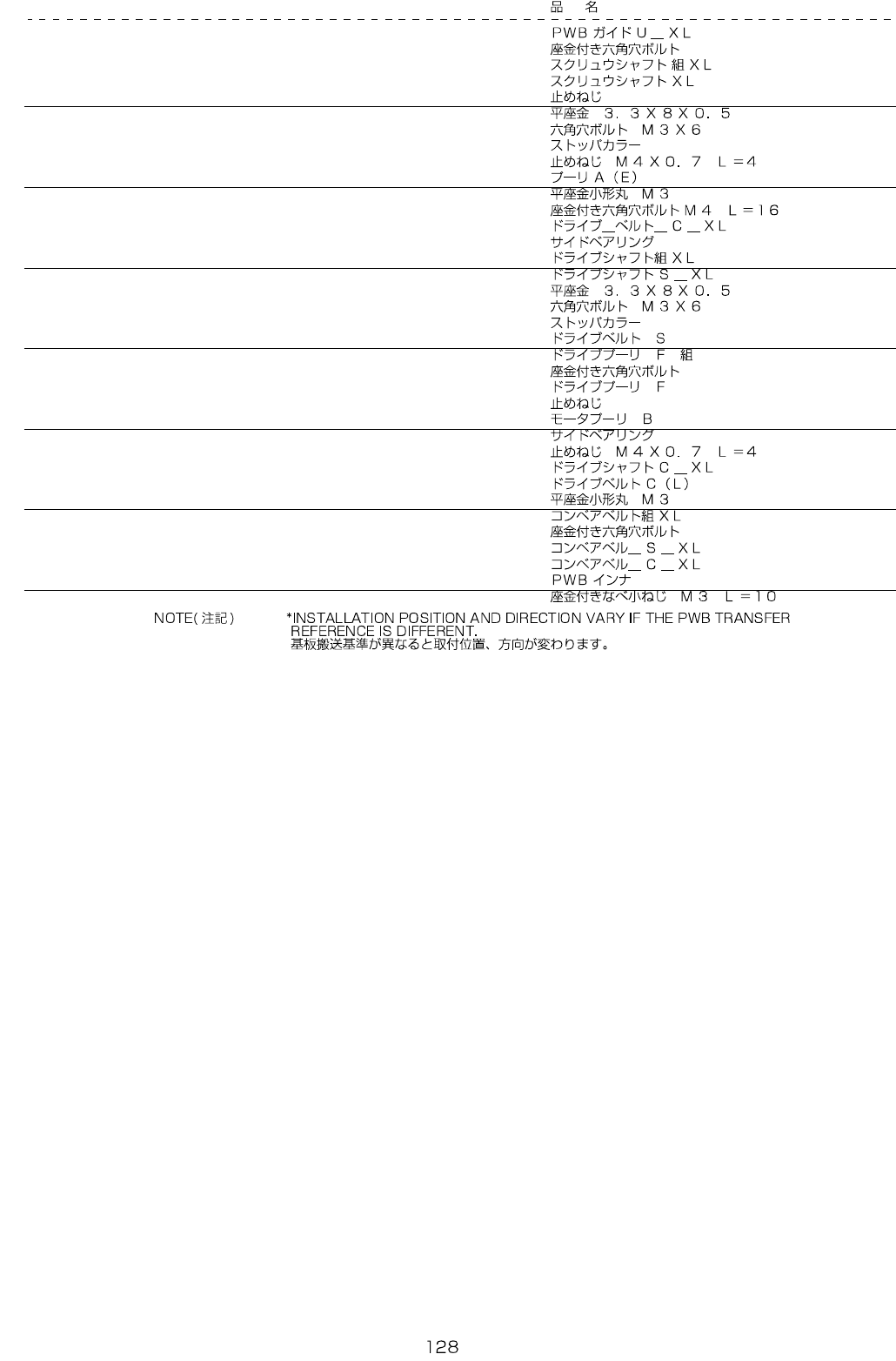

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-98130 PWB_GUIDE_U_XL 8
2 SL-6031092-TN SCREW 24
3 400-98157 SCREW_SHAFT_ASM_XL 1
4 400-97730 SCREW_SHAFT_XL (2)
5 SM-8040602-TP SCREW M4X0.7 L=6 (4)
6 WP-0330516-SC WASHER 3.3X8X0.5 (4)
7 SM-6030602-TN SCREW M3X6 (4)
8 E2141-721-000 STOPPER COLLAR (2)
9 SM-8040402-TP SCREW M4X0.7 L=4 (4)
10 E4085-725-000 PULLEY A(E) (2)
11 WP-0320500-SF WASHER 3.2X7X0.5 (8)
12 SL-6041692-TN SCREW M4 L=16 (8)
13 400-97733 DRIVE_BELT_C_XL (1)
14 SB-1080002-00 SIDE BEARING (4)
15 400-98160 DRIVE_SHAFT_ASM XL 1
16 400-98131 DRIVE_SHAFT_S_XL (2)
17 WP-0330516-SC WASHER 3.3X8X0.5 (6)
18 SM-6030602-TN SCREW M3X6 (6)
19 E2141-721-000 STOPPER COLLAR (3)
20 400-00852 DRIVE BELT S (2)
21 400-00849 DRIVE PULLEY F ASM (3)
22 SL-6031642-TN SCREW (3)
23 400-00850 DRIVE PULLEY F (1)
24 SM-8040602-TP SCREW M4X0.7 L=6 (2)
25 400-00851 MOTOR PULLEY B (1)
26 SB-1080002-00 SIDE BEARING (6)
27 SM-8040402-TP SCREW M4X0.7 L=4 (6)
28 400-98132 DRIVE_SHAFT_C_XL (1)
29 400-01005 DRIVE BELT C(L) (1)
30 WP-0320500-SF WASHER 3.2X7X0.5 (12)
31 400-98172 CONVEYOR_BELT_ASM_XL 1
32 SL-6031092-TN SCREW (16)
33 400-97731 CONVEYOR_BELT_S_XL (4)
34 400-97732 CONVEYOR_BELT_C_XL (2)
35 E2046-725-000 PWB INNER (12)
36 SL-4031091-SC SCREW M3 L=10 (8)
- -

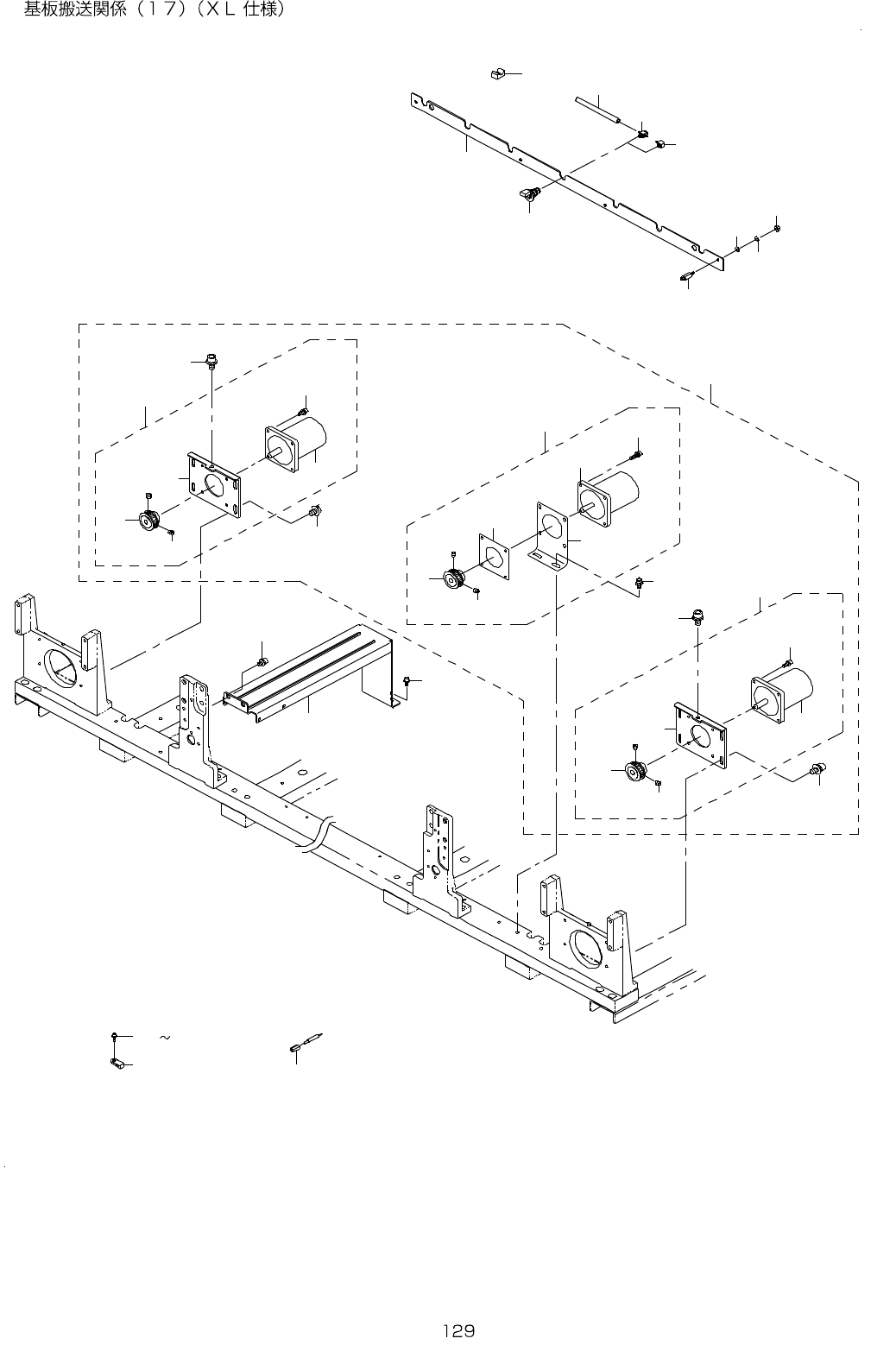

65.PWB CONVEYOR COMPONENTS(17)(TYPE XL)
8
2 0
1 0
4
7
9
5
6
1 8
1 3
1 2
1 5
1 6
3 3 3 7
2 4
2 5
2 6
2 7
2 2
2 9
3 0
2 8
1 9
3 1
3 2
2 3
1 1
3
2 1
1 6
1 1
2
1 5
1 2
1 3
1 8
1 7
1
1 7
1 4
1 4
