- - 68.P WB CONV E YOR COMPONEN T S(20) ( TY PE XL ) 2 6 1 4 4 1 7 9 1 2 1 4 1 5 1 1 2 3 4 0 3 6 2 6 3 8 3 6 2 7 2 8 2 9 7 8 5 1 5 3 3 4 5 6 5 2 5 5 5 7 5 6 5 9 5 8 5 3 5 4 A A 4 3 4 2 4 5 4 6 4 7 4 8 4 9 4 1 5 0 1 8 1…
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 WP-1052001-SC WASHER 10,5X21X2 4
2 400-93920 HANDLE SHAFT 1
3 400-00916 MANIFOLD VALVE A ASM 1
4 PV-9150050 -00 SOLENOID VALVE INSTALLING BASE (1)
5
#01
PV-1502093-00 5 PORT ELECTROMAGNETIC VALVE (3)
6 PX-0500030 -00 SILENCER (1)
7 SM-3040652-TN SCREW M4 L=6 2
8 HK-0691900-0B BLOCK TERMINAL 1
9 400-92571 STOP SENSOR ASM 1
10 400-92572 C.OUT SENSOR ASM 1
11 400-94484 CONVEYOR_VALVE_STAGE 1
12 SL-6040892-TN BOLT 2
13 PC-0124010-00 SPEED CONTROLLER 1
14 BT-0400251-EA T UBE HOSE, BLUE 6
15 PX-5000140-00 PLUG 3
16 HX-0029400-00 F IXED BASE 7
17 SM-4040801-SC SCREW M 4X0.7 L=8 7
18 400-94486 REGULATOR_BR 1
19 SL-6051292-TN BOLT 2
20 400-92512 F IBER 3
21 SL-6104042-TN BOLT 4
22 SL-4031091-SC SCREW M3 L=10 4
23 SM-8050502-TP SCREW M 5 L=5 4
24 SM-4033001-SC SCREW M3 L=30 2
25 SL-4031481-SC SCREW M3 X 14 2
26 400-92570 WAIT SENSOR ASM 1
27 EA-9500B01-00 CABLE BAND 40
28 400-13197 CONVEYOR COUPLING 1
29 400-98153 HANDLE_SHAFT_XL_ASM 1
30 WS-0510002-KN SPRING WASHER M5 (1)
31 NM-6050001-SC NUT M5X0.8 TYPE1 (1)
32 400-97778 SHAFT_PLATE_XL (1)
33 SL-6041292-TN SCREW (4)
34 NM-3040520-SF FLANGE NUT M4 (4)
35 400-97779 SHAFT_PLATE_COVER_XL (1)
36 SL-6040892-TN BOLT (3)
37 400-97781 HANDLE_SHAFT_A_XL (1)
38 400-97782 HANDLE_SHAFT_B_XL (1)
39 L166E-321-000 WA SHAFT PULLEY (2)
40 SM-8040402-TP SCREW M 4X0.7 L=4 (4)
41 SB-1080002-00 SIDE BEARING (3)
42 RE-0600000-K0 E-RING 6 (1)
43 E2012-721-000 ADJUST PLATE (1)
44 SL-6030692-TN SCREW M3 L=6 (2)
45 400-97780 SHAFT_BELT_XL (1)
46 E2016-715-000 IDLER PULLEY (1)
47 SM-6052502-TN SCREW (1)
48 WP-0531001-SC WASHER M5 (3)
49 E2017-715-000 M LINER BUSH (2)
50 E2018-715-000 PULLEY SLEEVE (1)
51
#02
400-94745 BU_STOPER_ASSY 2
52 SM-4040801-SC SCREW M 4X0.7 L=8 (1)
53 PV-1502090-00 5 PORT SOLENOID VALVE (2)
54 400-00970 BU_STOPER(EN) (1)
55 SM-6051002-TN BOLT (2)
56 PA-1501011-00 DUAL ROD CYLINDER (1)
57 SM-6042002-TN BOLT (2)
58 400-94746 BU_STOPPER_BR (1)
59 SM-6051402-TN SCREW M 5 L=14 (2)
60 BT-0400251-EA T UBE HOSE, BLUE (2.5)
61 PC-0105080-00 SPEED CONTROLLER (2)
62 400-92574 BU LOCK SENS ASM (1)
63 HX-0029400-00 F IXED BASE (1)
64 400-93936 BU_HOME_SENSOR__BRACKET_ASM 1
65 400-92573 BU ORG SENS ASM (1)
66 E4115-729-000 UNION (1)
67 EA-9500B01-00 CABLE BAND (1)
68 400-93934 LEFT_SENS_UNIT 1
69 400-01077 SENSOR BRAKET A (1)
70 HX-0044000-00 CABLE BAND (1)
71 400-17255 SENSOR BRACKET BR (1)
72 400-01079 SENSOR BRAKET C (1)
73 400-01076 SENSOR SLIDE PLATE (1)
74 400-00912 SENSOR ADJUST SPRING (3)
75 G6518-880-000 SET PICK-UP (1)
76 400-58815 SPACER (1)
77 SM-6041602-TN SCREW M 4 X 16 (3)
78 WP-0430801-SC WASHER M4 (6)
79 NM-6040002-SE NUT M4X0.7 (3)
80 400-92568 LEFT SENS ASM (1)
81 SL-4031291-SC SCREW M3X12 (1)
82 HX-0036700-0A BUSH (0.16)
83 EA-9500B00-00 CABLE BAND (5)
84 400-93935 RIGHT_SENS_UNIT 1
85 400-01079 SENSOR BRAKET C (1)
86 400-17255 SENSOR BRACKET BR (1)
87 400-01077 SENSOR BRAKET A (1)
88 400-01076 SENSOR SLIDE PLATE (1)
89 400-00912 SENSOR ADJUST SPRING (3)
90 G6518-880-000 SET PICK-UP (1)
91 400-58815 SPACER (1)
92 SM-6041602-TN SCREW M 4 X 16 (3)
93 WP-0430801-SC WASHER M4 (6)
94 NM-6040002-SE NUT M4X0.7 (3)
95 400-92578 RIGHT SENS ASM (1)
96 SL-4031291-SC SCREW M3X12 (1)
97 HX-0036700-0A BUSH (0.16)
98 EA-9500B00-00 CABLE BAND (5)
99 HX-0044000-00 CABLE BAND (1)
100 SL-6031092-TN SCREW 4
- -
68.PWB CONVEYOR COMPONENTS(20)(TYPE XL)
2
6 1
4 4
1 7
9
1 2
1 4
1 5
1 1
2 3
4 0
3 6
2 6
3 8
3 6
2 7
2 8
2 9
7
8
5 1
5 3
3
4
5
6
5 2
5 5
5 7
5 6
5 9
5 8
5 3
5 4
A
A
4 3
4 2
4 5
4 6
4 7
4 8
4 9
4 1
5 0
1 8
1 3
1 9
1 3
1 6
3 9
1 0
2 0
2 1
2 2
6 0
6 0
3 1
3 5
3 0
3 2 3 4
3 3
3 7
5 4
2 4
1
2 5
- -

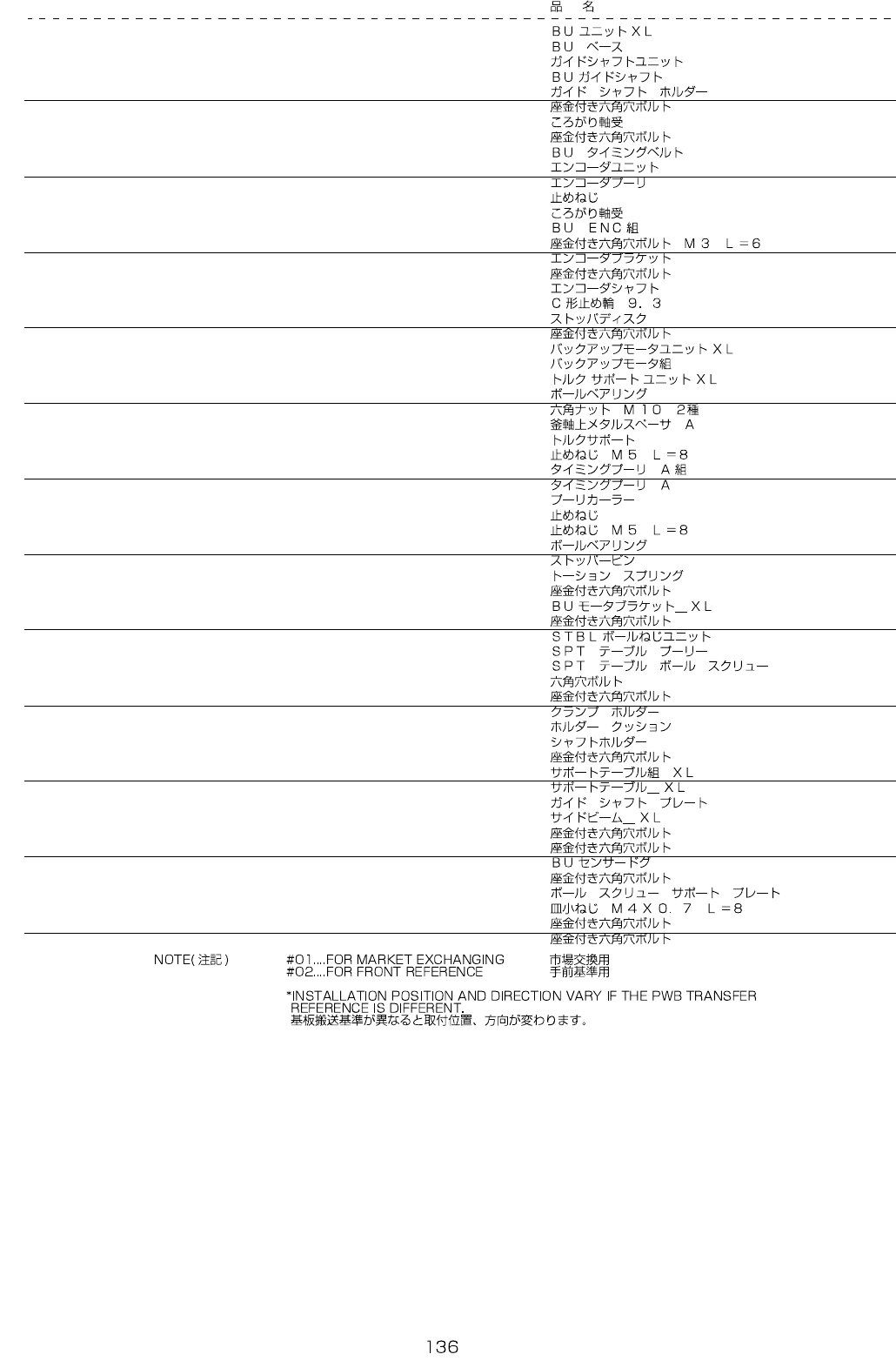

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-98175 BU_UNIT_XL 1
2 400-71329 BU_BASE (1)
3 400-80446 GUIDE SHAFT UNIT (3)
4 400-76103 BU GUIDE SHAFT (1)
5 L177E-521-000 GUIDE SHAFT HOLDER (1)
6 SL-6041042-TN BOLT (2)
7 SB-8160001-00 BEARING (3)
8 SL-6041092-TN SCREW (12)
9 400-71334 BU_TIMING_BELT (1)
10 400-93903 ENCORDER UNIT (1)
11 400-93612 ENCORDER PULLEY (1)
12 SM-8040602-TP SCREW M4X0.7 L=6 (2)
13 SB-1100005-00 BEARING (2)
14 E9433-729-0A0 BU ENC ASM. (1)
15 SL-6030692-TN SCREW M3 L=6 (2)
16 400-93904 ENCORDER_BR (1)
17 SL-6041092-TN SCREW (4)
18 400-93905 ENCORDER_SHAFT (1)
19 RC-0100001-KP SNAP RING M10 (1)
20 400-93906 STOPPER_DISC (1)
21 SL-6042092-TN SCREW M4 L=20 (4)
22 400-98176 BU_MOTOR_UNIT_XL (1)
23 400-48076 BACK UP MOTOR ASM (1)
24 400-98177 TORQUE_SUPPORT_UNIT_XL (1)
25 SB-1100004-00 BALL BEARING (1)
26 NM-6100002-SE NUT M10 (1)
27 226-14002 THRUST WASHER, A (1)
28 400-98139 TORQUE_SUPPORT (1)
29 SM-8050852-TP SETSCREW (2)
30 400-00930 TIMING PULLEY A ASM (1)
31 400-00931 TIMING PULLEY A (1)
32 400-00932 PULLEY COLLAR (1)
33 SM-8050842-TP SETSCREW (1)
34 SM-8050852-TP SETSCREW (1)
35 SB-1100004-00 BALL BEARING (1)
36 E4142-729-000 STOPPER PIN (2)
37 L177E-821-000 TORTION SPRING (1)
38 SL-6051692-TN BOLT (4)
39 400-98138 BU_MOTOR_BR_XL (1)
40 SL-6051292-TN BOLT (4)
41
#01
400-82786 STBL BALL SCREW UNIT 3
42 L177E-221-000 SPT TBL PULLEY (1)
43 L176E-821-000 SPT TBL BALL SCREW (1)
44 SM-6041002-TN BOLT (18)
45 SL-6041642-TN SCREW (4)
46 L176E-921-000 CLAMP HOLDER (1)
47 L177E-021-000 HOLDER CUSHION (1)
48 E4124-729-000 SHAFT HOLDER (1)
49 SL-6041092-TN SCREW (1)
50
#02
400-98178 SUPPORT_TABLE_ASM_XL 1
51 400-98136 SUPPORT_TABLE_XL (1)
52 L177E-421-000 GUIDE SHAFT PLATE (3)
53 400-98137 SIDE_BEAM_XL (2)
54 SL-6031092-TN SCREW (6)
55 SL-6041092-TN SCREW (12)
56 E4114-729-000 BU SENSOR DOG (1)
57 SL-6040892-TN BOLT (1)
58 L177E-121-000 BALL SCREW SUPPORT PLATE (3)
59 SM-1040801-SC SCREW M4X0.7 L=8 (9)
60 SL-6040892-TN BOLT 15
61 SL-6082092-TN BOLT 4
