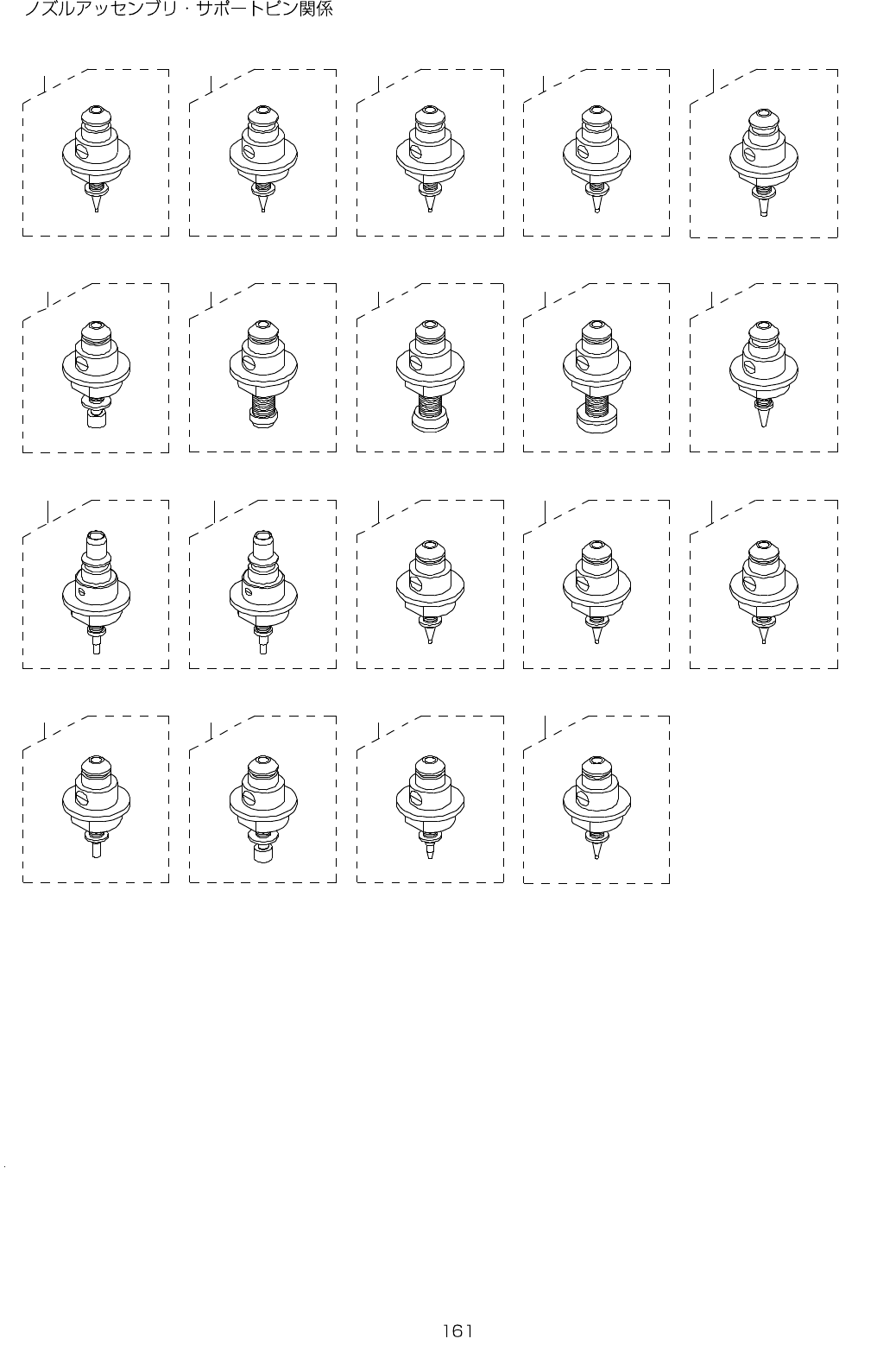

81.NOZZLE ASSEMBLY & SUPPORT PIN COMPONENTS
1 8
1 0987
1 2
1 71 6
1 51 41 3
21
5
1 1
6
43
1 9
- -

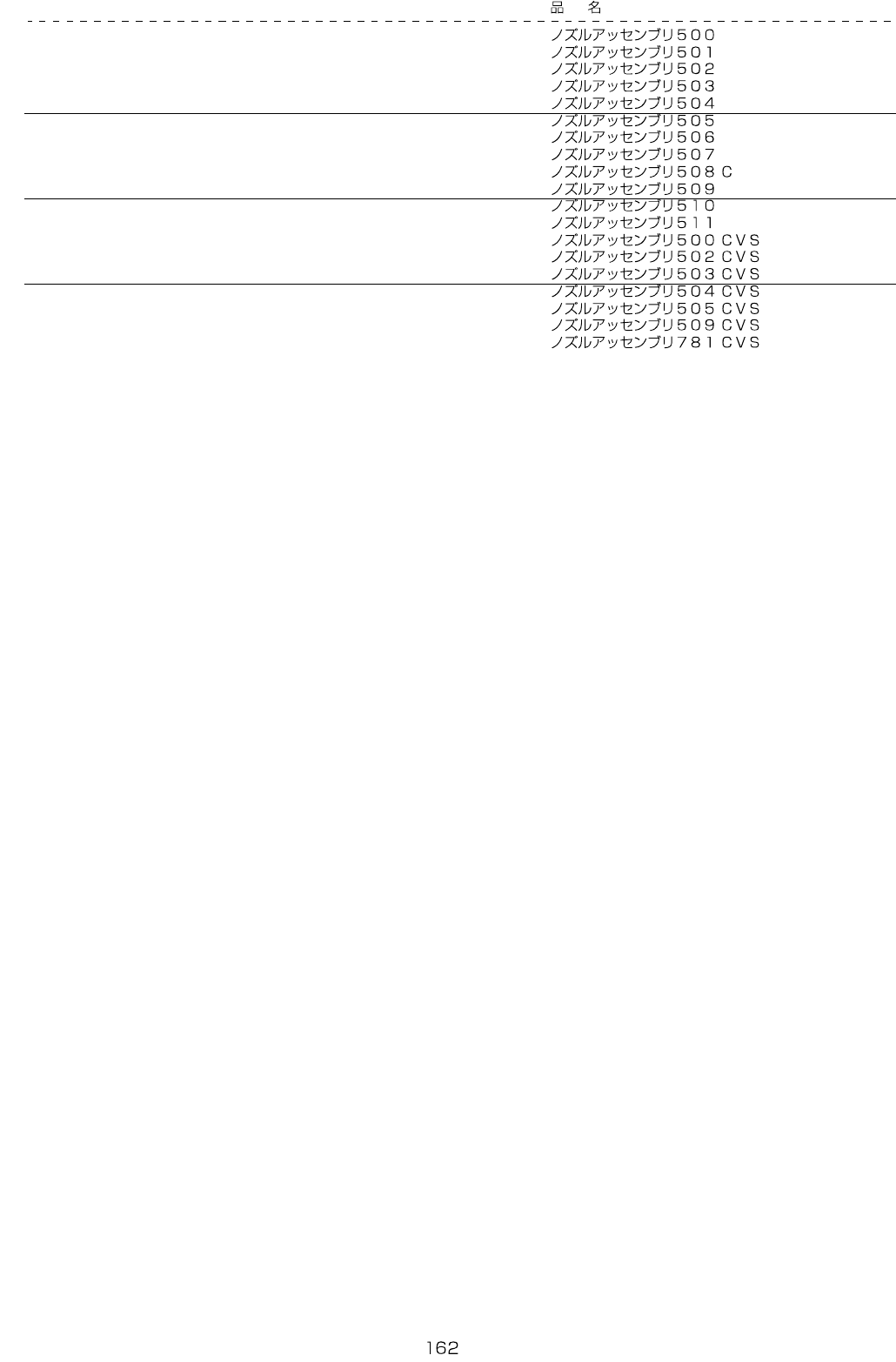

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-11046 NOZZLE ASSEMBLY 500 1
2 400-01339 NOZZLE ASSEMBLY 501 1
3 400-01340 NOZZLE ASSEMBLY 502 1
4 400-01341 NOZZLE ASSEMBLY 503 1
5 400-01342 NOZZLE ASSEMBLY 504 1
6 400-01343 NOZZLE ASSEMBLY 505 1
7 400-01344 NOZZLE ASSEMBLY 506 1
8 400-01345 NOZZLE ASSEMBLY 507 1
9 400-44239 NOZZLE ASSEMBLY 508C 1
10 400-25165 NOZZLE ASSEMBLY 509 1
11 E3615-729-0A0 NOZZLE ASSEMBLY 510 1
12 E3616-729-0A0 NOZZLE ASSEMBLY 511 1
13 400-10999 NOZZLE ASSEMBLY 500 CVS 1
14 400-10995 NOZZLE ASSEMBLY 502 CVS 1
15 400-10996 NOZZLE ASSEMBLY 503 CVS 1
16 400-10997 NOZZLE ASSEMBLY 504 CVS 1
17 400-10998 NOZZLE ASSEMBLY 505 CVS 1
18 401-05854 NOZZLE ASSEMBLY 509 CVS 1
19 401-49762 NOZZLE ASSEMBLY 781 CVS 1
- -
