- - REF.NO N O TE PART N O D E S C R I P T I O N Qty 1 40 0-4717 1 L CD B R ACK ET R 1 2 SL-6 04 1 09 2 -TN SCREW 4 3 40 0-4717 0 L CD B R ACK ET F 1 4 SL-6 04 1 09 2 -TN SCREW 4 5 SD-06 40 2 46-SP HINGE SCR EW D=6 .35…
- -
82.REAR MONITOR COMPONENTS
4 6
2 6
2 7
3 0
9
1 1
1 4
1 4
1 3
1 4
3 4
3 6
3 5
3 7 3 9
4 4 4 5
3 2
1 9 2 1
1 8
2 3
3 3
1 6 1 7
2
1 2
1 5
1 4
1 3
1 4
2 4 2 5
2 2
1 4
1 3
4 1
4 2 4 3
5
1
7
8
6
4 0
3 1
2 8
2 9
3
4
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-47171 LCD BRACKET R 1
2 SL-6041092-TN SCREW 4
3 400-47170 LCD BRACKET F 1
4 SL-6041092-TN SCREW 4
5 SD-0640246-SP HINGE SCREW D=6.35 H=2.4 2
6 161-87007 WING BOLT 1
7 WP-0641601-SC WASHER 1
8 WS-0610002-KN SPRING WASHER 6.1X12.2X1.5 1
9
#03
401-36130 ASM_KEYBOARD_UNIT 1
10
#01
400-93771 ASM_KEYBOARD_UNIT 1
11
#02
401-14866 ASM_KEYBOARD_UNIT 1
12 400-47173 KB STAND (1)
13 E1349-721-000 KEYBOARD HINGE (3)
14 SM-0030401-SC SCREW M3 L=4 (12)
15 E1346-721-000 KEYBOARD MAGNET (2)
16
#02
400-03318 KEY BOARD SP ASM (1)
17
#03
401-32159 PS2 KEYBOARD SP ASM (1)
18 HX-0002400-0E WIRE HARNESS PARTS (1)
19
#03
401-23712 KB_BRACKET (1)
20
#01
400-93805 KB_BRACKET (1)
21
#02
401-11301 KB_BRACKET (1)
22 SL-4040891-SC SCREW M4 L=8 (2)
23 HX-0009600-0A GROMMET (0.5)
24
#02
400-01440 KB CLAMP (1)
25
#03
401-23713 KB CLAMP (1)
26 400-03281 MOUSE/KEYBOARD SELECTOR 1
27 HX-0035400-0A SPACER 4
28 HA-0055300-10 LENS GREEN 2
29 HA-0055300-2A BEZEL 2
30 SL-4030691-SC SCREW M3 L=6 4
31
#02
400-80173 OPTICAL SCROLL MOUSE 1
32 400-97767 KB STAND MTS 1
33 E5348-033-100 CABLE PROTECTOR 106MM 0.16
34 SL-4030691-SC SCREW M3 L=6 2
35 400-99500 KB STAY B 1
36 SM-3040652-TN SCREW M4 L=6 2
37
#03
401-34633 KB_STAY_CD 1
38
#01
400-93709 KB_STAY 1
39
#02
401-11302 KB_STAY 1
40
#02
401-23609 MOUSE CASE 1
41
#02
E2506-716-000 MOP MAGNET 1
42
#03
401-22812 15INCH LCD MONITOR 1
43
#02
400-48083 15INCH LCD MODULE 1
44
#01
SL-6040892-TN BOLT 2
45 SL-6041092-TN SCREW 3
46 400-52570 BASE RUBBER 1
- -

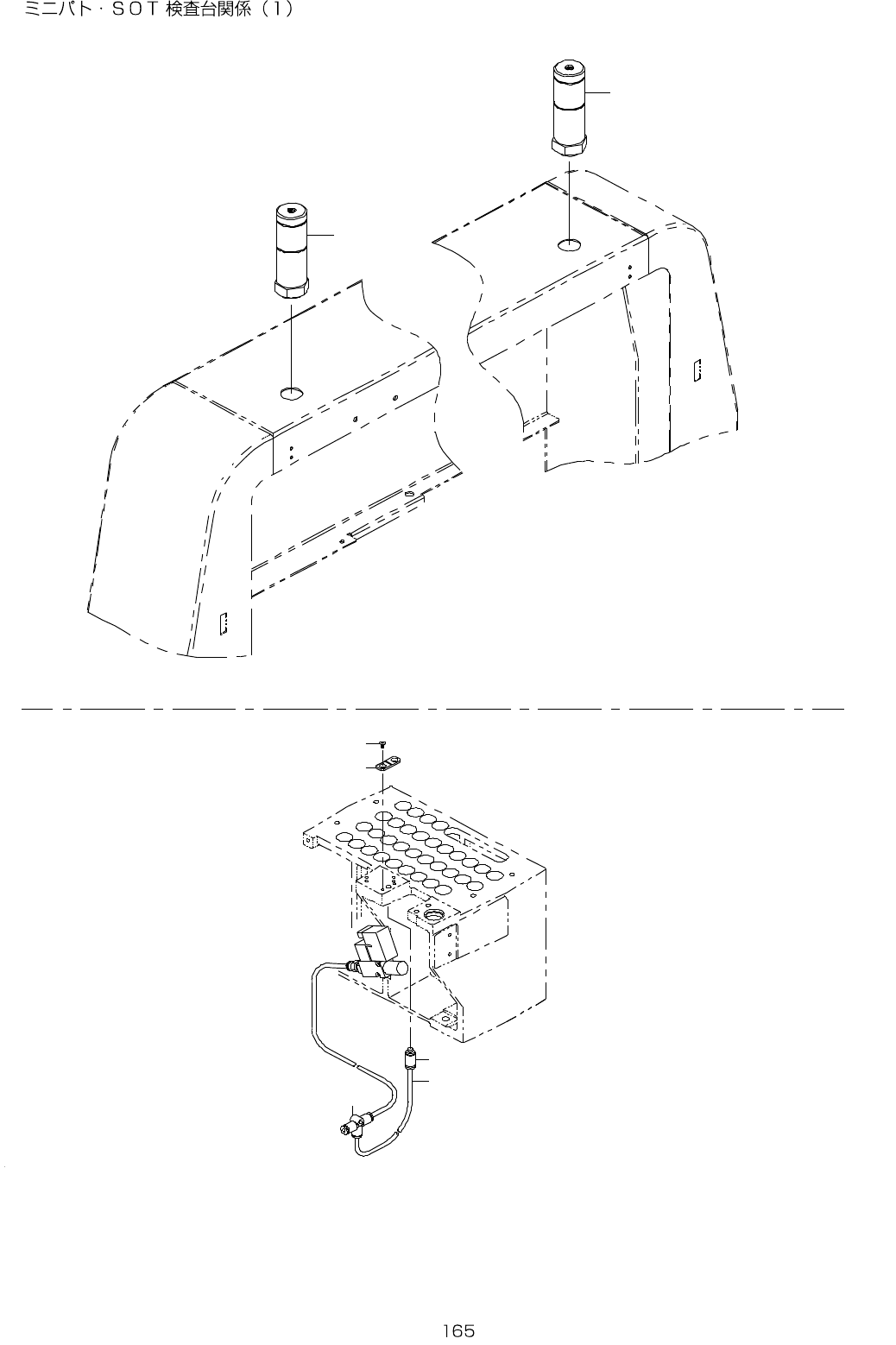

83.MINI PAT & SOT CHECK TABLE COMPONENTS(1)
3
6
2
4
5
1
1
