- - REF.NO N O TE PART N O D E S C R I P T I O N Qty 1 40 0-2720 9 F C S PWB ASM (F O R FCS) 1 2 40 0-1145 4 G LASS PWB(FOR MNVC) (1) 3 40 0-1822 3 J IG PWB BASE(FOR CHIP) (1) 4 40 0-2719 6 D RAWING PAPER (1) 5 40 0-34…
- -

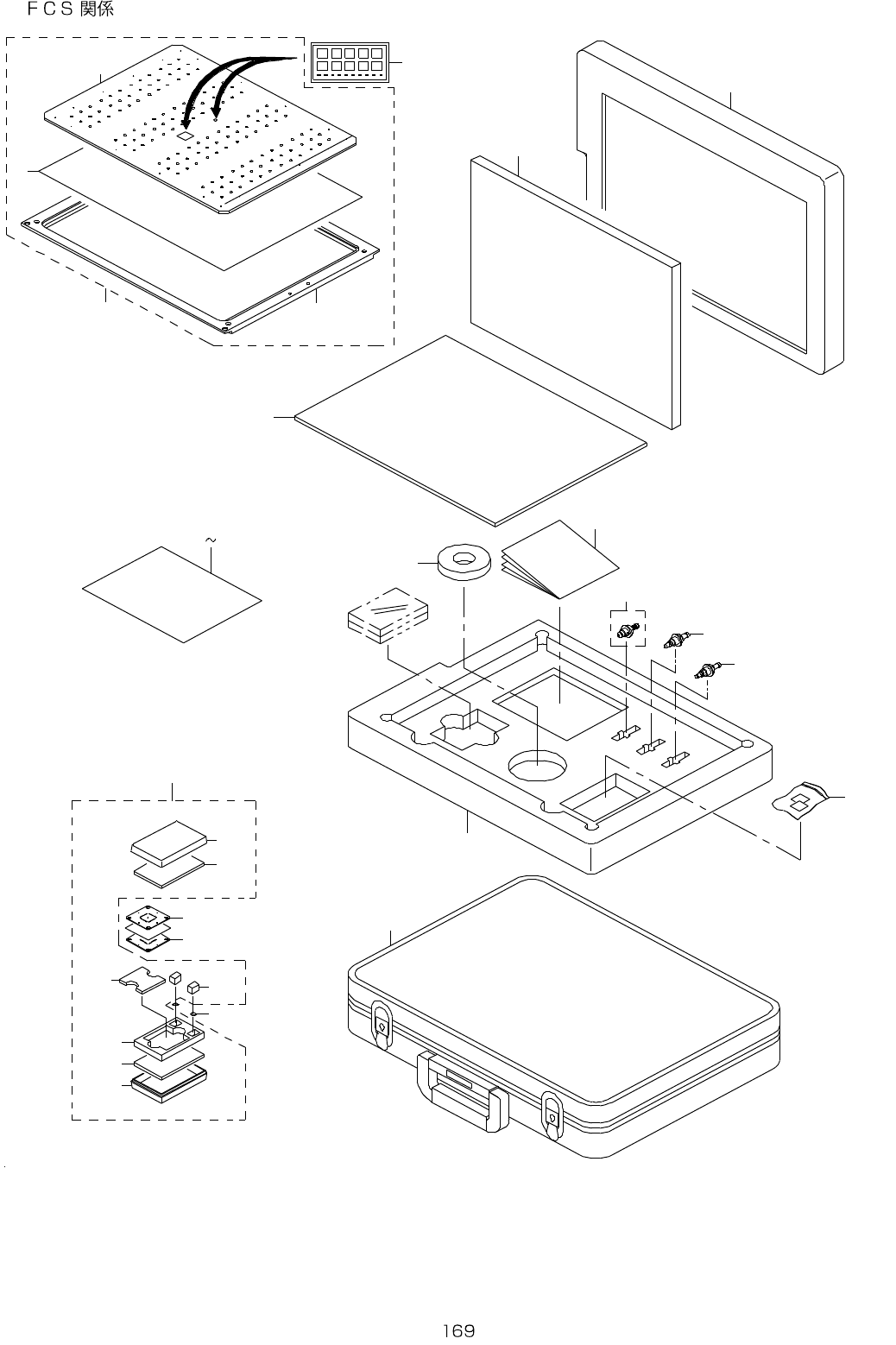

85.FCS COMPONENTS
3
1
1 9
1 9
1 7
6
1 5
1 8
2
4
7
8
9
1 0
2 6
1 4
1 6
1 4
1 5
2 0 2 2
1 3
2 3
2 5
1 2
2 4
1 1
5
2 7
- -

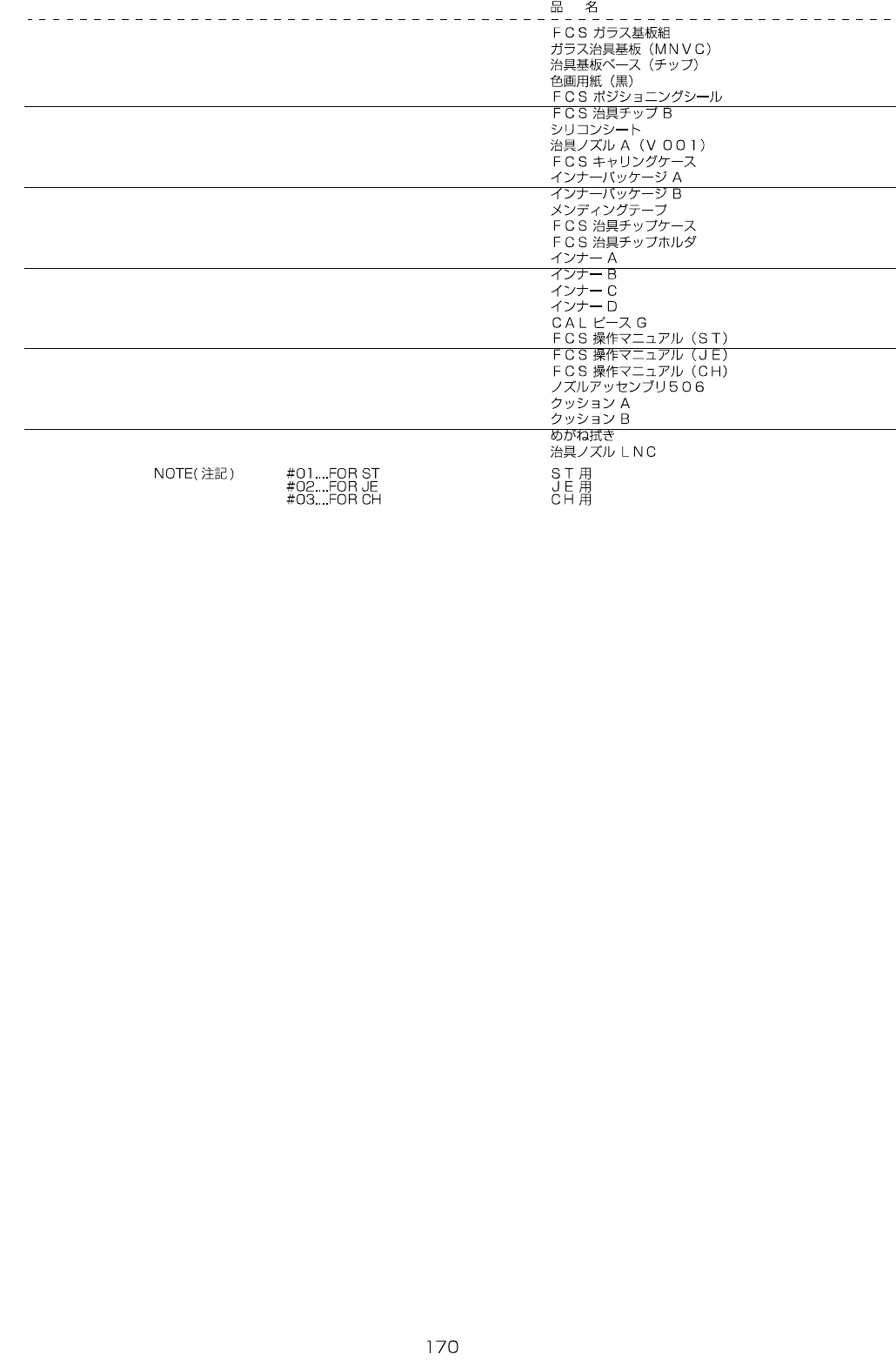

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-27209 FCS PWB ASM(FOR FCS) 1
2 400-11454 GLASS PWB(FOR MNVC) (1)
3 400-18223 JIG PWB BASE(FOR CHIP) (1)
4 400-27196 DRAWING PAPER (1)
5 400-34082 FCS POSITIONING SEAL 1
6 400-20304 FCS JIG CHIP B 2
7 400-27147 SILICON SHEET 96
8 E2101-998-000 JIG NOZZLE A (V001) 1
9 400-27210 FCS CARRYING CASE 1
10 400-66810 INNER PACKAGE A 1
11 400-66811 INNER PACKAGE B 1
12 400-27198 MENDING TAPE 1
13 400-27316 FCS JIF CHIP CASE 1
14 400-27312 FCS JIG CHIP HOLDER (1)
15 400-27313 INNER A (2)
16 400-27314 INNER B (1)
17 400-27315 INNER C (2)
18 400-27410 INNER D (1)
19 400-11453 CAL PIECE G 2
20
#01
400-30289 FCS OPERATION MANUAL(ST) 1
21
#02
400-30290 FCS OPERATION MANUAL(JE) 1
22
#03
400-56880 FCS OPERATION MANUAL(CH) 1
23 400-01344 NOZZLE ASSEMBLY 506 1
24 400-66812 CUSHION A 1
25 400-66813 CUSHION B 1
26 400-27235 TRAYSEE 1
27 400-46647 JIG NOZZLE LNC 1
- -

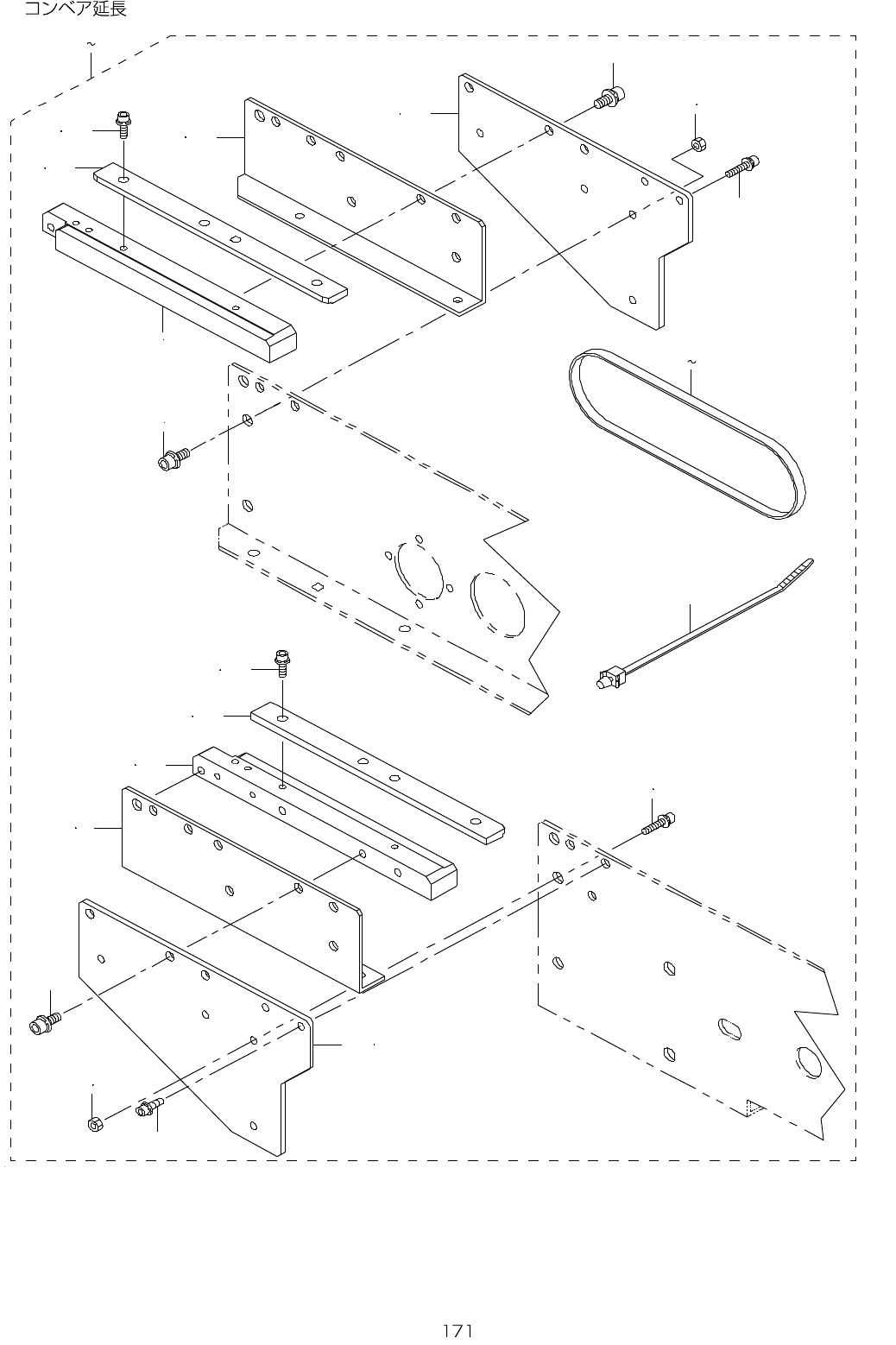

86.CONVEYOR EXTENTION COMPONENTS
2 6 2 7
5 6
1 3 1 6
2 8 2 9
7 8
9 1 0
1 1 1 2
1 1 1 2
1 7 1 8
1 7 1 8
1 9
2 8 2 9
1 9
2 0
2 0
2 1 2 2
2 3 2 4
2 1 2 2
2 3 2 4
2 5
1
4
