- - 86.CON VEYO R E XTENTIO N C O M PONE NT S 2 6 2 7 5 6 1 3 1 6 2 8 2 9 7 8 9 1 0 1 1 1 2 1 1 1 2 1 7 1 8 1 7 1 8 1 9 2 8 2 9 1 9 2 0 2 0 2 1 2 2 2 3 2 4 2 1 2 2 2 3 2 4 2 5 1 4
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-27209 FCS PWB ASM(FOR FCS) 1
2 400-11454 GLASS PWB(FOR MNVC) (1)
3 400-18223 JIG PWB BASE(FOR CHIP) (1)
4 400-27196 DRAWING PAPER (1)
5 400-34082 FCS POSITIONING SEAL 1
6 400-20304 FCS JIG CHIP B 2
7 400-27147 SILICON SHEET 96
8 E2101-998-000 JIG NOZZLE A (V001) 1
9 400-27210 FCS CARRYING CASE 1
10 400-66810 INNER PACKAGE A 1
11 400-66811 INNER PACKAGE B 1
12 400-27198 MENDING TAPE 1
13 400-27316 FCS JIF CHIP CASE 1
14 400-27312 FCS JIG CHIP HOLDER (1)
15 400-27313 INNER A (2)
16 400-27314 INNER B (1)
17 400-27315 INNER C (2)
18 400-27410 INNER D (1)
19 400-11453 CAL PIECE G 2
20
#01
400-30289 FCS OPERATION MANUAL(ST) 1
21
#02
400-30290 FCS OPERATION MANUAL(JE) 1
22
#03
400-56880 FCS OPERATION MANUAL(CH) 1
23 400-01344 NOZZLE ASSEMBLY 506 1
24 400-66812 CUSHION A 1
25 400-66813 CUSHION B 1
26 400-27235 TRAYSEE 1
27 400-46647 JIG NOZZLE LNC 1
- -
86.CONVEYOR EXTENTION COMPONENTS
2 6 2 7
5 6
1 3 1 6
2 8 2 9
7 8
9 1 0
1 1 1 2
1 1 1 2
1 7 1 8
1 7 1 8
1 9
2 8 2 9
1 9
2 0
2 0
2 1 2 2
2 3 2 4
2 1 2 2
2 3 2 4
2 5
1
4
- -

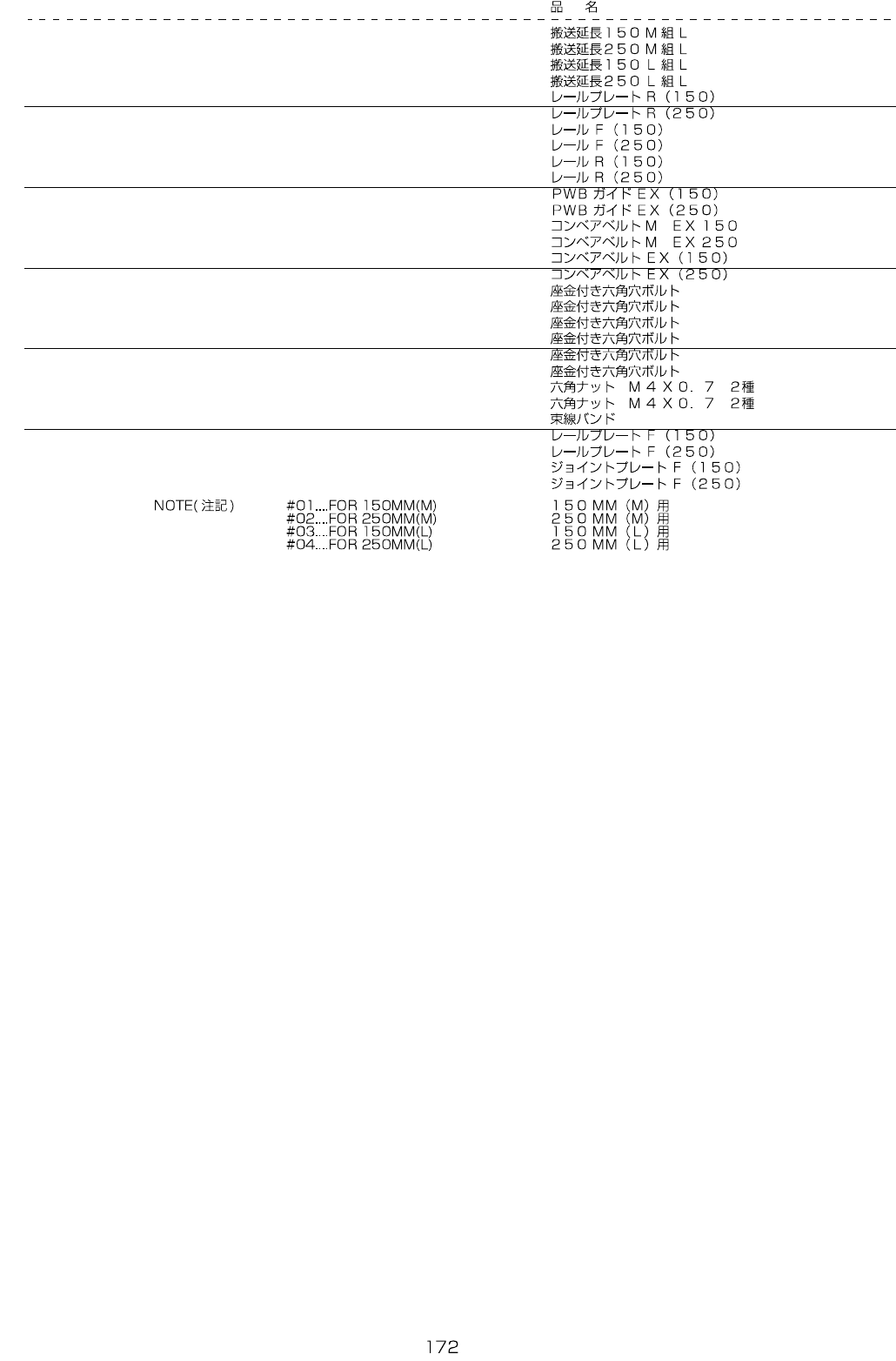

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
401-14918 CONVEYOR EXTENSION 150 M ASM L 1
2
#02
401-14919 CONVEYOR EXTENSION 250 M ASM L 1
3
#03
401-14920 CONVEYOR EXTENSION 150 L ASM L 1
4
#04
401-14921 CONVEYOR EXTENSION 250 L ASM L 1
5
#01
400-11054 RAIL PLATE R(150) (1)
6
#02
400-11061 RAIL PLATE R(250) (1)
7
#01
400-11055 RAIL F(150) (1)
8
#02
400-11062 RAIL F(250) (1)
9
#01
400-11056 RAIL R(150) (1)
10
#02
400-11063 RAIL R(250) (1)
11
#01
400-11057 PWB GUIDE EX(150) (2)
12
#02
400-11064 PWB GUIDE EX(250) (2)
13
#01
401-14731 CONVEYOR BELT M EX150 (2)
14
#02
401-14732 CONVEYOR BELT M EX250 (2)
15
#03
400-11058 CONVEYOR BELT EX(150) (2)
16
#04
400-11065 CONVEYOR BELT EX(250) (2)
17
#01
SL-6031092-TN SCREW (6)
18
#02
SL-6031092-TN SCREW (8)
19 SL-6031092-TN SCREW (4)
20 SL-6041292-TN SCREW (6)
21
#01
SL-6041092-TN SCREW (8)
22
#02
SL-6041092-TN SCREW (12)
23
#01
NM-6040002-SN NUT M4 (8)
24
#02
NM-6040002-SN NUT M4 (12)
25 HX-0044000-00 CABLE BAND (5)
26
#01
400-11053 RAIL PLATE F(150) (1)
27
#02
400-11060 RAIL PLATE F(250) (1)
28
#01
400-11072 JOINT PLATE F(150) (2)
29
#02
400-11066 JOINT PLATE F(250) (2)
