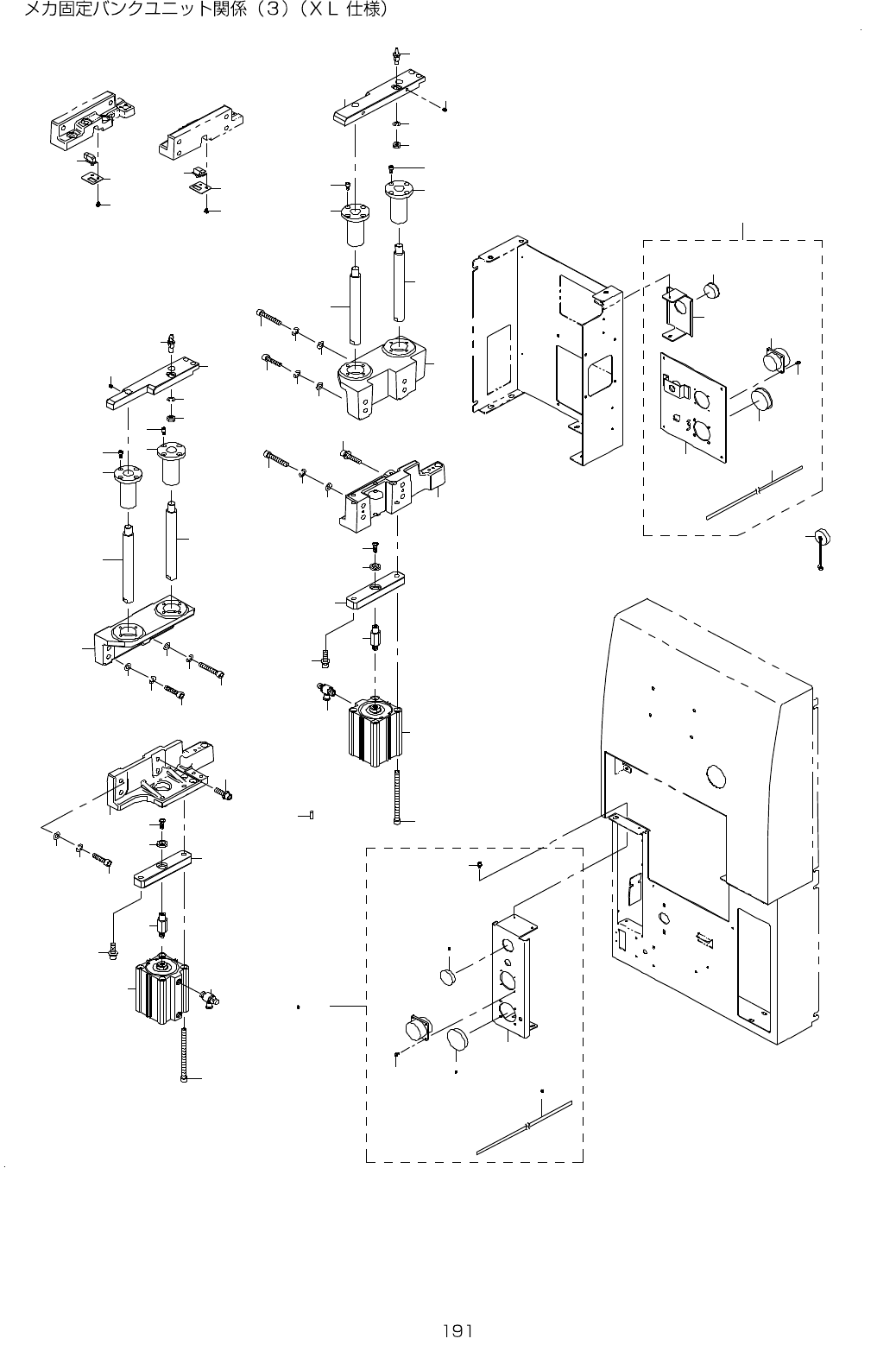

96.M FIXED BANK UNIT COMPONENTS(3)(TYPE XL)
5 0
5 2
5 3 5 4
5 5 5 6
4 8 4 9
5 7 5 8
6 0
6 1
6 4
6 3
6 2
6 6
5 9
6 7
6 5
5 1
4 4
2 5
2 5
1 3
1 2
3 4
3 4
1 8
1 8
2
2
2
2
2 3
9
9
3 9
4 0
4 1
4 2
4 0
4 1
3 8
1
3 5
3 5
1
1
3 5
1
3 5
4 7
4 7
4 6
4 6
4 3
4 2
3 6
3 7
2 6
3 3
3 2
3 1
3 0
2 7
2 2
2 1
2 0
2 1
2 0
1 9
1 6
1 5
1 4
2 9
2 8
1 0
5
4
5
4
3
1 7
1 1
7
6
8
4 5
2 4
- -

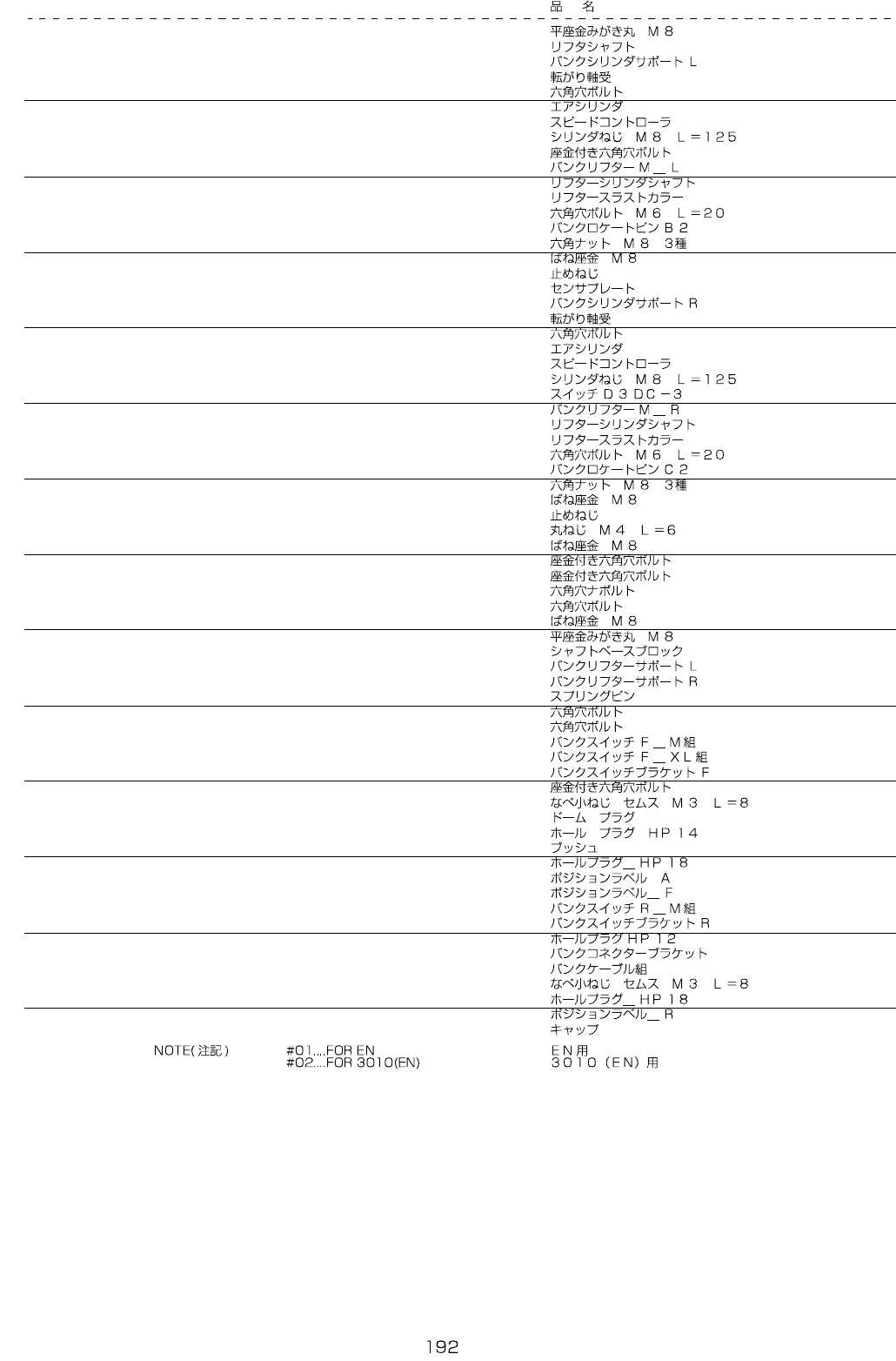

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 WP-0841601-SC WASHER 8.4X17.4X1.6 8
2 400-93838 LIFTER_SHAFT 4
3 400-71360 BANK_SYL_SPT_L 1
4 SB-8200003-00 BEARING 2
5 SM-6051002-TN BOLT 8
6 PA-6307503-00 AIR CYLINDER 1
7 PC-0152030-00 SPEED CONTROLLER 2
8 400-93854 CYLINDER_SCREW_M8_L=125 4
9 SL-6083092-TN SCREW 4
10 400-93984 BANK_LIFTER_M_L 1
11 400-00589 LIFTER CYLINDER SHAFT 1
12 E2622-729-000 LIFTER THRUST COLLAR 1
13 SM-1062052-TP SCREW M6 L=20 1
14 400-93839 BANK_LOCATE_PIN_B2 1
15 NM-6080003-SC NUT M8 1
16 WS-0820002-KN SPRING WASHER M8 1
17 SM-8060552-TP SCREW M6 L=5 2
18 400-93849 SENSOR_PLATE 2
19 400-71362 BANK_SYL_SPT_R 1
20 SB-8200003-00 BEARING 2
21 SM-6051002-TN BOLT 8
22 PA-6307503-00 AIR CYLINDER 1
23 PC-0152030-00 SPEED CONTROLLER 2
24 400-93854 CYLINDER_SCREW_M8_L=125 4
25 400-92511 SWITCH D3DC-3 2
26 400-93985 BANK_LIFTER_M_R 1
27 400-00589 LIFTER CYLINDER SHAFT 1
28 E2622-729-000 LIFTER THRUST COLLAR 1
29 SM-1062052-TP SCREW M6 L=20 1
30 400-93840 BANK_LOCATE_PIN_C2 1
31 NM-6080003-SC NUT M8 1
32 WS-0820002-KN SPRING WASHER M8 1
33 SM-8060552-TP SCREW M6 L=5 2
34 SM-3040652-TN SCREW M4 L=6 4
35 WS-0820002-KN SPRING WASHER M8 8
36 SL-6083092-TN SCREW 2
37 SL-6084092-TN BOLT 2
38 SM-6083502-TN SCREW 2
39 SM-6085002-TN BOLT 2
40 WS-0820002-KN SPRING WASHER M8 4
41 WP-0841601-SC WASHER 8.4X17.4X1.6 4
42 400-93835 SHAFT_BASE_BLOCK 2
43 400-71356 BANK_LIFTER_SPT_L 1
44 400-71358 BANK_LIFTER_SPT_R 1
45 PS-0500142-KP SPRING PIN 4
46 SM-6083502-TN SCREW 4
47 SM-6085002-TN BOLT 4
48
#02
400-93753 ASM_BANK_SW_F_M 1
49 401-19697 ASM_BANK_SW_F_XL 1
50
#02
400-93649 BANK_SW_BR_F (1)
51
#02
SL-6040892-TN BOLT (4)
52 SL-4030891-SC SCREW M3X8 (4)
53
#02
HX-0032600-0M GROMMET (1)
54 L126E-821-000 HOLE PLUGS HP14 (1)
55
#02
HX-0032600-00 GROMMET (1)
56 400-93799 HOLE_PLUGS_HP18 (1)
57
#02
E2611-721-000 POSITION LABEL A (1)
58 401-19290 POSITION_LABEL_F 1
59 400-93759 ASM_BANK_SW_R_M (1)
60 400-93651 BANK_SW_BR_R (1)
61 400-85067 HOLE_PLUGS_HP12 (1)
62 400-93655 BANK_CONNECTOR_BR (1)
63 400-45436 BANK CABLE ASM (1)
64 SL-4030891-SC SCREW M3X8 (4)
65 400-93799 HOLE_PLUGS_HP18 (1)
66 401-19291 POSITION_LABEL_R (1)
67
#01
HK-0429901-9A CAP (1)
- -

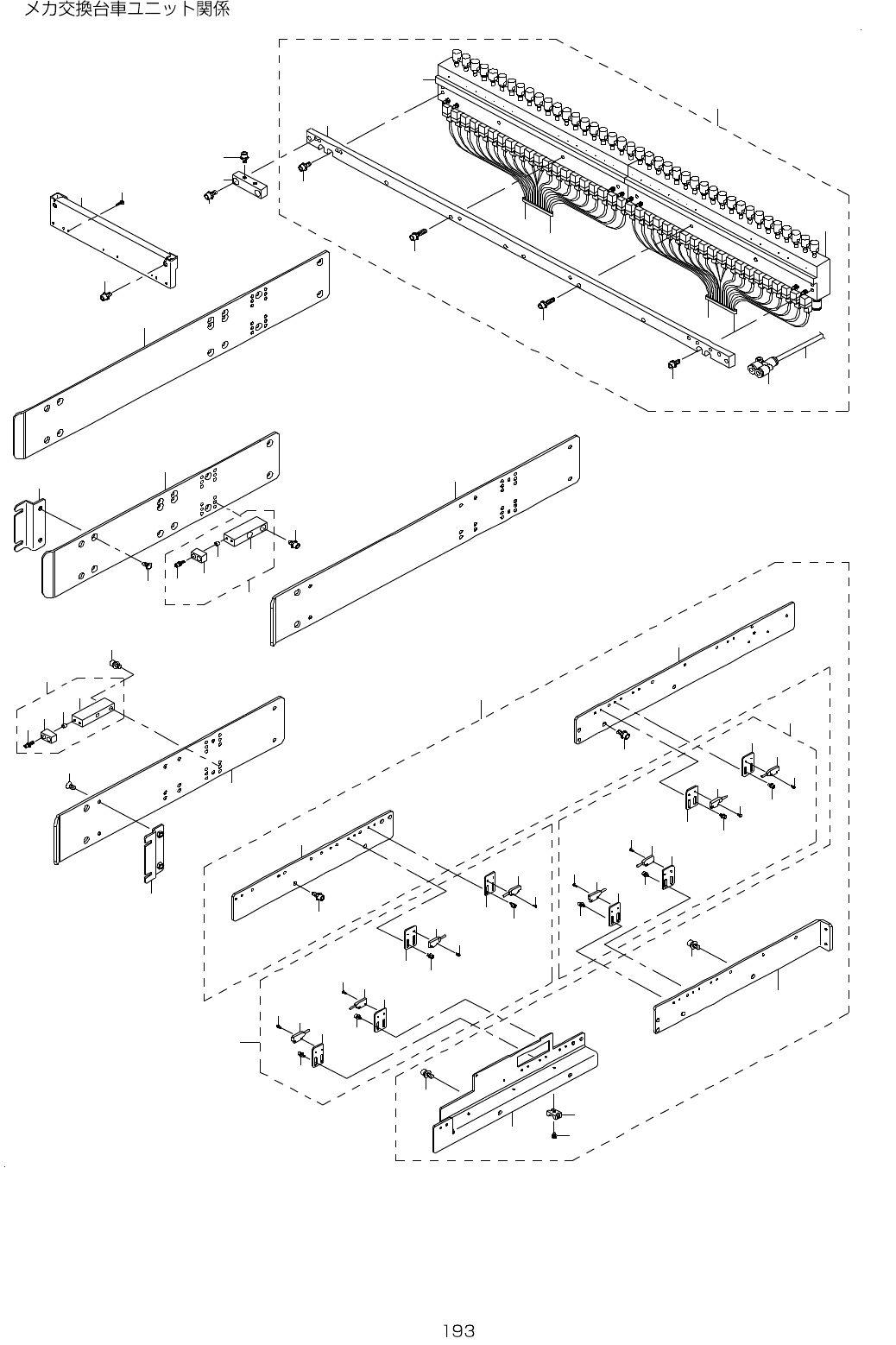

97.M CHANGER TRUCK UNIT COMPONENTS
1 5
2 5
1 0
1 7
2 1
2 1
2 2
2 2
1 8
1 9
2 0
1
2
2
1 4
1 2
9
1 3
1 1
3
7
5
6
4
8
4 2
3 4
2 6
3 8
3 3
2 8
3 2
2 9
4 6
4 3
4 5
4 7
4 6
4 4
4 5
4 7
4 7
4 7
4 5
4 8
4 5
4 6
4 9
4 6
3 8
3 5
3 9
3 9
3 7
3 7
3 9
3 8
3 6
3 7
3 9
4 0
3 7
4 1
3 8
3 1
3 0
2 9
2 9
2 9
2 7
1 6
1
9
3
8
4
5
6
7
2 3
2 4
