- - 97.M CHAN G ER T R U C K UNIT COM PO N EN TS 1 5 2 5 1 0 1 7 2 1 2 1 2 2 2 2 1 8 1 9 2 0 1 2 2 1 4 1 2 9 1 3 1 1 3 7 5 6 4 8 4 2 3 4 2 6 3 8 3 3 2 8 3 2 2 9 4 6 4 3 4 5 4 7 4 6 4 4 4 5 4 7 4 7 4 7 4 5 4 8 4 5 4 6 4…
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 WP-0841601-SC WASHER 8.4X17.4X1.6 8
2 400-93838 LIFTER_SHAFT 4
3 400-71360 BANK_SYL_SPT_L 1
4 SB-8200003-00 BEARING 2
5 SM-6051002-TN BOLT 8
6 PA-6307503-00 AIR CYLINDER 1
7 PC-0152030-00 SPEED CONTROLLER 2
8 400-93854 CYLINDER_SCREW_M8_L=125 4
9 SL-6083092-TN SCREW 4
10 400-93984 BANK_LIFTER_M_L 1
11 400-00589 LIFTER CYLINDER SHAFT 1
12 E2622-729-000 LIFTER THRUST COLLAR 1
13 SM-1062052-TP SCREW M6 L=20 1
14 400-93839 BANK_LOCATE_PIN_B2 1
15 NM-6080003-SC NUT M8 1
16 WS-0820002-KN SPRING WASHER M8 1
17 SM-8060552-TP SCREW M6 L=5 2
18 400-93849 SENSOR_PLATE 2
19 400-71362 BANK_SYL_SPT_R 1
20 SB-8200003-00 BEARING 2
21 SM-6051002-TN BOLT 8
22 PA-6307503-00 AIR CYLINDER 1
23 PC-0152030-00 SPEED CONTROLLER 2
24 400-93854 CYLINDER_SCREW_M8_L=125 4
25 400-92511 SWITCH D3DC-3 2
26 400-93985 BANK_LIFTER_M_R 1
27 400-00589 LIFTER CYLINDER SHAFT 1
28 E2622-729-000 LIFTER THRUST COLLAR 1
29 SM-1062052-TP SCREW M6 L=20 1
30 400-93840 BANK_LOCATE_PIN_C2 1
31 NM-6080003-SC NUT M8 1
32 WS-0820002-KN SPRING WASHER M8 1
33 SM-8060552-TP SCREW M6 L=5 2
34 SM-3040652-TN SCREW M4 L=6 4
35 WS-0820002-KN SPRING WASHER M8 8
36 SL-6083092-TN SCREW 2
37 SL-6084092-TN BOLT 2
38 SM-6083502-TN SCREW 2
39 SM-6085002-TN BOLT 2
40 WS-0820002-KN SPRING WASHER M8 4
41 WP-0841601-SC WASHER 8.4X17.4X1.6 4
42 400-93835 SHAFT_BASE_BLOCK 2
43 400-71356 BANK_LIFTER_SPT_L 1
44 400-71358 BANK_LIFTER_SPT_R 1
45 PS-0500142-KP SPRING PIN 4
46 SM-6083502-TN SCREW 4
47 SM-6085002-TN BOLT 4
48
#02
400-93753 ASM_BANK_SW_F_M 1
49 401-19697 ASM_BANK_SW_F_XL 1
50
#02
400-93649 BANK_SW_BR_F (1)
51
#02
SL-6040892-TN BOLT (4)
52 SL-4030891-SC SCREW M3X8 (4)
53
#02
HX-0032600-0M GROMMET (1)
54 L126E-821-000 HOLE PLUGS HP14 (1)
55
#02
HX-0032600-00 GROMMET (1)
56 400-93799 HOLE_PLUGS_HP18 (1)
57
#02
E2611-721-000 POSITION LABEL A (1)
58 401-19290 POSITION_LABEL_F 1
59 400-93759 ASM_BANK_SW_R_M (1)
60 400-93651 BANK_SW_BR_R (1)
61 400-85067 HOLE_PLUGS_HP12 (1)
62 400-93655 BANK_CONNECTOR_BR (1)
63 400-45436 BANK CABLE ASM (1)
64 SL-4030891-SC SCREW M3X8 (4)
65 400-93799 HOLE_PLUGS_HP18 (1)
66 401-19291 POSITION_LABEL_R (1)
67
#01
HK-0429901-9A CAP (1)
- -
97.M CHANGER TRUCK UNIT COMPONENTS
1 5
2 5
1 0
1 7
2 1
2 1
2 2
2 2
1 8
1 9
2 0
1
2
2
1 4
1 2
9
1 3
1 1
3
7
5
6
4
8
4 2
3 4
2 6
3 8
3 3
2 8
3 2
2 9
4 6
4 3
4 5
4 7
4 6
4 4
4 5
4 7
4 7
4 7
4 5
4 8
4 5
4 6
4 9
4 6
3 8
3 5
3 9
3 9
3 7
3 7
3 9
3 8
3 6
3 7
3 9
4 0
3 7
4 1
3 8
3 1
3 0
2 9
2 9
2 9
2 7
1 6
1
9
3
8
4
5
6
7
2 3
2 4
- -

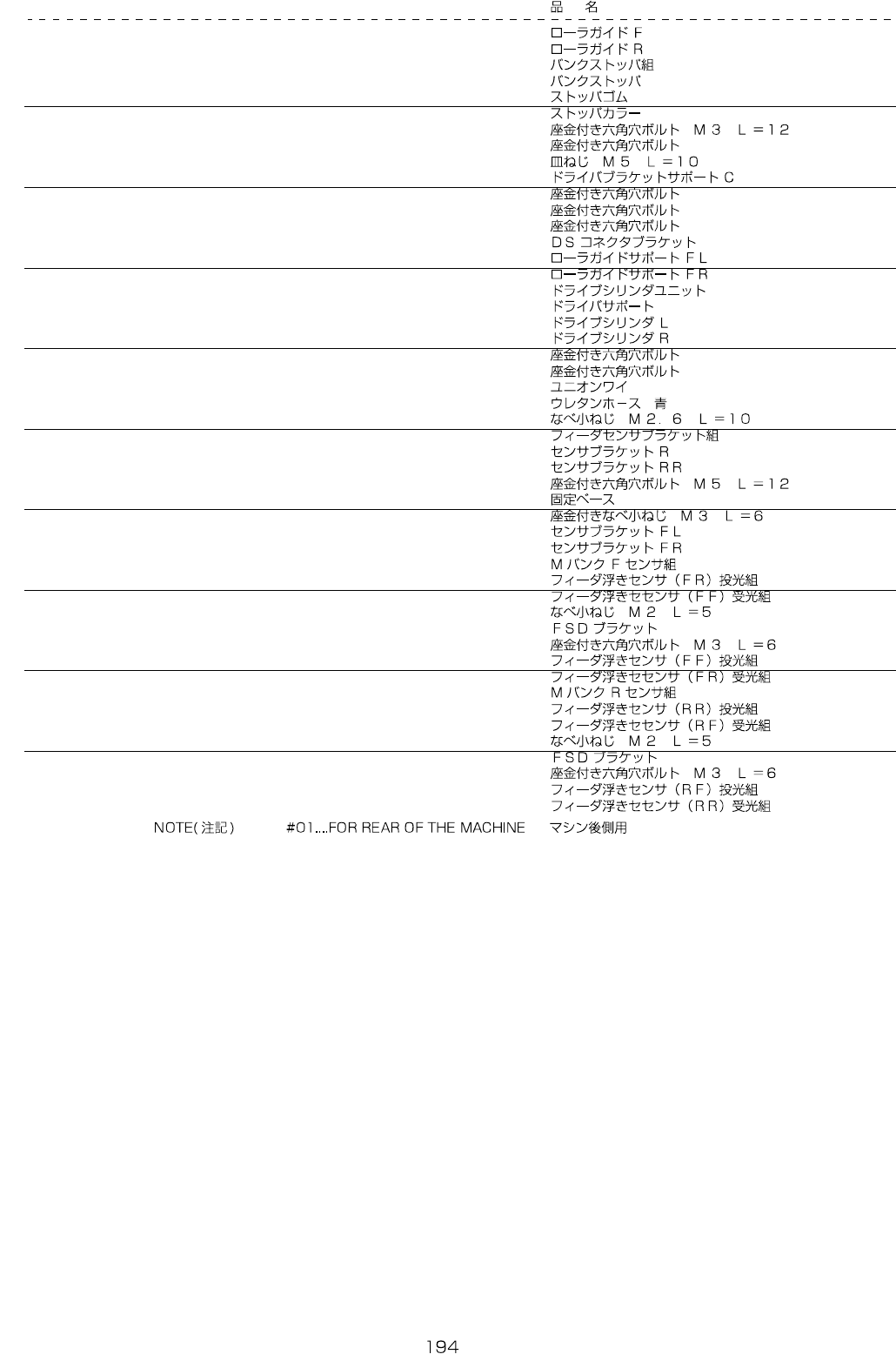

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-93850 ROLLER GUIDE F 2
2
#01
400-93851 ROLLER GUIDE R 2
3 E2777-721-0A0 BANK STOPPER ASM. 2
4 E2777-721-000 BANK STOPPER (1)
5 E2778-721-000 STOPPER RUBBER (1)
6 E2779-721-000 STOPPER COLLAR (2)
7 SL-6031292-TN SCREW M3 L=12 (2)
8 SL-6051042-TN SCREW 4
9 SM-1051052-TN PLATE SCREW M5 L=10 12
10 400-00598 DRIVER BRACKET SUPPORTC 2
11 SL-6051042-TN SCREW 4
12 SL-6051242-TN SCREW 4
13 SL-6051092-TN BOLT 2
14 400-26804 DS CONNECTOR BRACKET 1
15 400-93852 ROLLER GUIDE SUPPORT FL 1
16 400-93853 ROLLER GUIDE SUPPORT FR 1
17 400-93831 DRIVE CYLINDER UNIT 1
18 400-93843 DRIVER SUPPORT (1)
19 400-00575 DRIVE CYLINDER L (1)
20 400-00576 DRIVE CYLINDER R (1)
21 SL-6051292-TN BOLT (2)
22 SL-6052592-TN BOLT (6)
23 PJ-3080600-03 Y UNION (1)
24 BT-0600400-EC TUBE HOSE, BLUE (0.8)
25 SM-4861001-SC SCREW M2.6 L=10 4
26 401-14155 FEEDER SENS BR ASM 1
27 401-10193 SENSOR BR R (1)
28 401-14729 SENSOR BR RR (1)
29 SL-6051292-TN SCREW M5 L=12 (8)
30 HX-0029400-00 FIXED BASE (3)
31 SL-4030691-SC SCREW M3 L=6 (3)
32 401-14734 SENSOR BR FL (1)
33 401-10192 SENSOR BR FR (1)
34 401-14156 M BANK F SENSOR ASM 1
35 401-10002 FD-FLOAT(FR)EMISSIN SENS ASM (1)
36 401-10001 FD-FLOAT(FF)RECEIVE_SENS_ASM (1)
37 SM-4020501-SC SCREW M2 L=5 (8)
38 401-10190 FSD BR (4)
39 SL-6030692-TN SCREW M3 L=6 (8)
40 401-10000 FD-FLOAT(FF)EMISSIN SENS ASM (1)
41 401-10003 FD-FLOAT(FR)RECEIVE_SENS_ASM (1)
42 401-14157 M BANK R SENSOR ASM 1
43 401-10006 FD-FLOAT(RR)EMISSIN SENS ASM (1)
44 401-10005 FD-FLOAT(RF)RECEIVE_SENS_ASM (1)
45 SM-4020501-SC SCREW M2 L=5 (8)
46 401-10190 FSD BR (4)
47 SL-6030692-TN SCREW M3 L=6 (8)
48 401-10004 FD-FLOAT(RF)EMISSIN SENS ASM (1)
49 401-10007 FD-FLOAT(RR)RECEIVE_SENS_ASM (1)
