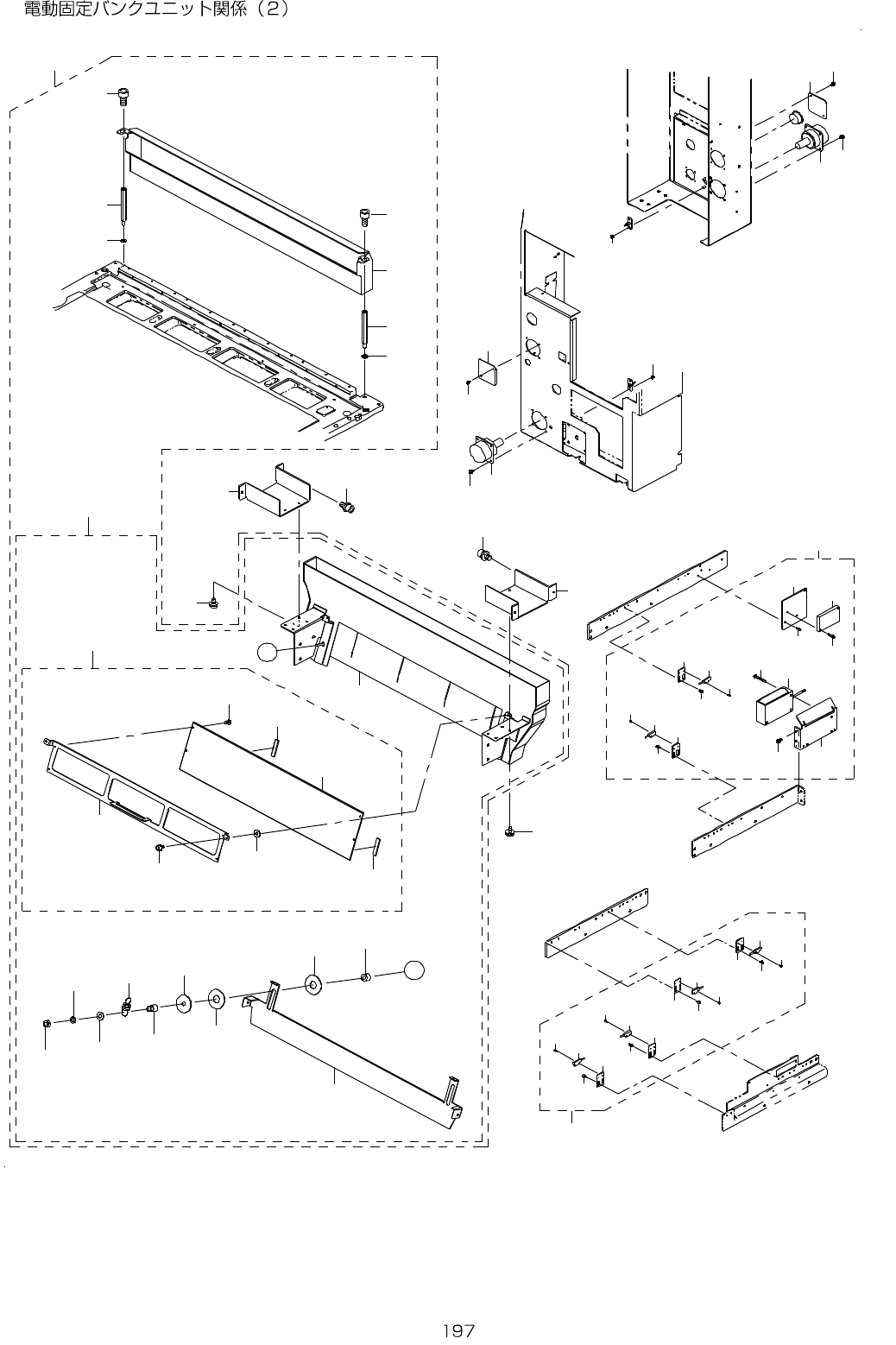

99.E FIXED BANK UNIT COMPONENTS(2)
1 0
2 8
3 1
2 4
2 5
2 6
2 7
2 9
3 0
1 8
1 5
2 2
2 0
2 1
2 3
2 3
2 1
2 2
1 9
1 5
1 2
1 6
1 6
1 4
1 4
1 6
1 5
1 3
1 4
1 6
1 7
1 4
1 1
1 5
3
4
1
3 2
9
8
7
6
2
5
3 6
3 7
5 6
3 3
5 5
5 7
5 7
5 6
5 8
5 8
3 8
3 5
3 4
3 5
3 6
3 7
4 7
5 4
4 4
4 1
3 9
A
A
4 8
4 9
4 6
4 9
5 1
5 0
5 2
5 3
4 3
4 2
4 5
4 0
3 9
- -

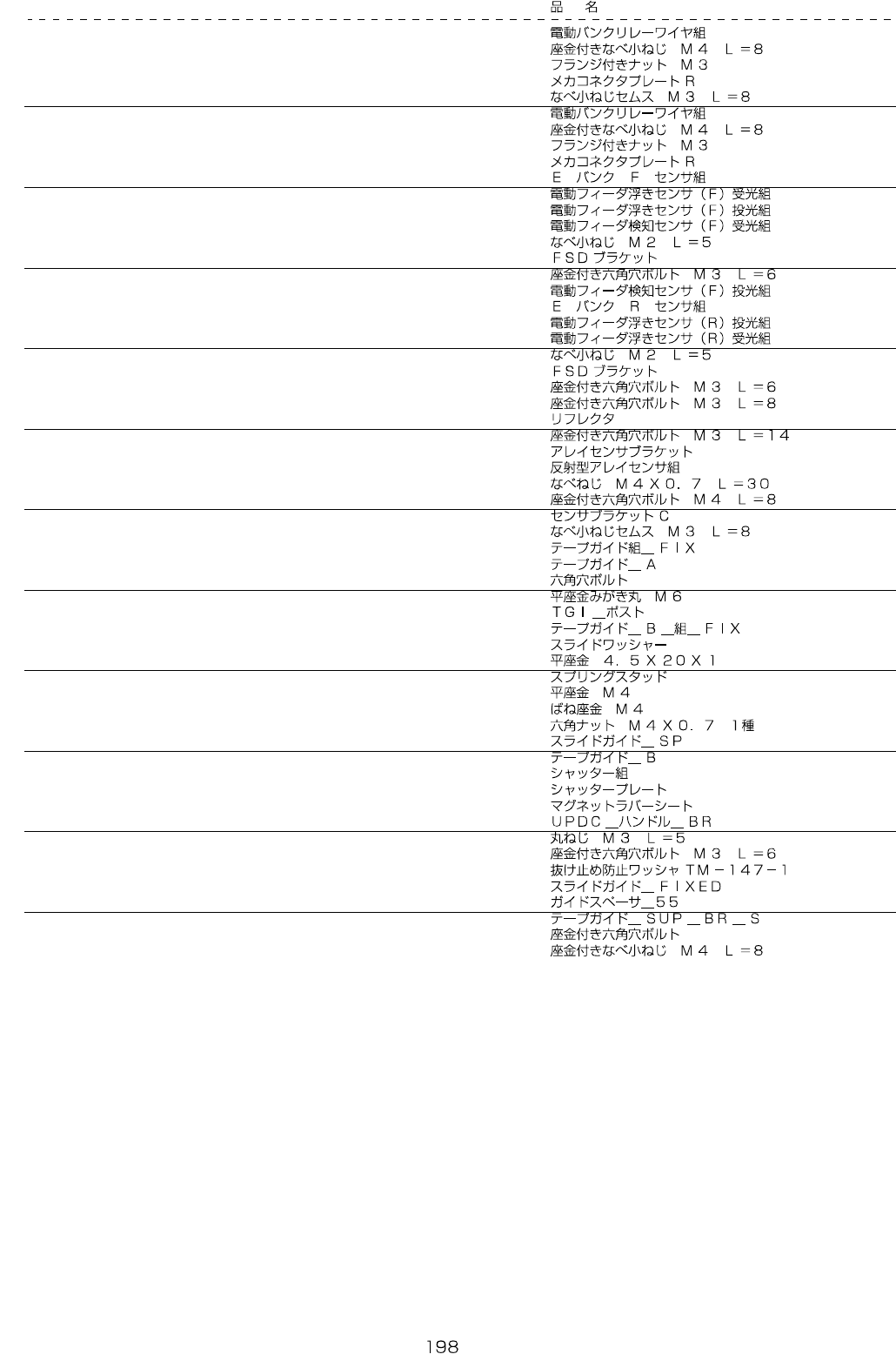

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-11734 ELEC BANK RELAY WIRE ASM 1
2 SL-4040891-SC SCREW M4 L=8 4
3 NM-3034000-SF FLANGE NUT M3 2
4 400-93801 M CONNECTOR PLATE R 1
5 SL-4030891-SC SCREW M3X8 2
6 401-11734 ELEC BANK RELAY WIRE ASM 1
7 SL-4040891-SC SCREW M4 L=8 4
8 NM-3034000-SF FLANGE NUT M3 2
9 400-93801 M CONNECTOR PLATE R 1
10 401-14158 E BANK F SENSOR ASM 1
11 401-10009 E-FD-FLOAT(F)RECEIVE SENS ASM (1)
12 401-10008 E-FD-FLOAT(F)EMISSIN SENS ASM (1)
13 401-10013 E-FD-DETECT(F)RECEIVE SENS ASM (1)
14 SM-4020501-SC SCREW M2 L=5 (8)
15 401-10190 FSD BR (4)
16 SL-6030692-TN SCREW M3 L=6 (8)
17 401-10012 E-FD-DETECT(F)EMISSIN SENS ASM (1)
18 401-14159 E BANK R SENSOR ASM 1
19 401-10010 E-FD-FLOAT(R)EMISSIN SENS ASM (1)
20 401-10011 E-FD-FLOAT(R)RECEIVE SENS ASM (1)
21 SM-4020501-SC SCREW M2 L=5 (4)
22 401-10190 FSD BR (2)
23 SL-6030692-TN SCREW M3 L=6 (4)
24 SL-6030892-TN SCREW M3 L=8 (2)
25 400-93804 REFLEKTOR (1)
26 SL-6031492-TN SCREW M3 L=14 (2)
27 401-14730 ARRAY SENSOR BR (1)
28 401-10014 REFLEX ARRAY SENSOR ASM (1)
29 SM-4043001-SF SCREW M4X30 (2)
30 SL-6040892-TN SCREW M4 L=8 (2)
31 400-93992 S BR C (1)
32 SL-4030891-SC SCREW M3X8 2
33 401-26511 TAPE_GUIDE_ASM_FIX 1
34 401-38828 TAPE_GUIDE_A (1)
35 SM-6061202-TN BOLT (2)
36 WP-0641601-SC WASHER (4)
37 401-11174 TGI_POST (2)
38 401-26050 TAPE_GUIDE_B_ASM_FIX (1)
39 400-98072 SLIDE_WASHER (4)
40 WP-0451016-SP WASHER 4.5X20X1 (2)
41 400-56921 SPRING STUD (2)
42 WP-0430801-SC WASHER M4 (2)
43 WS-0410002-KN SPRING WASHER M4 (2)
44 NM-6040001-SC NUT M4X0.7 TYPE1 (2)
45 401-11184 SLIDE_GUIDE_SP (2)
46 401-38836 TAPE_GUIDE_B (1)
47 401-26047 SHUTER_ASM (1)
48 401-38829 SHUTTER_PLATE (1)
49 401-38835 MAGNET_RUBBER_SHEET (2)
50 401-38837 UPDC_HANDLE_BR (1)
51 SM-3030552-TN SCREW M3 L=5 (4)
52 SL-6030692-TN SCREW M3 L=6 (2)
53 401-38507 WSHER_TM-147-1 (2)
54 401-38845 SLIDE_GUIDE_FIXED (1)
55 401-50864 GUIDE_SPACER_55 (2)
56 401-11178 TAPE_GUIDE_SUP_BR_S 2
57 SL-6051092-TN BOLT 4
58 SL-4040891-SC SCREW M4 L=8 4
- -
100.E FIXED BANK UNIT COMPONENTS(3)
