- - 7. BAS E FR A M E ELECTRIC AP P ARATUS COMPONENTS(3) 3 0 1 8 1 9 2 4 2 5 3 2 3 3 1 7 1 6 3 1 2 9 2 9 2 6 2 7 2 8 1 6 1 7 1 6 1 1 1 5 1 4 1 0 1 1 1 3 2 3 2 3 2 0 2 1 2 2 2 3 2 3 2 0 2 1 2 2 1 7 1 5 1 4 1 3 1 1 1 0 1…
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#06
401-14531 POWER UNIT ASM 1
2 #03 401-14532 POWER UNIT ASM(EN) 1
3
#04
401-33955 POWER SUPPLY UNIT ASM 1
4
#05
401-33958 POWER SUPPLY UNIT (EN) ASM 1
5
#07
401-08570 PSU BRACKET B (1)
6
#08
401-34634 PSU_BRACKET (1)
7 401-14016 RELAY PLATE (1)
8 HX-0029400-00 FIXED BASE (17)
9 SM-4040601-SC SCREW M4X0.7 L=6 (17)
10 HA-0052400-00 CIRCUIT PROTECTOR (1)
11 HA-0052400-0B CIRCUIT PROTECTOR (1)
12 HA-0052400-0D CIRCUIT PROTECTOR (2)
13
#07
HA-0052400-0E CIRCUIT PROTECTOR (1)
14
#08
HA-0052400-0E CIRCUIT PROTECTOR (2)
15
#07
HA-0054200-0C CIRCUIT PROTECTOR (2)
16
#08
HA-0054200-0C CIRCUIT PROTECTOR (1)
17 HA-0064600-00 CIRCUIT PROTECTOR (1)
18
#07
HA-0064600-0A CIRCUIT PROTECTOR (1)
19
#08
HA-0064600-0B CIRCUIT PROTECTOR (1)
20 HB-0015400-00 RELAY (3)
21 HB-0015400-10 RELAY (3)
22 #01 HB-0012800-0C RELAY (4)
23
#01
HB-0005800-10 RELAY (4)
24
#02
HB-0012800-0C RELAY (1)
25
#02
HB-0005800-10 RELAY (1)
26
#01
HB-0011000-00 RELAY (1)
27 #01 HB-0011000-10 RELAY (1)
28 HK-0696500-10 BLOCK TERMINAL (12)
29 HK-0693500-10 BLOCK TERMINAL (3)
30 HK-0696900-00 BLOCK TERMINAL (1)
31 HK-0691900-0B BLOCK TERMINAL (5)
32 HK-0696900-0A BLOCK TERMINAL (1)
33 HK-0696900-0B BLOCK TERMINAL (1)
34 HK-0696900-30 TERMINAL (4)
35 HK-0695500-10 BLOCK TERMINAL (8)
36 HK-0695900-00 BLOCK TERMINAL (2)
37 HK-0695900-20 TERMINAL (2)
38 HK-0695900-0A BLOCK TERMINAL (2)
39
#02
HK-0695900-0B BLOCK TERMINAL (1)
40
#02
HK-0695500-10 BLOCK TERMINAL (14)
41
#02
HK-0695900-20 TERMINAL (5)
42 HX-0054300-0A POWER SUPPLY (1)
43 #07 KX-0000001-50 POWER SUPPLY (1)
44
#08
KX-0000003-70 POWER SUPPLY (1)
45
#07
HX-0054200-00 POWER SUPPLY (1)
46
#08
HX-0070200-00 POWER SUPPLY (1)
47
#07
HX-0054200-0B POWER SUPPLY (1)
48 #08 HX-0069000-00 POWER SUPPLY (1)
49 401-11660 PSU MAIN BR CE (1)
50 401-08573 PSU SIDE COVER (1)
51 401-08571 ZT POWER PCB PLATE (1)
52 HA-0054200-0A CIRCUIT PROTECTOR (2)
53 HA-0055900-00 CIRCUIT PROTECTOR (1)
54
#02
401-14534 SAFETY UNIT ASSY 1
55 HB-0015800-00 RELAY (1)
56 HK-0691900-0B BLOCK TERMINAL (3)
57 HK-0691900-40 BLOCK TERMINAL (4)
58 EA-9500B01-00 CABLE BAND (50)
59 EA-9500B02-00 CABLE BAND (25)
60 HX-0029400-00 FIXED BASE (6)
61 SM-4040601-SC SCREW M4X0.7 L=6 (6)
62 400-00488 SLIDE RAIL (1)
63 SM-4040801-SC SCREW M4X0.7 L=8 (12)
64 401-11661 DIN RAIL 350 (2)
65 SL-4040891-SC SCREW M4X8 (4)
66 HA-0063000-00 MAGNETIC CONTACTOR (3)
67 HN-0033900-00 VARISTOR (5)
68 HA-0063200-00 MAGNETIC CONTACTOR (2)
69 HB-0013900-00 RELAY (8)
70 HB-0013900-10 RELAY (8)
71 HK-0696500-10 BLOCK TERMINAL (22)
72 HK-0696900-00 BLOCK TERMINAL (1)
73 HK-0692500-10 BLOCK TERMINAL (4)
74 HK-0691900-00 BLOCK TERMINAL (1)
75 HK-0696900-0A BLOCK TERMINAL (1)
76 HK-0696900-0B BLOCK TERMINAL (1)
77 HK-0696900-0C BLOCK TERMINAL (1)
78 401-08667 SAFETY UNIT BASE (1)
79 401-08668 SAFETY UNIT BRACKET (1)
- -

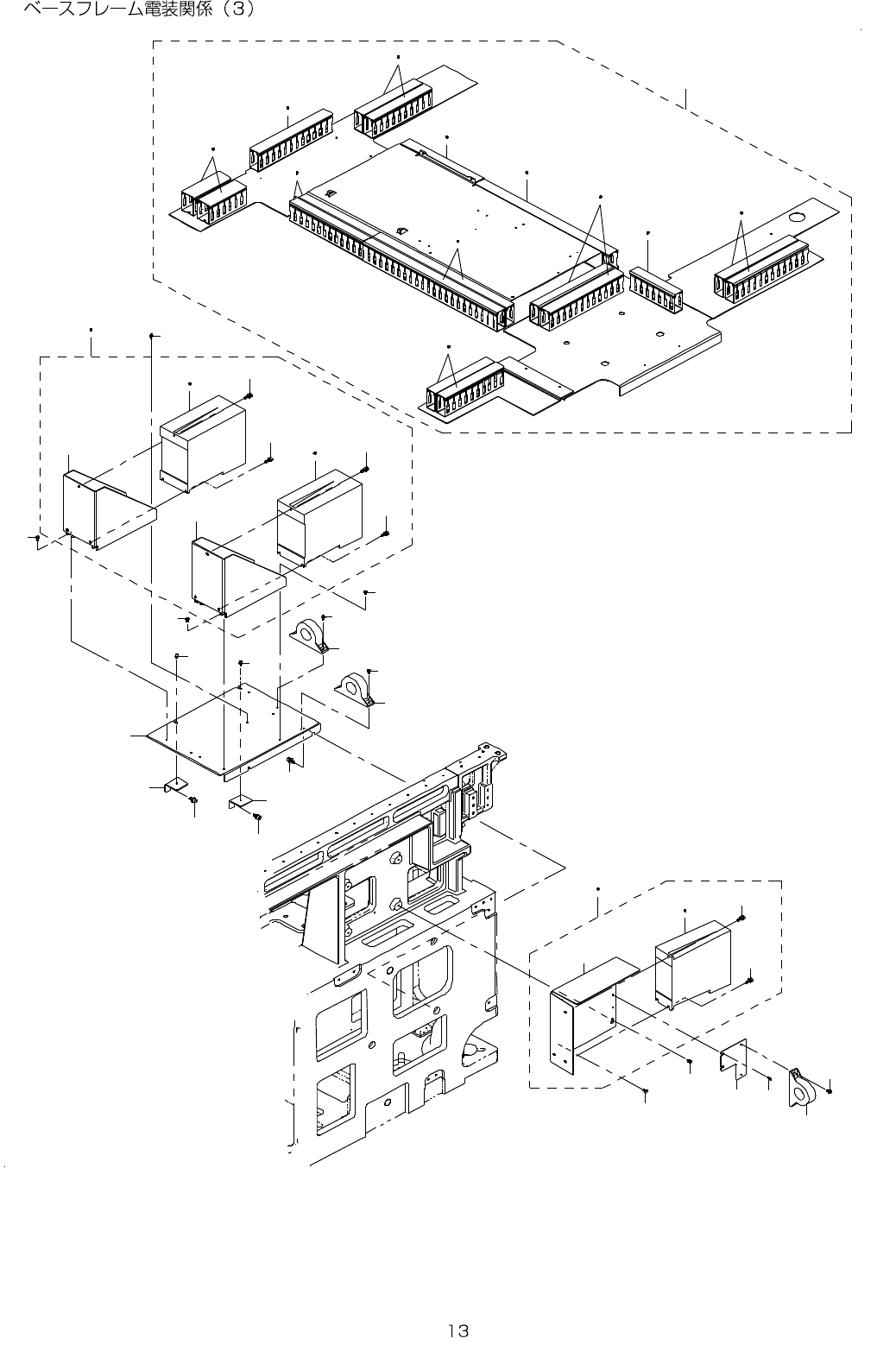

7. BASE FRAME ELECTRIC APPARATUS COMPONENTS(3)
3 0
1 8 1 9
2 4 2 5
3 2
3 3
1 7
1 6
3 1
2 9
2 9
2 6 2 7
2 8
1 6
1 7
1 6
1 1
1 5
1 4
1 0
1 1
1 3
2 3
2 3
2 0 2 1
2 2
2 3
2 3
2 0 2 1
2 2
1 7
1 5
1 4
1 3
1 1
1 0
1 2
1
8 9
8 9
6 7
6 7
2 3
2 3
2 3
2 3
2 3
4 5
4 5
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-14537 DUCT ASSY 1
2 400-77404 DUCT 30_60_200 (8)
3 SL-4040891-SC SCREW M4 L=8 (16)
4 400-32368 DUCT 40_60_125 (3)
5 SL-4040891-SC SCREW M4 L=8 (6)
6 400-94478 DUCT 30_60_450 (3)
7 SL-4040891-SC SCREW M4 L=8 (6)
8 400-94479 DUCT 30_60_200 (4)
9 SL-4040891-SC SCREW M4 L=8 (8)
10 400-94471 BASE SUPPORT 2
11 SL-6061492-TN BOLT 4
12 401-14026 DRIVER BASE 1
13 SL-6040892-TN BOLT 2
14 SD-0640246-SP HINGE SCREW D=6.35 H=2.4 4
15 SL-6040892-TN BOLT 2
16
#01
HN-0015500-00 CORE 3
17
#01
SL-4041091-SC SCREW M4 L=10 6
18
#02
401-14752 Y DRIVER UNIT 1
19
#03
401-35627 Y_DRIVER_UNIT 1
20
#02
400-44539 SERVO AMP 2000W (2)
21
#03
401-29654 Y AXIS DRIVER (2)
22 401-14038 DRIVER BRACKET (2)
23 SL-4051691-SC SCREW M5 L=16 (6)
24
#02
401-14753 X DRIVER UNIT 1
25
#03
401-35628 X_DRIVER_UNIT 1
26
#02
400-44538 SERVO AMP 750W (1)
27
#03
401-29652 X AXIS DRIVER (1)
28 401-14040 X MOTOR DRV PLATE (1)
29 SL-4051691-SC SCREW M5 L=16 (3)
30
#01
401-08654 X MOTOR DRV CORE PLATE 1
31
#01
SL-6040892-TN SCREW M4 L=8 2
32 SL-6040892-TN SCREW M4 L=8 2
33 SD-0640246-SP SHOULDER SCREW D=6.35 H=2.4 2
