- - 11 2.M / E REP L AC I NG OVE RALL CH A NGER TR UCK COM P ONEN T S(2) 4 1 4 0 3 9 3 8 4 2 3 7 4 2 3 8 4 0 3 9 4 1 3 7 4 3 4 3 2 3 2 3 2 2 2 2 4 7 3 4 3 2 3 1 2 5 2 6 2 8 2 8 3 3 3 0 3 5 2 9 9 2 4 2 4 5 4 6 8 1 9 2 0…
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-14145 DRIVE CYLINDER LIFT UNIT 1
2 PC-0152030-00 SPEED CONTROLLER (4)
3 400-93844 DC GUIDE BLOCK L (1)
4 400-93845 DC GUIDE BLOCK R (1)
5 SB-7100002-00 SLIDE BEARING (4)
6 RC-1900002-KP C RING (4)
7 401-10300 DC GUIDE SHAFT (2)
8 401-10301 SHAFT CLAMP BR (2)
9 SL-6040892-TN SCREW M4 L=8 (8)
10 401-10294 SHAFT CLAMP BR B (2)
11 401-10293 SHAFT CLAMP BR A (2)
12 SL-6051292-TN BOLT (4)
13 SL-6040892-TN SCREW M4 L=8 (4)
14 SL-6052092-TN SCREW (2)
15 SL-6051292-TN BOLT (2)
16 400-71364 DRV SYL SPT (2)
17 SL-6051492-TN BOLT (4)
18 401-10292 DRV CYL BR (2)
19 SL-6082092-TN SCREW M8 L=20 (4)
20 400-94348 CYLINDER CDM2B40-200 (2)
21 400-93831 DRIVE CYLINDER UNIT 1
22 400-93843 DRIVER SUPPORT (1)
23 400-00575 DRIVE CYLINDER L (1)
24 400-00576 DRIVE CYLINDER R (1)
25 SL-6051292-TN BOLT (2)
26 SL-6052592-TN BOLT (6)
27 SL-6083092-TN SCREW M8 L=30 8
28 401-10119 B LIF FRAME R 1
29
#01
400-92513 DRIVE CYL SENSOR F ASM 1
30 #02 400-92514 DRIVE CYL SENSOR R ASM 1
31 400-93834 BAND BM2-040 1
32
#01
400-94333 DC CON BR F ASM 1
33
#02
400-94334 DC CON BR R ASM 1
34 400-94335 DC CON BR (1)
35 SM-4051001-SC SCREW M5 L=10 (2)
36 SM-4861001-SC SCREW M2.6 L=10 (4)
37 401-14147 BANK AIR PARTS ME 1
38 PJ-3080600-03 Y UNION (4)
39 PJ-3040651-03 SWIVEL ELBOW (6)
40 PX-0551040-00 SILENCER (PT1/8) (2)
41 BT-0600400-EC TUBE HOSE, BLUE (15)
42 SM-6040802-TN SCREW M4X0.7 L=8 (4)
43 401-11307 AIR OPE VALVE BR (1)
44 400-94349 AIR OPE VALVE (2)
45 SL-6040892-TN SCREW M4 L=8 (2)
46 400-93838 LIFTER SHAFT 4
47 401-10117 B LIF FRAME L 1
48 SB-8200003-00 BEARING 2
49 SM-6051602-TN SCREW 8
50 PA-6307503-00 AIR CYLINDER 1
51 PC-0152030-00 SPEED CONTROLLER 2
52 400-93854 CYLINDER SCREW M8 L=125 4
53 SM-3040652-TN SCREW M4 L=6 4
54 401-10296 BANK LIFTER L 1
55 401-10295 LIF CYL SHAFT 1
56 E2622-729-000 LIFTER THRUST COLLAR 1
57 SM-1062052-TP SCREW M6 L=20 1
58 400-93839 BANK LOCATE PIN B2 1
59 NM-6080003-SC NUT M8 1
60 WS-0820002-KN SPRING WASHER M8 1
61 SM-8060552-TP SCREW M6 L=5 2
62 400-93849 SENSOR PLATE 2
63 SM-8060552-TP SCREW M6 L=5 2
64 SB-8200003-00 BEARING 2
65 SM-6051602-TN SCREW 8
66 PA-6307503-00 AIR CYLINDER 1
67 PC-0152030-00 SPEED CONTROLLER 2
68 400-93854 CYLINDER SCREW M8 L=125 4
69 400-92511 SWITCH D3DC-3 2
70 401-10297 BANK LIFTER R 1
71 401-10295 LIF CYL SHAFT 1
72 E2622-729-000 LIFTER THRUST COLLAR 1
73 SM-1062052-TP SCREW M6 L=20 1
74 400-93840 BANK LOCATE PIN C2 1
75 NM-6080003-SC NUT M8 1
76 WS-0820002-KN SPRING WASHER M8 1
- -

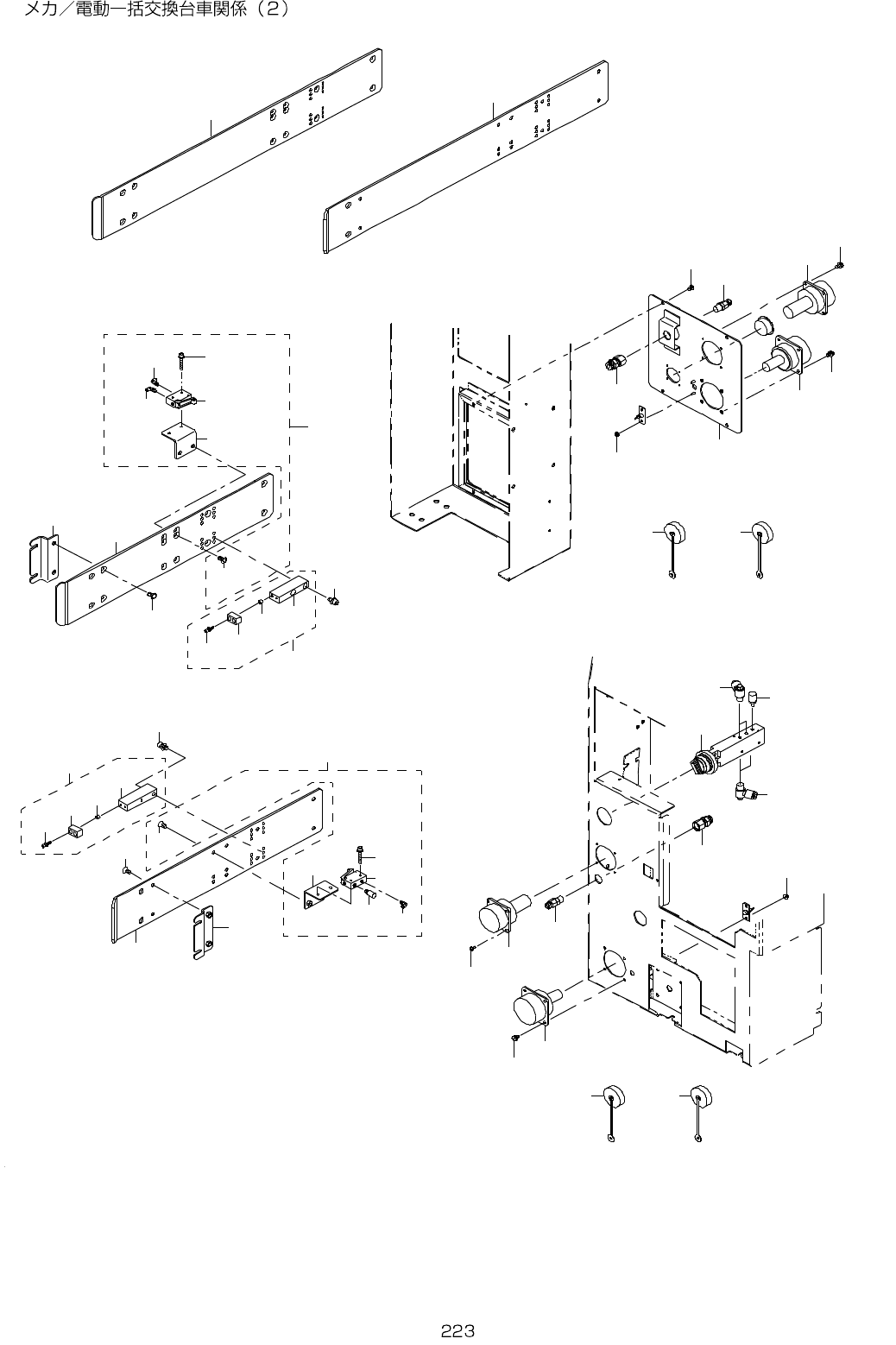

112.M / E REPLACING OVERALL CHANGER TRUCK COMPONENTS(2)
4 1
4 0
3 9
3 8
4 2
3 7
4 2
3 8
4 0
3 9
4 1
3 7
4 3
4 3
2 3
2 3
2 2
2 2
4 7
3 4
3 2
3 1
2 5
2 6
2 8
2 8
3 3
3 0
3 5
2 9
9
2 4
2
4 5
4 6
8 1 9
2 0 2 1
3 6
2 7
5
3
1 6
1 5
1 3
1 7
6
1 4
1 8
7
1 0
1 1
4 5
4
4 4
1
1 2
- -

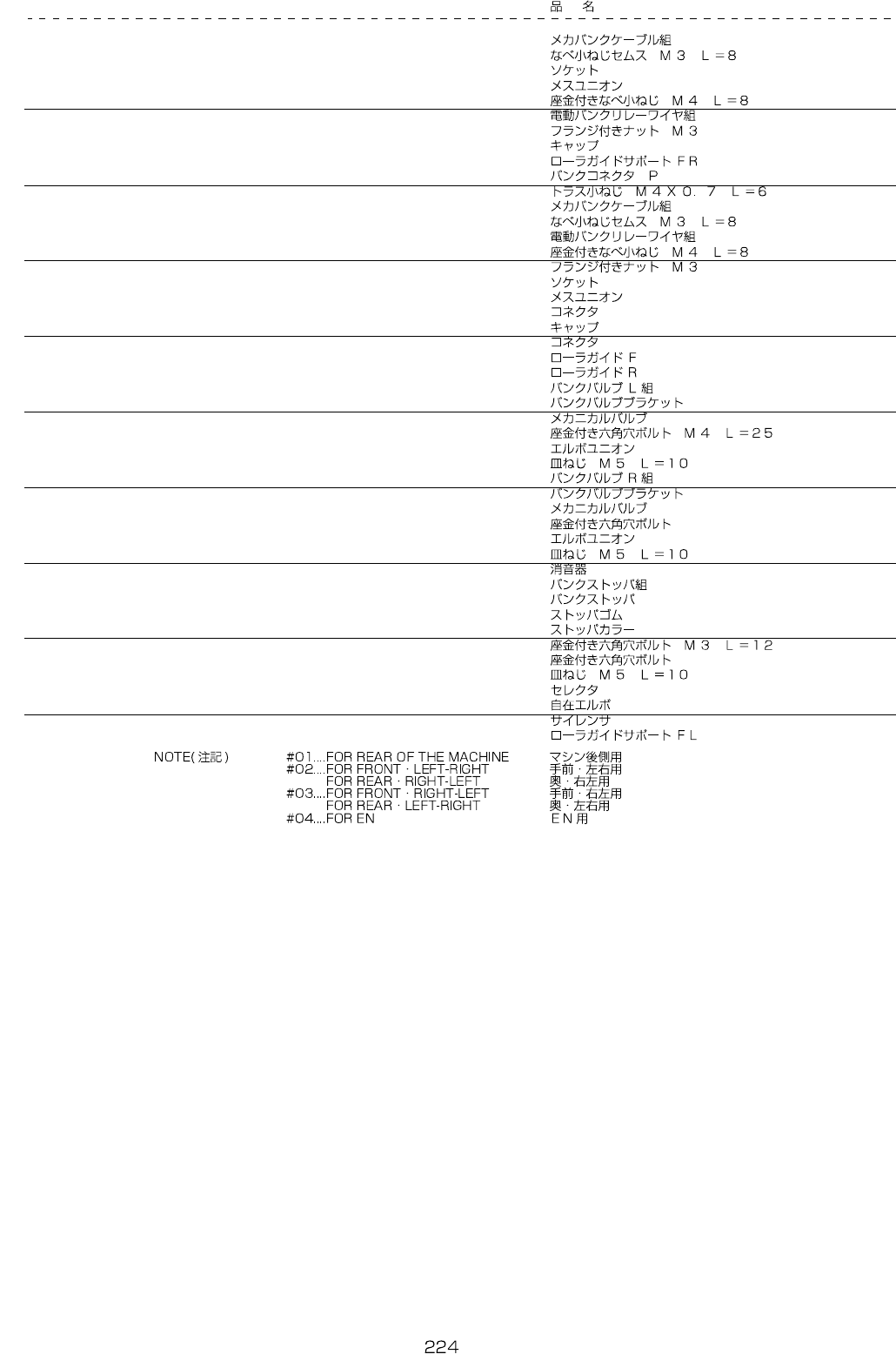

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-09985 MECH BANK CABLE ASM (1)
2 SL-4030891-SC SCREW M3X8 (4)
3 E2904-700-000 SOCKET (1)
4 PJ-3010651-06 KNIFE UNION (1)
5 SL-4040891-SC SCREW M4 L=8 (4)
6 401-11734 ELEC BANK RELAY WIRE ASM (2)
7 NM-3034000-SF FLANGE NUT M3 (2)
8
#04
HK-0429901-9A CAP 1
9 400-93853 ROLLER GUIDE SUPPORT FR 1
10 401-11313 BANK CONNECTOR P (1)
11 SM-0040601-SC SCREW M4X0.7 L=6 (4)
12 401-09985 MECH BANK CABLE ASM (1)
13 SL-4030891-SC SCREW M3X8 (4)
14 401-11734 ELEC BANK RELAY WIRE ASM (1)
15 SL-4040891-SC SCREW M4 L=8 (4)
16 NM-3034000-SF FLANGE NUT M3 (2)
17 E2904-700-000 SOCKET (1)
18 PJ-3010651-06 KNIFE UNION (1)
19
#04
HK-0785903-7B CONNECTOR 1
20
#04
HK-0429901-9A CAP 1
21
#04
HK-0785903-7B CONNECTOR 1
22 400-93850 ROLLER GUIDE F 2
23
#01
400-93851 ROLLER GUIDE R 2
24
#02
400-94345 BANK VALVE L ASM 1
25 400-94341 BANK VALVE BRACKET (1)
26 PV-0105050-00 MECHANICAL VALVE (1)
27 SL-6042592-TN SCREW M4 L=25 (2)
28 PJ-3040405-05 ELBOW (2)
29 SM-1051052-TN PLATE SCREW M5 L=10 (2)
30 #03 400-94344 BANK VALVE R ASM 1
31 400-94341 BANK VALVE BRACKET (1)
32 PV-0105050-00 MECHANICAL VALVE (1)
33 SL-6042592-TN SCREW (2)
34 PJ-3040405-05 ELBOW (2)
35 SM-1051052-TN PLATE SCREW M5 L=10 (2)
36 PX-0505010-00 SILENCER (1)
37 E2777-721-0A0 BANK STOPPER ASM. 2
38 E2777-721-000 BANK STOPPER (1)
39 E2778-721-000 STOPPER RUBBER (1)
40 E2779-721-000 STOPPER COLLAR (2)
41 SL-6031292-TN SCREW M3 L=12 (2)
42 SL-6051042-TN SCREW 4
43 SM-1051052-TN PLATE SCREW M5 L=10 12
44 PV-0151170-A0 SELECTOR 1
45 PJ-3040651-03 SWIVEL ELBOW 4
46 PX-0551040-00 SILENCER (PT1/8) 1
47 400-93852 ROLLER GUIDE SUPPORT FL 1
