- - 24.COV ER COMPONENTS ( 7) B 3 9 4 2 1 3 1 4 2 2 5 8 6 3 6 2 6 1 6 0 5 9 5 9 5 8 5 7 6 4 6 7 4 9 5 6 5 5 5 4 5 3 5 2 5 1 5 0 5 0 4 5 4 6 4 7 4 8 4 8 4 8 4 8 4 7 4 6 4 5 7 1 7 0 4 3 4 4 7 1 4 4 4 3 7 0 6 9 6 9 6 8 6 …
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-35767 SAFETY_COVER_R_UNIT 1
2 401-35769 SAFETY_COVER_R_ASM (1)
3 401-34614 SAFETY_COVER_FRAME_F (1)
4 401-34616 SAFETY_COVER_STAY_F L_U (1)
5 401-34617 SAFETY_COVER_STAY_F R_U (1)
6 SL-6040892- TN SCREW M4 L=8 (8)
7 401-34615 SCF_PLATE_U (1)
8 NM-605 0001-SC NUT M5X0.8 TYPE1 (10)
9 WP-0430800-SC WASHER M4 (2)
10 WP-0531001-SC WASHER M5 (10)
11 401-34626 SCF_PLATE_FIXED_BR_R (1)
12 SL-6051092-TN SCREW M5 L=10 (2)
13 WS-0610002-KN SPRING WASHER 6.1X12.2X1.5 (2)
14 SB-1040001-00 BEARING (4)
15 WP-0641601-SC WASHER (2)
16 401-22998 HANDLE (1)
17 SM-6062002-TN SCREW M 6 L=20 (2)
18 401-13968 HANDLE S (1)
19 SM-1041001-SC SCREW M 4X0.7 L=10 (2)
20 401-13965 HANDLE PLATE (1)
21 SM-1031001-SC SCREW M 3X0.5 L=10 (2)
22 401-13966 SPRING TYPE HINGE (1)
23 401-13963 F EEDER SIDE COVER R A (1)
24 SM-3030552-TN SCREW M 3 L=5 (2)
25 401-13964 F EEDER SIDE COVER R B (1)
26 SL-4030691-SC SCREW M3 L=6 (2)
27 401-34625 F EEDER_COVER (1)
28 400-55159 COVER GUARD R (1)
29 400-55160 COVER NUT PLATE (1)
30 400-93798 LAURETTE SCREW (2)
31 400-49671 COVER CUSHION (2)
32 SM-4030601-SC SCREW M 3X0.5 L=6 (2)
33 401-13969 F C HINGE COVER (1)
34 SM-3040652-TN SCREW M 4 L=6 (3)
35 E1196-725-000 F C HINGE (2)
36 SL-6051092-TN SCREW M5 L=10 (8)
37 401-34618 SD_LOCK_BRACKET (2)
38 SL-6040892-TN SCREW M4 L=8 (4)
39 400-80490 KEY SCREW (2)
40 WS-0510002-KN SPRING WASHER M5 (10)
41 CM-3002000-06 F INGER INJURY CAUTION LABEL (100) (1)
42 400-51621 CHIP BOX NOTICE LABEL G1 (1)
43 400-79329 CAUTION SEAL (1)
44 400-79330 EXCHANGE SEAL (1)
45 NM-3034000-SF FLANGE NUT M3 (2)
46 SM-4042001-SC SCREW M 4 X 20 (1)
47 SM-4041201-SC SCREW M 4 L=12 (1)
48 NM-3040520-SF FLANGE NUT M4 (2)
49 HX-0009600-00 EDGE BUSHING (0.765)
50 NM-6060001-SC NUT M6 (2)
51 SL-6061292-TN SCREW M6 L=12 (4)
52 L128E-421-000 SAFETY COVER HINGE (2)
53 SL-3061232-TN SCREW M6 L=12 (8)
54 400-77321 STAY (1)
55 SM-1040801-SC SCREW M 4X0.7 L=8 (4)
56 401-22999 GAS SPRING (2)
57 400-38381 STEP SCREW (4)
58 WP-0482016-SC PLAIN WASHER 4.8X11.5X2 (2)
59 401-51272 GS_BRACKET_TYPE2 (2)
60 401-35766 SAFETY_COVER_F_UNIT 1
61 401-35768 SAFETY_COVER_F_ASM (1)
62 401-34614 SAFETY_COVER_FRAME_F (1)
63 WP-0531001-SC WASHER M5 (19)
64 401-34620 SCF_PLATE_FIXED_BR_UL (1)
65 401-34621 SCF_PLATE_FIXED_BR_UR (1)
66 401-34619 SCF_PLATE_FIXED_BR_U (1)
67 SM-6062002-TN SCREW M 6 L=20 (2)
68 CM-3002000-04 F INGER INJURY CAUTION LABEL (50) (1)
69 NM-6050001-SC NUT M5X0.8 TYPE1 (19)
70 401-34617 SAFETY_COVER_STAY_FR_U (1)
71 WS-0510002-KN SPRING WASHER M5 (19)
72 401-22998 HANDLE (1)
73 SL-6051092-TN SCREW M5 L=10 (2)
74 401-34623 SCF_PLATE_B (1)
75 401-34622 SCF_PLATE_FIXED_BR_B (1)
76 401-13967 HANDLE L (1)
77 SM-1041001-SC SCREW M 4X0.7 L=10 (2)
78 NM-6060001-SC NUT M6 (2)
79 401-34616 SAFETY_COVER_STAY_FL_U (1)
80 WS-0610002-KN SPRING WASHER 6.1X12.2X1.5 (2)
81 401-34618 SD_LOCK_BRACKET (2)
82 SL-6040892-TN SCREW M4 L=8 (4)
83 WP-0641601-SC WASHER (2)
84 401-34624 SCF_PLATE_BACK_BR (1)
85 WP-0550836-SC WASHER 5.5X12X0.8 (2)
86 400-80490 KEY SCREW (2)
87 401-14319 EDGE CUSHION F L (1)
88 CM-3002000-06 F INGER INJURY CAUTION LABEL (100) (1)
89 400-51621 CHIP BOX NOTICE LABEL G1 (1)
90 401-34615 SCF_PLATE_U (1)
91 400-79329 CAUTION SEAL (1)
92 400-79330 EXCHANGE SEAL (1)
93 WP-0482016-SC PLAIN WASHER 4.8X11.5X2 (2)
94 SL-3061232-TN SCREW M6 L=12 (8)
95 400-77321 STAY (1)
96 SM-1040801-SC SCREW M 4X0.7 L=8 (4)
97 401-22999 GAS_SPRING (2)
98 400-38381 STEP SCREW (4)
99 401-51272 GS_BRACKET_TYPE2 (2)
100 SL-6061292-TN SCREW M6 L=12 (4)
101 L128E-421-000 SAFETY COVER HINGE (2)
- -
24.COVER COMPONENTS(7)
B
3 9 4 2
1 3 1 4
2 2
5 8
6 3
6 2
6 1
6 0
5 9
5 9
5 8
5 7
6 4 6 7
4 9
5 6
5 5
5 4
5 3
5 2
5 1
5 0
5 0
4 5
4 6
4 7
4 8
4 8
4 8
4 8
4 7
4 6
4 5
7 1
7 0
4 3
4 4
7 1
4 4
4 3
7 0
6 9
6 9
6 8
6 8
2 0
2 0
2 0
2 2
2 1
2 0
1 9
1 8
1 9
1 7
1 5 1 6
B
A
A
7 3 7 6
8 1
8 1
7 7 8 0
1 2
2 3 2 6
3 1
3 6
3 4
3 4
3 6
3 5
3 5
3 3
3 7
3 1
3 2
3 7
3 3
3 2
2 7 3 0
7
7
7
8
1 0
1 2
1 1
9
8
7
8
8
6
4 5
3
3 8
3 8
7 2
7 2
- -

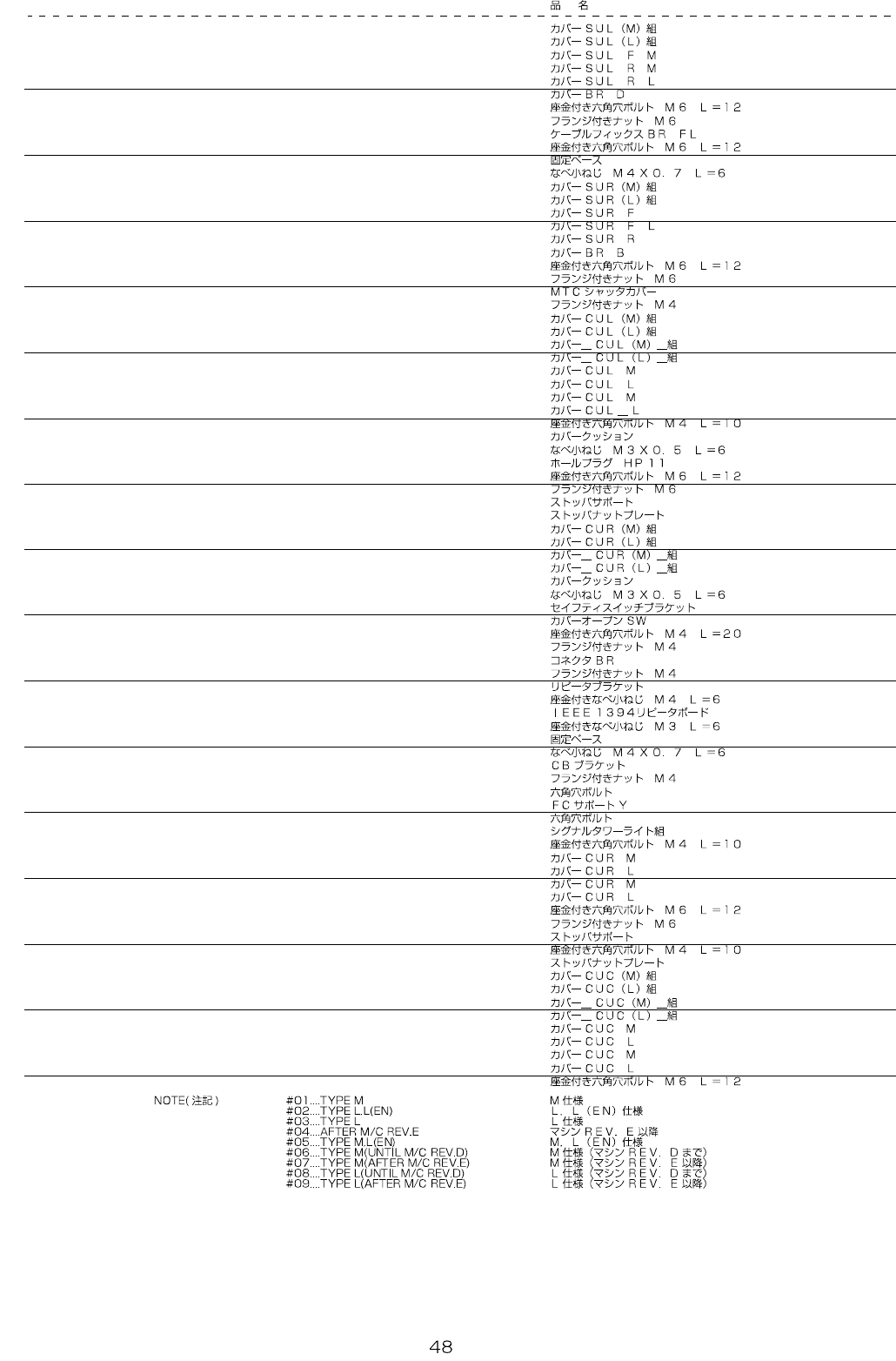

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
401-14853 COVER SUL(M) ASM 1
2 #02 401-14845 COVER SUL(L) ASM 1
3 401-14348 COVER SUL F M (1)
4
#01
401-13928 COVER SUL R M (1)
5
#02
401-11830 COVER SUL R L (1)
6 401-14256 COVER BR D (1)
7 SL-6061292-TN SCREW M6 L=12 (7)
8 NM-3060810-SF FLANGE NUT M6 (6)
9 401-10760 CABLE FIXED BR FL (1)
10 SL-6061292-TN SCREW M6 L=12 (2)
11 HX-0029400-00 FIXED BASE (2)
12 SM-4040601-SC SCREW M4X0.7 L=6 (2)
13
#01
401-14854 COVER SUR(M) ASM 1
14
#02
401-14846 COVER SUR(L) ASM 1
15
#01
401-13927 COVER SUR F (1)
16
#02
401-11831 COVER SUR F L (1)
17 #05 401-13938 COVER SUR R (1)
18
#05
401-10762 COVER BR B (1)
19 SL-6061292-TN SCREW M6 L=12 (3)
20 NM-3060810-SF FLANGE NUT M6 (9)
21 401-11305 MTC SHUTTLE COVER (1)
22 NM-3040520-SF FLANGE NUT M4 (4)
23
#06
401-14850 COVER CUL(M) ASM 1
24
#08
401-14840 COVER CUL(L) ASM 1
25
#07
401-34655 COVER_CUL(M)_ASM 1
26
#09
401-34650 COVER_CUL(L)_ASM 1
27 #06 401-14001 COVER CUL M (1)
28
#08
401-11826 COVER CUL L (1)
29
#07
401-34608 COVER_CUL_M (1)
30
#09
401-34611 COVER_CUL_L (1)
31 SL-6041092-TN SCREW M4 L=10 (4)
32 400-49671 COVER CUSHION (2)
33 SM-4030601-SC SCREW M3X0.5 L=6 (2)
34 400-93708 HOLE PLUGS HP11 (2)
35 SL-6061292-TN SCREW M6 L=12 (4)
36 NM-3060810-SF FLANGE NUT M6 (4)
37 400-01464 STOPPER SUPPORT (2)
38 #04 401-47221 STOPPER_NUT_PLATE (2)
39
#06
401-14851 COVER CUR(M) ASM 1
40
#08
401-14841 COVER CUR(L) ASM 1
41
#07
401-34656 COVER_CUR(M)_ASM 1
42
#09
401-34651 COVER_CUR(L)_ASM 1
43 400-49671 COVER CUSHION (2)
44 SM-4030601-SC SCREW M3X0.5 L=6 (2)
45 400-01453 SAFETY SWITCH BRACKET (2)
46 400-02254 COVER OPEN SW CABLE ASM (2)
47 SL-6042042-TN SCREW M4 L=20 (4)
48 NM-3040520-SF FLANGE NUT M4 (8)
49 401-11321 CONNECTOR BR (1)
50 NM-3040520-SF FLANGE NUT M4 (4)
51 400-46586 REPEATER BRACKET (1)
52 SL-4040691-SC SCREW M4 L=6 (4)
53 #06 400-44518 IEEE1394 REPEATER BOARD (1)
54
#06
SL-4030691-SC SCREW M3 L=6 (2)
55 HX-0029400-00 FIXED BASE (2)
56 SM-4040601-SC SCREW M4X0.7 L=6 (2)
57 401-13929 CB BRACKET (1)
58 NM-3040520-SF FLANGE NUT M4 (4)
59 SM-6061202-TN SCREW (4)
60 400-98051 FC SUPPORT Y (1)
61 SM-6060802-TN SCREW (2)
62 400-48045 SIGNAL TOWER LIGHT ASM (1)
63 SL-6041092-TN SCREW M4 L=10 (4)
64
#06
401-13934 COVER CUR M (1)
65
#08
401-11827 COVER CUR L (1)
66
#07
401-34610 COVER_CUR_M (1)
67
#09
401-34613 COVER_CUR_L (1)
68 SL-6061292-TN SCREW M6 L=12 (4)
69 NM-3060810-SF FLANGE NUT M6 (4)
70 400-01464 STOPPER SUPPORT (2)
71 SL-6041092-TN SCREW M4 L=10 (4)
72
#04
401-47221 STOPPER_NUT_PLATE (2)
73 #06 401-14852 COVER CUC(M) ASM 1
74 #08 401-14842 COVER CUC(L) ASM 1
75
#07
401-34657 COVER_CUC(M)_ASM 1
76
#09
401-34652 COVER_CUC(L)_ASM 1
77
#06
401-13924 COVER CUC M (1)
78
#08
401-11825 COVER CUC L (1)
79 #07 401-34609 COVER_CUC_M (1)
80
#09
401-34612 COVER_CUC_L (1)
81 SL-6061292-TN SCREW M6 L=12 (8)
