- - REF.NO NOTE PART N O D E S C R I P T I O N Qty 1 401-21679 SA FETY_COV ER_ R( X L )_ U NIT 1 2 401-21683 SA FETY_COV ER_ R( X L )_ A SM (1) 3 401-11454 SA FETY COVE R FR A M E (1) 4 401-11467 SA FETY COVE R STA Y R…
- -

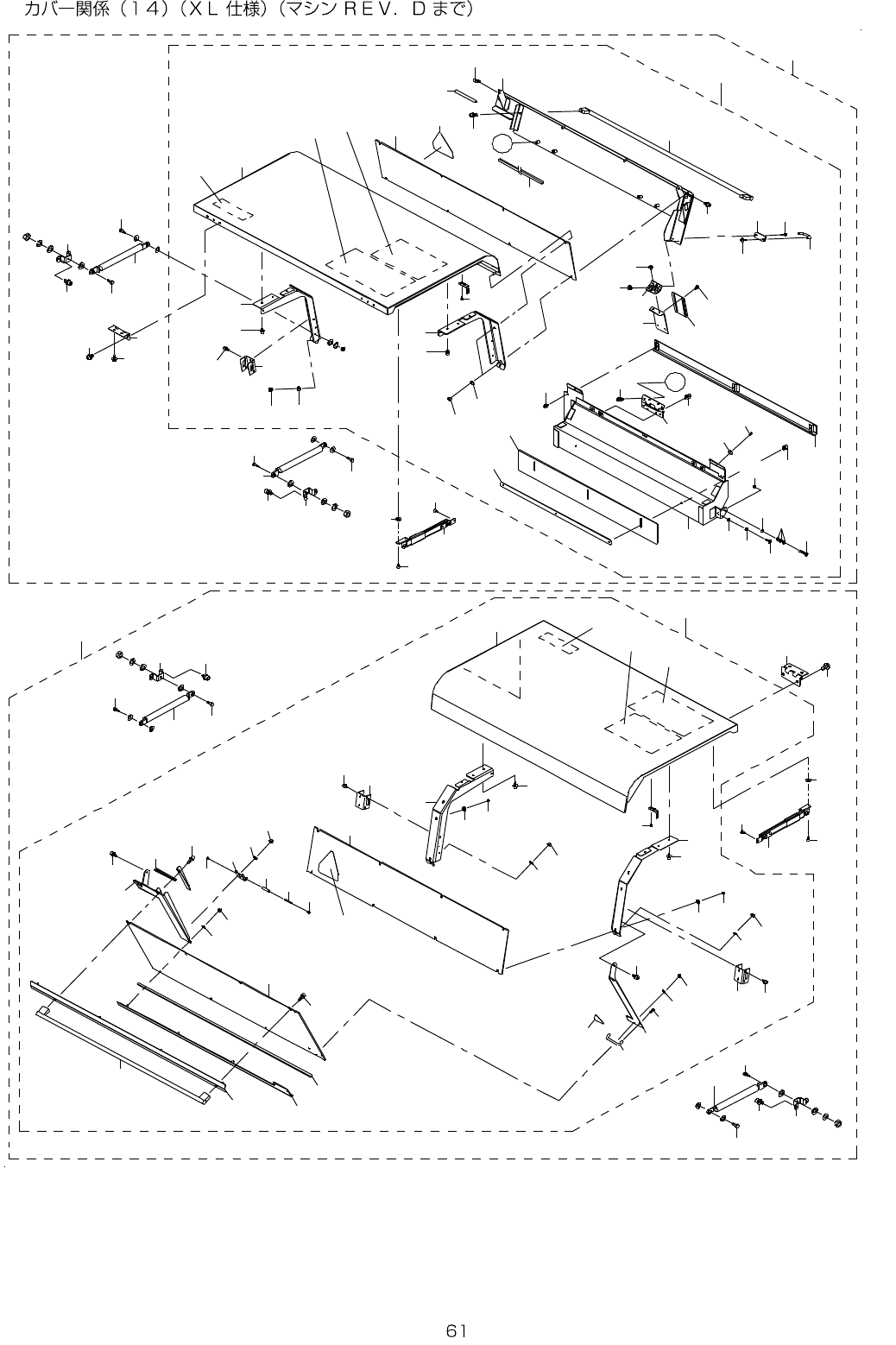

31.COVER COMPONENTS(14)(TYPE XL)(UNTIL M/C REV.D)
1
2 9
2 8
5 3
5 3
5 2
5 7
5 7
5 7
5 7
5 1
5 1
5 0
5 0
5 6
5 6
5 5
5 5
5 4
2
A
3 6
3 5
A
4 4
4 3
4 2
4 5
4 0
4 1
3 9
3 8
3 7
1 7
3 6
3 4
3 3
3 2
3 1
3 0
2 7
2 6
2 5
2 4
2 3
2 2
2 12 0
1 9
1 8
1 6
1 5
1 3
1 2
1 2
1 1
7
8
1 0
6
6
5
4
3
1 0 1
6 2
5 9
6 0
6 5
1 0 5
1 0 4
1 0 3
1 0 2
1 0 3
1 0 5
1 0 4
1 0 3
1 0 3
1 0 2
9 9
1 0 1
1 0 0
6 8
9 6
9 7
9 4
9 3
9 0
7 3
6 4
9 2
9 1
8 9
8 6
8 6
8 5
8 4
8 7
8 3
8 2
8 1
8 2
8 1
7 3
7 1
6 9
7 1
6 9
7 7
7 6
7 5
7 4
7 2
7 8
8 0
7 8
8 0
6 7
6 7
6 6
9 5
6 3
6 1
6 3
6 1
8 8
8 8
7 9
7 0
1 0 6
9 8
5 8
9
9
1 4
1 4
4 7
4 6
4 8
4 9
- -

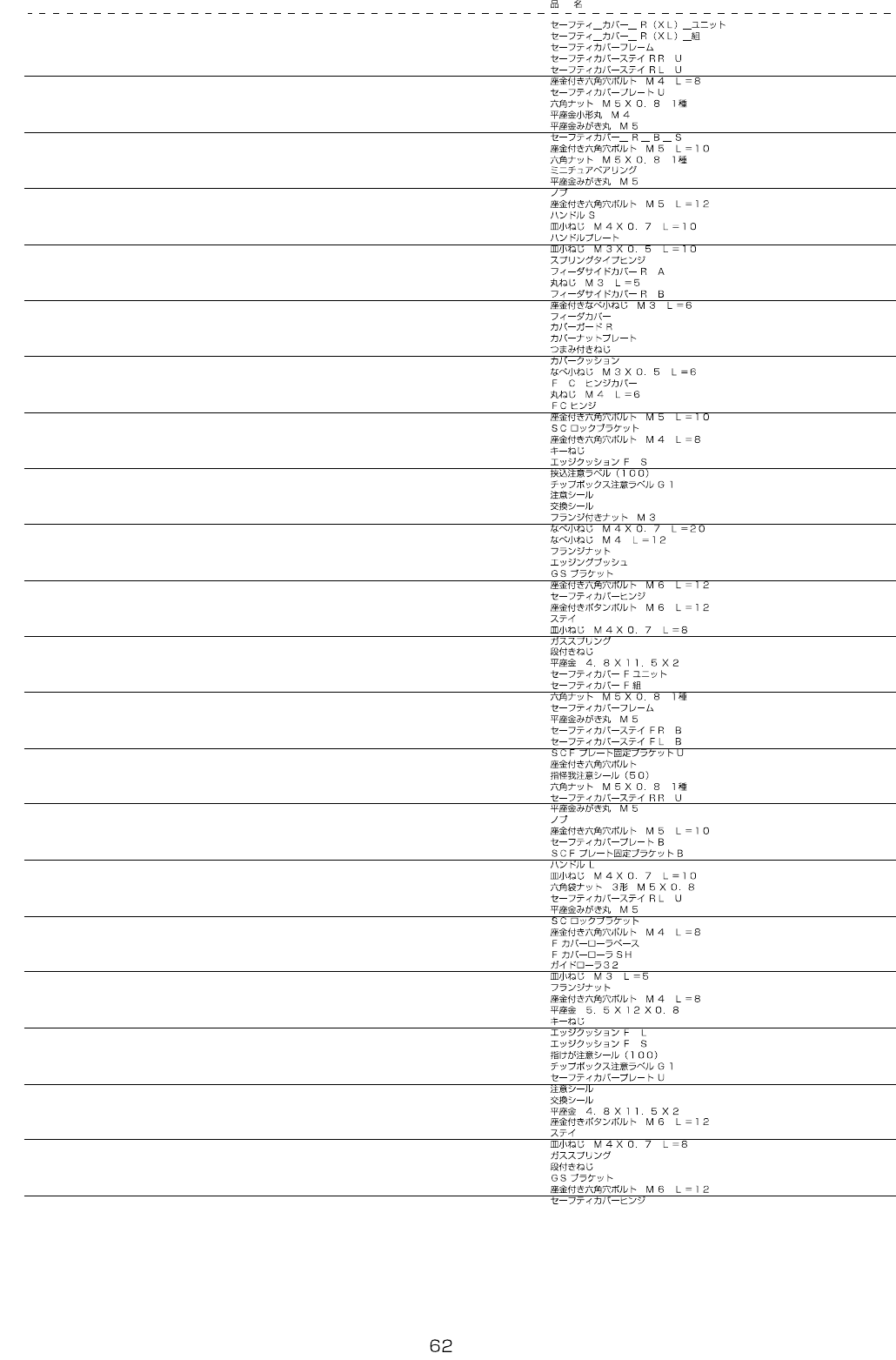

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-21679 SAFETY_COVER_R(XL)_U NIT 1
2 401-21683 SAFETY_COVER_R(XL)_ASM (1)
3 401-11454 SAFETY COVER FRAME (1)
4 401-11467 SAFETY COVER STAY RR U (1)
5 401-11468 SAFETY COVER STAY RL U (1)
6 SL-6040892- TN SCREW M4 L=8 (8)
7 401-11463 SCF PLATE U (1)
8 NM-605 0001-SC NUT M5X0.8 TYPE1 (8)
9 WP-0430800-SC WASHER M4 (2)
10 WP-0531001-SC WASHER M5 (8)
11 401-19687 SAFETY_COVER_R_B_S (1)
12 SL-6051092-TN SCREW M5 L=10 (2)
13 NM-6050001-SC NUT M5X0.8 TYPE1 (2)
14 SB-1040001-00 BEARING (4)
15 WP-0531001-SC WASHER M5 (2)
16 400-46608 KNOB (1)
17 SL-6051292-TN SCREW M5 L=12 (2)
18 401-13968 HANDLE S (1)
19 SM-1041001-SC SCREW M 4X0.7 L=10 (2)
20 401-13965 HANDLE PLATE (1)
21 SM-1031001-SC SCREW M 3X0.5 L=10 (2)
22 401-13966 SPRING TYPE HINGE (1)
23 401-13963 F EEDER SIDE COVER R A (1)
24 SM-3030552-TN SCREW M 3 L=5 (2)
25 401-13964 F EEDER SIDE COVER R B (1)
26 SL-4030691-SC SCREW M3 L=6 (2)
27 401-11450 F EEDER COVER (1)
28 400-55159 COVER GUARD R (1)
29 400-55160 COVER NUT PLATE (1)
30 400-93798 LAURETTE SCREW (2)
31 400-49671 COVER CUSHION (2)
32 SM-4030601-SC SCREW M 3X0.5 L=6 (2)
33 401-13969 F C HINGE COVER (1)
34 SM-3040652-TN SCREW M 4 L=6 (3)
35 E1196-725-000 F C HINGE (2)
36 SL-6051092-TN SCREW M5 L=10 (8)
37 401-11466 SC LOCK BRACKET (2)
38 SL-6040892-TN SCREW M4 L=8 (4)
39 400-80490 KEY SCREW (2)
40 401-14320 EDGE CUSHION F S (1)
41 401-05874 CRUSH HAZARD LABEL ( 100) (1)
42 400-51621 CHIP BOX NOTICE LABEL G1 (1)
43 400-79329 CAUTION SEAL (1)
44 400-79330 EXCHANGE SEAL (1)
45 NM-3034000-SF FLANGE NUT M3 (2)
46 SM-4042001-SC SCREW M 4 X 20 (1)
47 SM-4041201-SC SCREW M 4 L=12 (1)
48 NM-3040520-SF FLANGE NUT M4 (2)
49 HX-0009600-00 EDGE BUSHING (0.765)
50 400-77319 GS BRACKET (2)
51 SL-6061292-TN SCREW M6 L=12 (4)
52 L128E-421-000 SAFETY COVER HINGE (2)
53 SL-3061232-TN SCREW M6 L=12 (8)
54 400-77321 STAY (1)
55 SM-1040801-SC SCREW M 4X0.7 L=8 (4)
56 401-10176 GAS SPRING (2)
57 400-38381 STEP SCREW (4)
58 WP-0482016-SC PLAIN WASHER 4.8X11.5X2 (2)
59 401-14843 SAFETY COVER F UNIT 1
60 401-14834 SAFETY COVER F ASM (1)
61 NM-6050001-SC NUT M5X0.8 TYPE1 (8)
62 401-11454 SAFETY COVER FR AME (1)
63 WP-0531001-SC WASHER M5 (8)
64 401-14288 SAFETY COVER STAY FR B (1)
65 401-14284 SAFETY COVER STAY FL B (1)
66 401-14279 SCF PLATE FIXED BR U (1)
67 SL-6051092-TN BOLT (2)
68 CM-3002000-04 F INGER INJURY CAUTION LABEL (50) (1)
69 NM-6050001-SC NUT M5X0.8 TYPE1 (4)
70 401-11467 SAFETY COVER STAY RR U (1)
71 WP-0531001-SC WASHER M5 (4)
72 400-46608 KNOB (1)
73 SL-6051092-TN SCREW M5 L=10 (2)
74 401-14283 SCF PLATE B (1)
75 401-14287 SCF PLATE FIXED BR B (1)
76 401-13967 HANDLE L (1)
77 SM-1041001-SC SCREW M 4X0.7 L=10 (2)
78 NM-7050032-SC HEXAGONAL CAP NUT 3 M 5X0.8 (4)
79 401-11468 SAFETY COVER STAY RL U (1)
80 WP-0531001-SC WASHER M5 (4)
81 401-11466 SC LOCK BRACKET (2)
82 SL-6040892-TN SCREW M4 L=8 (4)
83 401-14254 F COVER ROLLER BASE (1)
84 401-14255 F COVER ROLLER SH (1)
85 E6334-706-R00 GUIDE ROLLER 32 (1)
86 SM-1030501-SC SCREW M 3 L=5 (2)
87 NM-3040520-SF FLANGE NUT M4 (2)
88 SL-6040892-TN SCREW M4 L=8 (8)
89 WP-0550836-SC WASHER 5.5X12X0.8 (2)
90 400-80490 KEY SCREW (2)
91 401-14319 EDGE CUSHION F L (1)
92 401-14320 EDGE CUSHION F S (1)
93 CM-3002000-06 F INGER INJURY CAUTION LABEL (100) (1)
94 400-51621 CHIP BOX NOTICE LABEL G1 (1)
95 401-11463 SCF PLATE U (1)
96 400-79329 CAUTION SEAL (1)
97 400-79330 EXCHANGE SEAL (1)
98 WP-0482016-SC PLAIN WASHER 4.8X11.5X2 (2)
99 SL-3061232-TN SCREW M6 L=12 (8)
100 400-77321 STAY (1)
101 SM-1040801-SC SCREW M4X0.7 L=8 (4)
102 401-10176 GAS SPRING (2)
103 400-38381 STEP SCREW (4)
104 400-77319 GS BRACKET (2)
105 SL-6061292-TN SCREW M6 L=12 (4)
106 L128E-421-000 SAFETY COVER HINGE (2)
- -
32.COVER COMPONENTS(15)(TYPE XL)(AFTER M/C REV.E)
1
2 9
2 8
5 3
5 3
5 2
5 7
5 7
5 7
5 7
5 1
5 1
5 9
5 9
5 6
5 6
5 5
5 5
5 4
2
A
3 6
3 5
A
4 2
4 5
3 9
3 8
3 7
3 6
3 4
3 3
3 2
3 1
3 0
2 7
2 6
2 5
2 4
2 3
2 2
2 12 0
1 8
1 0
8
1 1
6
6
5
4
3
9 6
6 2
6 0
6 1
6 5
9 4
9 6
9 5
9 1
9 2
8 9
8 6
7 3
6 4
9 2
8 2
8 2
7 3
7 7
7 6
8 5
8 5
7 9
7 0
1 0 1
9 3
5 8
9
9
1 4
1 4
4 7
4 6
4 8
4 9
4 4
4 3
4 0
1 0
8
4 0
3 8
3 7
1 9
1 2
4 1
7
B
B
1 7
1 6
1 5
1 3
5 0
8 1
8 1
6 3
6 9
7 1
9 0
8 8
6 8
6 6
7 2
8 3
7 8
8 0
6 7
7 5
8 7
7 4
8 4
6 3
7 1
6 9
6 3
6 9
7 1
6 3
6 9
7 1
D
D
C
C
6 3
7 1
6 9
9 8
9 8
9 9
1 0 0
9 7
9 7
9 8
9 8
9 9
1 0 0
