- - REF.NO N O TE PART N O D E S C R I P T I O N Qty 1 40 1-2168 0 C OVER_SUL(XL )_ASM 1 2 SL-6 04 1 09 2 -TN SCREW ( 6 ) 3 40 1-1967 9 C OVER_SUL_ XL (1) 4 40 0-9381 5 C OVER_SM L_ XL (1) 5 SL-6 04 0 89 2 -TN BOLT ( 5…
- -

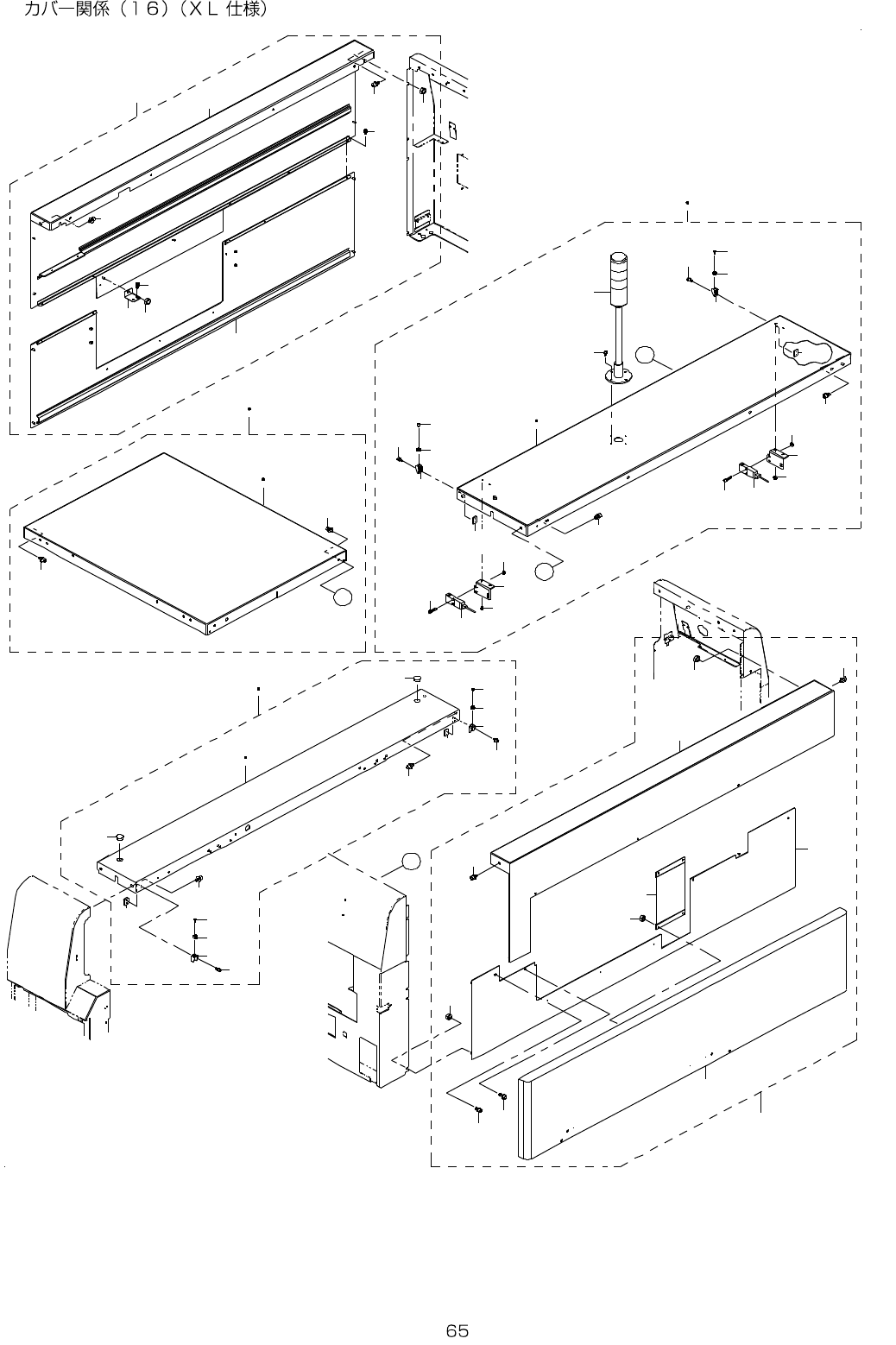

33.COVER COMPONENTS(16)(TYPE XL)
2 6
7
2
6
8
1
3
4
5
7
8
3 8
3 9
1 1
1 2
1 0
B
5 0
3 0 3 1
A
A
4 8 4 9
1 6
4 2
4 2
4 0 4 1
2 1
2 1
2 7 2 8
5 0
1 8
1 7
1 6
1 4
1 5
1 5
1 3
2 3
2 5
2 4
2 2
2 5
2 3
2 4
2 2
2 6
4 4
3 2
3 3
4 4
4 3
3 2
3 3
4 3
3 5
3 6
3 4
3 7
3 7
3 6
3 7
3 4
3 5
3 7
B
9
4 6 4 7
2 9
1 9 2 0
4 5
4 5
2 9
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-21680 COVER_SUL(XL)_ASM 1
2 SL-6041092-TN SCREW (6)
3 401-19679 COVER_SUL_XL (1)
4 400-93815 COVER_SML_XL (1)
5 SL-6040892-TN BOLT (5)
6 400-93820 COVER_SPT_BAR_L_XL (3)
7 SL-6061292-TN SCREW M6 L=12 (6)
8 NM-3060810-SF FLANGE NUT M6 (11)
9 401-21681 COVER_SUR(XL)_ASM 1
10 401-19666 CABLE_SIDE_COVER (1)
11 SL-6061292-TN SCREW (6)
12 SM-6061402-TN BOLT (2)
13 401-19676 COVER_SUR_XL (1)
14 401-19668 COVER_SMR_XL (1)
15 SL-6061292-TN SCREW M6 L=12 (6)
16 NM-3060810-SF FLANGE NUT M6 (8)
17 401-14182 SIDE_COVER (1)
18 NM-3040520-SF FLANGE NUT M4 (4)
19
#01
401-21676 COVER_CUL(XL)_ASM 1
20
#02
401-37722 COVER_CUL(XL)_ASM 1
21 SL-6061292-TN SCREW M6 L=12 (4)
22 400-01464 STOPPER SUPPORT (2)
23 SL-6041092-TN SCREW M4 L=10 (4)
24 400-49671 COVER CUSHION (2)
25 SM-4030601-SC SCREW M3X0.5 L=6 (2)
26 400-93708 HOLE PLUGS HP11 (2)
27
#01
401-19678 COVER_CUL_XL (1)
28
#02
401-37738 COVER_CUL_XL (1)
29
#02
401-47221 STOPPER_NUT_PLATE (2)
30
#01
401-21677 COVER_CUR(XL)_ASM 1
31
#02
401-37723 COVER_CUR(XL)_ASM 1
32 400-49671 COVER CUSHION (2)
33 SM-4030601-SC SCREW M3X0.5 L=6 (2)
34 400-01453 SAFETY SWITCH BRACKET (2)
35 400-02254 COVER OPEN SW CABLE ASM (2)
36 SL-6042042-TN SCREW M4 L=20 (4)
37 NM-3040520-SF FLANGE NUT M4 (8)
38 400-48045 SIGNAL TOWER LIGHT ASM (1)
39 SL-6041092-TN SCREW M4 L=10 (4)
40
#01
401-19677 COVER_CUR_XL (1)
41
#02
401-37739 COVER_CUR_XL (1)
42 SL-6061292-TN SCREW M6 L=12 (4)
43 400-01464 STOPPER SUPPORT (2)
44 SL-6041092-TN SCREW M4 L=10 (4)
45
#02
401-47221 STOPPER_NUT_PLATE (2)
46
#01
401-21678 COVER_CUC(XL)_ASM 1
47
#02
401-37724 COVER_CUC(XL)_ASM 1
48
#01
401-19671 COVER_CUC_XL (1)
49
#02
401-37737 COVER_CUC_XL (1)
50 SL-6061292-TN SCREW M6 L=12 (8)
- -
34.COVER COMPONENTS(17)(TYPE XL)
2 6
4
2 9
3 0
3 0
2 7
3 1
3 2
2 8
3 4
3 3
1 2
1 3
1 3
1 2
1 1
1 0
9
8
7
6
5
1
6
5
2 5
2 4
2 3
2 2
2 1
2 0
1 9
1 8
6
5
5
6
1 7
1 6
1 6
1 7
1 6
1 7
1 6
1 7
1 5
1 4
3
3
3
3
3
3
3
3
2
