- - 36.AIR COMPO N E NT S 9 3 1 3 1 1 1 2 1 0 3 1 3 3 3 0 2 4 2 5 2 6 6 7 2 7 2 8 3 2 1 4 2 9 4 2 1 8 1 5 5 1 7 1 8 2 3 2 1 2 2 2 2 2 1 4 2 4 5 1 9 1 9 2 0 2 1 2 2 3 4 3 5 3 6 4 0 1 6 3 8 3 9 3 6 3 7 4 1 4 4 4 3 4 3
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 #05 400-71466 CON VEYOR COVER 3020(XL) ASSY 1
2 400-93821 CONV_COVER_L_XL (1)
3 400-93822 CONV_SIDE_COVER_L_XL (1)
4 400-93823 CONV_UPPER_COVER_L_XL (1)
5 400-97774 CONV_COVER_R_XL (1)
6 400-97775 CONV_SIDE_COVER_R_XL (1)
7 400-97776 CONV_UPPER_COVER_R_XL (1)
8 400-92186 EN_COVER_SHUTTER_U_XL (2)
9 400-92187 EN_COVER_SHUTTER_B_XL (2)
10 400-27245 CONVEYOR COVER STOPPER(E EN) (2)
11 SM-0040601-SC SCREW M 4X0.7 L=6 (42)
12 400-01490 T APE (3.6)
13 E1143-721-000 WOOLEN CLOTH PAPER (4)
14 E5721-729-000 LABEL (2)
15 #01 401-21687 ASM_BANK_COVER_F _XL(F_BANK) 1
16 400-93677 BANK_COVER_FL_L (1)
17 SL-3061232-TN SCREW (4)
18 400-93678 BANK_COVER_FR_L (1)
19 SL-3061232-TN SCREW (4)
20 400-93676 BANK_COVER_FC_L (1)
21 400-93722 BANK_COVER_PLATE_L (2)
22 SL-3061232-TN SCREW (8)
23 SL-3061232-TN SCREW (4)
24 HM-0010100-10 F ILTER (2)
25 SL-4030691-SC SCREW M3 L=6 (4)
26 401-38682 F EEDER_SIDE_COVER_F_ASM(F_BANK (1)
27 401-34628 F EEDER_SIDE_COVER_FR _F (1)
28 SL-6040892-TN BOLT (4)
29 HX-0032600-0B BUSH (1)
30 SM-3030552-TN SCREW M 3 L=5 (8)
31 NM-6030001-SC NUT M3X0.5 TYPE1 (4)
32 401-13966 SPRING_TYPE_HINGE (2)
33 401-14891 GUARD_COVER_B_L_F (1)
34 401-14298 GUARD_COVER_POLE (1)
35 SM-3030552-TN SCREW M 3 L=5 (10)
36 SM-6031602-TN SCREW M 3 L=16 (1)
37 NM-6030001-SC NUT M3X0.5 TYPE1 (1)
38
#06
400-99492 BOTTOM_HOLE_C OVER 4
39
#06
SL-3061232-TN SCREW 16
40 400-93722 BANK_COVER_PLATE_L 2
41 SL-3061232-TN SCREW 8
42
#02
401-21688 ASM_BANK_COVER_R _XL(F_BANK) 1
43 SL-3061232-TN SCREW (4)
44 400-93680 BANK_COVER_RL_L (1)
45 SL-3061232-TN SCREW (4)
46 401-19663 BANK_COVER_RR_L (1)
47 SL-3061232-TN SCREW (4)
48 400-93679 BANK_COVER_RC_L (1)
49
#03
401-21689 ASM_BANK_COVER_F _XL(T_BANK) 1
50 SL-3061232-TN SCREW (4)
51 400-93710 CHIP_COVER (1)
52 SL-6030692-TN SCREW M3 L=6 (2)
53 HM-0010100-10 F ILTER (2)
54 SL-4030691-SC SCREW M3 L=6 (4)
55 400-93686 T _BANK_COVER_FL_L (1)
56 SL-3061232-TN SCREW (5)
57 SM-6040802-TN SCREW (2)
58 401-14174 T _BANK_COVER_FR_L (4)
59 SL-3061232-TN SCREW (6)
60 SM-6040802-TN SCREW (2)
61 400-93682 T _BANK_COVER_FCL_L (1)
62 400-01512 COVER STUD YF (4)
63 SL-3061232-TN SCREW (1)
64 400-93683 T _BANK_COVER_FCR_L (1)
65 SM-3061052-TN SCREW M 6 L=10 (1)
66 401-38683 F EEDER_SIDE_COVER_F_ASM(T_BANK (1)
67 401-34629 F EEDER_SIDE_COVER_FR _NSO (1)
68 SL-6040892-TN BOLT (4)
69 HX-0032600-0B BUSH (1)
70 401-14890 GUARD_COVER_B_L_T (1)
71 NM-6030001-SC NUT M3X0.5 TYPE1 (4)
72 401-13966 SPRING_TYPE_HINGE (2)
73 401-14298 GUARD_COVER_POLE (1)
74 SM-3030552-TN SCREW M 3 L=5 (10)
75 SM-6031602-TN SCREW M 3 L=16 (1)
76 NM-6030001-SC NUT M3X0.5 TYPE1 (1)
77 SM-3030552-TN SCREW M 3 L=5 (8)
78 400-80833 SPONGE (0.5)
79
#04
401-21690 ASM_BANK_COVER_R _XL(T_BANK) 1
80 400-01512 COVER STUD YF (2)
81 SM-6040802-TN SCREW (2)
82 401-14175 T _BANK_COVER_RR_L (1)
83 400-80833 SPONGE (0.5)
84 SL-3061232-TN SCREW (5)
85 400-01512 COVER STUD YF (2)
86 SM-6040802-TN SCREW (6)
87 400-93684 T _BANK_COVER_RCL_L (1)
88 400-93685 T _BANK_COVER_RCR_L (1)
89 SL-3061232-TN SCREW (4)
90 400-93710 CHIP_COVER (1)
91 SL-6030692-TN SCREW M3 L=6 (2)
92 400-93688 T _BANK_COVER_RL_L (1)
93 SL-3061232-TN SCREW (5)
- -
36.AIR COMPONENTS
9
3
1 3
1 1
1 2
1 0
3 1
3 3
3 0
2 4
2 5
2 6
6
7
2 7
2 8
3 2
1 4
2 9
4
21
8
1 5
5
1 7 1 8
2 3
2 1
2 2
2 2
2 1
4 2
4 5
1 9
1 9
2 0
2 1
2 2
3 4 3 5
3 6
4 0
1 6
3 8
3 9
3 6
3 7
4 1
4 4
4 3
4 3
- -

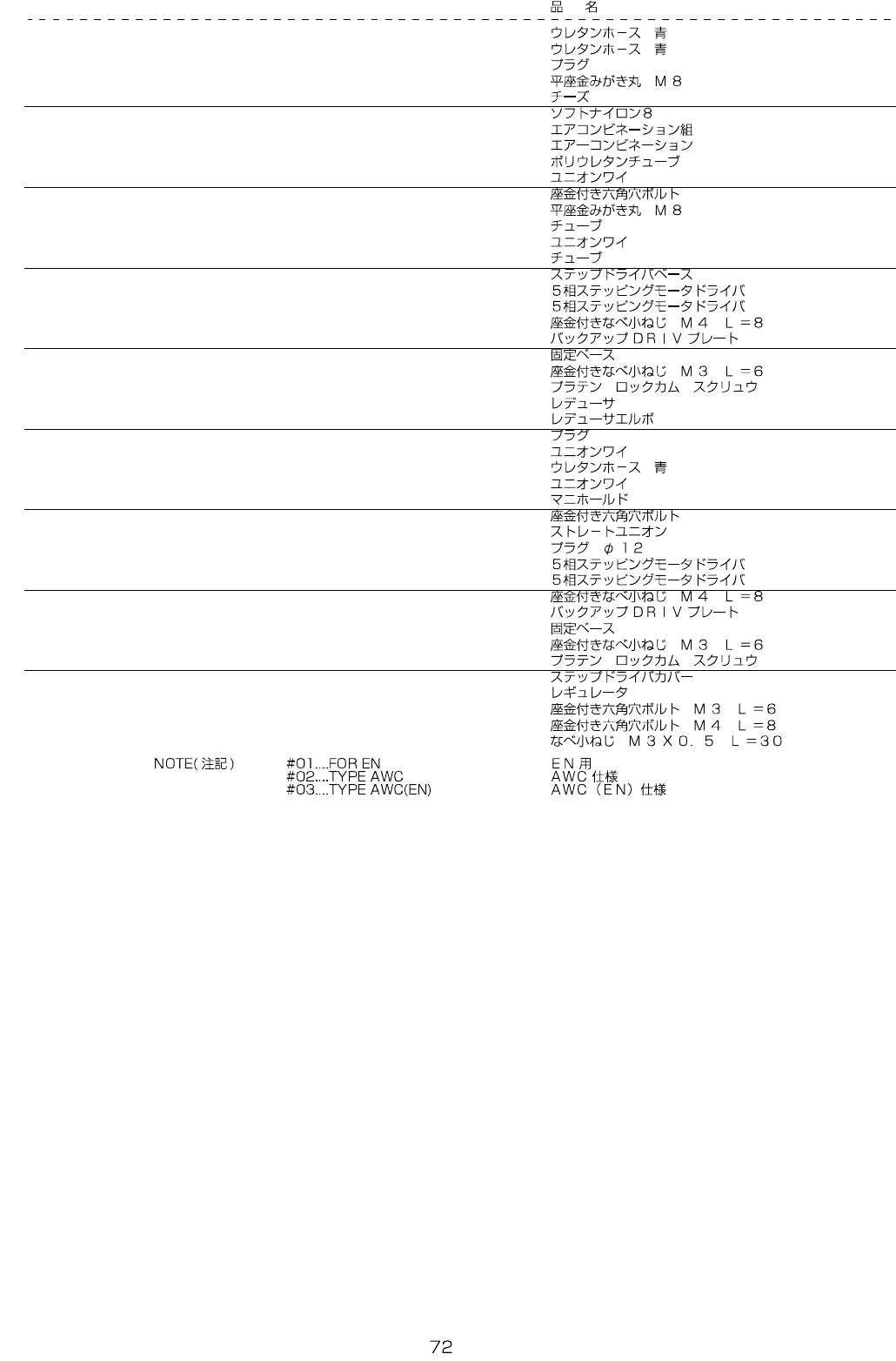

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 BT-0600400-EC TUBE HOSE, BLUE 12
2 BT-0800501-EA TUBE HOSE, BLUE 2.5
3 PJ-0252000-03 PLUG 1
4 WP-0841601-SC WASHER 8.4X17.4X1.6 2
5 PJ-3050600-04 TEE 2
6 400-54839 SOFT NYLON 8 20
7 400-94700 AIR COMBINATION ASSY 1
8 400-63483 AIR COMBINATION (1)
9 BT-1000651-EB POLYURETHANE TUBE (1.7)
10 PJ-3081000-01 UNION Y (1)
11 SL-6061692-TN BOLT (4)
12 WP-0841601-SC WASHER 8.4X17.4X1.6 (4)
13 BT-1200801-EF TUBE (0.45)
14 PJ-3080600-03 Y UNION (1)
15 BT-1200801-EF TUBE (1)
16 401-14030 STEP DRV BASE 1
17 HX-0042000-00 5 PHASE STEP DRIVER 1
18
#01
HX-0054500-00 5 PHASE STEP DRIVER 1
19 SL-4040891-SC SCREW M4X8 3
20 400-00534 BACK UP DRIV PLATE 1
21 HX-0029400-00 FIXED BASE 3
22 SL-4030691-SC SCREW M3 L=6 3
23 E1038-871-000 PLATEN LOCK CAM SCREW 1
24 PJ-3010600-03 REDUCER 6
25 PJ-3040600-01 REDUCER ELBOW 4
26 PX-9500070-00 PLUG 2
27 PJ-3080600-03 Y UNION 2
28 BT-0600400-EC TUBE HOSE, BLUE 8
29 PJ-3080600-03 Y UNION (1)
30 PJ-3091200-03 MANIFOLD 1
31 SL-6042092-TN SCREW M4 L=20 2
32 PJ-3030600-01 STRAIGHT UNION (4)
33 PJ-0200000-03 PLUG ROUND 12 1
34
#02
HX-0042000-00 5 PHASE STEP DRIVER 1
35
#03
HX-0054500-00 5 PHASE STEP DRIVER 1
36
#02
SL-4040891-SC SCREW M4X8 3
37
#02
400-00534 BACK UP DRIV PLATE 1
38
#02
HX-0029400-00 FIXED BASE 1
39
#02
SL-4030691-SC SCREW M3 L=6 1
40
#02
E1038-871-000 PLATEN LOCK CAM SCREW 1
41 401-14029 STEP DRV COVER 1
42 PF-0200040-00 REGULATOR 1
43 SL-6030692-TN SCREW M3 L=6 6
44 SL-6040892-TN SCREW M4 L=8 3
45 SM-4033001-SC SCREW M3X0.5 L=30 2
